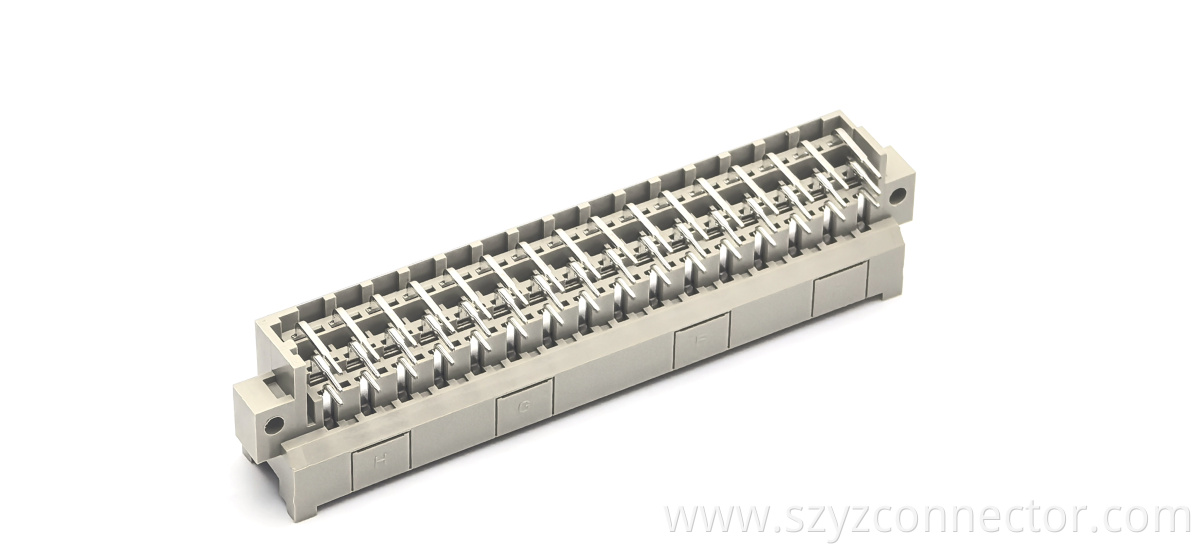

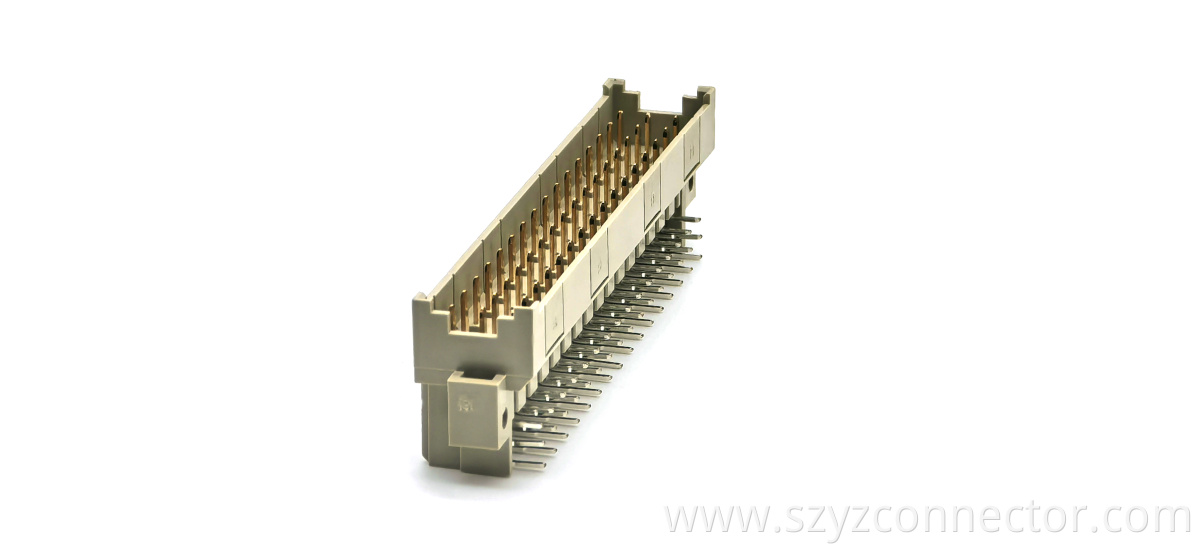

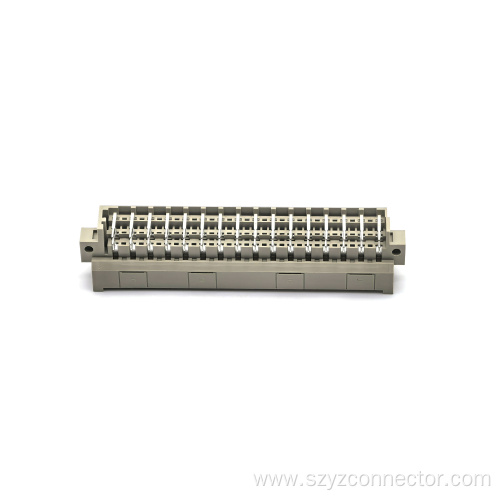

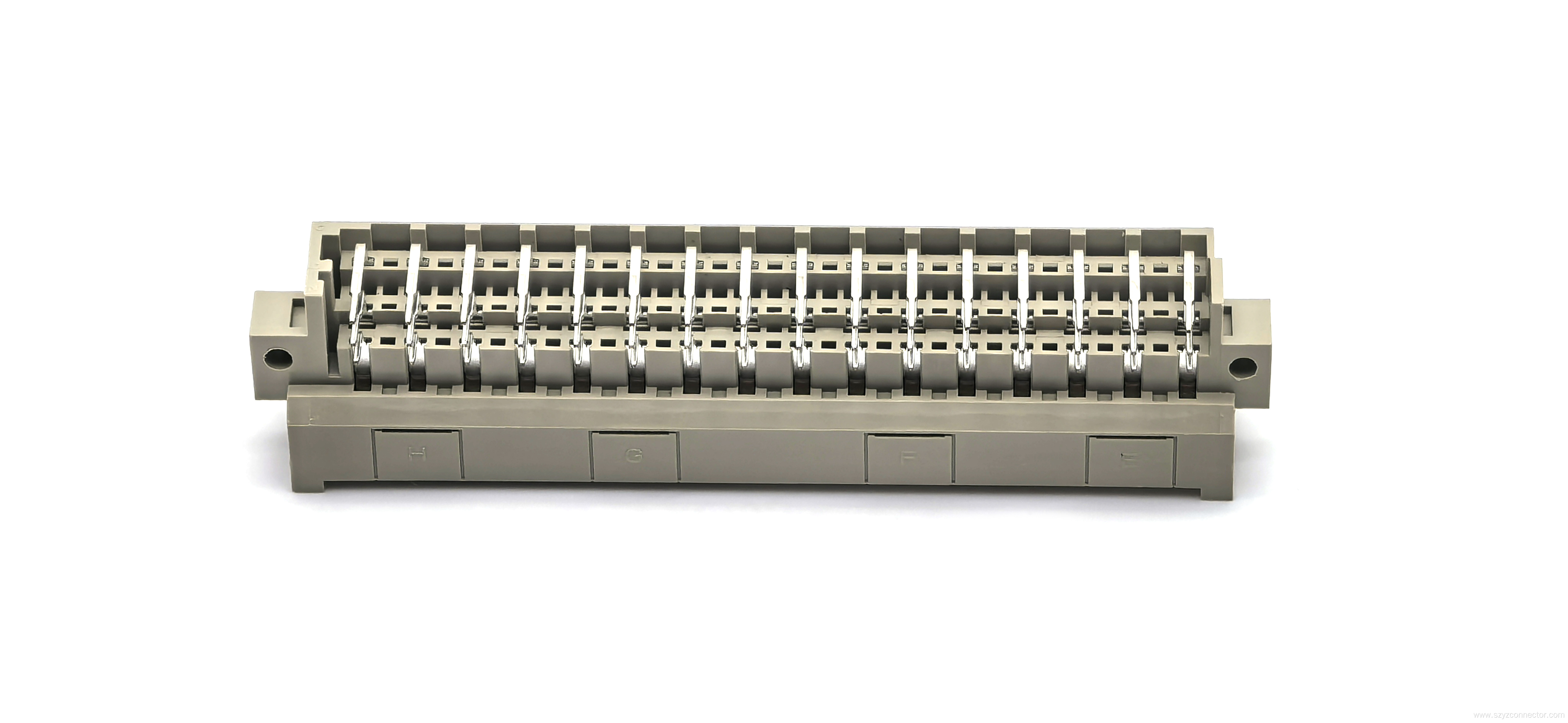

DIN 41612 Male Connector Three Row Right Angle 48P

DIN 41612 Male Connector Three Row Right Angle 48P

YZTECH has recently launched a 3-core DIN41612 Male Connectors with a total contact count of 48P.Compliant with the DIN41612 standard,its right-angle design facilitates secure mounting on PCB boards and is widely used as a socket connector in industrial control,consumer electronics,and communication equipment.Featuring a plug-and-socket configuration,the header connector ensures stable connections between circuit boards and chassis or Other devices through tight integration of the metal housing and pluggings,making it ideal for these applications.The three row DIN41612 connectors are available under the"DIN 41612 Connectors"category.

The contacts of the DIN41612 male connectors are made of gold-plated copper alloy,offering excellent corrosion resistance and high conductivity,with a maximum wave soldering temperature of 245°C±5°C to extend service life.The PBT resin insulation provides superior mechanical strength,thermal stability,and electrical insulation performance,enabling operation in harsh environments ranging from-55°C to+125°C.With a rated current of 5.6 A and voltage of 1500 V,this connector meets stringent high-power application requirements.

This DIN41612 connectors right angle is packaged in both boxes and cartons,with 22 units per box.The carton packaging provides effective protection for the connectors,ensuring their safe delivery to you.By choosing YZTECH electronic connectors,you are opting for industrial-grade connection solutions renowned for high reliability,long service life,and exceptional environmental adaptability,dedicated to serving you with excellence.
