3.96mm Pin Header

There are 4 products

Get Latest PriceModel:052943

3.5mm Pin Header Dual Rows Straight
Get Latest PriceModel:052942

3.5mm Pitch Pin Header Single Row Straight
Get Latest PriceModel:052941

3.96mm pitch male pin connector
Get Latest PriceModel:052940

3.96mm Pitch Header Single Row Right Angle

3.5mm Pin Header Dual Rows Straight

Brand:YZTECH
Min. Order:1 Piece/Pieces
Model No:052943
Transportation:Ocean,Land,Air
Packaging:Box Packaging
Supply Ability:4 million units/day
Place of Origin:China
Productivity:4 million units/day

yztech’s 3.5mm Pin Header Dual Rows Straight is a high-efficiency solution tailored for medium-to-high-density circuit connection scenarios. As an innovative model in the Pin Header series, its standard 3.5mm pitch and dual-row straight design...
3.5mm Pitch Pin Header Single Row Straight

Brand:YZTECH
Min. Order:1 Piece/Pieces
Model No:052942
Transportation:Ocean,Land,Air
Packaging:Box Packaging
Supply Ability:4 million units/day
Place of Origin:China
Productivity:4 million units/day

yztech’s meticulously crafted 3.5mm Pitch Pin Header Single Row Straight is an excellent choice for achieving stable and efficient connections in electronic devices. As a unique product in the Pin Header series, its standard 3.5mm pitch and...
3.96mm pitch male pin connector

Brand:YZTECH
Min. Order:1 Piece/Pieces
Model No:052941
Transportation:Ocean,Land,Air
Packaging:Box Packaging
Supply Ability:4 million units/day
Place of Origin:China
Productivity:4 million units/day

yztech’s 3.96mm pitch male pin connector is a core component for achieving stable connections between electronic devices. As a high-performance product in the Pin Header series, its standard 3.96mm pitch design precisely meets the diverse wiring...

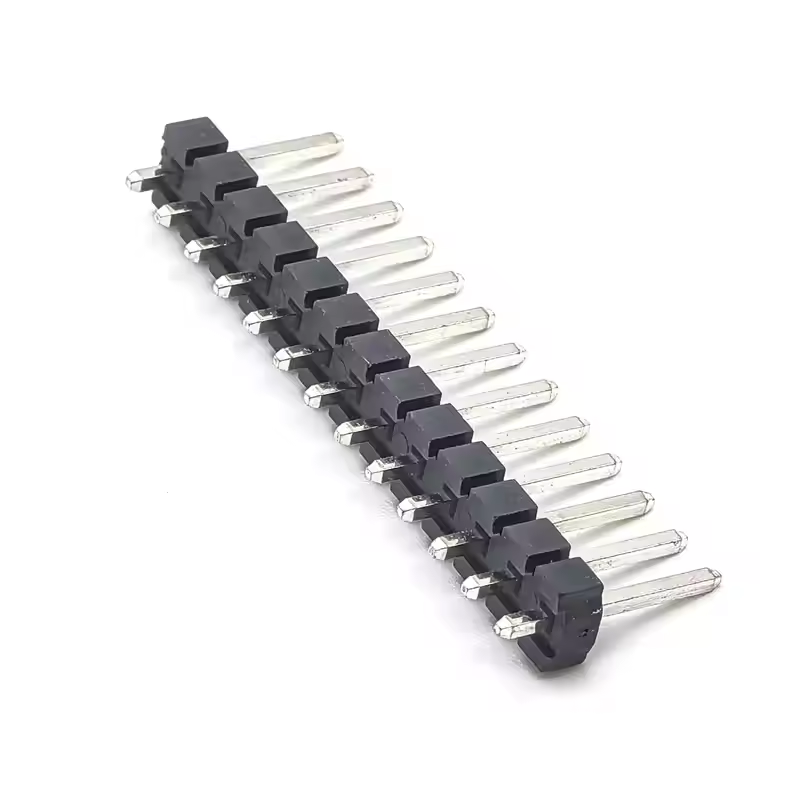

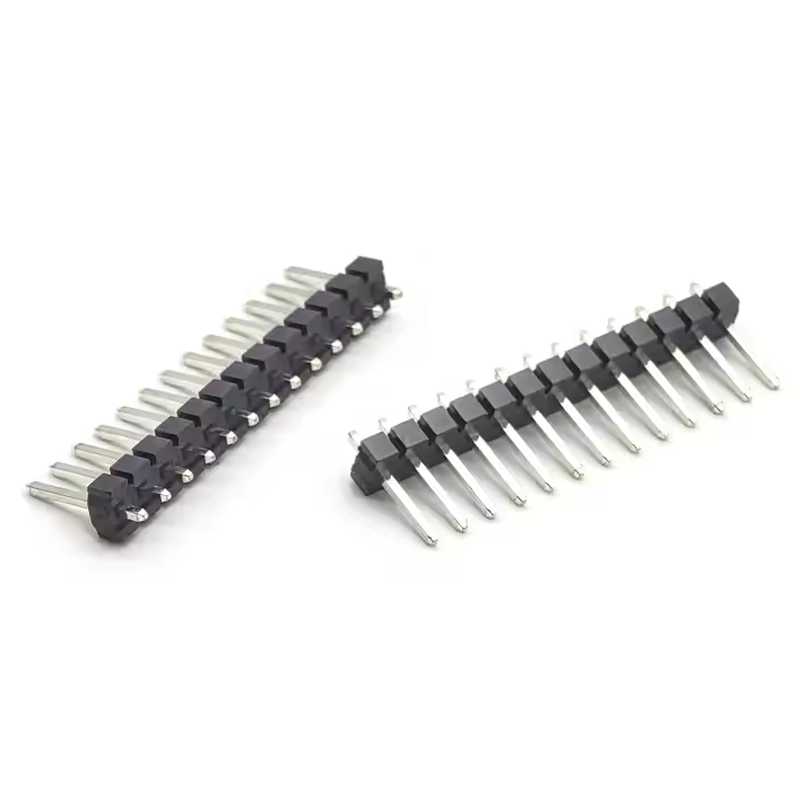

3.96mm Pitch Header Single Row Right Angle

Brand:YZTECH
Min. Order:1 Piece/Pieces
Model No:052940
Transportation:Ocean,Land,Air
Packaging:Box Packaging
Supply Ability:4 million units/day
Place of Origin:China
Productivity:4 million units/day

yztech’s newly developed 3.96mm Pitch Header Single Row Right Angle is a key solution for space constraints and complex wiring in electronic devices. As a featured product in the Pin Header series, its standard 3.96mm pitch and single-row...

3.96mm Pin Header

The 3.96mm Pin Header is a specialized electronic connection component that stands out for its wide pitch design, offering enhanced functionality and adaptability in various applications. Precision-engineered with high-quality materials, it combines excellent electrical conductivity with robust mechanical strength. The distinctive 3.96mm pitch provides larger spacing between pins, which not only simplifies complex assembly processes but also improves heat dissipation and reduces interference.

Product Philosophy

Please listen to us

Our product philosophy for 3.96mm Pin Headers is centered around "Power, Precision, Reliability, and Innovation". "Power" emphasizes our focus on meeting high-power application needs; "Precision" reflects our commitment to accurate manufacturing and strict quality control; "Reliability" is the core, ensuring stable performance in every application; "Innovation" drives us to continuously improve product features and adapt to emerging market demands. By adhering to these principles, we strive to be the leading provider of 3.96mm Pin Headers in the global market.

Original concept

Product Features

Ultra high current carrying capacity

Engineered to carry currents up to 20A, it meets the high-power demands of heavy-duty motors, industrial power supplies, and electric vehicle charging modules.

Top quality materials and craftsmanship

Constructed from oxygen-free copper pins with thick nickel-gold plating and high-strength LCP insulators, it resists corrosion, oxidation, and wear for long-term stable operation.

Efficient heat dissipation structure

The wide pin layout increases the heat dissipation area, enabling rapid heat transfer and preventing overheating in high-power, continuous-operation scenarios.

Low electromagnetic interference design

Special shielding structures and optimized pin arrangements minimize electromagnetic interference, ensuring accurate signal transmission in sensitive electronic systems.

Application Scenarios

Smart grid system

Applied in smart grid substations, it enables stable power distribution and communication between transformers, circuit breakers, and monitoring devices.

Satellite communication equipment

Integrated into satellite communication modules, it withstands the extreme conditions of space and maintains stable connections for data transmission.

New energy storage power station

Utilized in energy storage systems of new energy power plants, it handles high currents and voltages during charging and discharging processes.

Industrial robot arm

Installed in industrial robot arms, it endures repeated movements and vibrations, ensuring consistent operation of motors and sensors.

FAQ

Can the 3.96mm Pin Header be customized with anti-slip features?

Yes, we can add anti-slip textures or locking mechanisms to the insulator surface according to your requirements.

Are there any flame-retardant options for 3.96mm Pin Headers?

Yes, all our 3.96mm Pin Headers meet UL 94 V-0 flammability standard, and we also offer models with additional flame-retardant coatings.

What is the difference between single-row and double-row 3.96mm Pin Headers?

Single-row headers are suitable for simple connection requirements, while double-row headers can accommodate more pins in a limited space, increasing connection density.

How to ensure the parallelism of 3.96mm Pin Headers during installation?

Use a positioning jig or template to align the pin header accurately with the PCB holes before soldering, and check with a microscope or magnifying glass.
