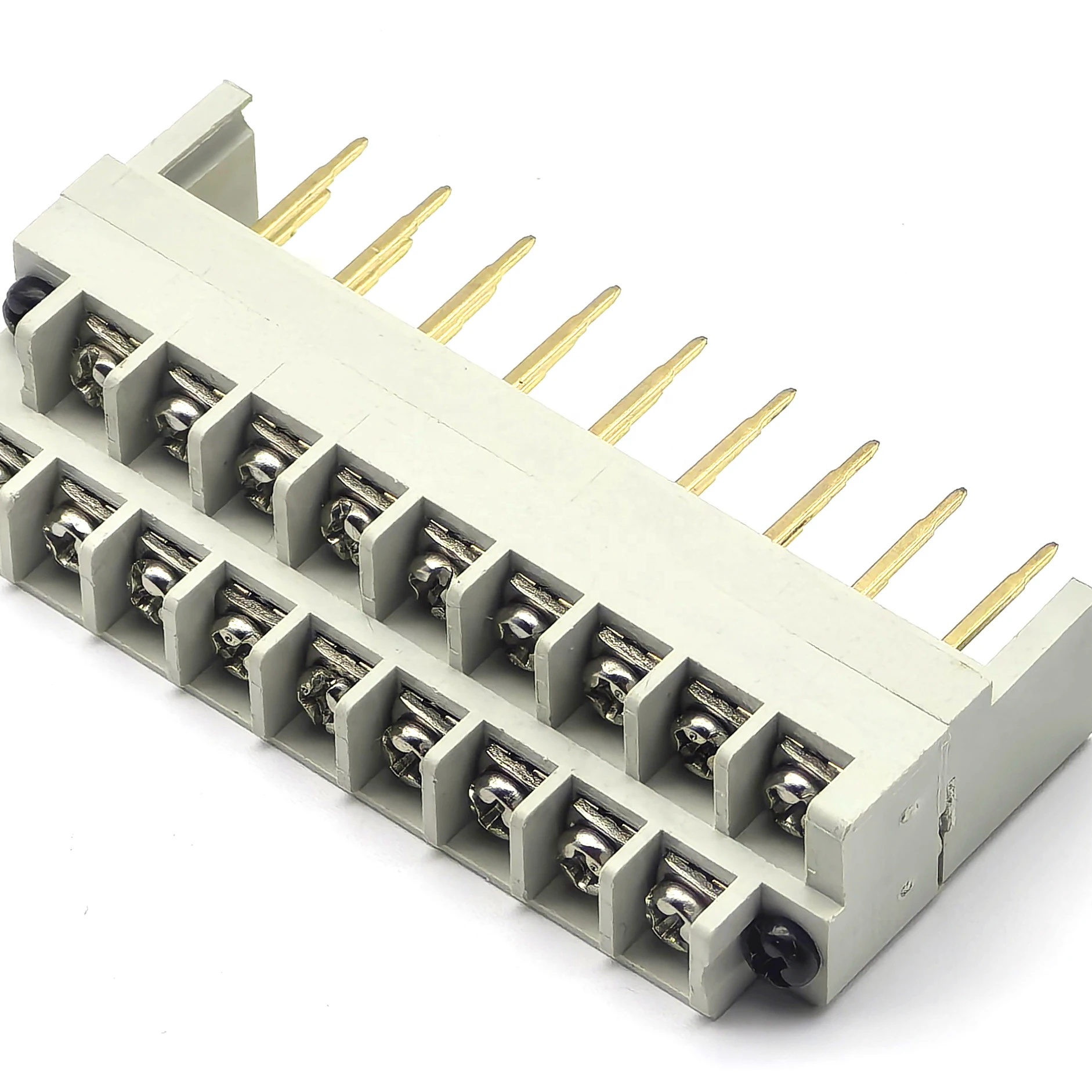

Barrier Terminal Blocks: Key Specifications & Technical Parameters

1.Current Rating (Amps):A critical specification indicating the maximum current the terminal block can safely carry, ranging from a few amps to several hundred.

2.Insulation Resistance: High-quality barrier terminal blocks exhibit high insulation resistance to prevent current leakage and short circuits.

3.Working Voltage (Volts): Specifies the safe operating voltage range for the terminal block.

4.Temperature Range: Defines the operating temperature limits (in °C) to ensure performance under various environmental conditions.

5.Size & Pitch: Physical dimensions and pin spacing vary by model, with manufacturers offering multiple options for different spatial requirements.

6.Materials: Typically constructed from metal (e.g., copper alloy) for durability or plastic for lightweight applications

7.Connection Method: Options include screw terminals, spring-clamp terminals, or compression lug terminals, each with distinct characteristics.

8.Additional Features: Some barrier terminal blocks offer added functionalities like marking labels, indicators, or EMI/RFI shielding.

Selecting the appropriate terminal block requires careful consideration of current, voltage, environmental conditions, and specific application requirements. Always consult the manufacturer's product specifications and data sheets, and adhere to all relevant safety and electrical standards during installation and use.
