Beyond the Ordinary: How Machined Pin Headers Are Changing the Connectivity Game

In electronic devices, the Pin Header is a fundamental component for board-to-board connections and signal transmission. They come in various shapes, primarily machined and square, which significantly impact their performance.

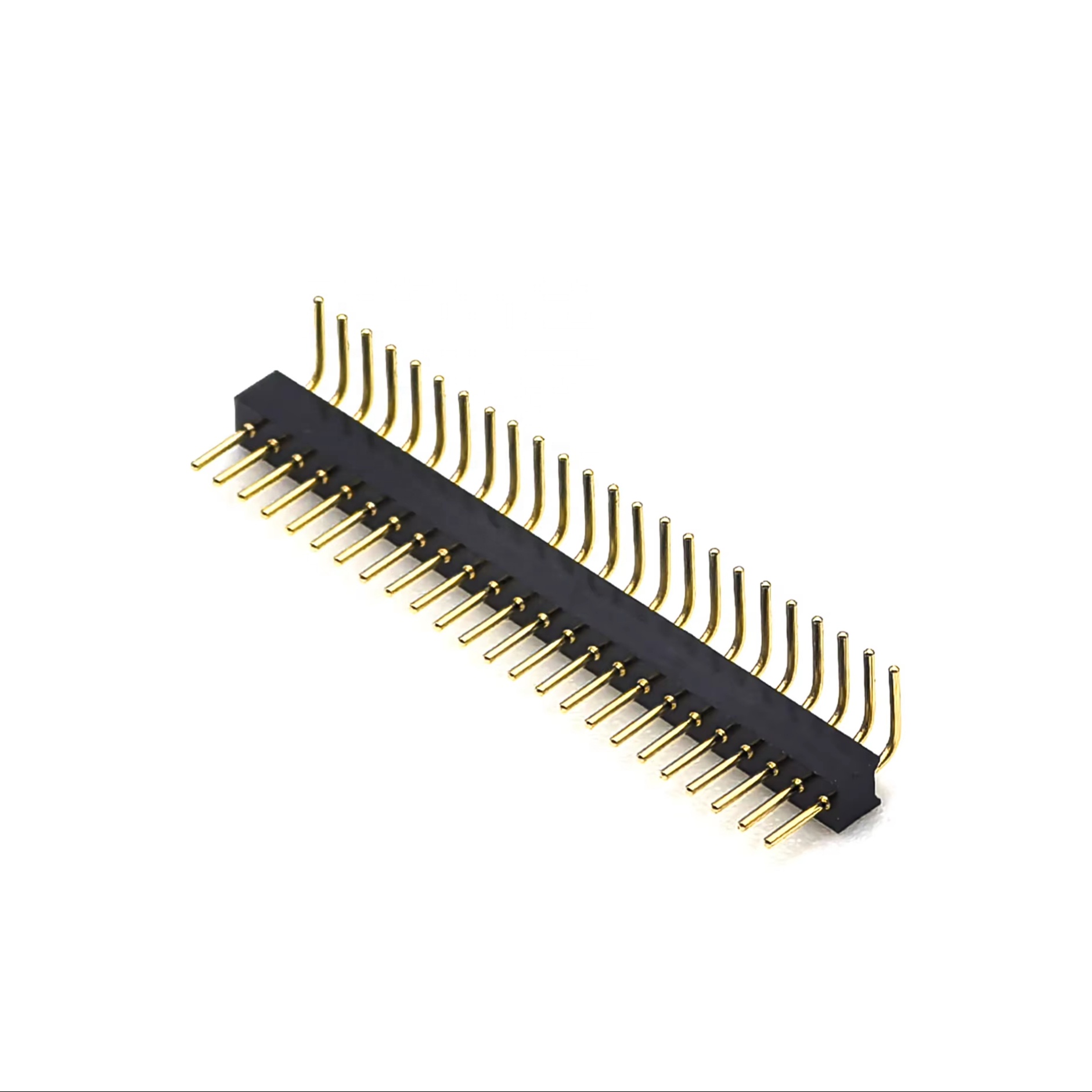

1.27mm Pitch Machined Pin header Connector Right Angle H2.2mm 1*24P

Key Differences Between machined and Square Pin Headers

1.  Connection Method: machined pins often use a threaded locking mechanism for secure mating, whereas square pins typically rely on a press-fit or friction-based connection.

2.  Contact Area: A machined pin header with a machined profile generally offers a larger and more consistent contact area than a square one. This superior contact leads to a more reliable connection and reduces signal distortion.

3.  Signal Integrity: The cylindrical shape of a machined pin header helps minimize signal interference and crosstalk, thereby protecting signal quality. Square pins can be more susceptible to such issues.

4.  Environmental Sealing: The design of machined pin headers more easily accommodates seals, providing better IP-rated waterproofing and making them suitable for harsher environments. Square pins are less adept at this.

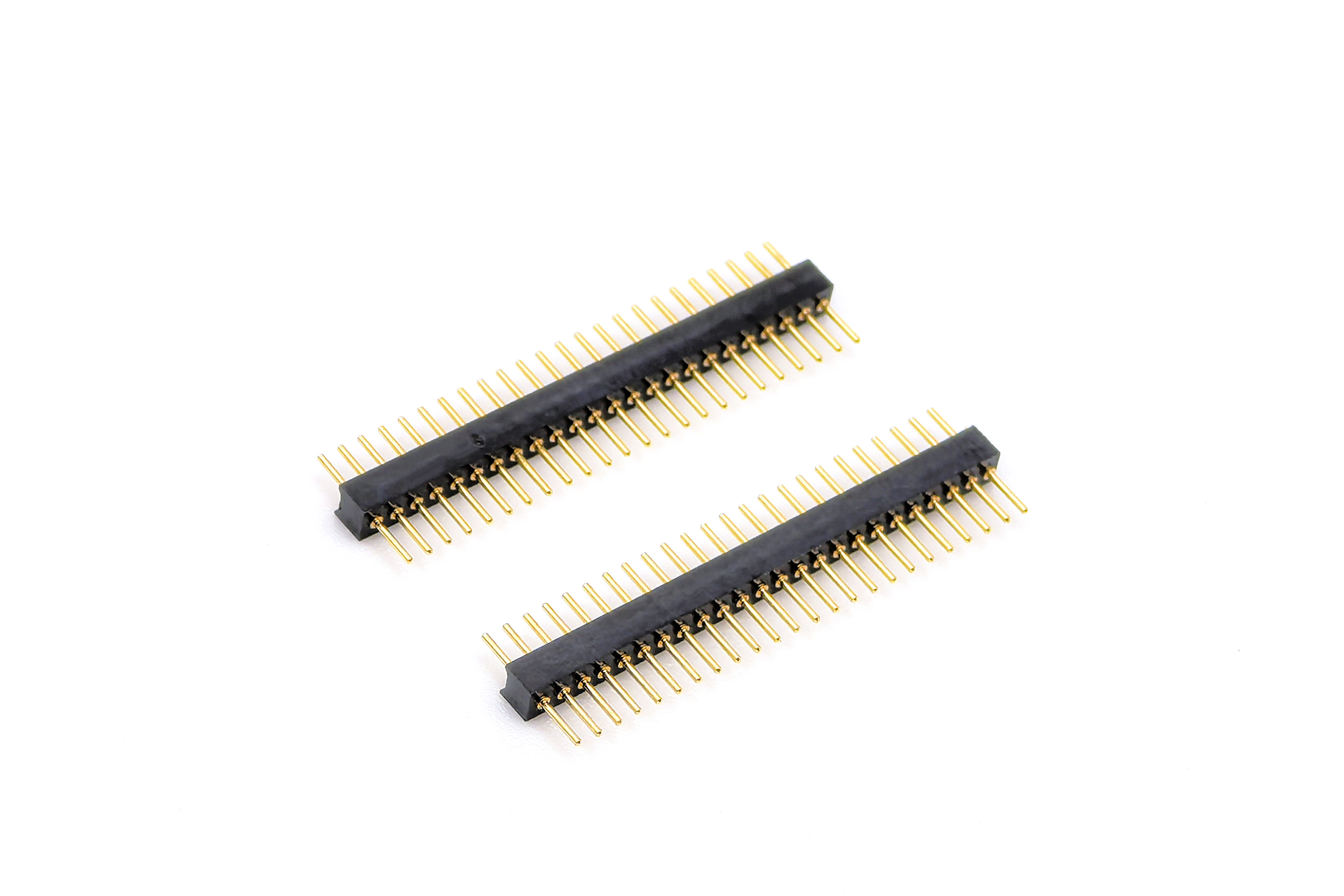

1.27mm Pitch Machined Pin header

Conclusion

For critical signal transmission applications requiring superior connectivity, minimal interference, and better distortion resistance, a machined machined pin header is the superior choice. This applies to common pitches like the 2.54mm Pin Header, 2.0mm Pin Header, and 1.27mm Pin Header. However, for simpler, cost-sensitive applications where high performance is less critical, a square pin header may be a sufficient and economical option.
