How to Master Jumper Cap Installation on Pin Headers

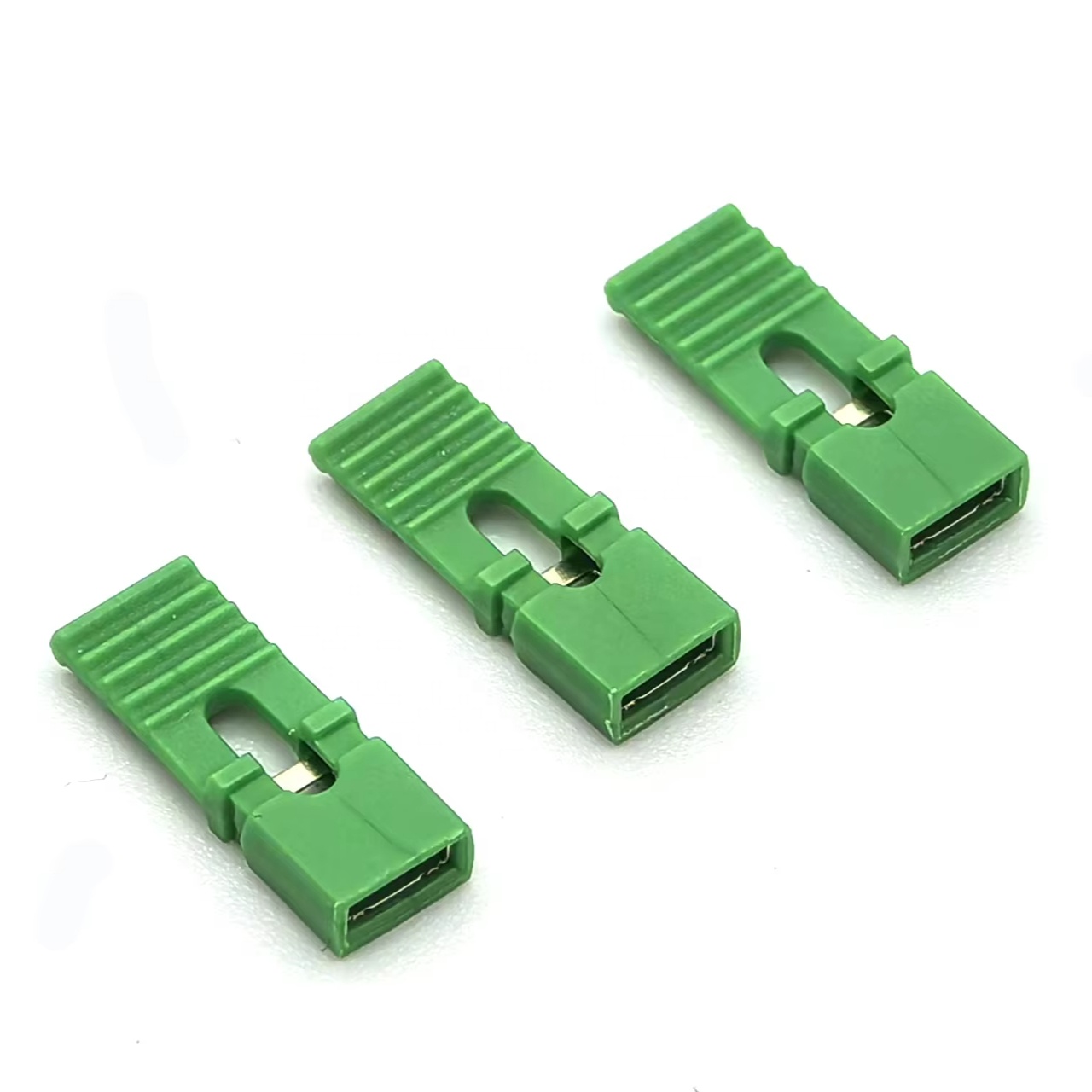

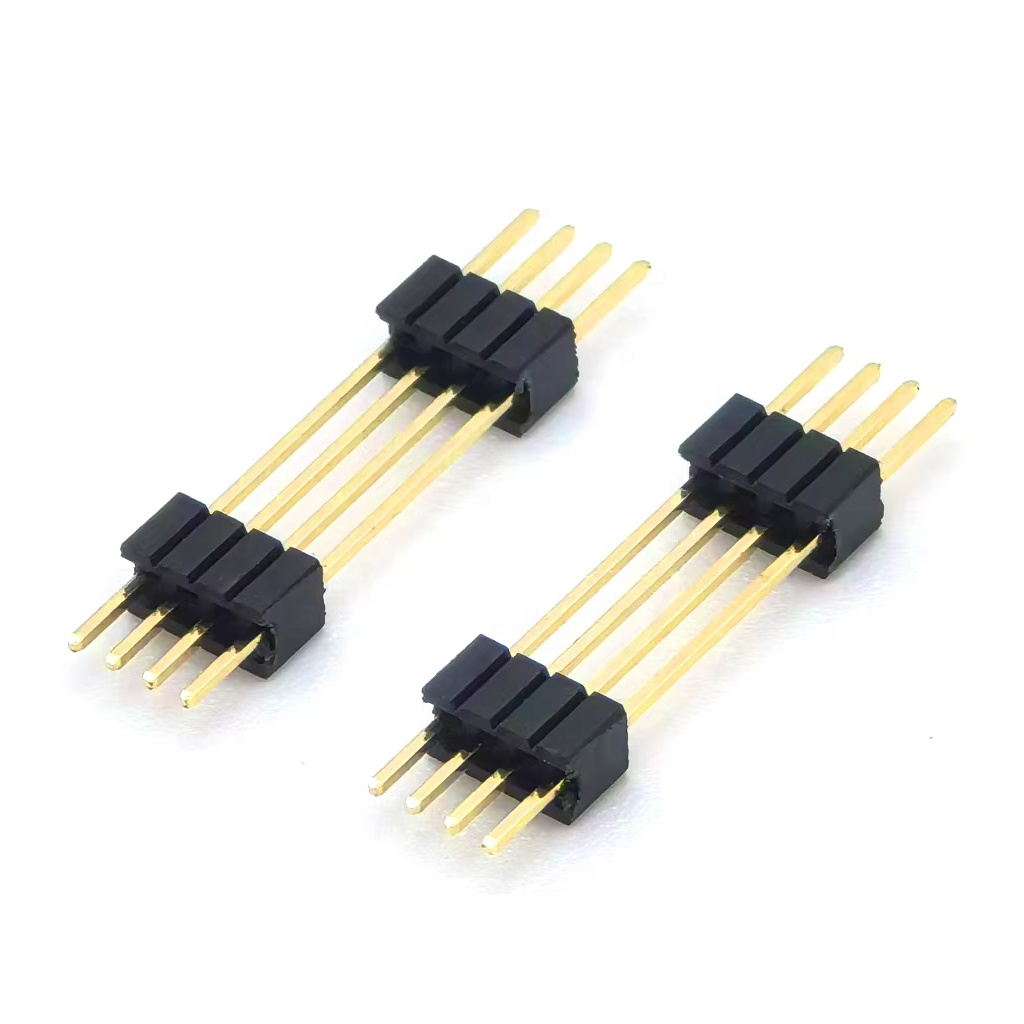

A Pin Header is a fundamental electronic connector in electronics, while a Jumper Cap (or mini jumper) serves to connect multiple pins to configure circuits. Here's how to properly connect them:

Tools Required: Pin header, jumper cap, screwdriver/wrench, and soldering equipment.

Connection Procedure:

1.Identify Components: Locate the target pin header and appropriate jumper cap.

2.Secure Header: Use tools to fix the pin header vertically in the device's socket, ensuring proper alignment with the circuit board.

3.Insert Jumper: Carefully insert the jumper cap's metal contacts into adjacent pin header sockets, rotating gently to secure both ends.

4.Solder Connection: Apply solder to permanently join the jumper cap and pin header,creating a reliable electrical connection.

5.Repeat:Follow the same process for additional connections.
