Navigating the Landscape: A Guide to Pin Header and Socket Connector Types

Pin Header and Female Header connectors,classified as board-to-board electronic connector types,are essential electronic components for PCB interconnections.Here's how these pin header connector systems are categorized:

Classification Criteria:

1.Pitch Spacing:Female headers are available in 0.8mm,1.0mm,1.27mm,2.0mm,and 2.54mm configurations

2.Plastic Height&Protrusion:Categorized by insulator height and presence of half/full bumps

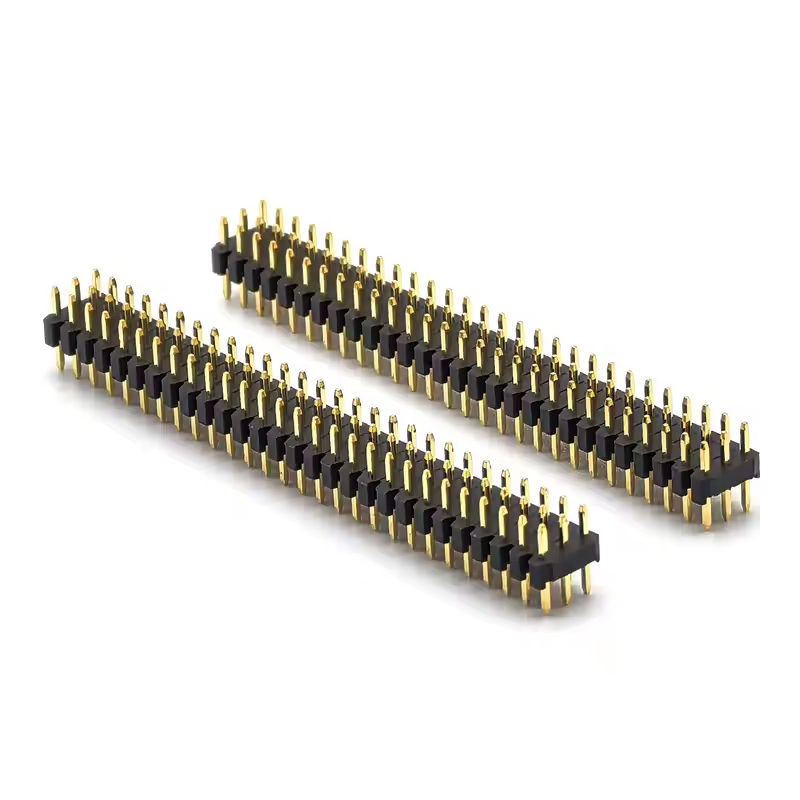

3.Row Configuration:Single-row,double-row,3-row,and maximum 4-row pin header options

4.Mounting Orientation:180°(S-type),90°(W-type),and SMT(T-type)variants

5.Enhanced Features:Elevated versions and positioning posts(internal or ear-type)

Shenzhen YZ-TECH Electronic Co.,Ltd.maintains stringent quality standards across all pin header connector categories,providing comprehensive electronic Connector solutions with continuous improvement and full customer satisfaction as our core commitment.Our complete electronic components portfolio ensures reliable interconnection solutions for diverse application requirements.
