Navigating the World of PCB Connectors: Types and Applications Explained

Common PCB Connector Types:

   Socket Connector: Removable interface for frequent mating cycles

   Terminal Connector: High-current applications for power supplies and motors

   Spring Connector: High-frequency connection/disconnection requirements

   header connector: Pin-based interface for expansion boards

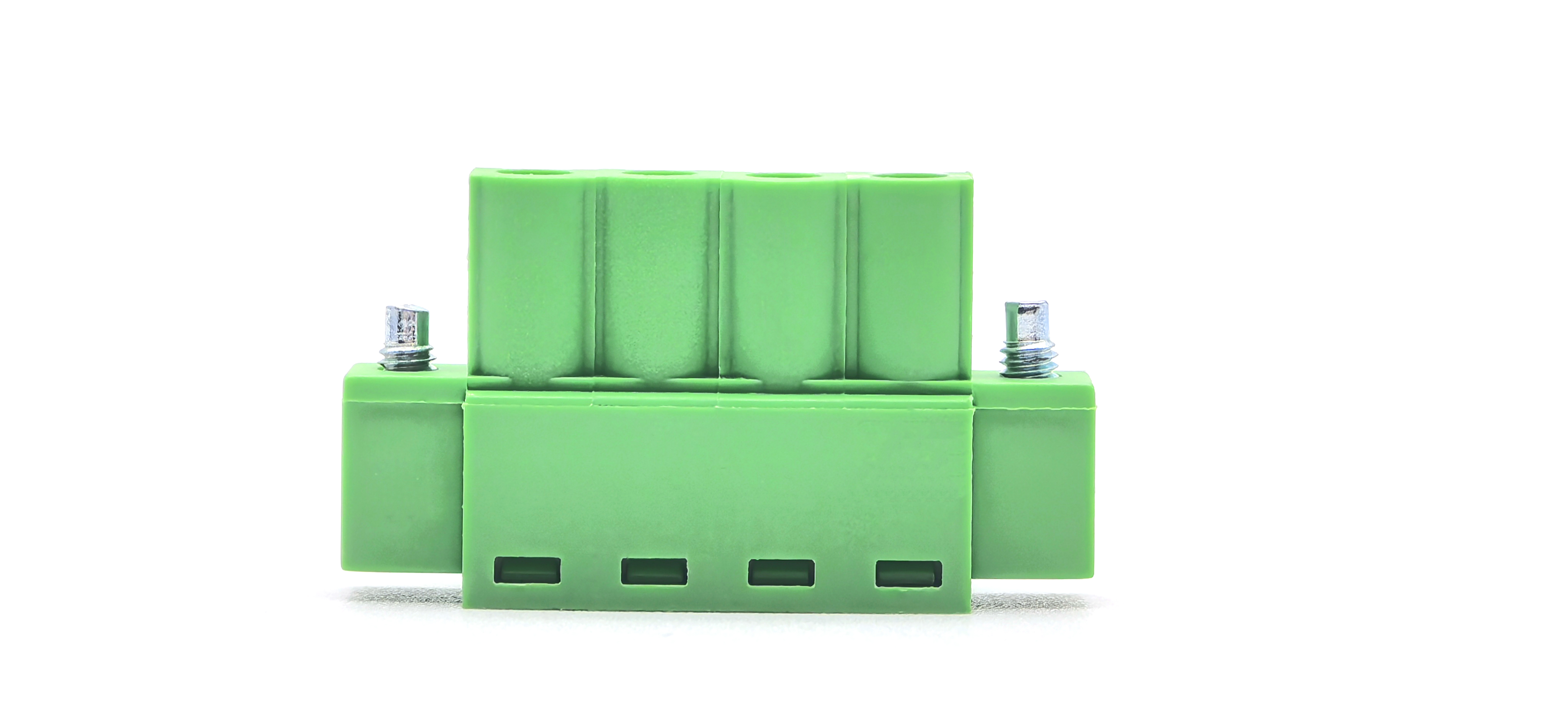

   terminal block connector: Modular high-current connections with removable terminals

   Circular Connector: Omnidirectional mating capability

   Locking Connector: Secure connections with anti-vibration features

   Solder Connector: Permanent PCB-mounted solutions

Each electronic connector type serves specific application needs, offering distinct advantages in reliability, current capacity, and mounting configurations. These electronic components provide versatile interconnection solutions for various electronic systems and industrial applications.
