The Bridge in the Electronics World: An In-Depth Analysis of the Role of Vertical Through-Hole Female Headers

In modern electronics,from smartphones to industrial control boards, components rely on connectors for organized communication.Among these,the straight-pin Female Header serves as a fundamental “bridge” and “socket” in circuit design.



What is a Female Header?

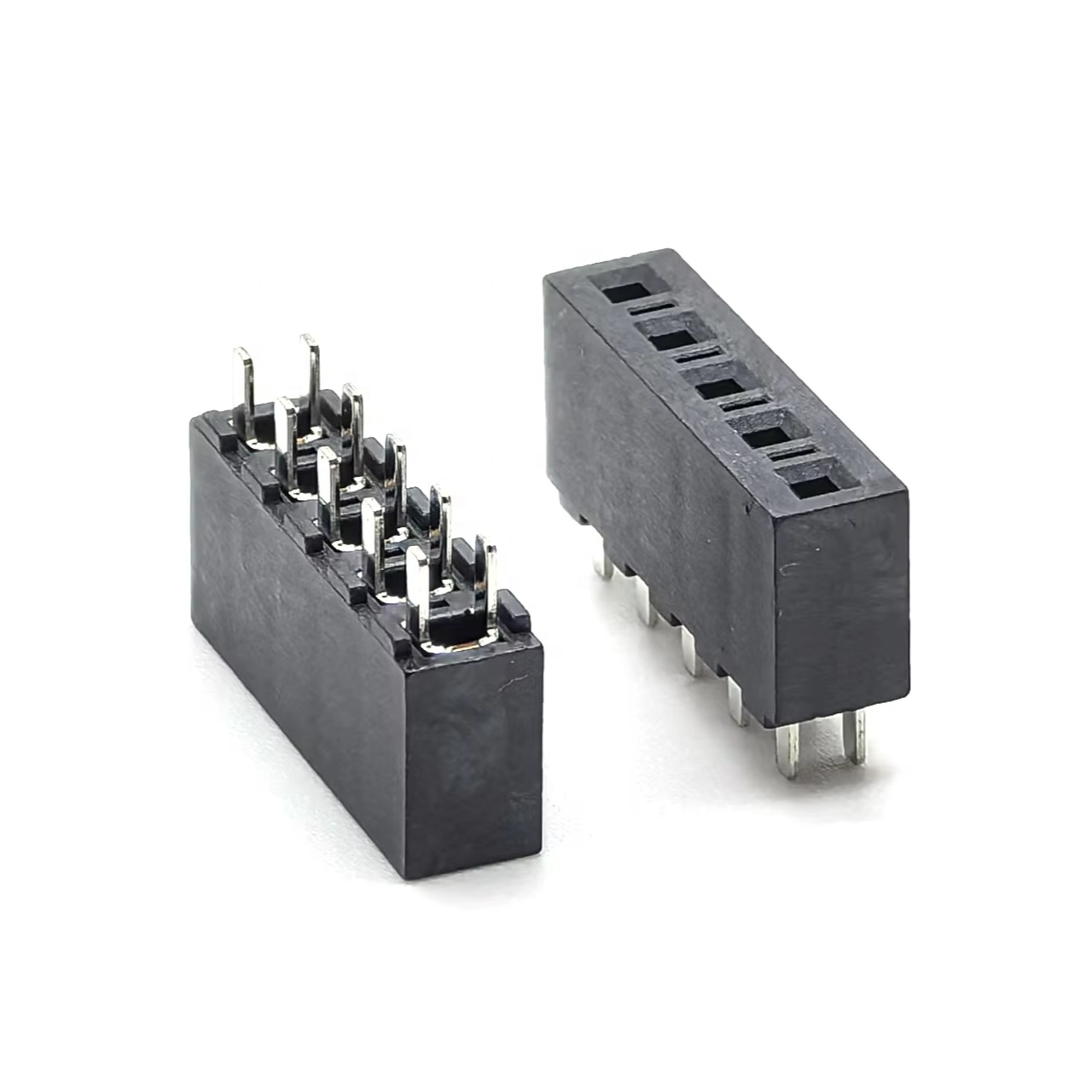

A female header is a multi-pin Connector arranged in single or dual rows. Its straight pins are designed for direct soldering onto a PCB’s surface.It pairs with a Pin Header or DuPont wire connectors.Inside,the metal terminals (often phosphor bronze) feature spring-loaded contacts that grip the pin header firmly,ensuring reliable electrical connection. The housing is made of high-temperature plastics like PBT or nylon.Common pitch sizes include 2.54mm, 2.0mm, 1.27mm, and 1.0mm Female Header variants,with the 2.54mm Female Header being the most widely used.

Key Functions of Female Headers

1. Reliable Electrical Connection: The primary role—ensuring stable, low-resistance transmission of power and signals between boards or modules.

2. Modular Design&Easy Assembly: Female headers enable modular electronics, such as connecting a core motherboard to daughterboards (sensors, communication modules, displays) or linking development boards like Arduino with expansion shields.This allows easy assembly, replacement, and upgrades without soldering.

3. Debugging & Testing Interface:Headers provide access points for testing probes, programmers, and debugging tools during development and production.

4. Mechanical Support:Together with the pin header, the female header offers mechanical stability, securing boards against vibration or movement.

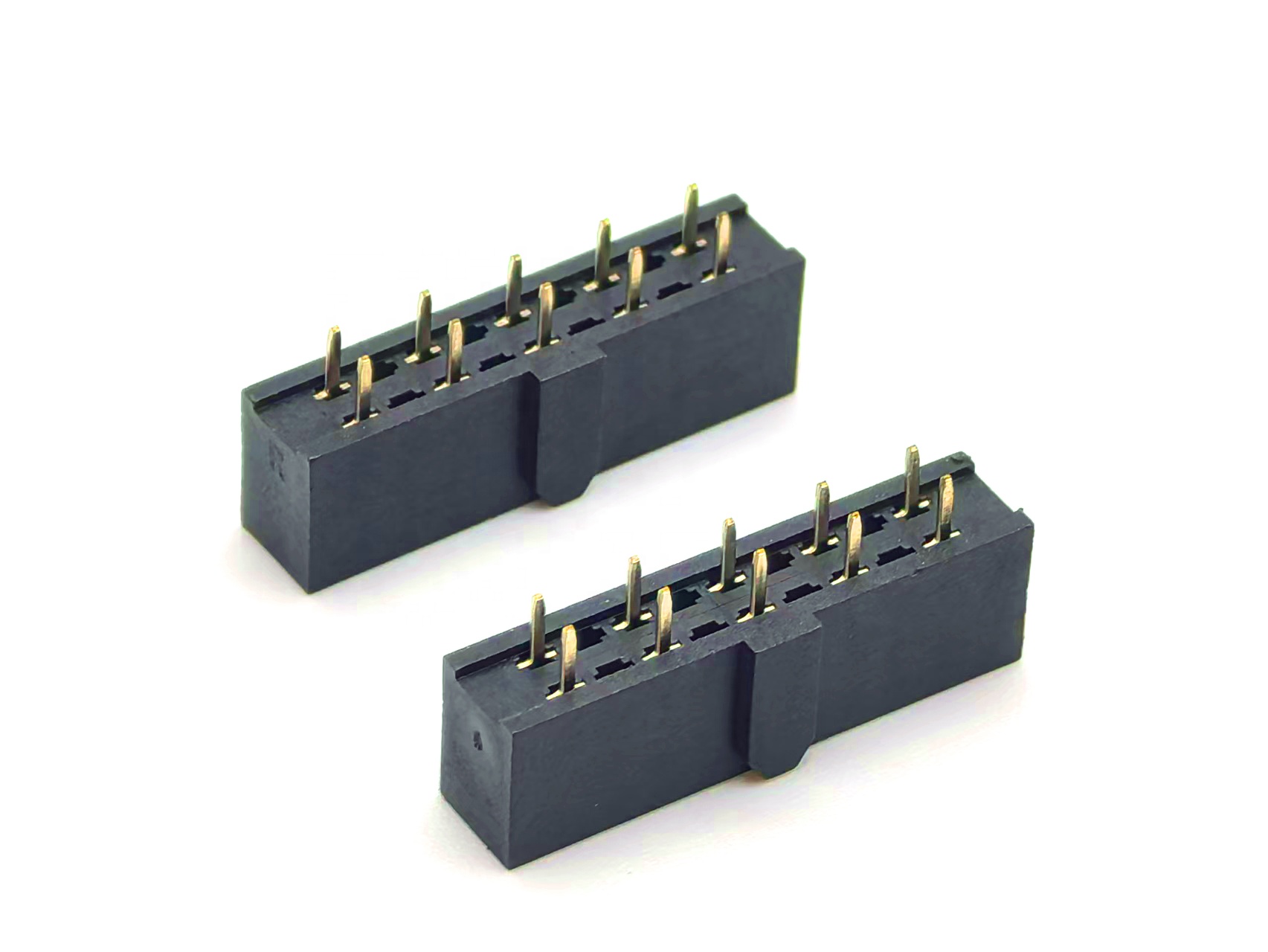

5. Polarization & Anti-misalignment: Housing features like tabs or grooves ensure correct mating orientation, preventing reverse insertion.

Common Applications

- Development boards (e.g., Arduino) and expansion ecosystems.

- Internal connections in computers, such as legacy IDE drives.

- Industrial control boards interfacing with I/O cards.

- Consumer electronics:TVs,routers connecting display modules or Wi-Fi boards.



Selection Criteria

When choosing a female header, consider:

- Number of pins (e.g.,1x40P, 2x20P)

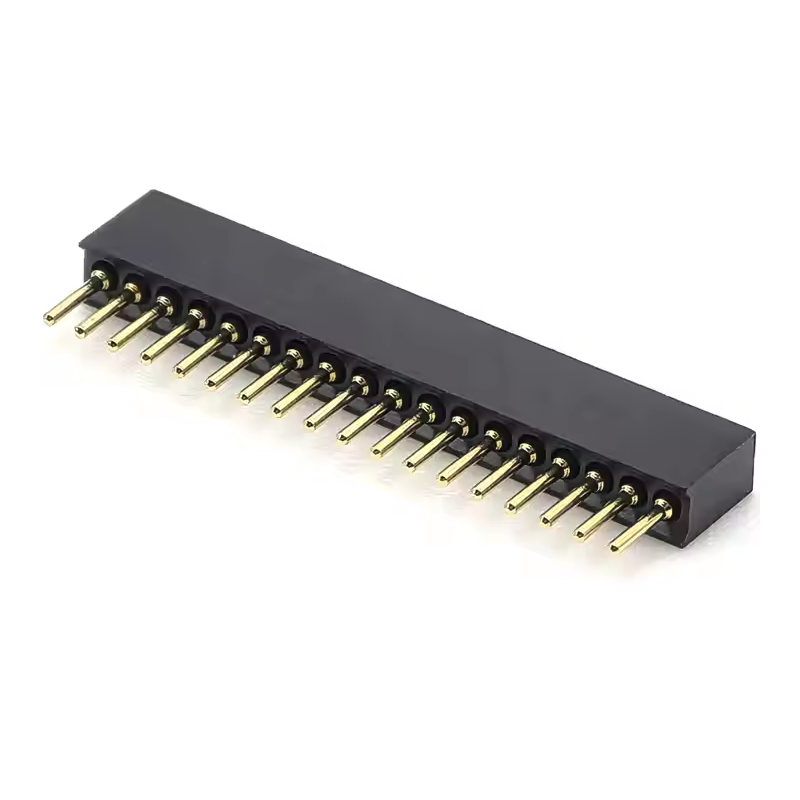

- Pitch:2.54mm female header is standard; 2.0mm Female Header, 1.27mm Female Header, or 1.0mm female header suit compact designs.

- Height:Determines board-to-board spacing.

- Materials:Terminal conductivity and housing’s temperature and flame resistance (e.g.,UL94V-0).

The female header,though simple and low-cost, is a foundational component in electronics.It simplifies permanent soldered connections into flexible, plug-and-play interfaces.As a critical “hub” for signals and power,it supports modular design,enabling innovation and ease of manufacturing across the electronics industry.
