U-Type vs. Y-Type: The Critical Differences in Socket Connector Design

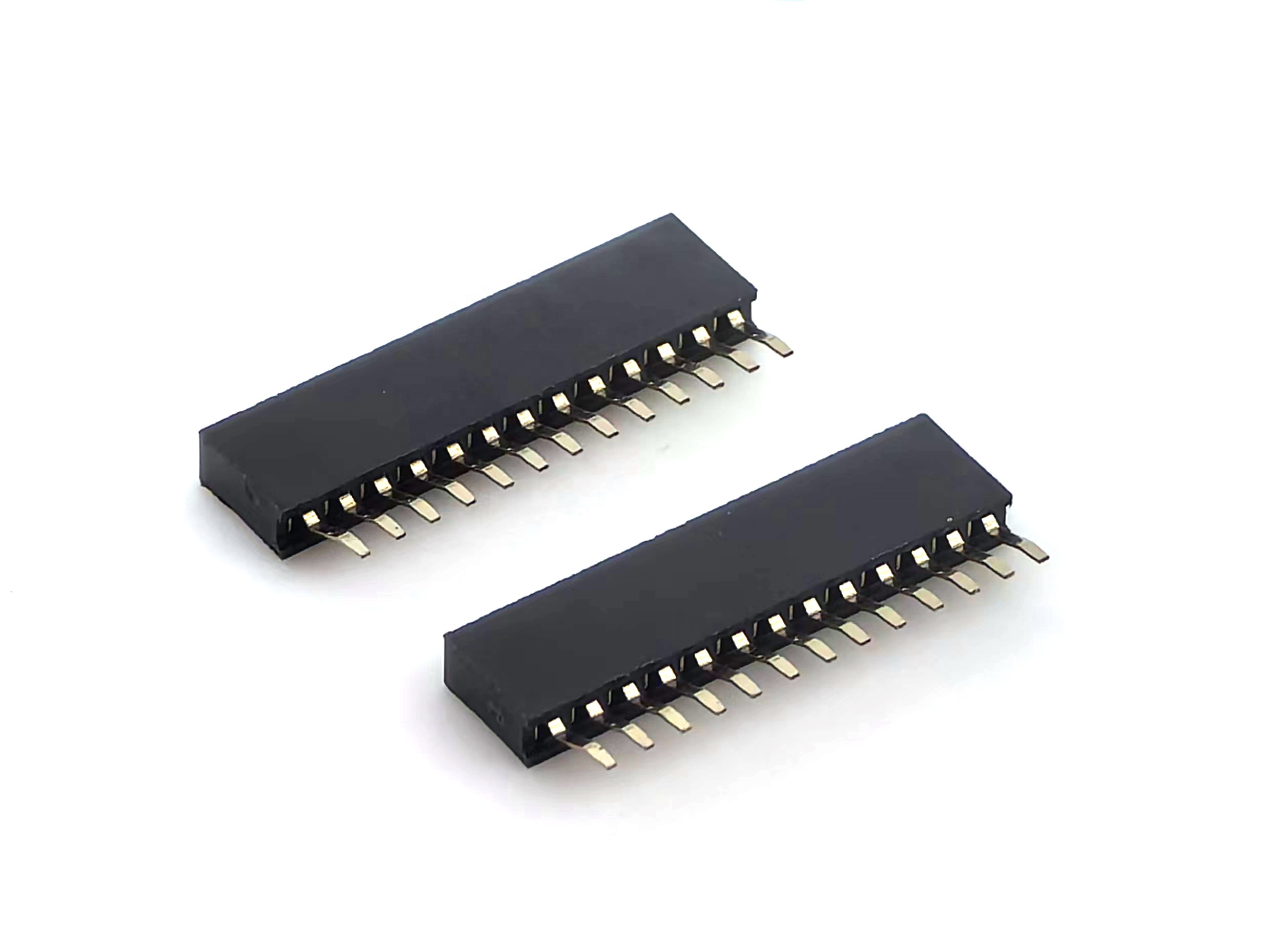

The choice between U-type and Y-type terminals represents a fundamental design trade-off in female header connector performance. The U-type, a single-cantilever design, offers lower cost and simpler construction, making it prevalent in cost-sensitive consumer electronic components. In contrast, the Y-type female header features a dual-cantilever symmetrical structure, providing superior long-term reliability.

Key Performance Comparison:

• Electrical Stability: The Y-type's dual independent contact points ensure lower, more stable contact resistance and are less susceptible to micro-motion wear, crucial for stable power or signal transmission.

• Mechanical Durability: Y-type header connector terminals significantly outperform in insertion cycle life (often 10,000+ cycles) and offer exceptional resistance to vibration and shock.

• Cost vs. Performance: U-type remains the economical choice for basic connections, while the more complex Y-type is essential for demanding automotive, industrial, and high-reliability applications.

This distinction underscores a critical choice for engineers: balancing electronic connector cost against the long-term reliability required by the application, guiding the selection between these core female header technologies.
