MINI DIN Board Connector

Name: MINI DIN Board Connector:Large DIN Female header Connector Black Right Angle DIP
Uploaded: 2025-09-26T09:09:00+08:00
Description: MINI DIN Board Connector The YZTECH MINI DIN Board Connector redefines compact connectivity with its single-row 5-pin

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 5P

Contact Now

Product Description

Product Attributes

Model No.: DS-5-01

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Bulk

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

MINI DIN Board Connector:Large DIN Female header Connector Black Right Angle DIP



Product Description

MINI DIN Board Connector

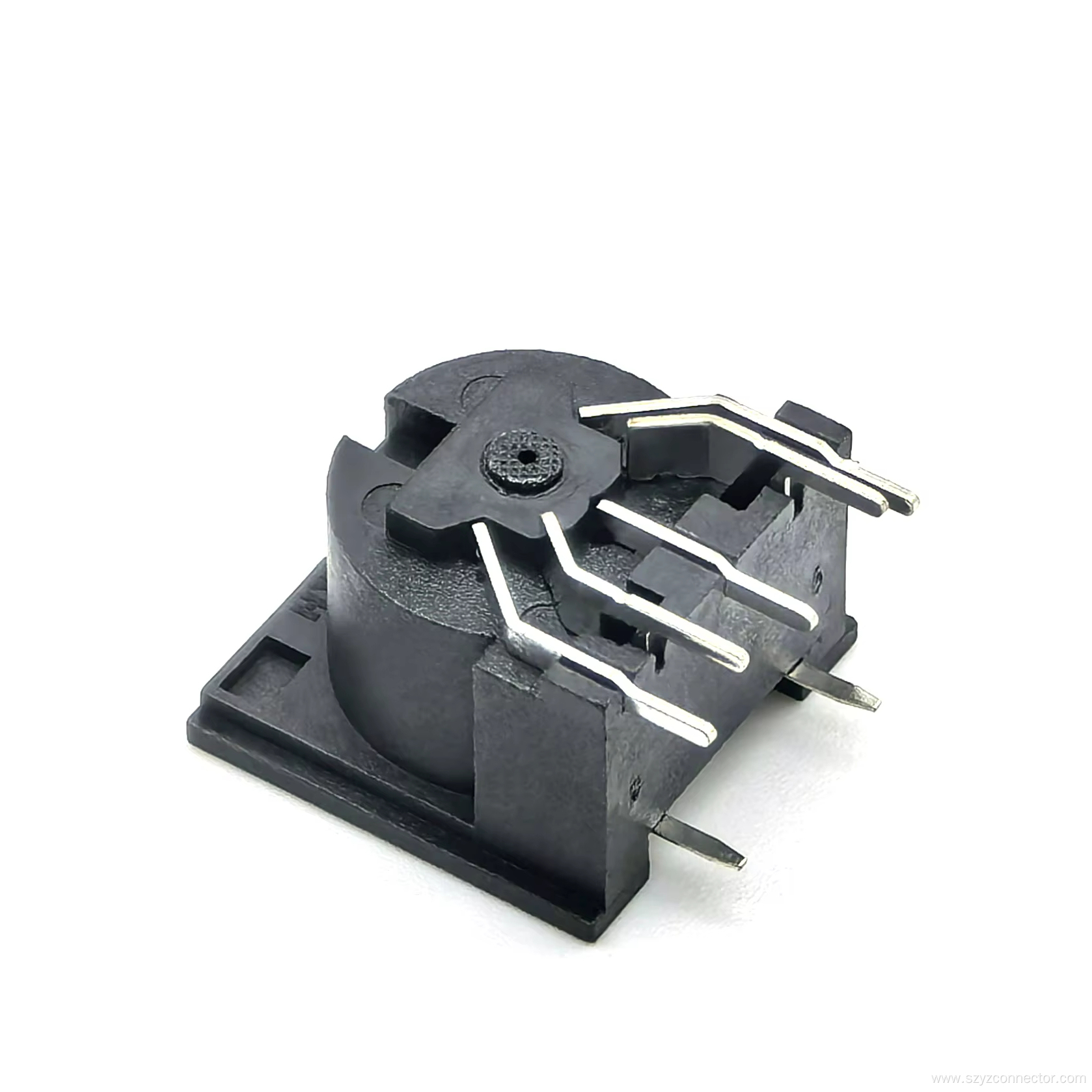

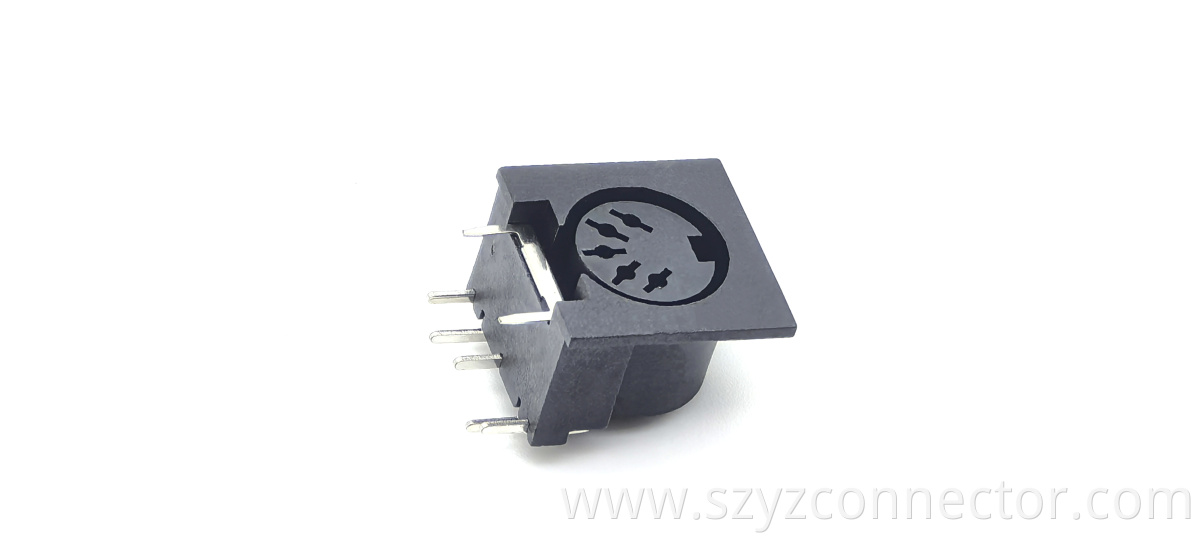

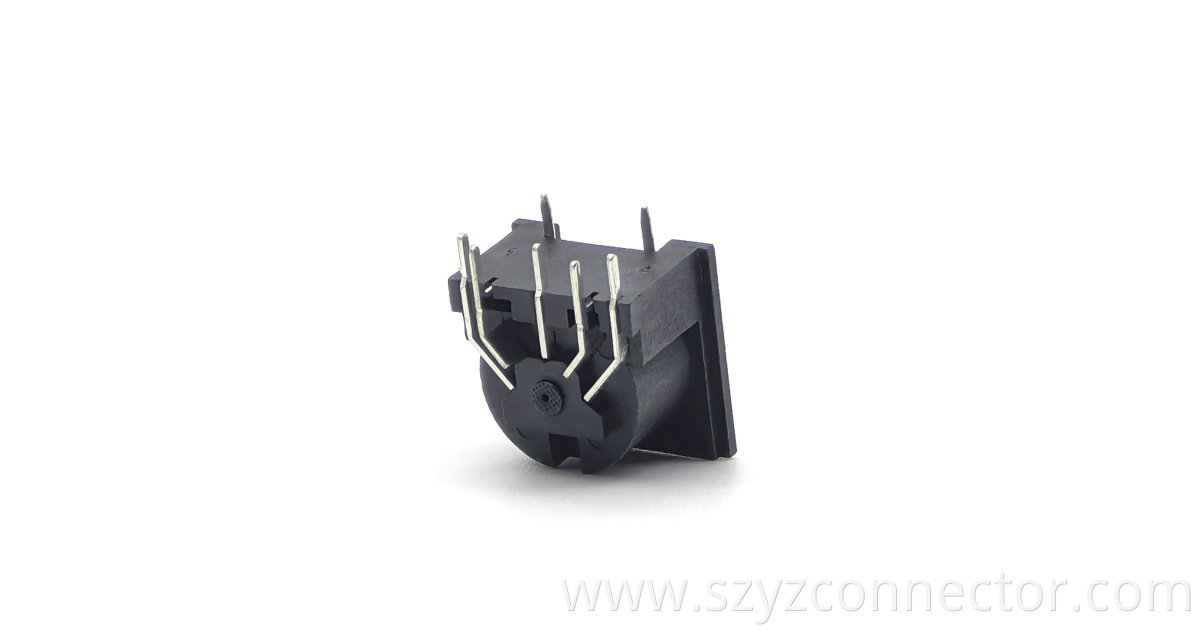

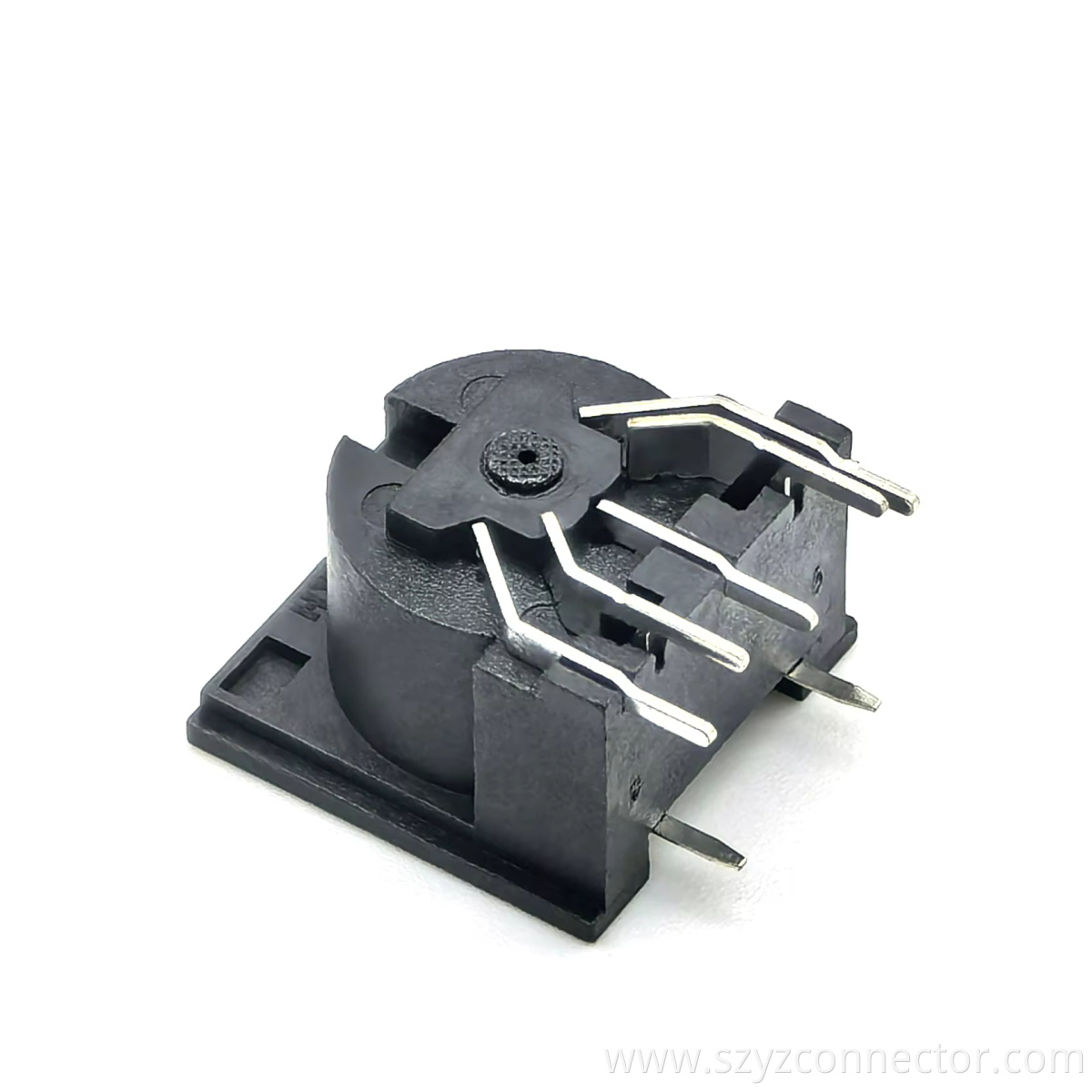

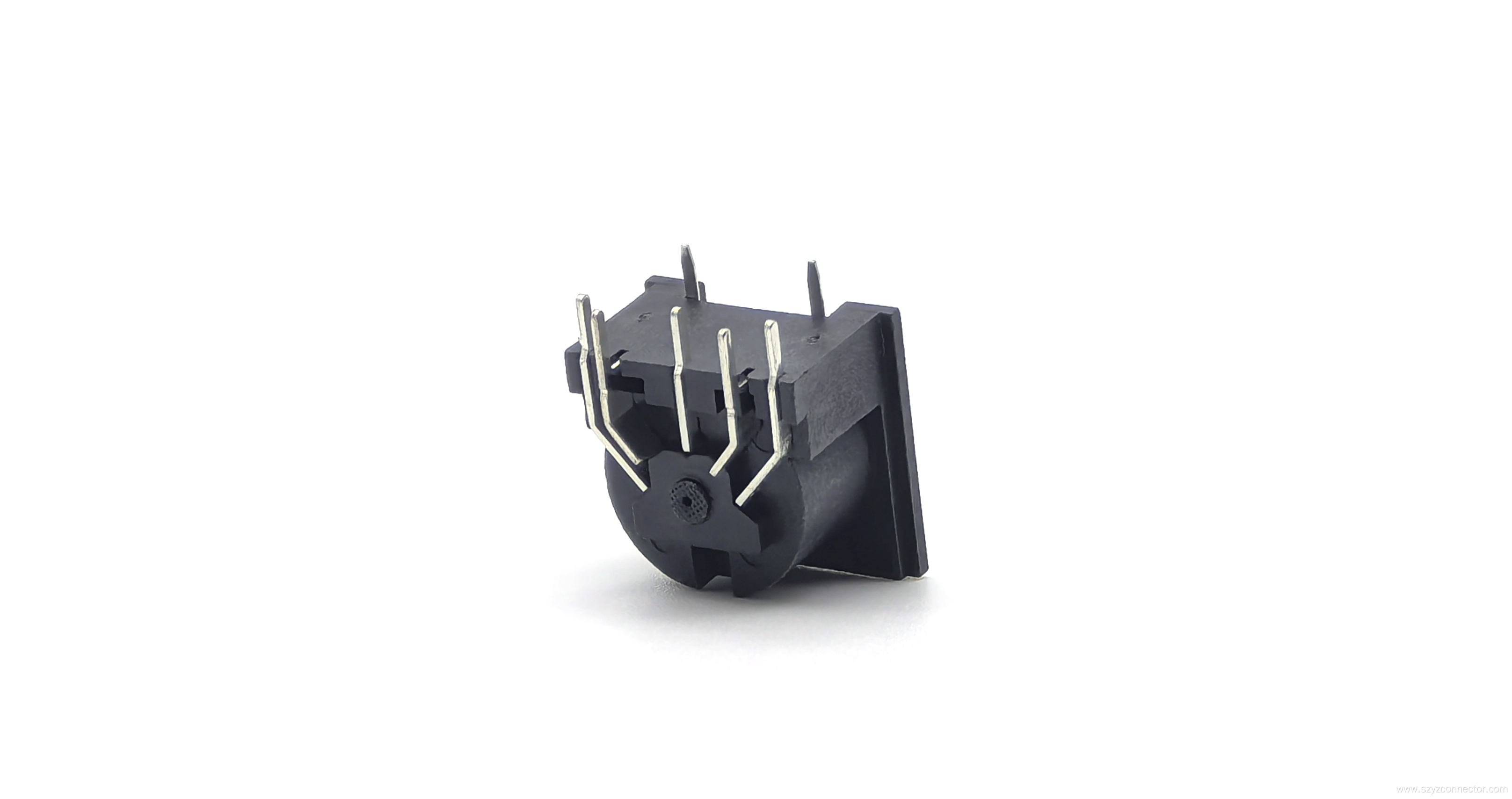

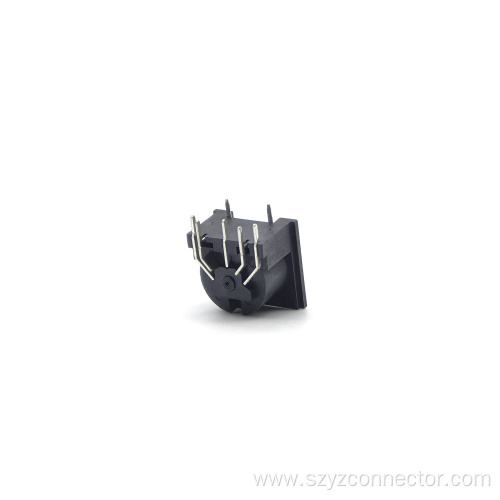

The YZTECH MINI DIN Board Connector redefines compact connectivity with its single-row 5-pin design tailored for PCB installations. Engineered as a right-angle DIP header connector,this black-finished large mini DIN female header connector features tin-plated copper contacts for reliable 2A current handling at 100V rated voltage. Its DIN-standard rectangular shape ensures seamless integration into industrial control systems, consumer electronics, and automation equipment. The -25℃~+70℃ operating temperature range and box packaging make it ideal for temperature-sensitive applications, while the tin plating enhances corrosion resistance and solderability. This connector’s right-angle design optimizes PCB space utilization, supporting vertical mount configurations in dense circuit layouts.The mini DIN board connector black belongs to "Other" series.

Designed for durability and eco-conscious manufacturing, this mini DIN board connector right angle DIP incorporates halogen-free materials meeting RoHS standard.The copper contact base with tin coating minimizes contact resistance (<30mΩ) and ensures 100+ mating cycles without degradation. Its 100V dielectric strength and 500MΩ insulation resistance guarantee safe signal transmission in low-voltage circuits.

The box packaging solution aligns with automated assembly lines, reducing handling costs for global buyers. Unlike traditional connectors, this design features a streamlined DIP footprint that simplifies PCB routing while maintaining mechanical robustness. Flame-retardant properties (UL94 V-0) and vibration resistance enhance reliability in mobile or industrial environments.
