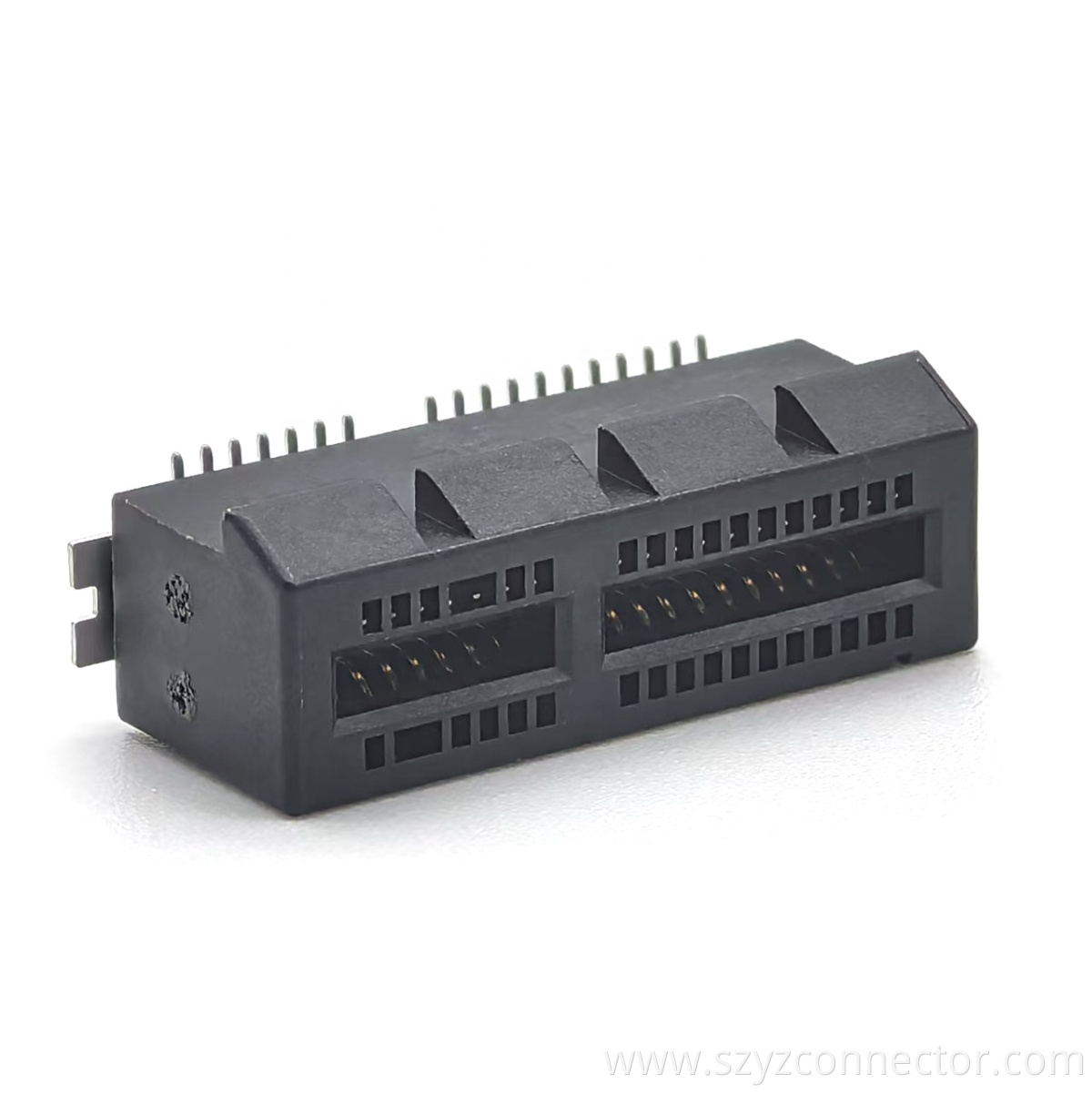

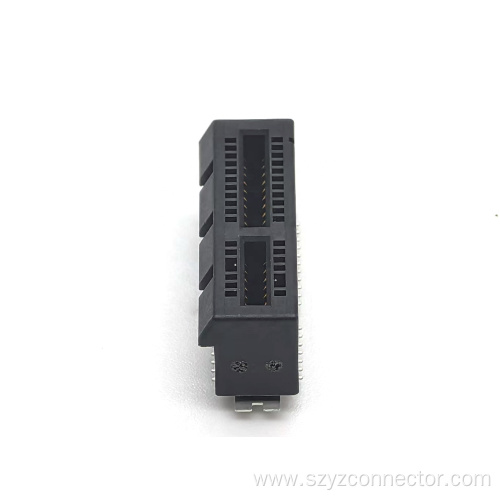

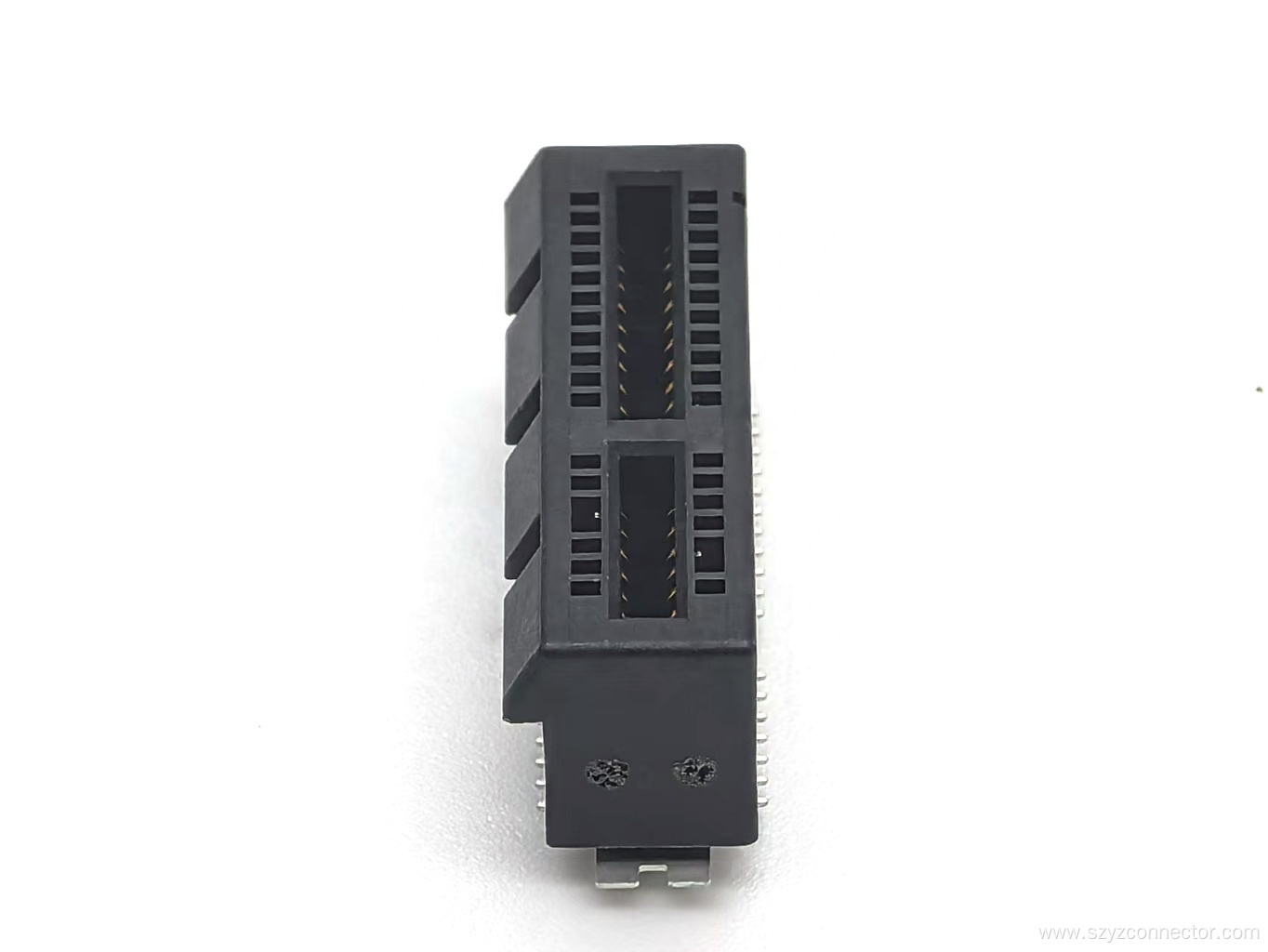

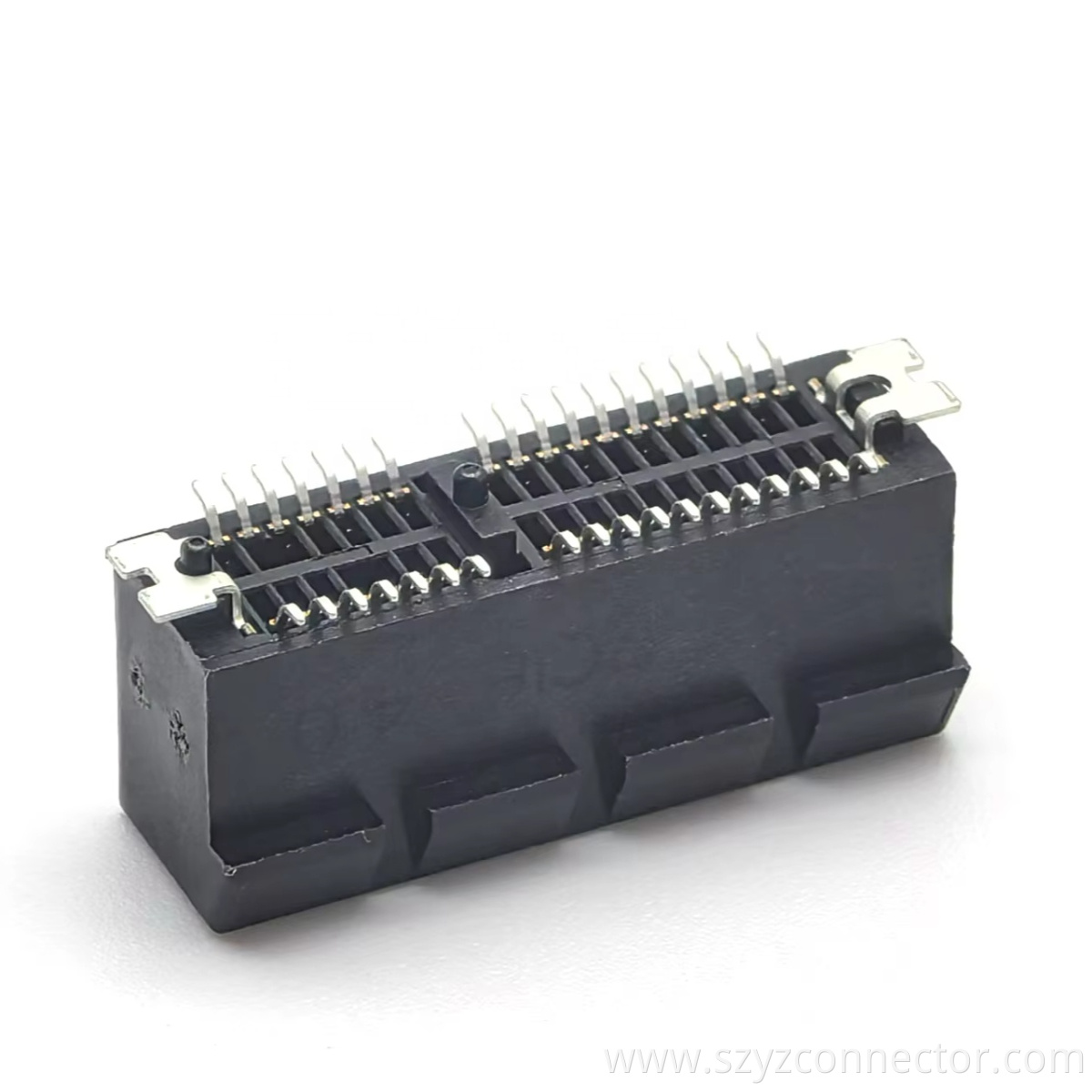

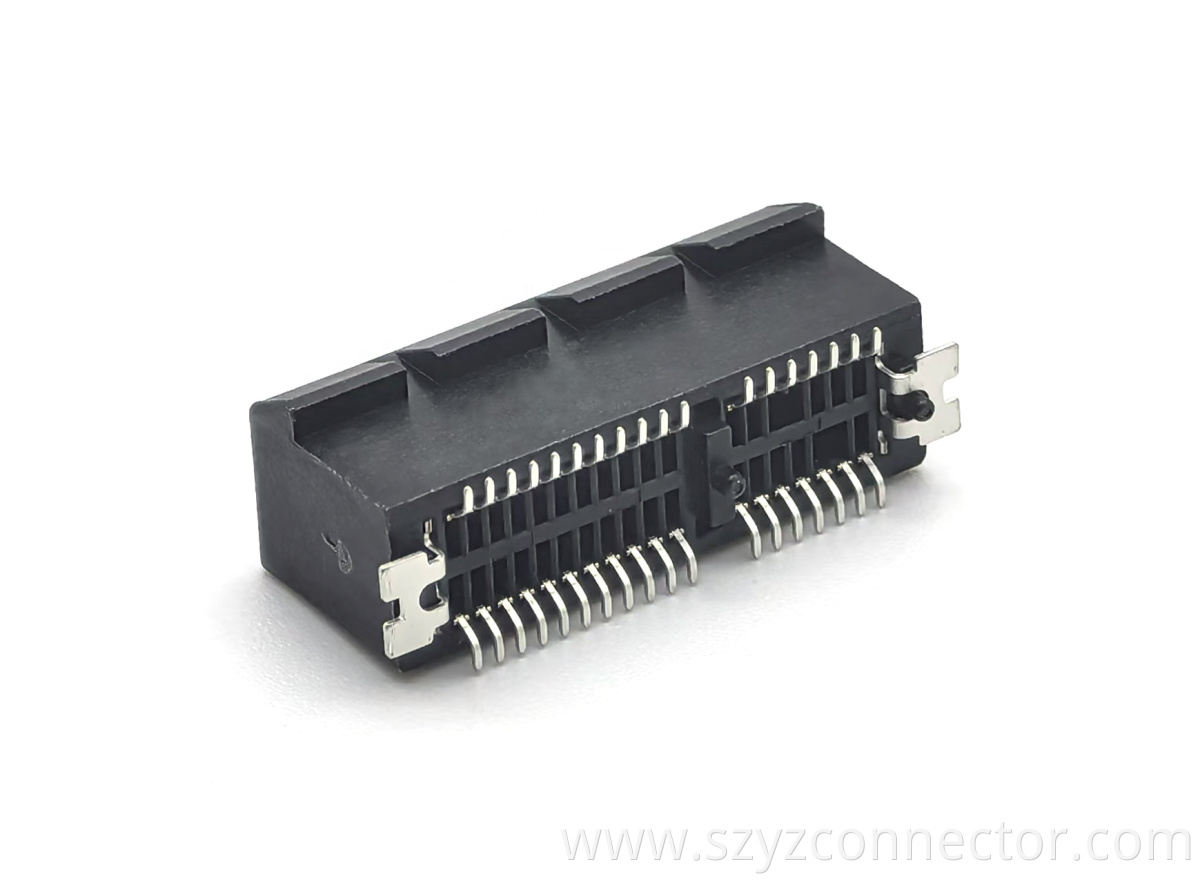

1.0 PCI EDGE SLOT Connector Straight DIP Slot

Engineered for robust board-level integration,the YZTECH PCI EDGE SLOT Connector provides a reliable and standardized interface for expansion cards in embedded computing and industrial control systems.This 18-pin dual-row female header connector is designed for straight DIP installation,connecting to pin headers,facilitating a secure through-hole mounting onto the motherboard.A key feature is the inclusion of integrated locating posts,which ensure perfect alignment during the soldering process,preventing misplacement and enhancing manufacturing yield.With a electrical rating of 1A and 500V,it guarantees stable performance for both power and signal transmission across a wide array of applications.



Constructed for enduring reliability and consistent electrical performance,this header connector utilizes phosphor bronze for its contacts,a material chosen for its superior spring characteristics and long-term fatigue resistance.These contacts are finished with a protective nickel plating,offering excellent corrosion resistance and maintaining a stable connection interface over countless insertion cycles.The PCI Connector body is molded from high-strength nylon,which provides outstanding insulation,mechanical durability,and resilience across an operating temperature range of -40°C to +85°C,ensuring dependable performance in challenging environments.



Packaged securely in tubes,this PCI edge slot connector is optimized for efficient handling and manual assembly processes,protecting the delicate pins and locating posts from damage. This packaging method simplifies inventory management and component retrieval on the production line.
