TACT SWITCH 12X12mm 4P Right Angle DIP

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 4P

Contact Now

Product Description

Product Attributes

Model No.: SW.12*12*5,0-02-Black

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Bag&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

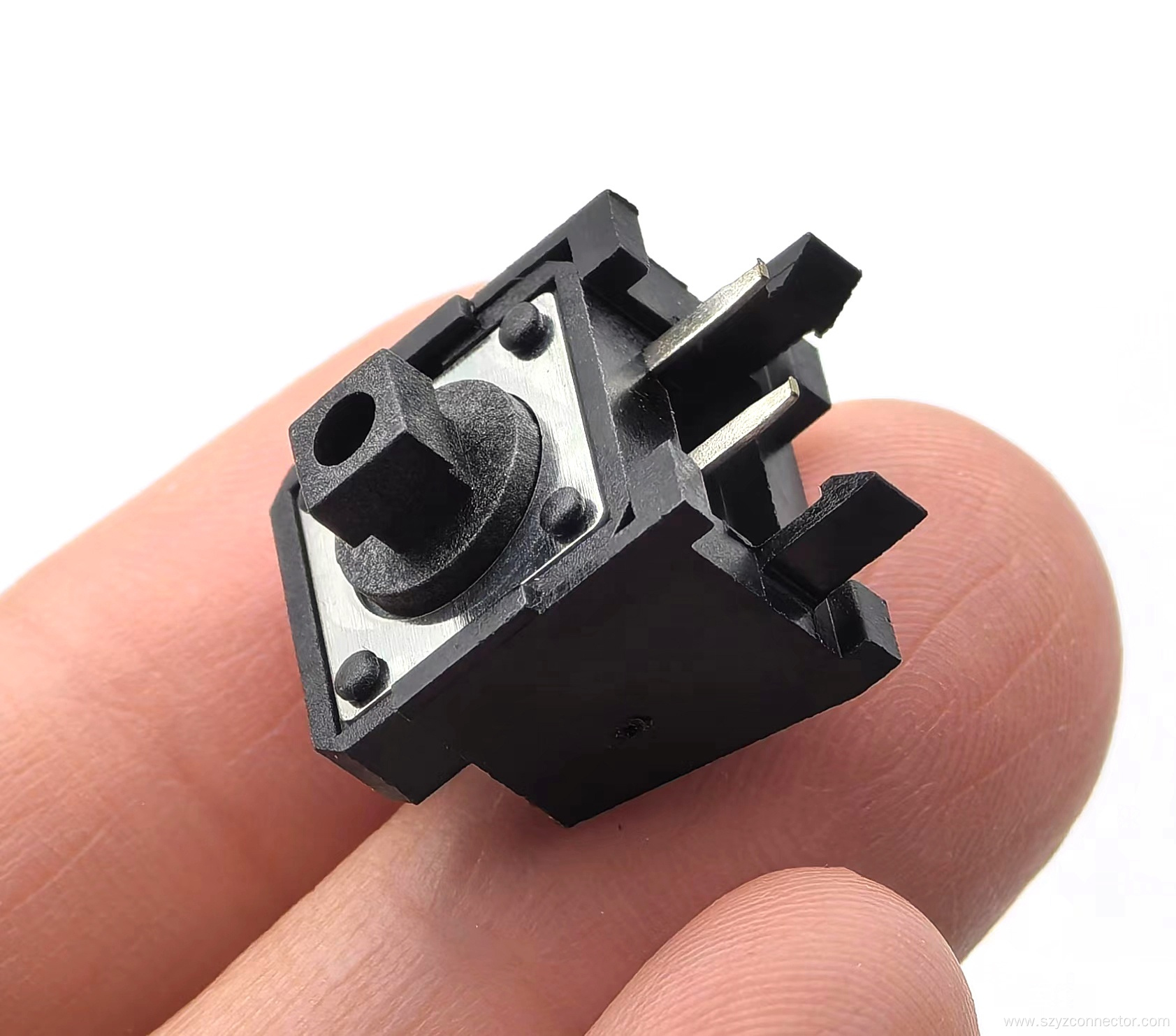

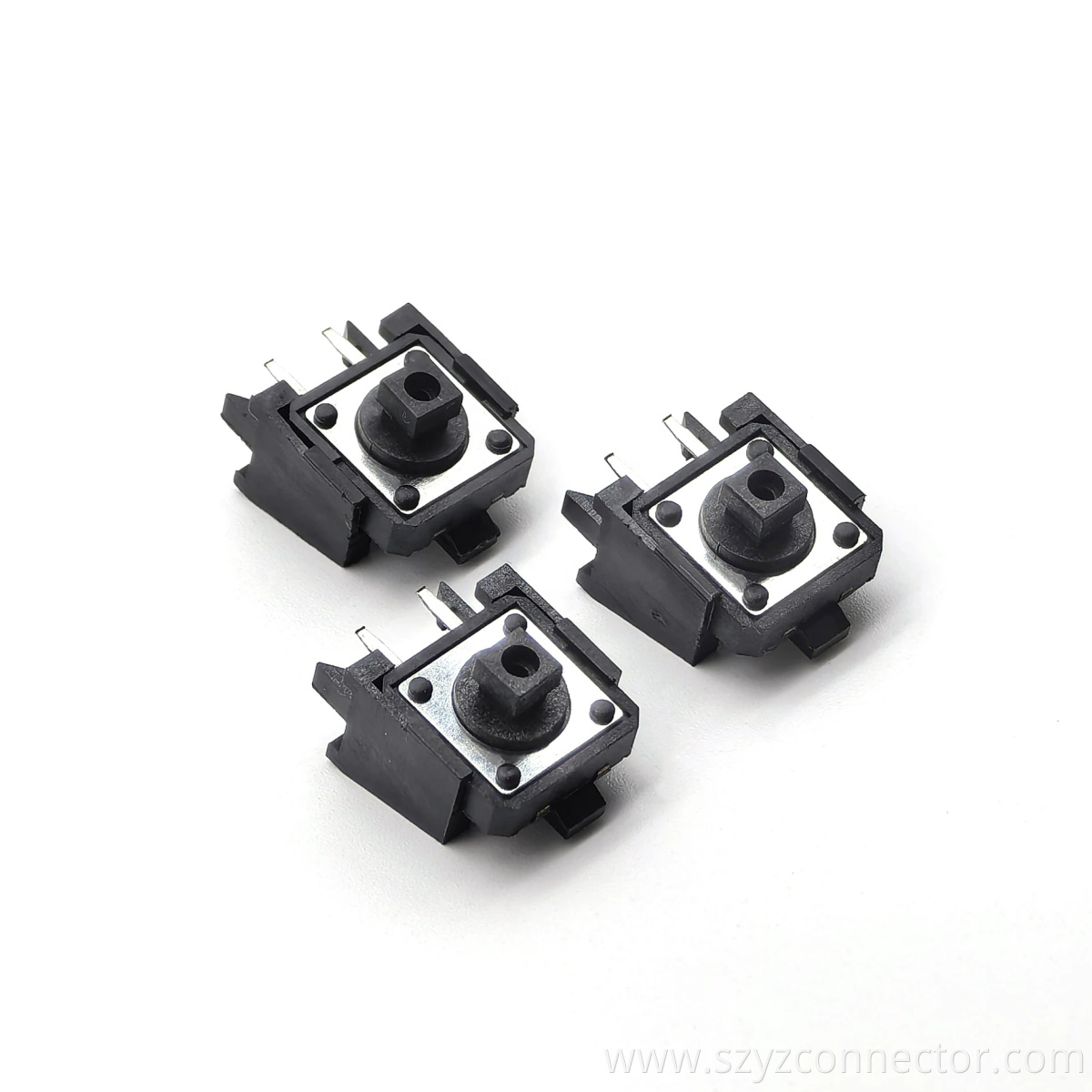

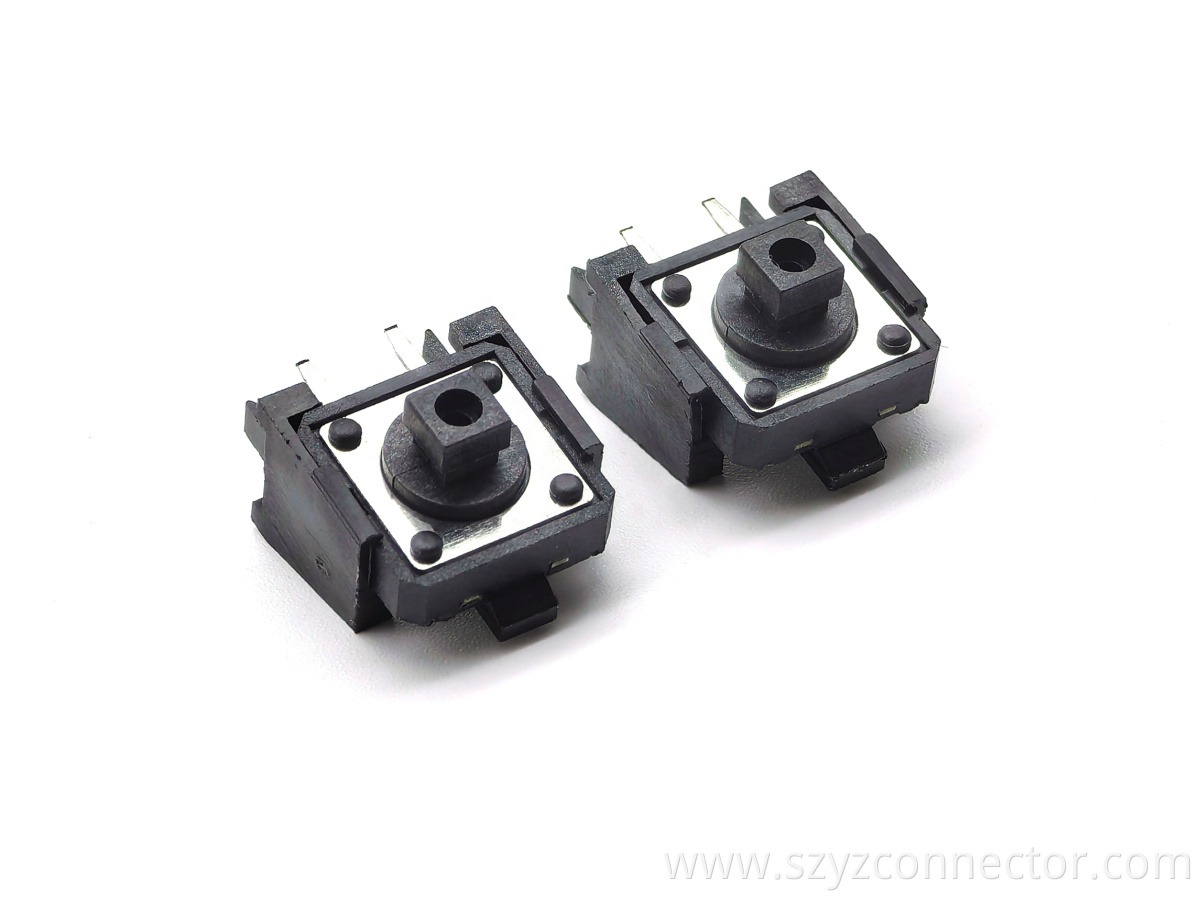

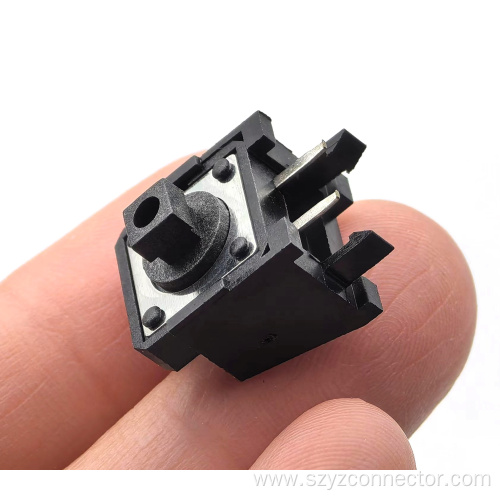

TACT SWITCH 12X12mm 4P Right Angle DIP H5mm Black Handle



Product Description

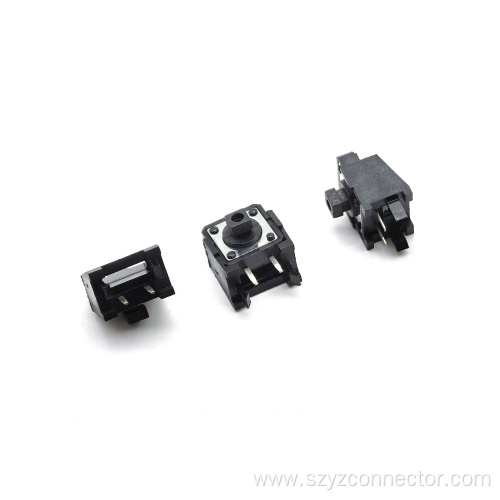

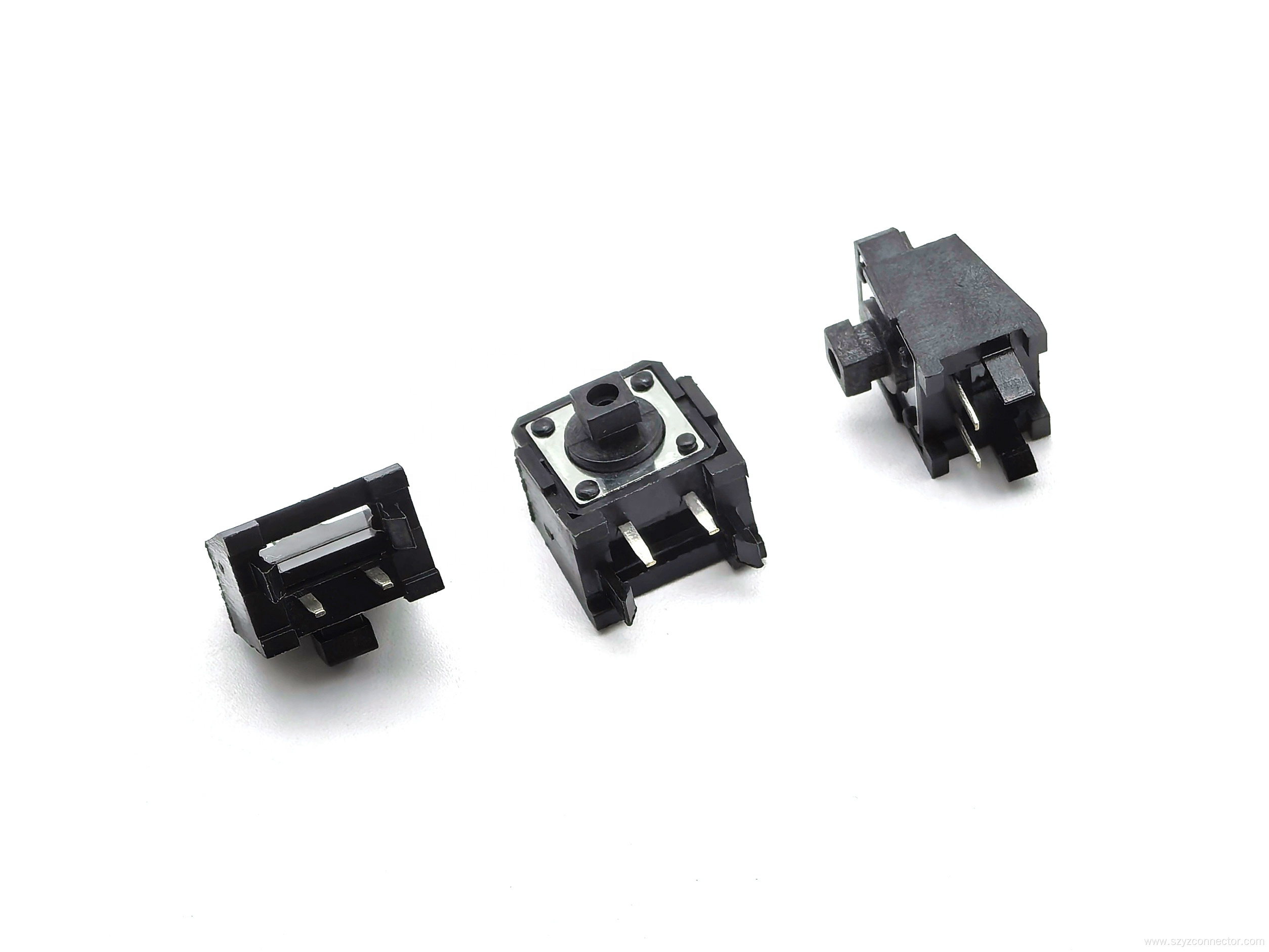

Tact Switch 12X12mm 4P Right Angle DIP

Engineered for precise user interface applications, the YZTECH TACT SWITCH 12X12mm 4P Right Angle DIP delivers reliable performance through its 4-pin dual-row right angle DIP configuration. This tactile button switch side insertion H5mm features a rectangular design with bending plug termination for secure PCB integration, offering electrical ratings of 50mA/250V and 0.4VA power capacity. The tactile button switch side insertion H5mm provides a clearly defined tactile response with an actuation force range of 100-350 grams, creating optimal user feedback that prevents accidental triggering while ensuring comfortable operation. Its standardized footprint makes this tactile button compatible with various panel layouts and PCB designs.

Built for mechanical endurance, the tactile push button black handle demonstrates impressive longevity through optimized internal construction.With insulation resistance exceeding 100MΩ, it maintains excellent signal integrity while preventing current leakage across diverse operating conditions. The Tactile Switch remains fully functional throughout a temperature range of -30℃ to +70℃,accommodating both commercial and industrial applications. Despite its compact dimensions, the switch possesses a substantial 260g weight, reflecting its robust internal mechanism and durable housing engineered to withstand repeated actuations throughout its service life.

Ideal for integration across industrial control systems, automotive electronics, medical devices, and consumer appliances, this tactile push button switch delivers consistent performance in space-constrained applications. The right-angle DIP configuration enables efficient PCB space utilization while facilitating straightforward installation processes.Packaged in protective bags to prevent damage during storage and transportation, these tactile button components arrive ready for automated assembly integration.By incorporating this YZTECH switch, designers enhance human-machine interface reliability while achieving optimized manufacturing efficiency for global market applications.
