0.8mm Pitch Pin Header SMT H1.38mm

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 50P

Contact Now

Product Description

Product Attributes

Model No.: 052801

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Place Of Origin: China

Contacts: 50p

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

0.8mm Pitch Pin Header SMT H1.38mm

yztech’s 0.8mm Pitch Pin Header SMT H1.38mm is a core component for precise internal connections in electronic devices. As a high-precision model in the Pin Header series, its 0.8mm narrow-pitch design breaks through space limitations, adapting to high-density PCB layout needs,especially suitable for miniaturized scenarios like 0.8mm Pin Header and 0.8 mm pitch header. The double-row structure significantly improves signal transmission efficiency,compatible with both SMT and through-hole processes, making this 0.8mm pin header connector an ideal solution for compact designs in the PCB Pin Header category.

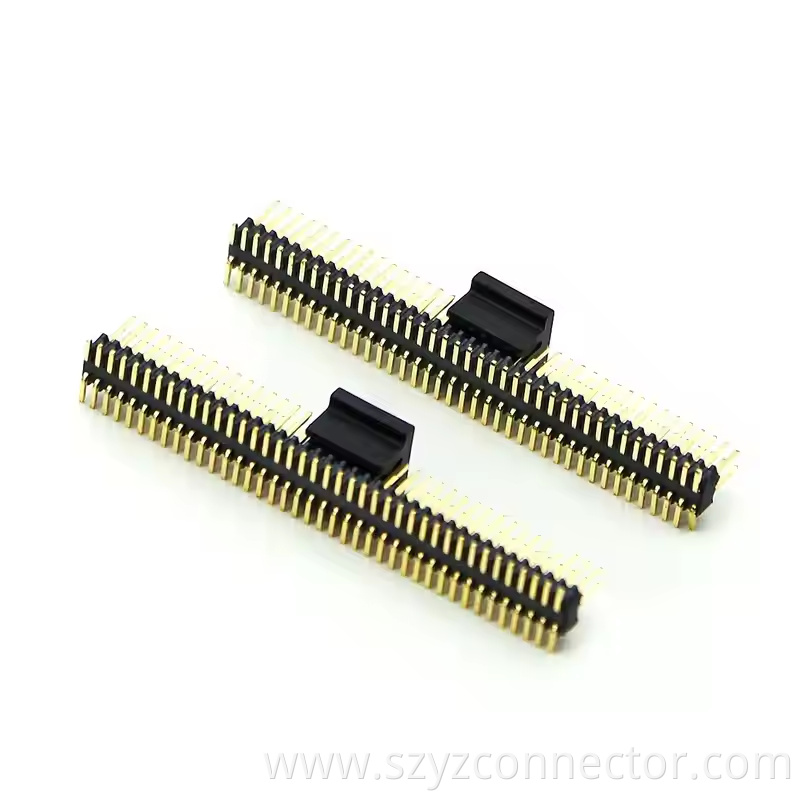

0.8mm Pitch Pin Header SMT H1.38 Dual Row 21P-250P (1)

Featuring high-quality C2680 phosphor bronze terminals (gold-plated) and black LCP (UL94V-0) insulators, the 0.8mm pin header smt H1.38mm operates stably at 1.5A/pin from -40°C to +105°C. With contact resistance controlled below 20mΩ and a ≥50u" nickel base layer,the pcb pin header 50P ensures low-loss transmission of high-frequency signals. The flexible 6-64 PIN configuration suits consumer electronics, industrial control, medical devices, etc., and is highly compatible with Female Header Pins.

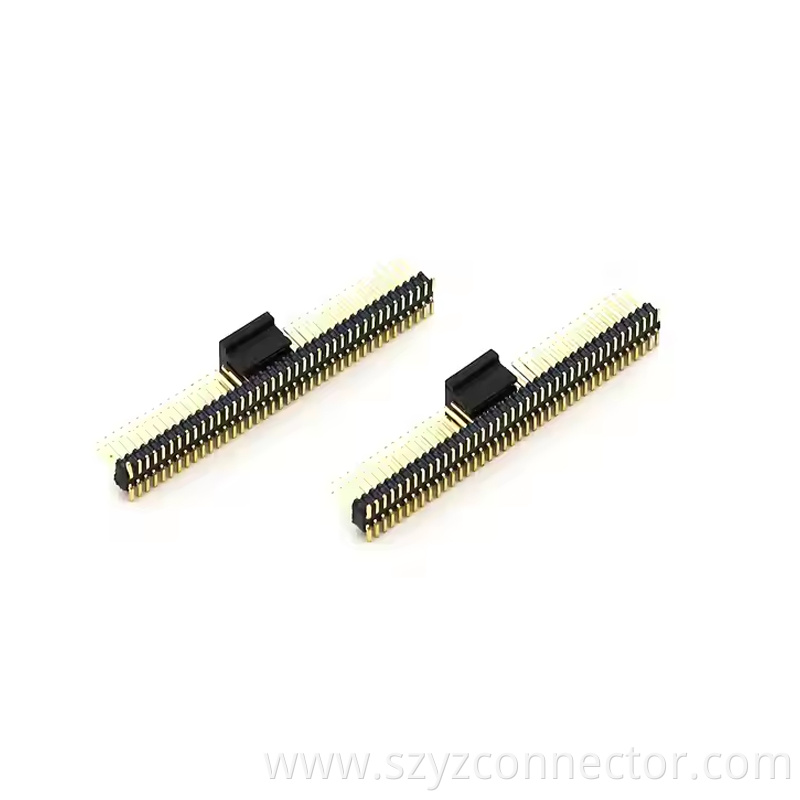

0.8mm Pitch Pin Header SMT H1.38 Dual Row 21P-250P (2)

Certified to IPC-A-610 and compliant with RoHS/REACH, standard packaging includes plastic carrier tapes and anti-static packaging. ODM/OEM customization is available, offering one-stop selection from 0.8mm to multi-pitch derivative models.
