0.8mm Pitch Pin header Dual Row SMT

Name: 0.8mm Pitch Pin header Connector SMT H1.38mm Dual Row 2*36P
Uploaded: 2025-08-22T08:57:48+08:00
Description: YZTECH 0.8mm Pitch Dual Row Male Pin Header is engineered for high-density PCB applications requiring reliable vertical

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Express,Air,Others

Contact Now

Product Description

Product Attributes

Model No.: 1101.08SMD-2*36P-0062-F1-05

Brand: YZTECH

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

0.8mm Pitch Pin header Connector SMT H1.38mm Dual Row 2*36P



Product Description

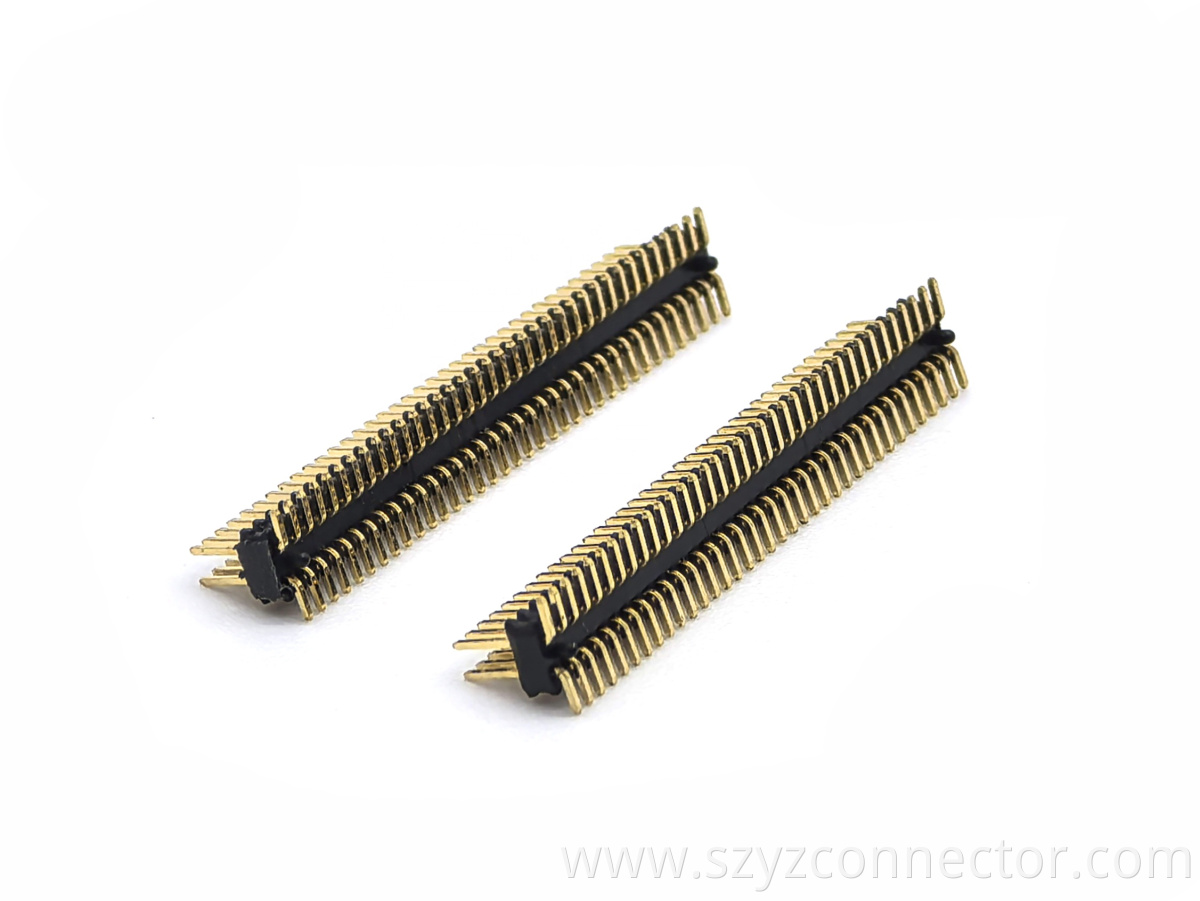

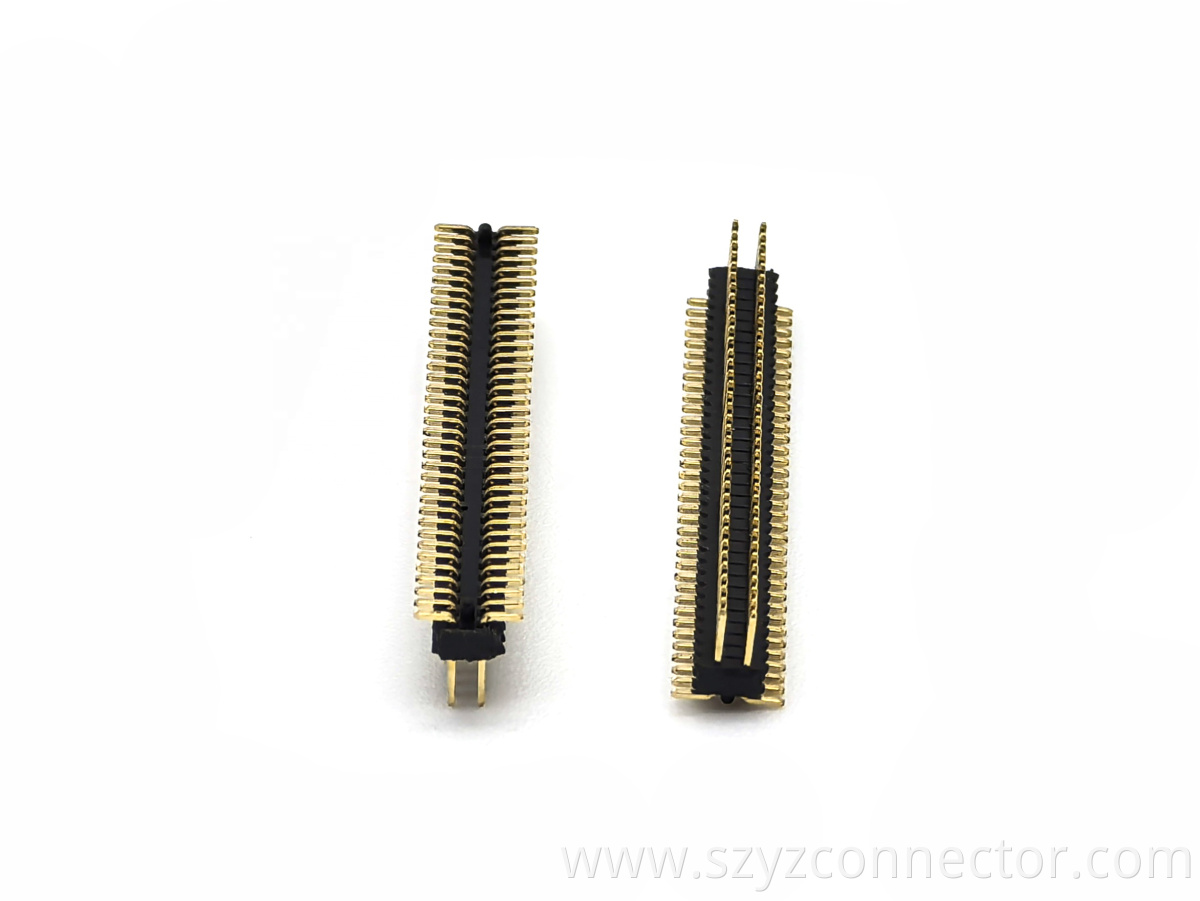

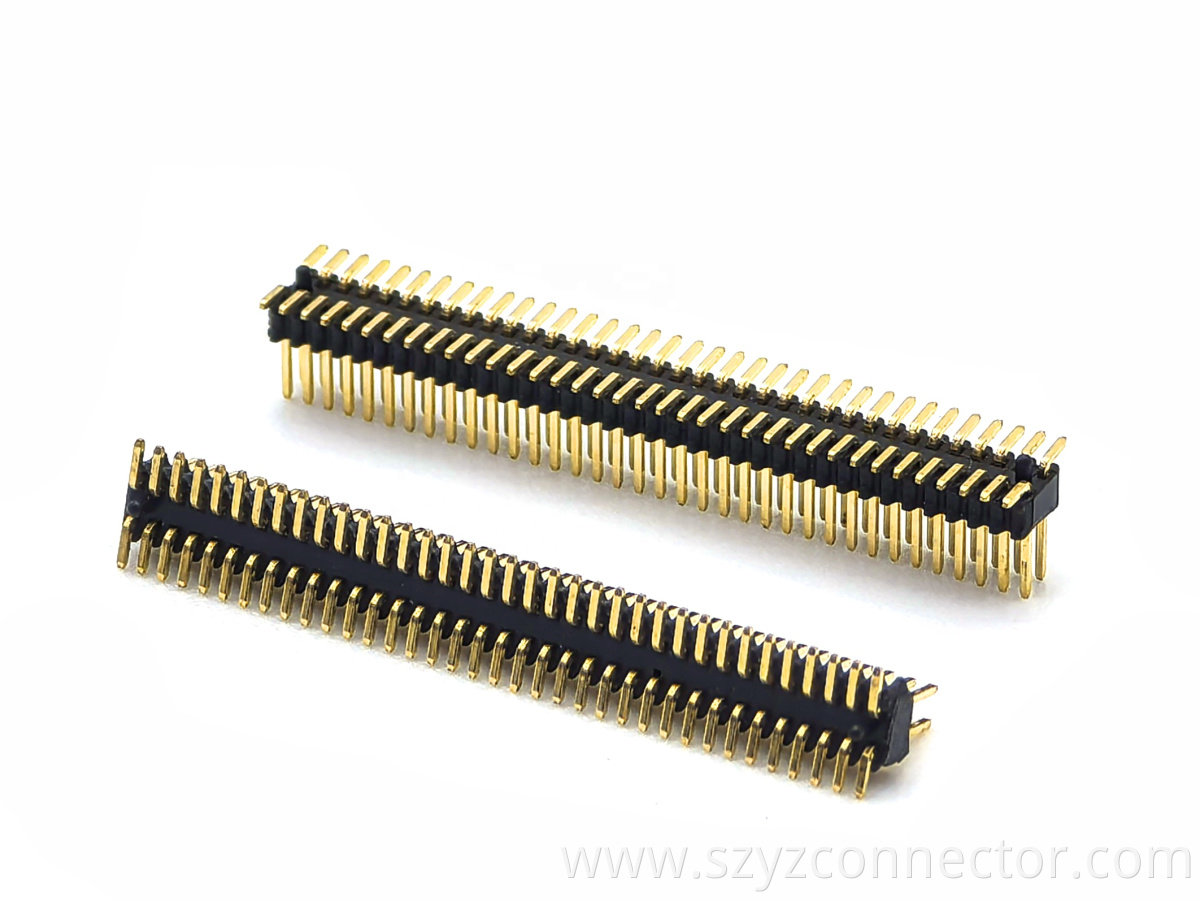

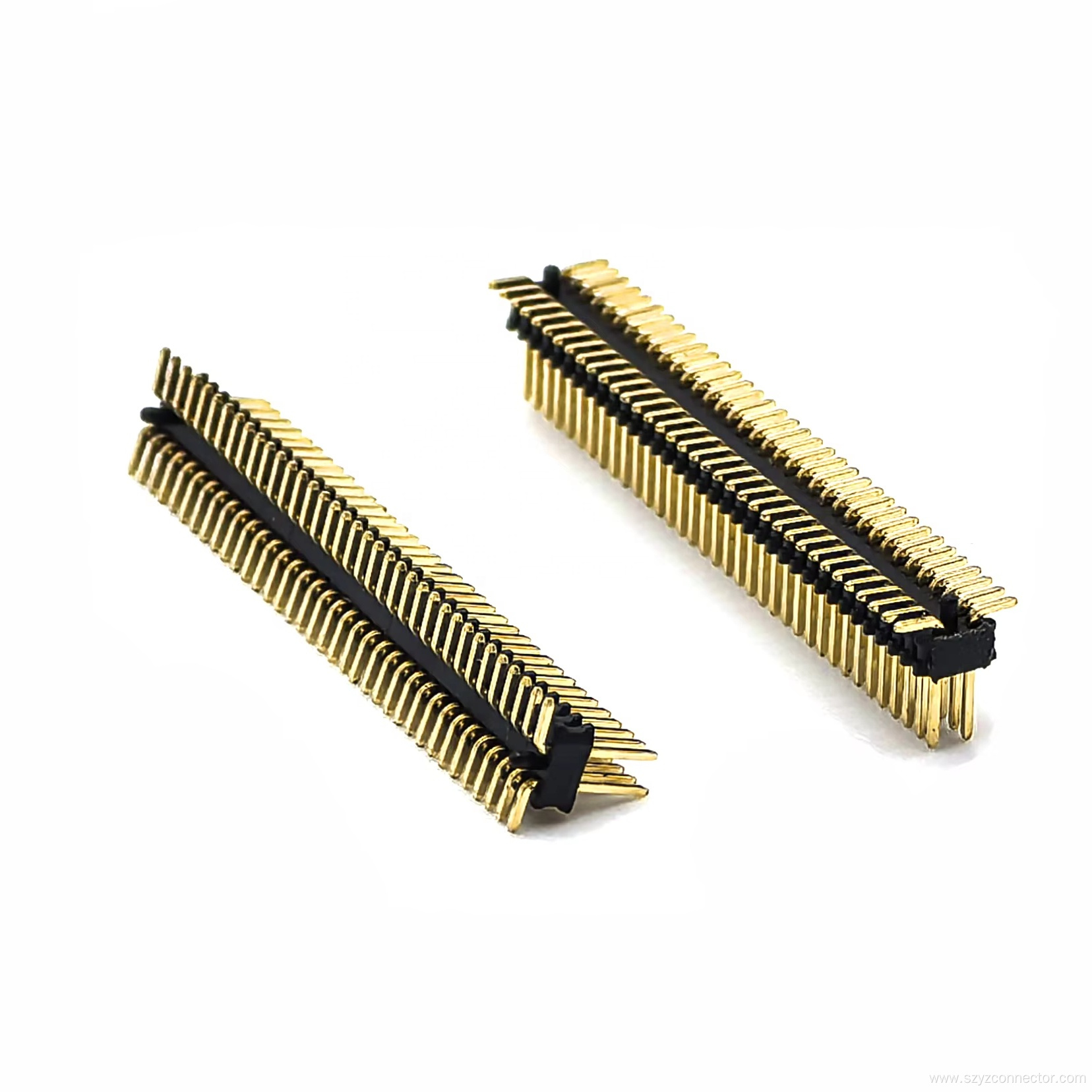

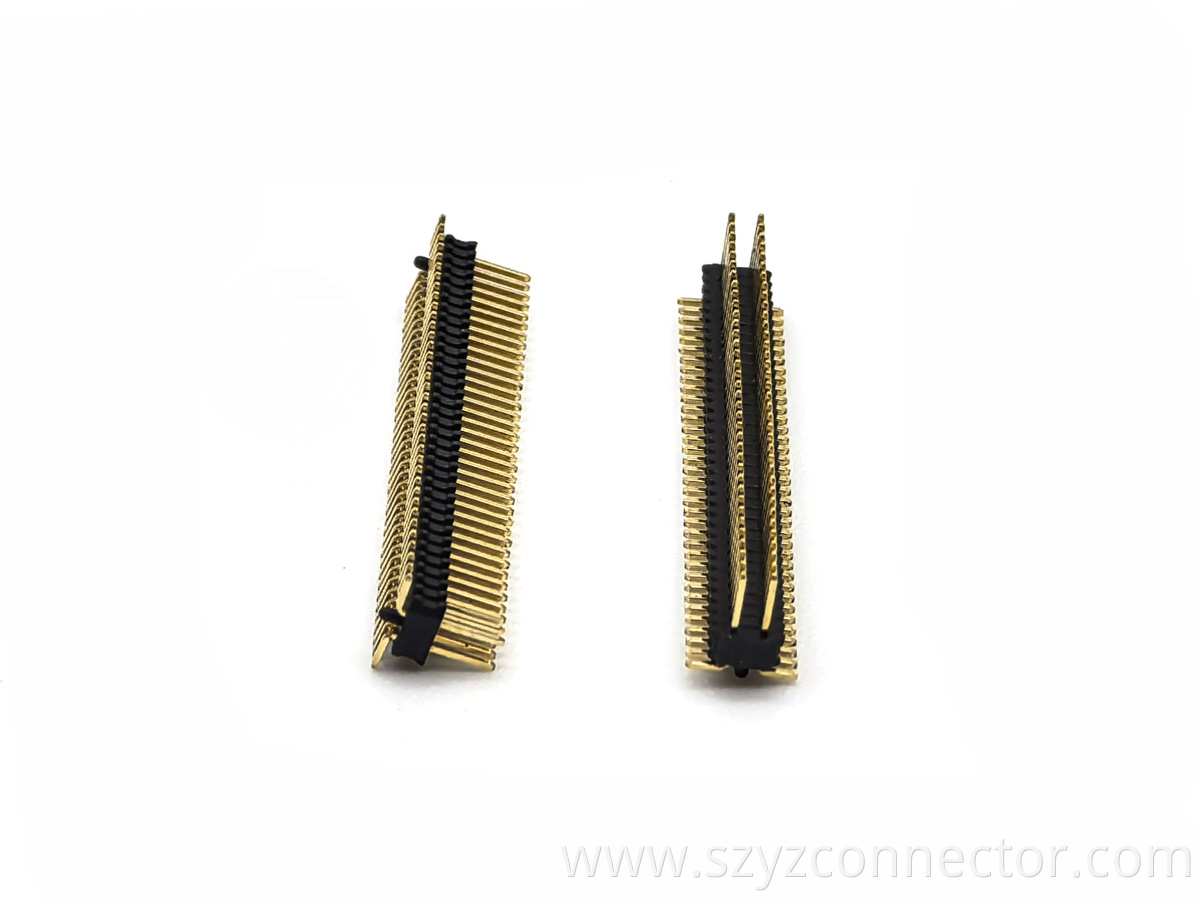

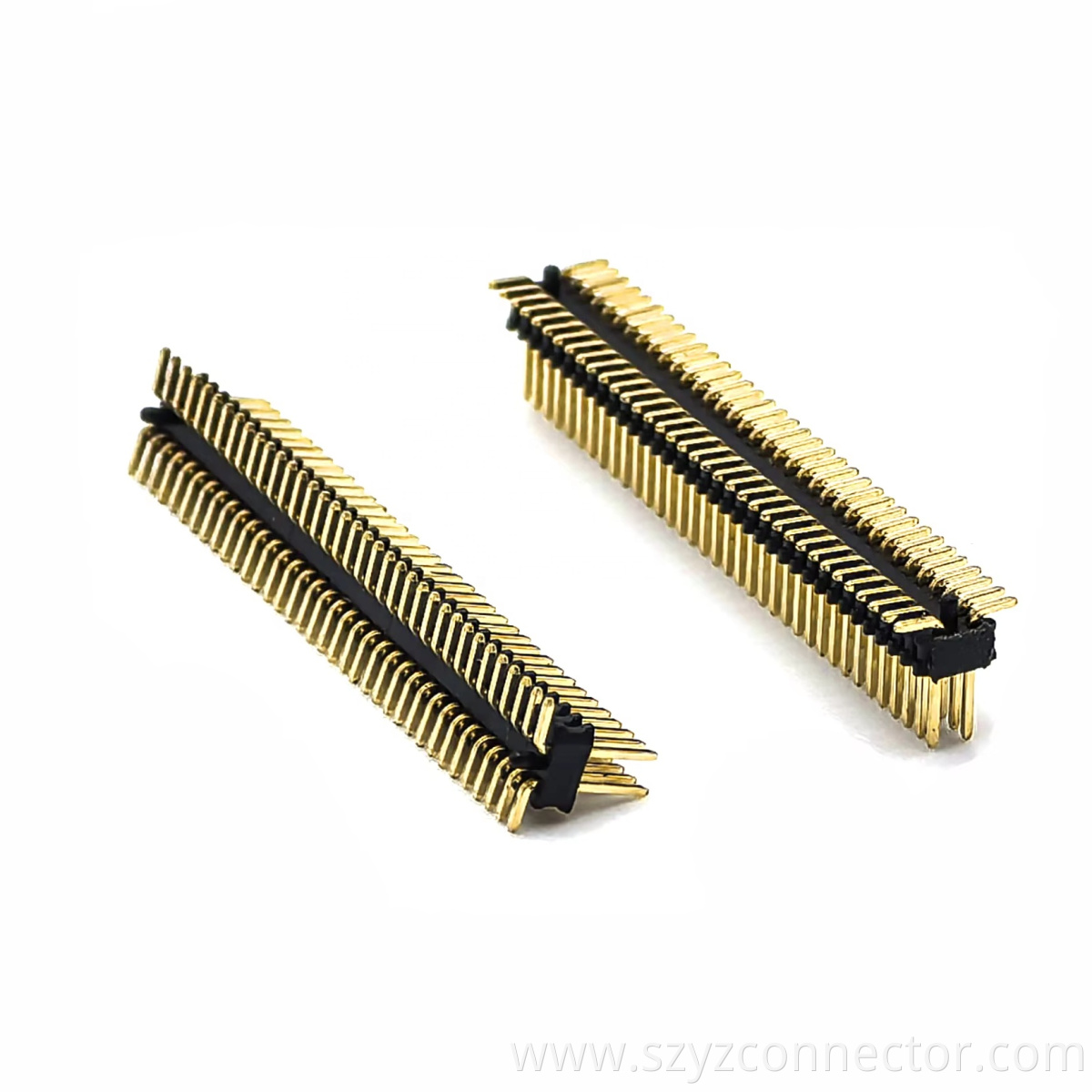

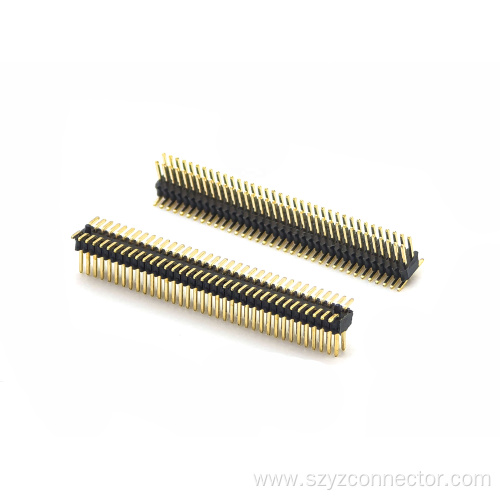

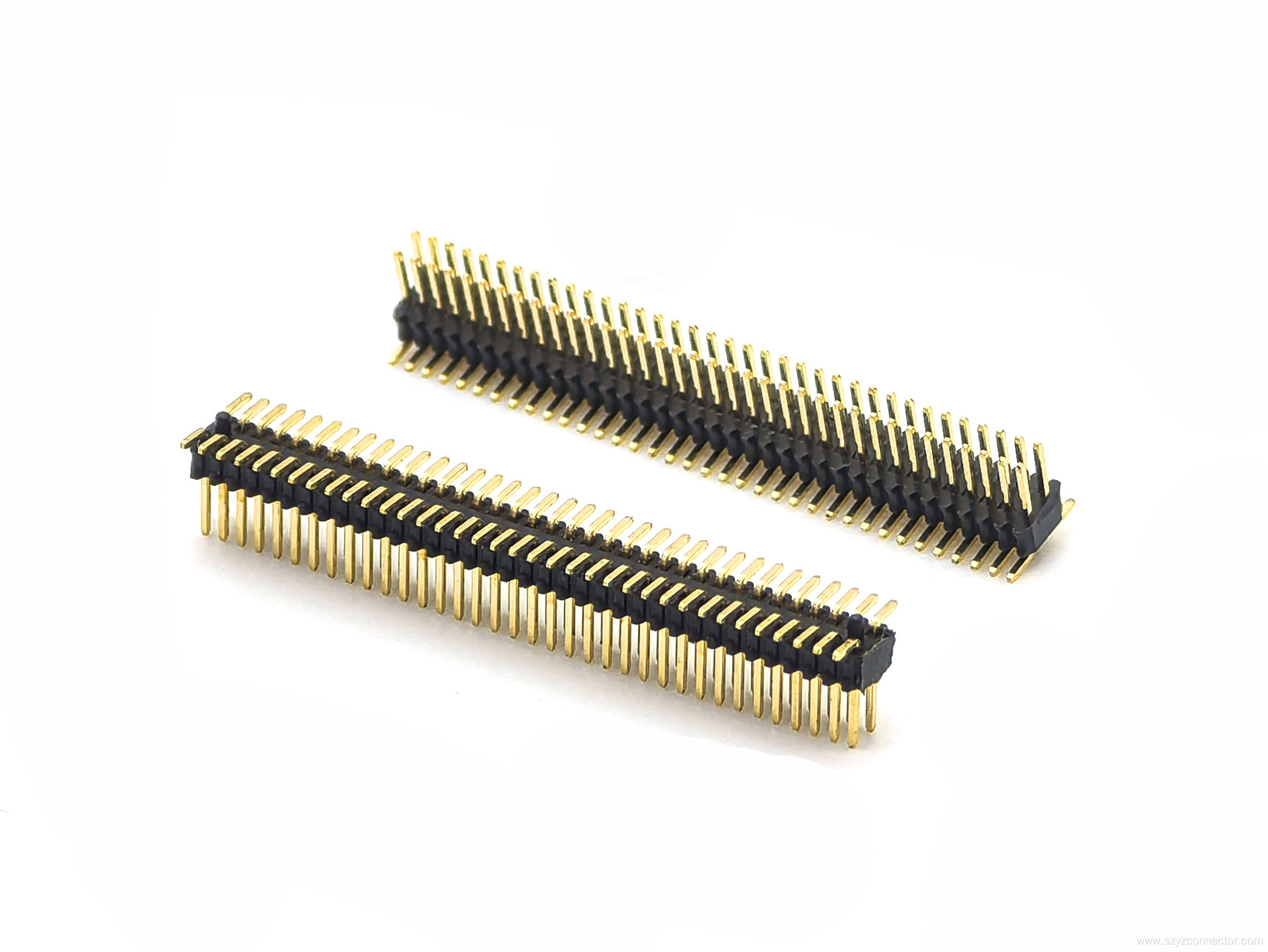

YZTECH 0.8mm Pitch Dual Row Male Pin Header is engineered for high-density PCB applications requiring reliable vertical mounting. This rectangular male header connector features a compact dual-row design with 36 positions per row, providing secure signal transmission in limited space. Constructed with precision brass contacts and gold-plated coatings, it ensures stable electrical performance with a rating of 1A/250V. The housing made of heat-resistant PA9T material supports reel packaging for automated SMT assembly and withstands soldering temperatures up to 220°C for 10 seconds.

Ideal for communication devices, industrial controls, and precision instruments, this pin header operates reliably across a wide temperature range from -40°C to +105°C. Its robust design offers resistance to vibration, oxidation, and environmental stress, ensuring long-term connectivity in demanding conditions. The combination of fine-pitch architecture and durable materials makes it suitable for high-performance consumer electronics and embedded systems.

Compliant with global standards, YZTECH’s 0.8mm Pin Header enables efficient manufacturing flow and reduces assembly costs. The product is delivered in tape-and-reel packaging compatible with high-speed placement equipment, promoting streamlined production and consistent wiring stability. It serves as a dependable solution for modern electronic designs seeking miniaturization and functional durability.
