1.27mm Pin header Single Row Right Angle

1.27mm Pin header Single Row Right Angle

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 1101SMD.R-1*3P-0108-F-05

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.27mm Pitch Pin header Connector Single Row Right Angle SMT SQ0.46mm H1.5mm 1*3P



Product Description

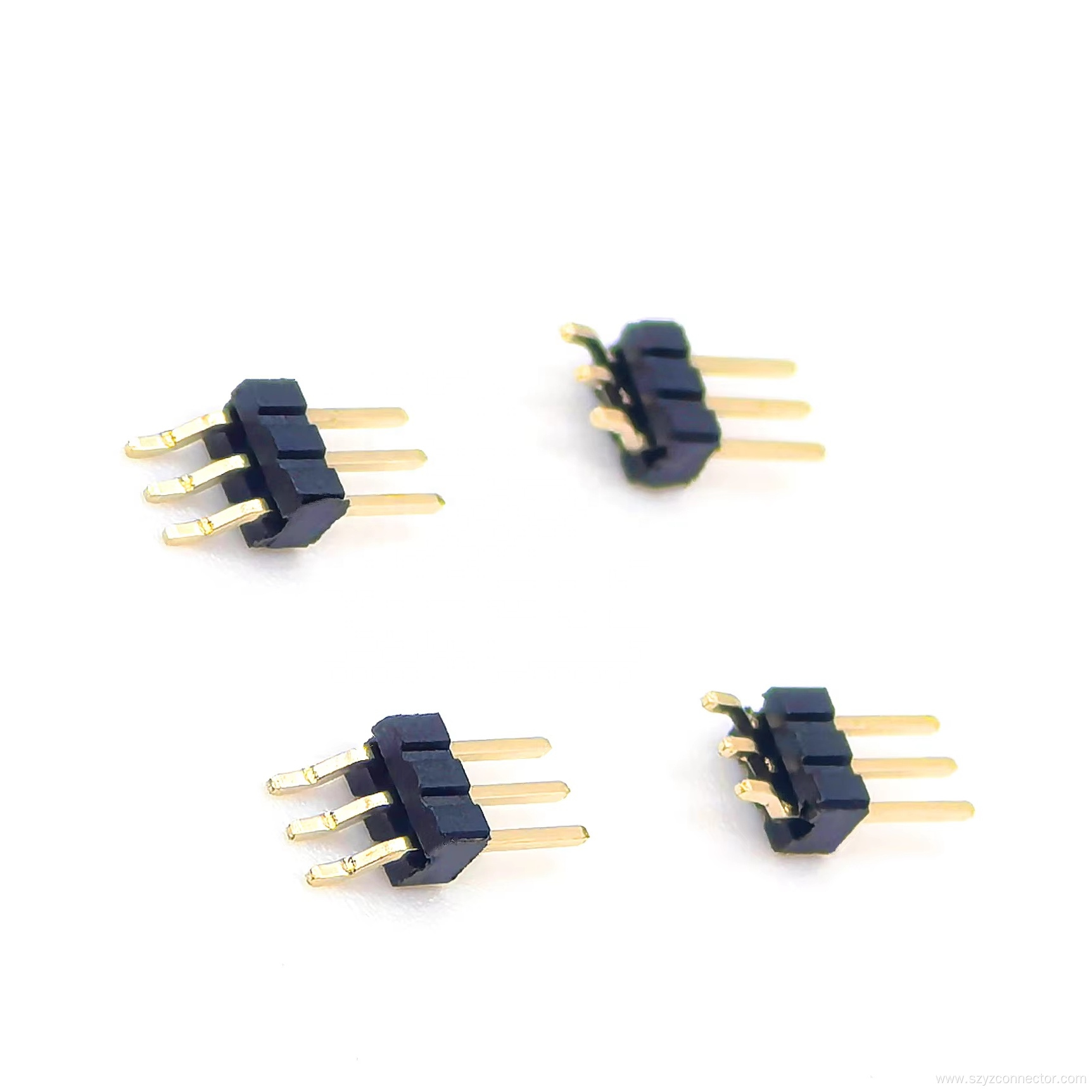

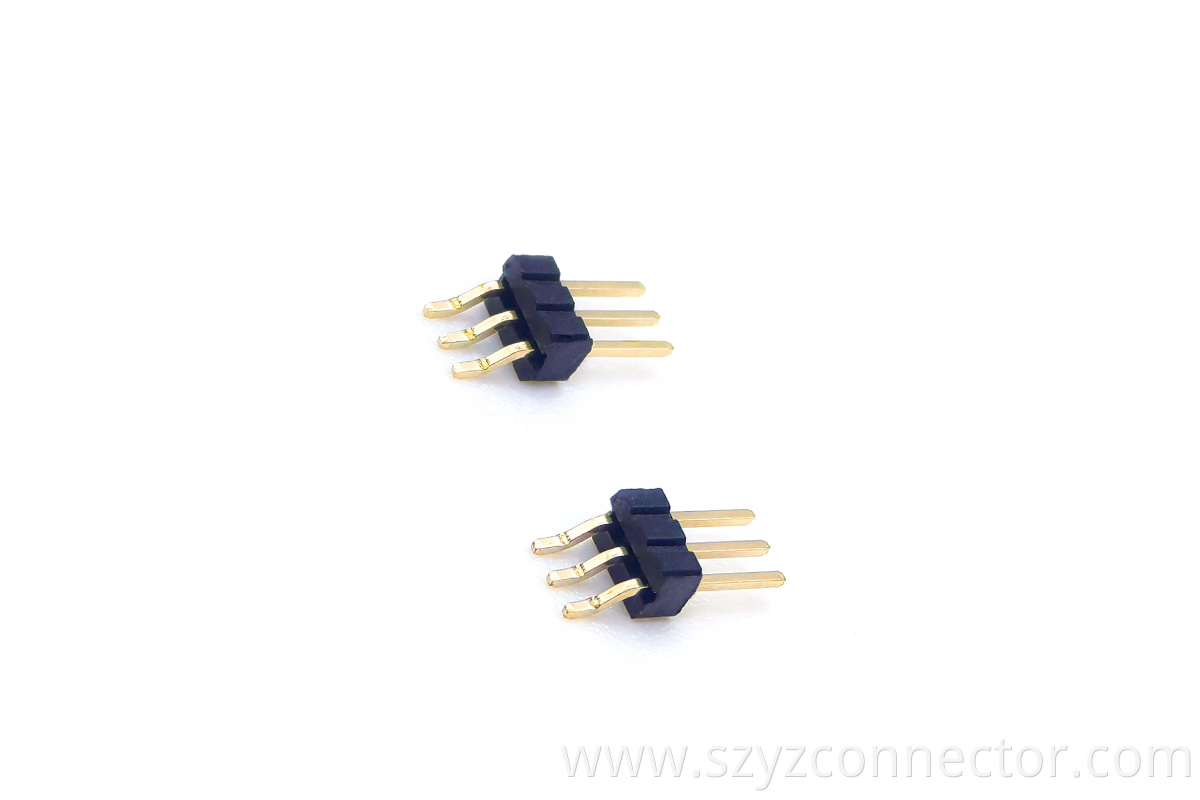

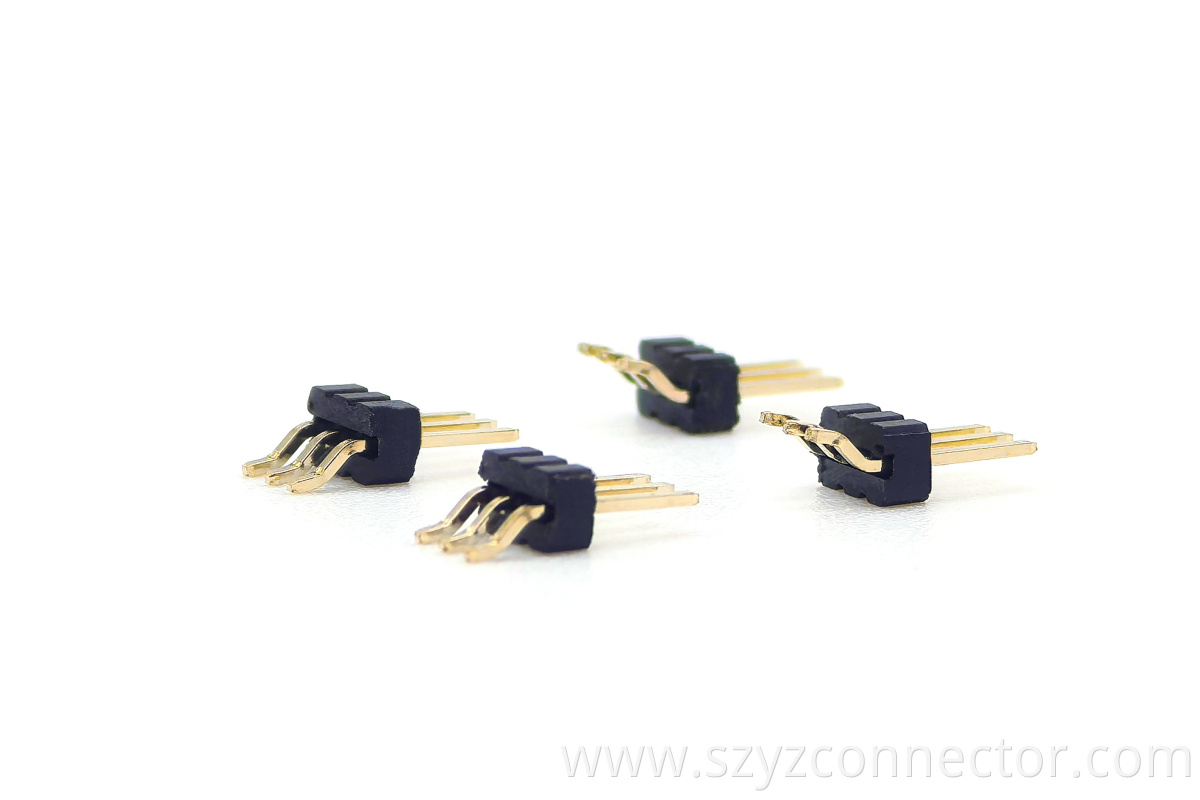

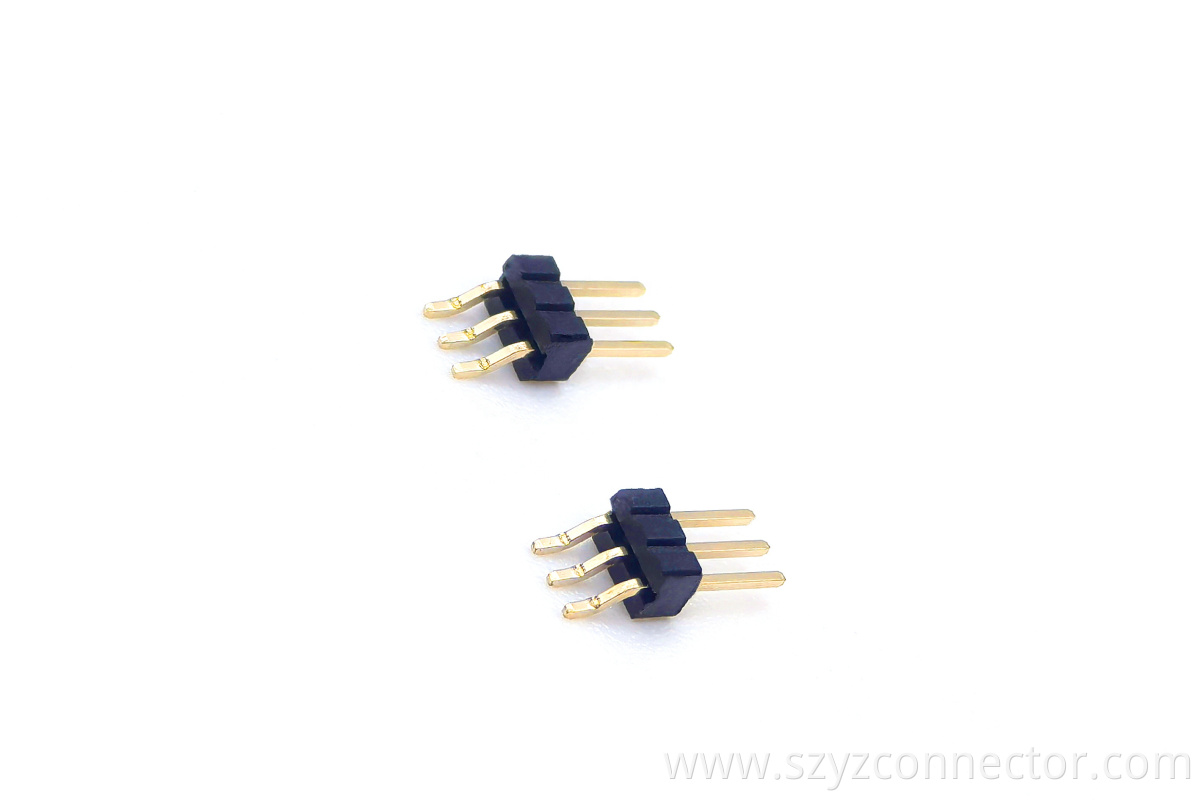

1.27mm Pin Header Single Row Right Angle

YZTECH 1.27mm Pin Header Single Row Right Angle is designed for high-density interconnections in compact PCB applications. Featuring a horizontal mounting structure and right-angle pin orientation, the 1.27mm pitch pin header connector 3P enables efficient space utilization and flexible integration within complex electronic layouts. Widely used in automation equipment, communication devices, precision instruments, and Other fields, its compact rectangular form ensures stable connection performance.

The 1.27mm pitch pin header connector smt employs precision-machined brass contacts with gold plating, offering low contact resistance and high corrosion resistance. It supports a current of 1A and a voltage of 300V. The 1.27mm pitch pin header H1.5mm housing made of PA6T material exhibits excellent heat resistance, withstanding soldering temperatures up to 260°C for 10 seconds without deformation. With an operating temperature range of -45°C to +105°C, it maintains reliable performance even in demanding environments.

The header connector is packaged in anti-static bags, balancing durability and ease of assembly. It is well-suited for automated PCB production lines and complies with international quality standards. YZTECH provides a robust connectivity solution for modern electronic devices that require miniaturization and high reliability.
