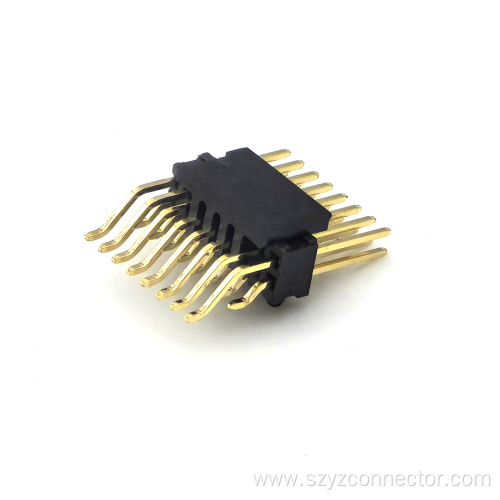

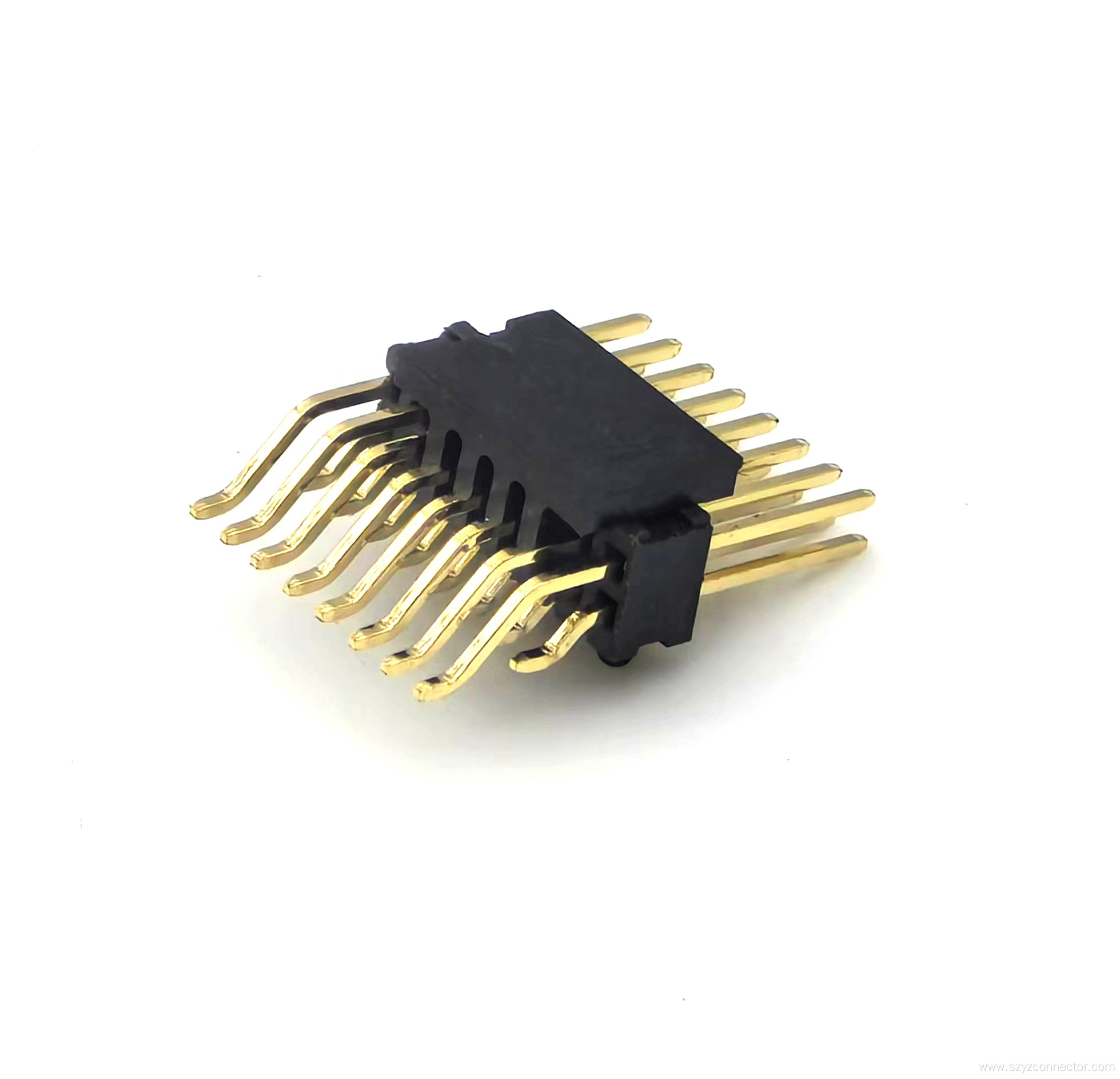

1.27mm Pin header Dual Row Right Angle 16P

1.27mm Pin header Dual Row Right Angle 16P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 16P

Contact Now

Product Description

Product Attributes

Model No.: 1101R.127SMD.2*8P

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*8P



Product Description

1.27mm Pin Header Dual Row Right Angle 16P

Engineered for space-optimized printed circuit board designs, the YZTECH 1.27mm Pin Header Dual Row Right Angle 16P provides a high-density, 16-pin interconnection solution. This header connector features a compact horizontal mount configuration, enabling parallel board-to-board linking or low-profile integration. Its brass contacts, finished with reliable gold plating, ensure stable signal transmission and corrosion resistance, supported by a durable PA6T insulation body. The 1.27mm pin header with side posts 16p is rated for 1A current and 300V voltage, maintaining performance across an extended operational temperature range of -45°C to +105°C. Packaged on reels for high-speed automated assembly, the 1.27mm pin header H2.5mm black streamlines production workflows and withstands standard soldering profiles up to 220°C for 10 seconds.

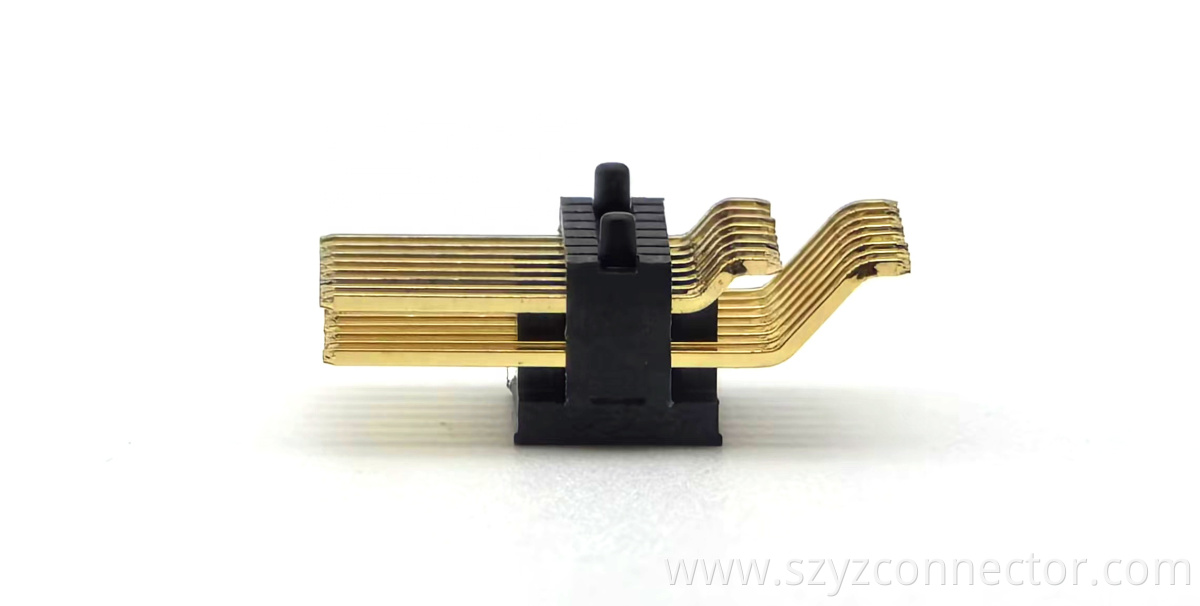

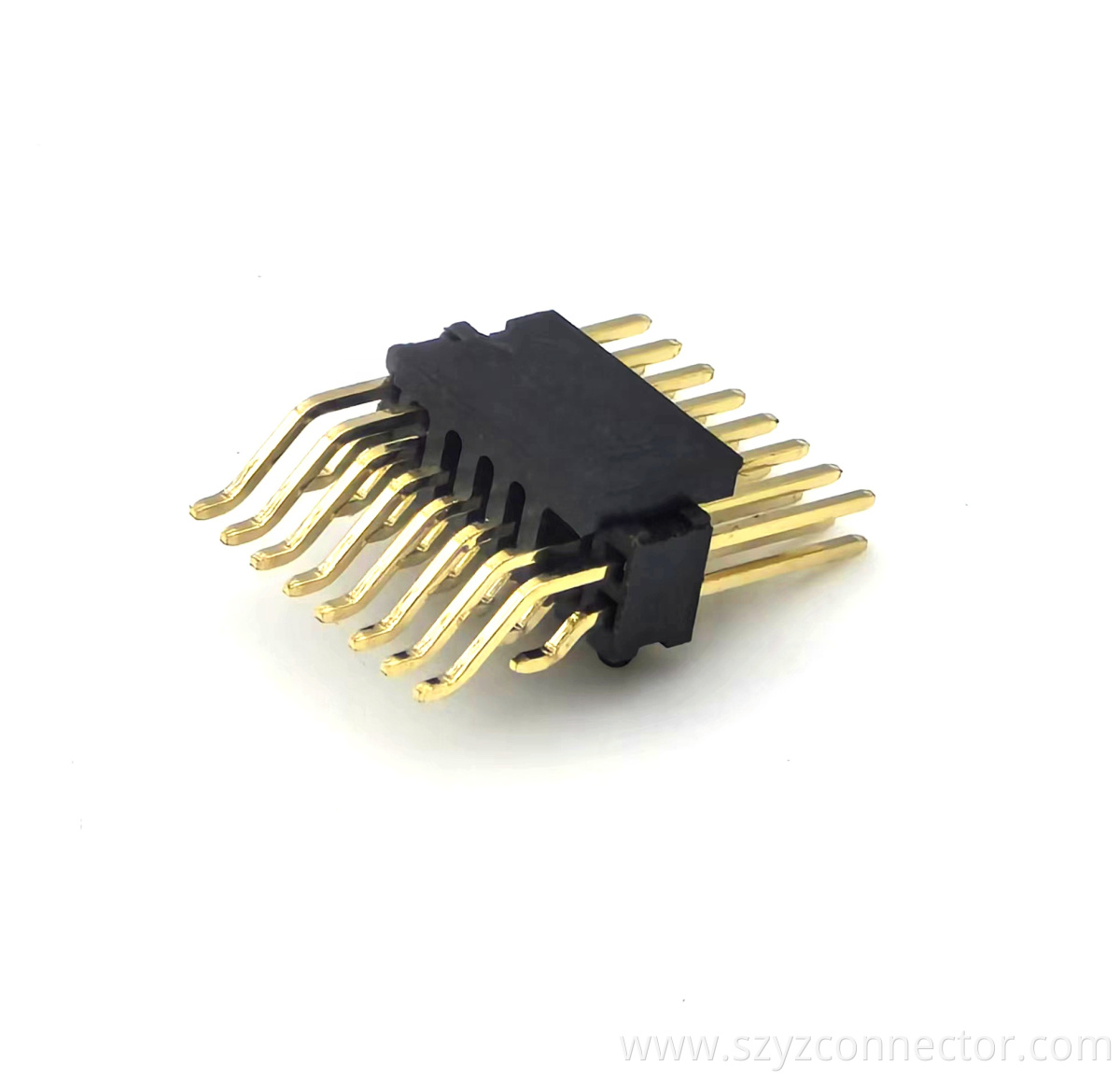

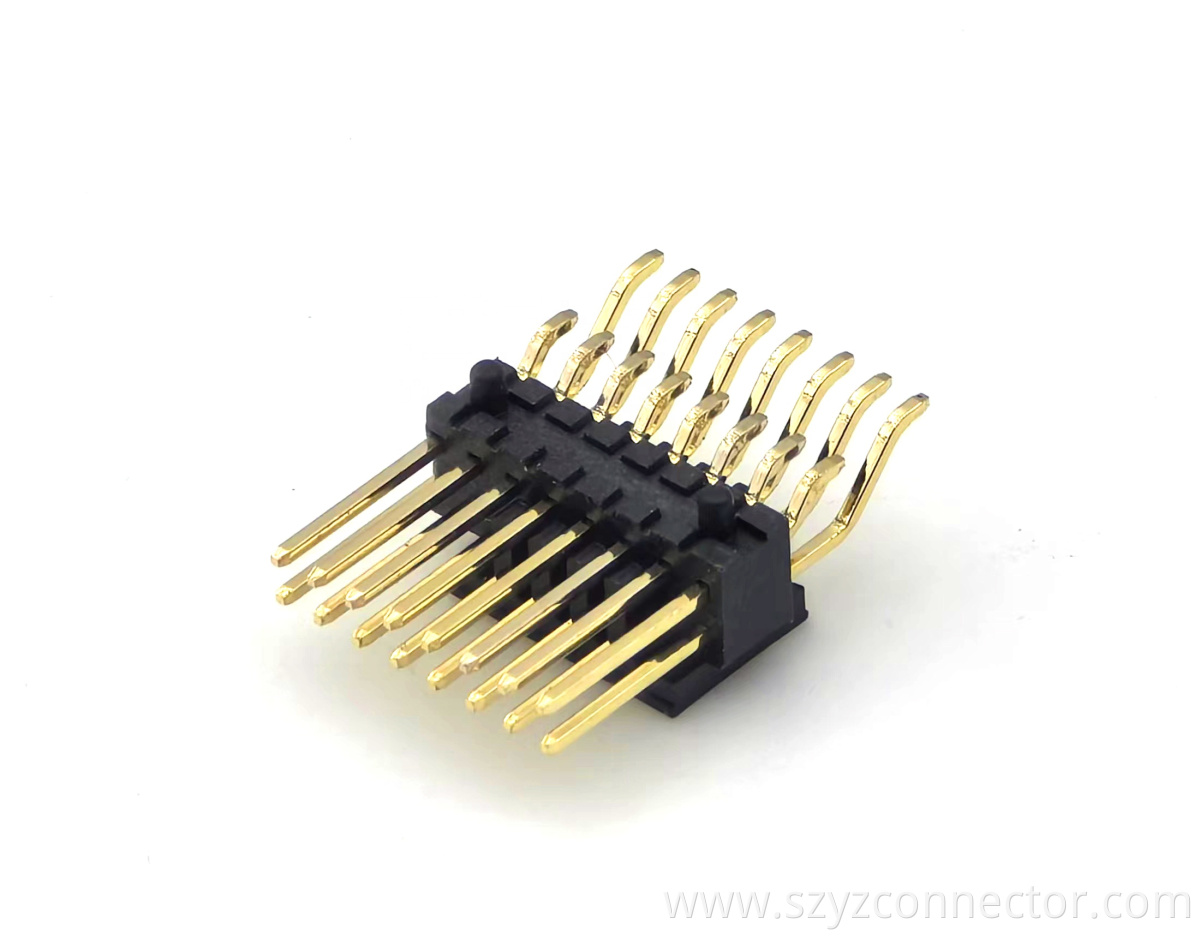

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*8P

This 1.27mm pin header smt 16p is indispensable in applications where vertical height is a critical constraint. It is extensively utilized within the telecommunications sector for compact network switches and routers, in data storage systems for connecting drive backplanes, and across consumer electronics such as ultra-slim laptops and digital cameras. Furthermore, it serves vital functions in medical monitoring devices, industrial sensor modules, and advanced automotive telematics units, facilitating reliable connections in densely packed electronic assemblies.

Selecting YZTECH's 1.27mm pin header guarantees a blend of precision engineering and manufacturing efficiency. The reel packaging minimizes setup time for pick-and-place machines, significantly boosting production throughput for large-scale manufacturing. This connector stands as a testament to YZTECH's commitment to delivering components that empower the creation of smaller, smarter, and more reliable electronic products for the global market, ensuring robust performance in demanding commercial and industrial environments.
