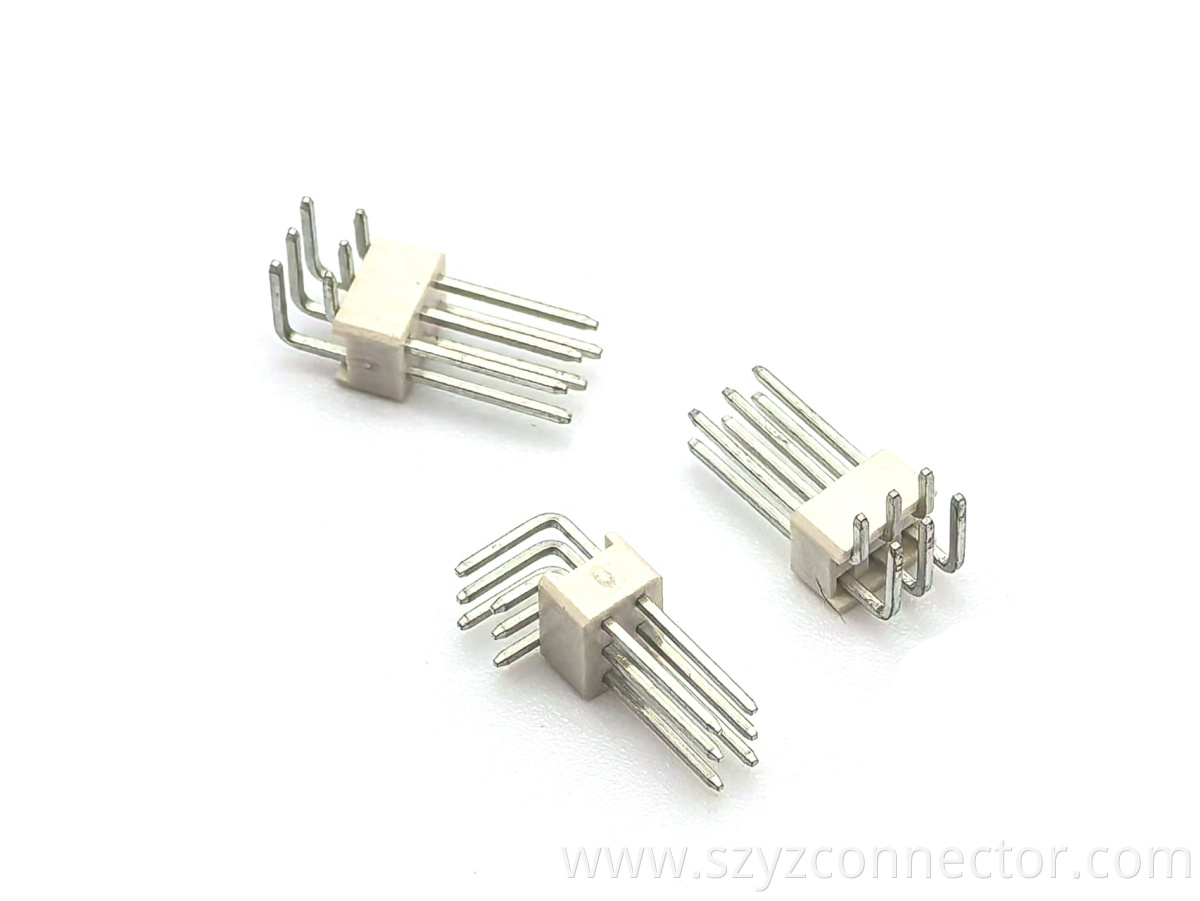

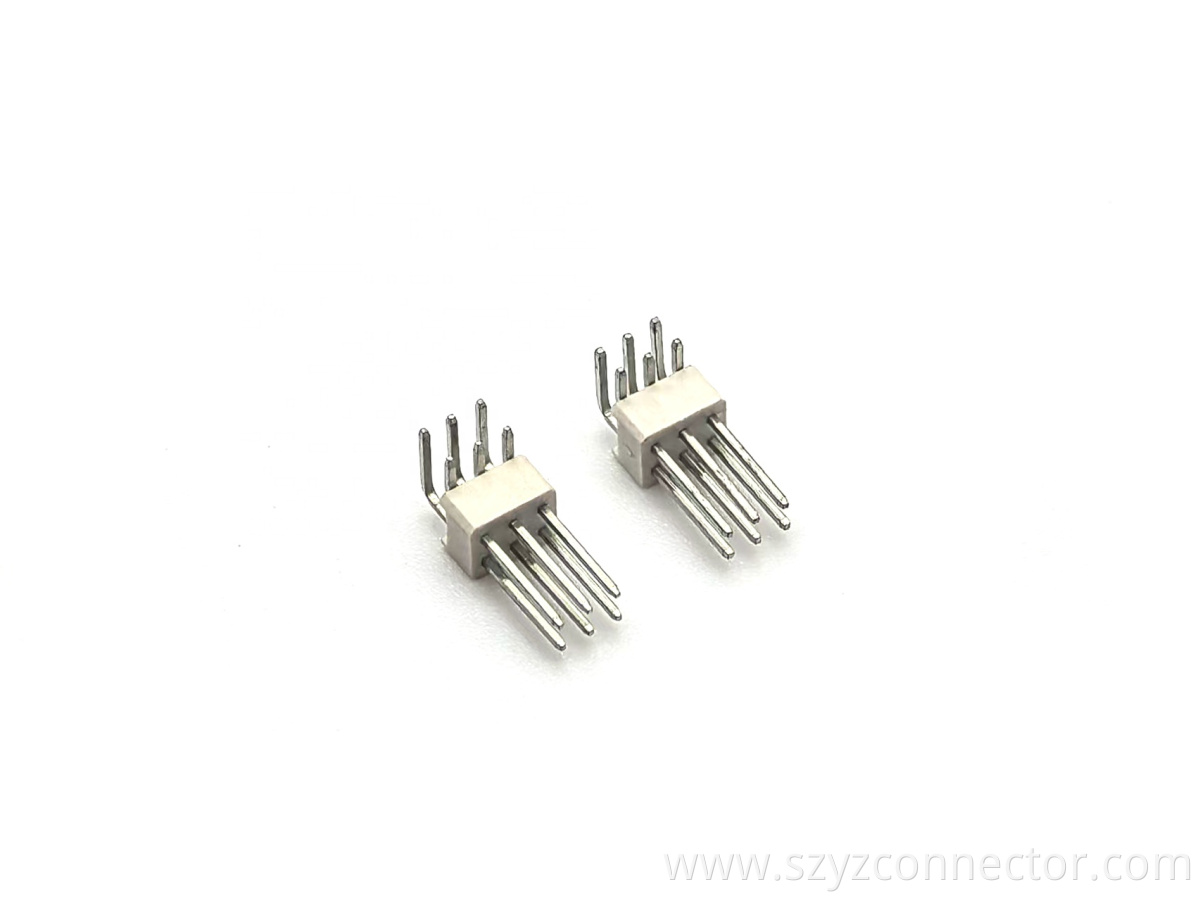

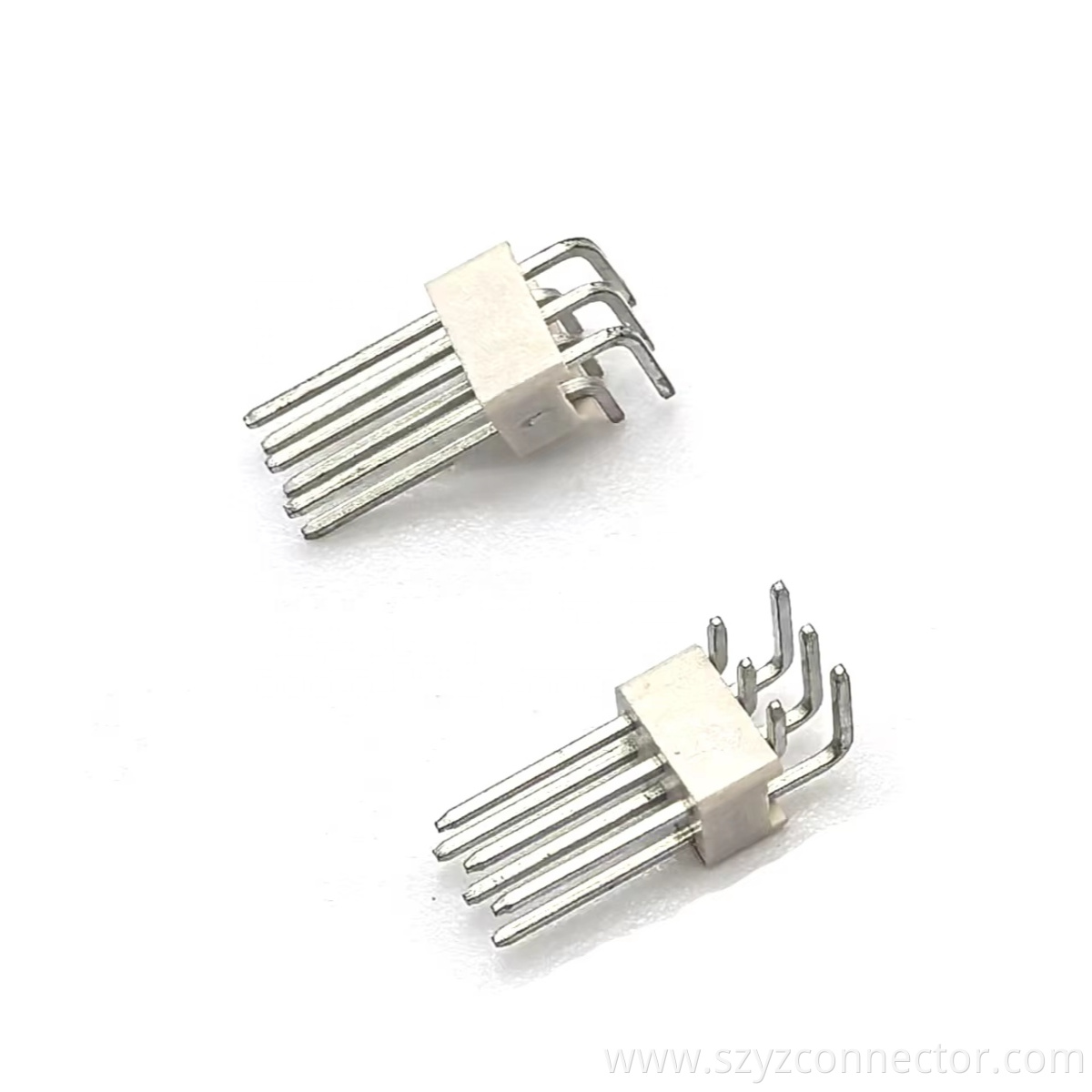

1.5mm Pin header Dual Row Right Angle

The YZTECH 1.5mm Pitch Dual-Row Right-Angle Pin Header is engineered for high-density PCB applications where space optimization and reliable signal transmission are critical. Featuring a compact 1.5mm pitch and dual-row design,this header connector maximizes circuit layout efficiency without compromising performance.Constructed from phosphor bronze contacts with precision tin plating,it ensures low contact resistance and stable current delivery up to 1A.With an operational temperature range of -45°C to +105°C and RoHS-compliant LCP insulation,this component meets rigorous industrial standards while supporting automated assembly processes.



This male-type header incorporates a rectangular interface compatible with DIN-standard sockets, providing secure mating and vibration resistance.The contacts undergo selective tin plating to enhance solderability and corrosion resistance,while the LCP housing offers exceptional thermal stability,withstanding reflow soldering at temperatures up to 200°C for 10 seconds.Electrical ratings include 300V rated voltage and 1A current capacity per pin,ensuring reliability in low-power control circuits.Packaged in anti-static bags to preserve terminal integrity during storage and transit.



YZTECH mandates full compliance with IEC connectivity standards,verified through automated testing for pin alignment,insulation resistance,and engagement durability.Suitable for automotive electronics,IoT devices,and sensor arrays, this 1.5mm Pin Header supports wave soldering and pick-and-place machinery integration. Each unit is individually inspected for dimensional accuracy and shipped with lot-traceable documentation.Custom packaging options are available for bulk orders to streamline production workflows.
