Name: 2.0mm Pitch Box header Connector SMT H6.4mm 2*10P
Uploaded: 2025-08-22T03:34:40+08:00
Description: YZTECH 2.0mm Pitch Box Header Connector SMT 20P is a dual-row, male-termination component engineered for high-density

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

20P Dual-Core Black

Contact Now

Product Description

Product Attributes

Model No.: 1103.2SMD-20P-0090-F-04

Brand: YZTECH

Species: Contact Connector

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

2.0mm Pitch Box header Connector SMT H6.4mm 2*10P



Product Description

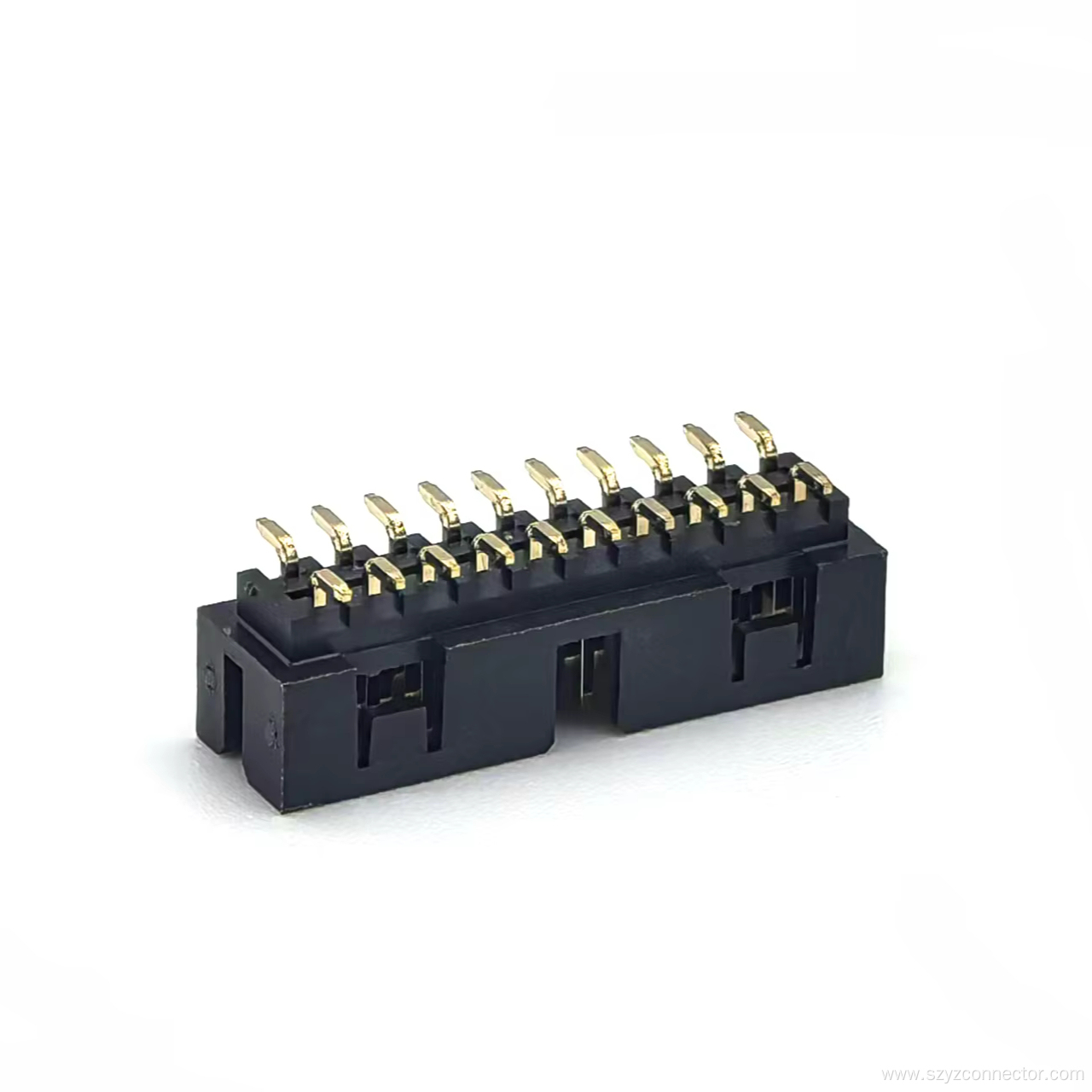

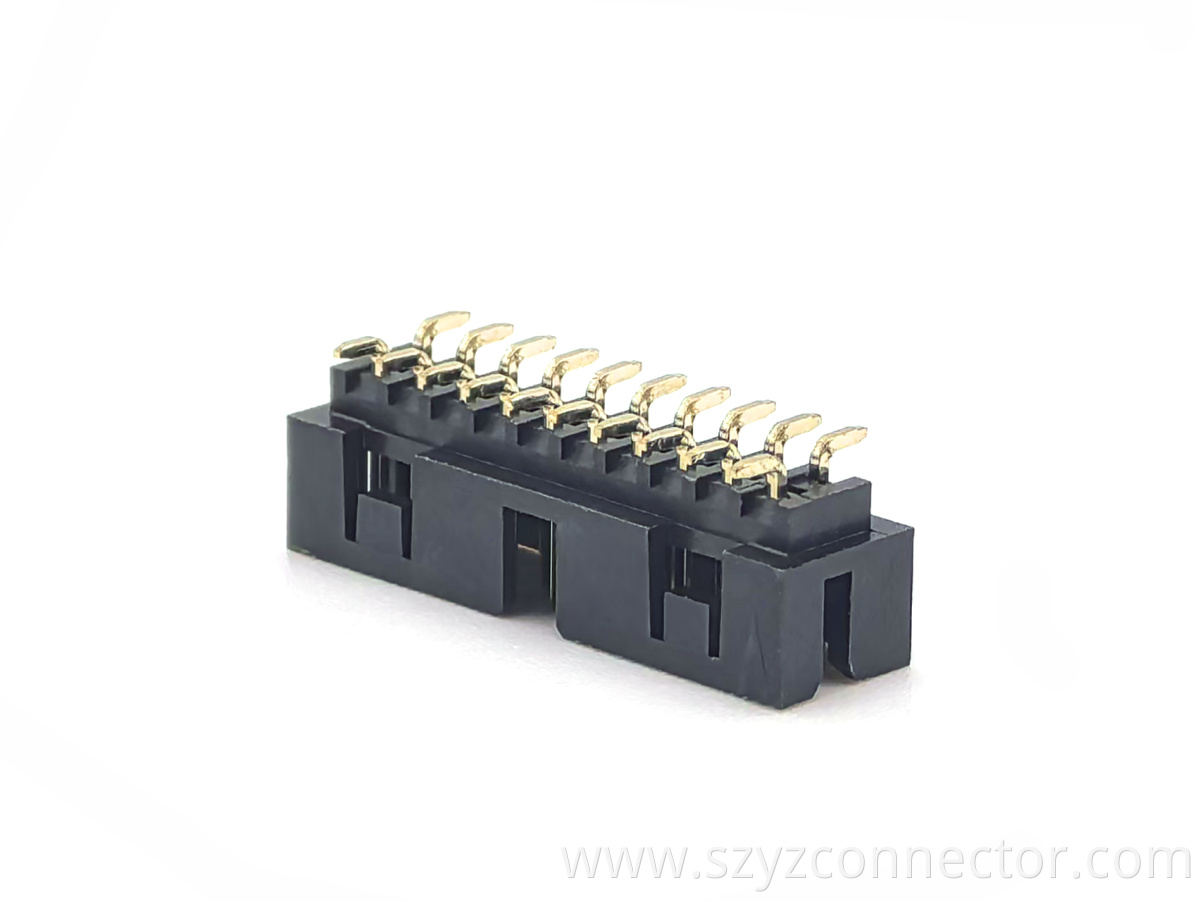

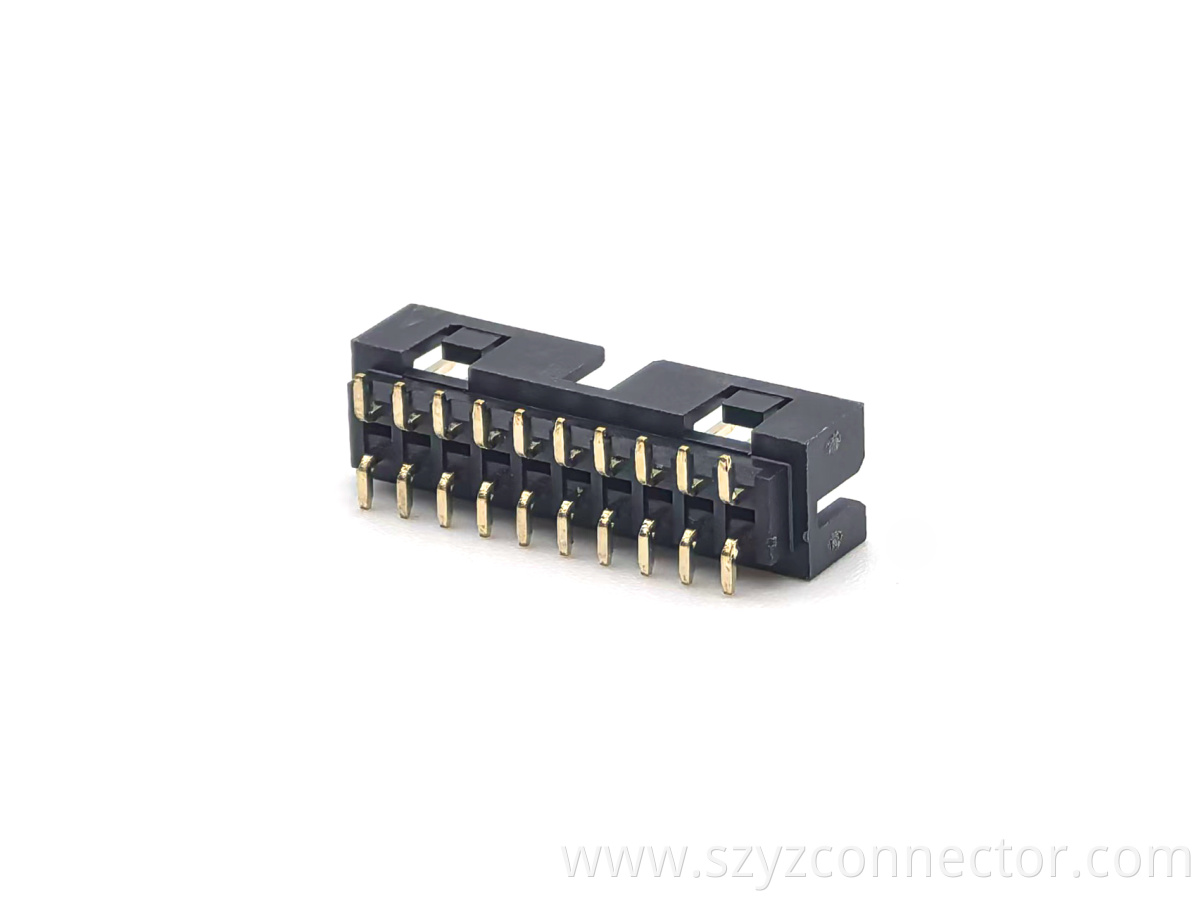

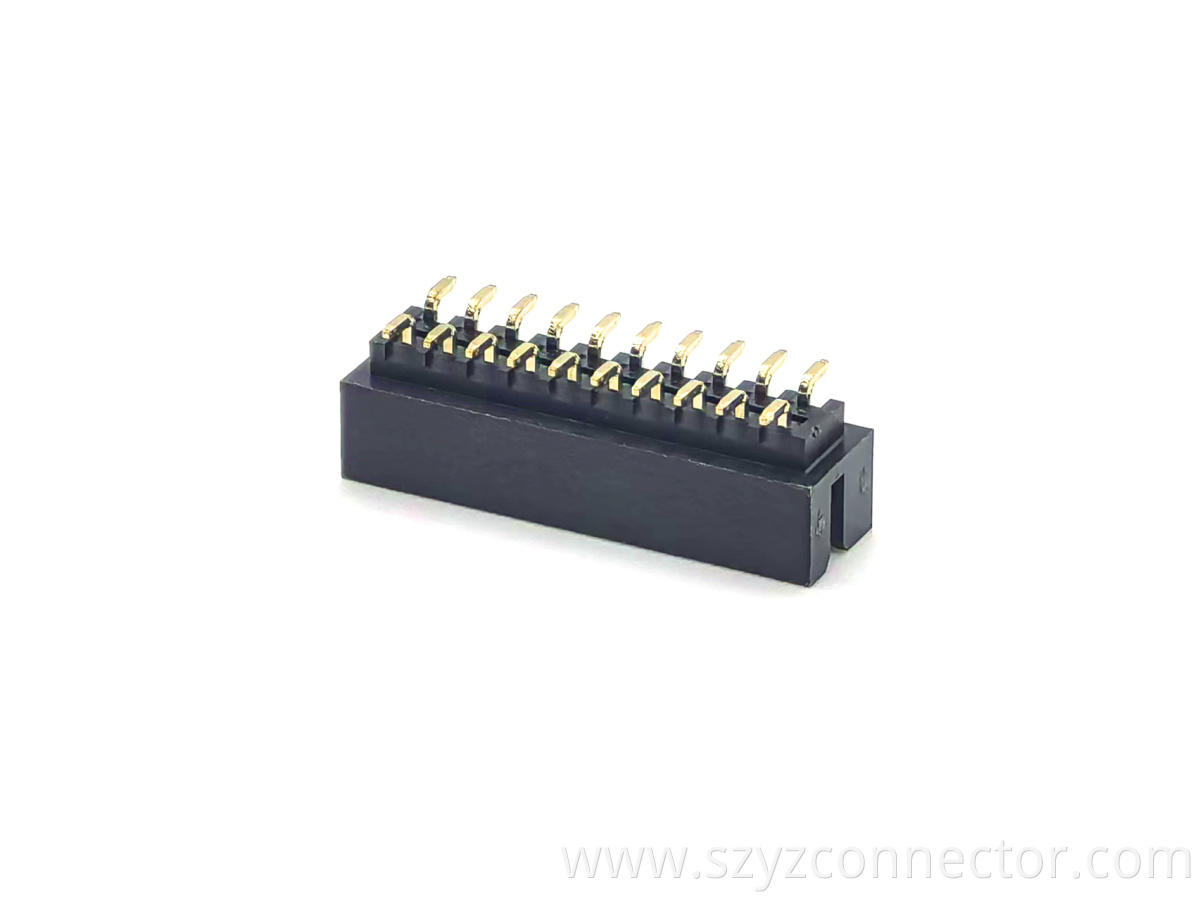

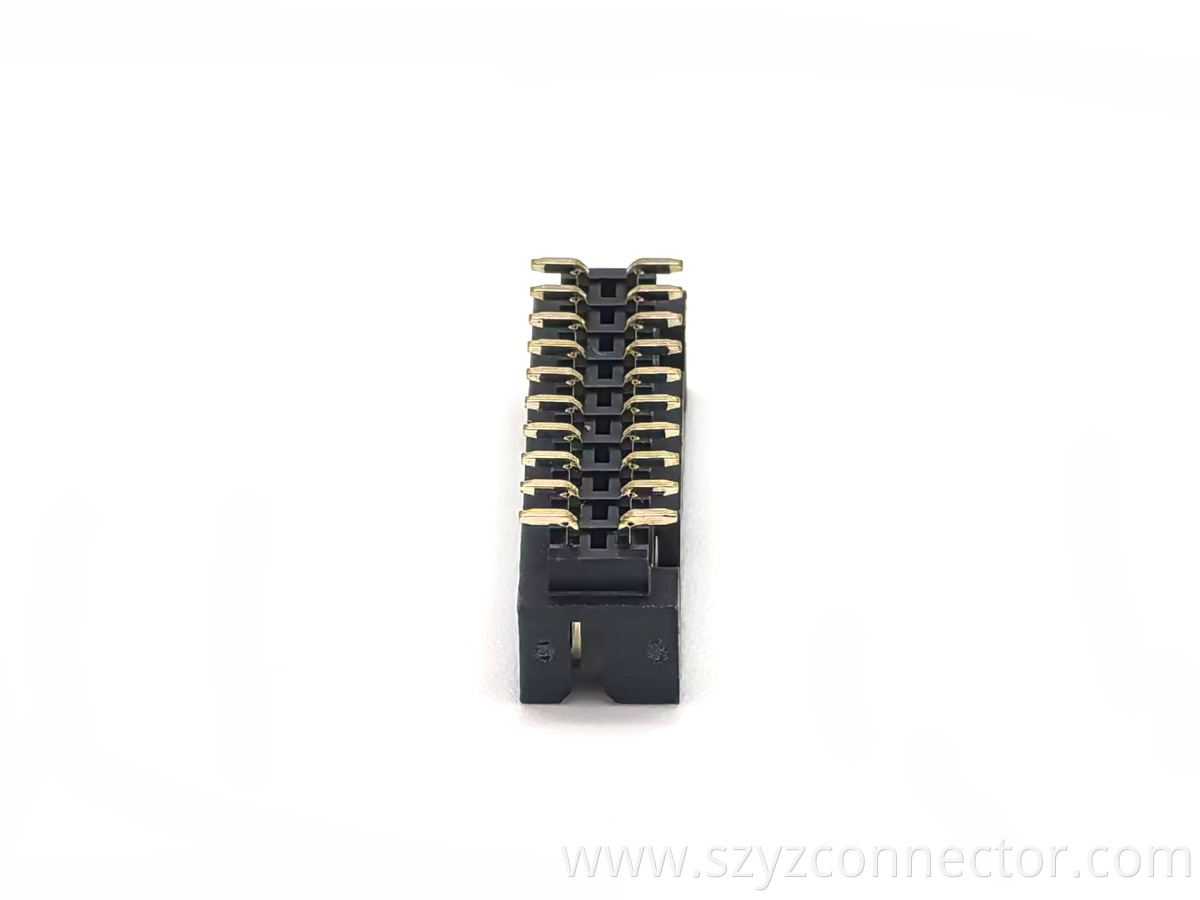

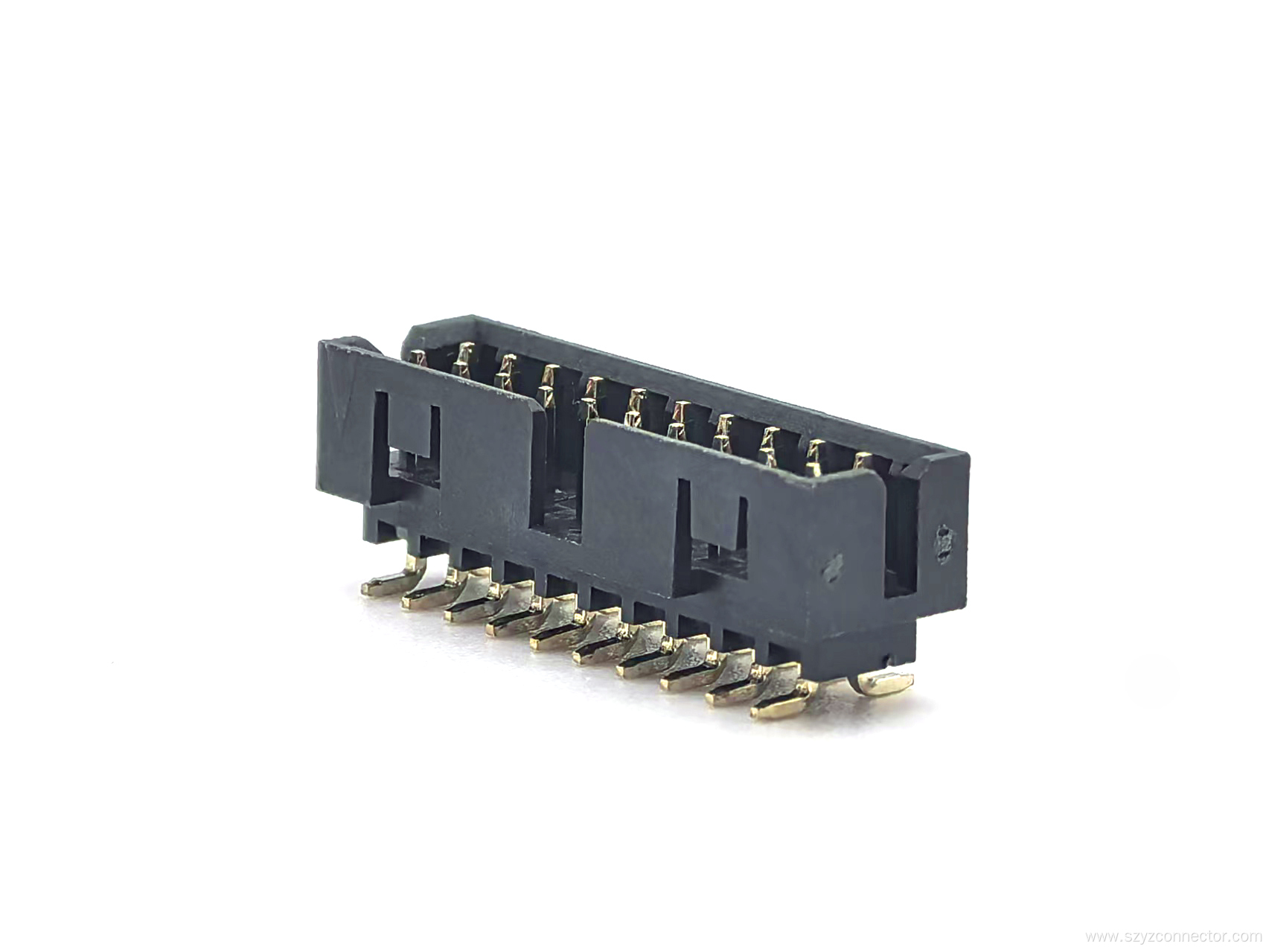

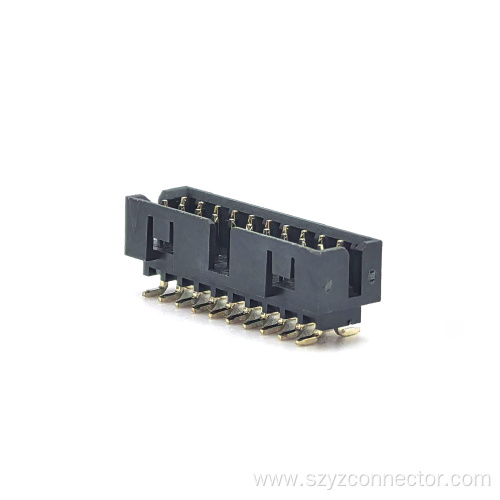

YZTECH 2.0mm Pitch Box Header Connector SMT 20P is a dual-row, male-termination component engineered for high-density PCB applications. Featuring a vertical mount orientation and rectangular interface, this box header connector supports efficient vertical integration into space-constrained designs. Its 20-position layout, arranged in two rows of 10 pins each, ensures reliable signal transmission and stable physical mounting. The product comes in secure tube packaging for streamlined assembly handling and is compliant with UL standards, ensuring broad industry acceptance.

Built with durability and electrical performance in mind, this header connector utilizes gold-plated brass contacts, providing low resistance and corrosion-resistant connectivity. It is rated for up to 2A current and 1000V voltage, making it suitable for a variety of industrial and power applications. The 2.0mm Box Header Connector operates reliably across a temperature range of -40°C to +105°C, offering consistent performance under challenging environmental conditions.

Ideal for use in automation, telecommunications, and embedded systems, this DIN-type box header combines mechanical stability with high electrical integrity. Its SMT (Surface Mount Technology) design facilitates automated placement and reflow soldering, reducing assembly time and improving manufacturing throughput. YZTECH’s commitment to quality ensures that this header delivers robust connectivity and long-term reliability in demanding applications.
