Name: 2.0mm Machined Female header Single Row Straight 40P
Uploaded: 2026-03-28T02:11:32+08:00
Description: Engineered for reliable PCB interconnections,the YZTECH 2.0mm Machined Female Header delivers exceptional durability

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

Black 1-core 40P

Contact Now

Product Description

Product Attributes

Model No.: 18102.200S-1*40P-H2.8mm

Brand: YZTECH

Origin: China

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

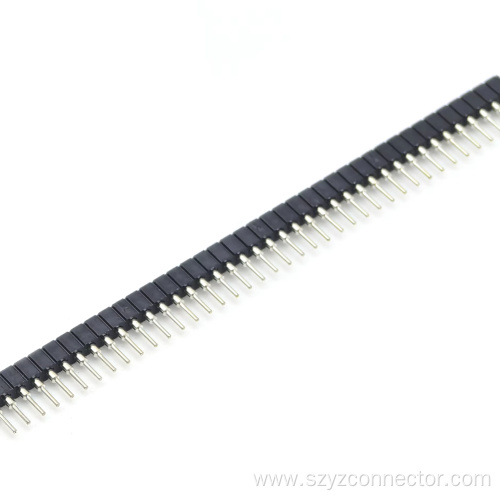

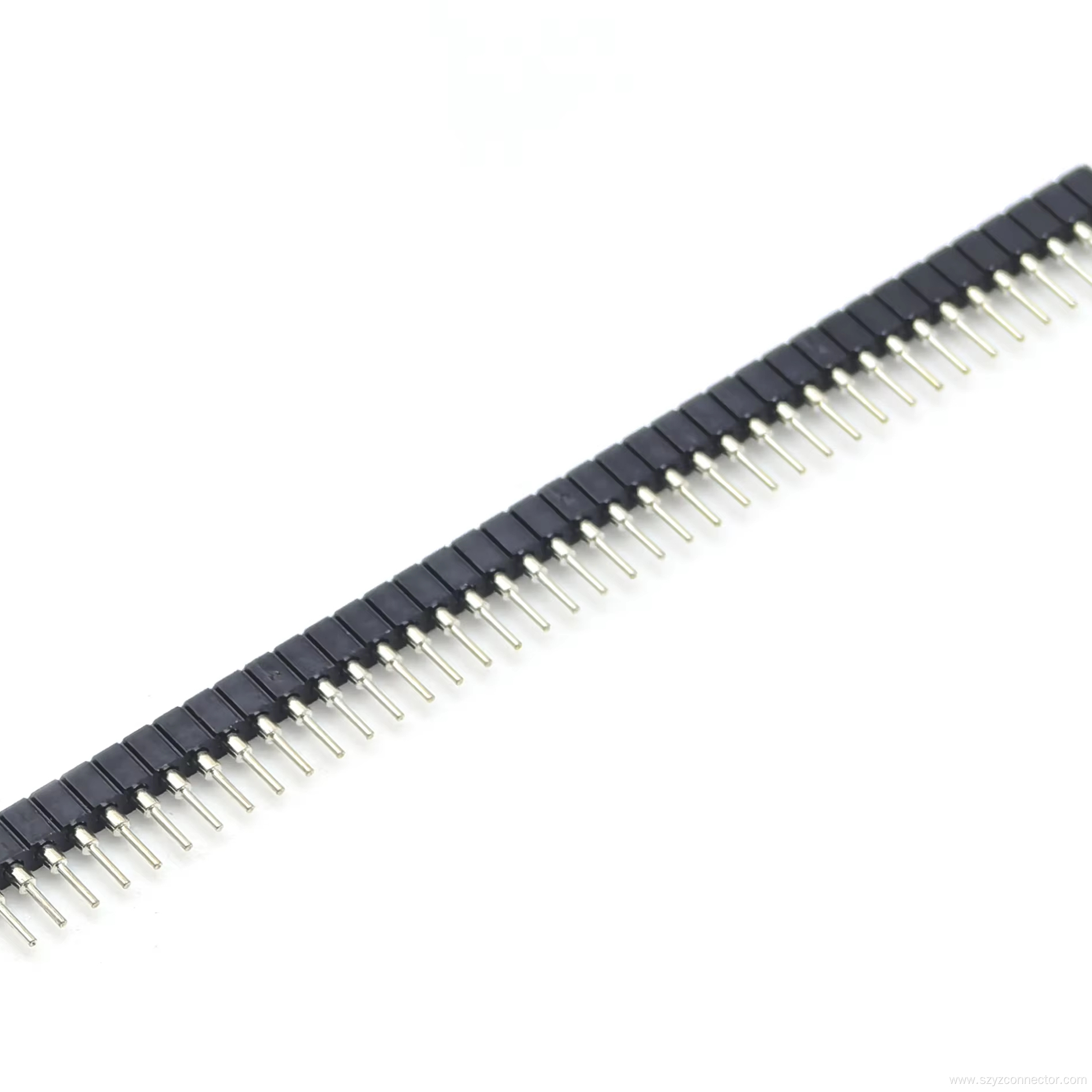

2.0mm Machined Female header Single Row Straight 40P



Product Description

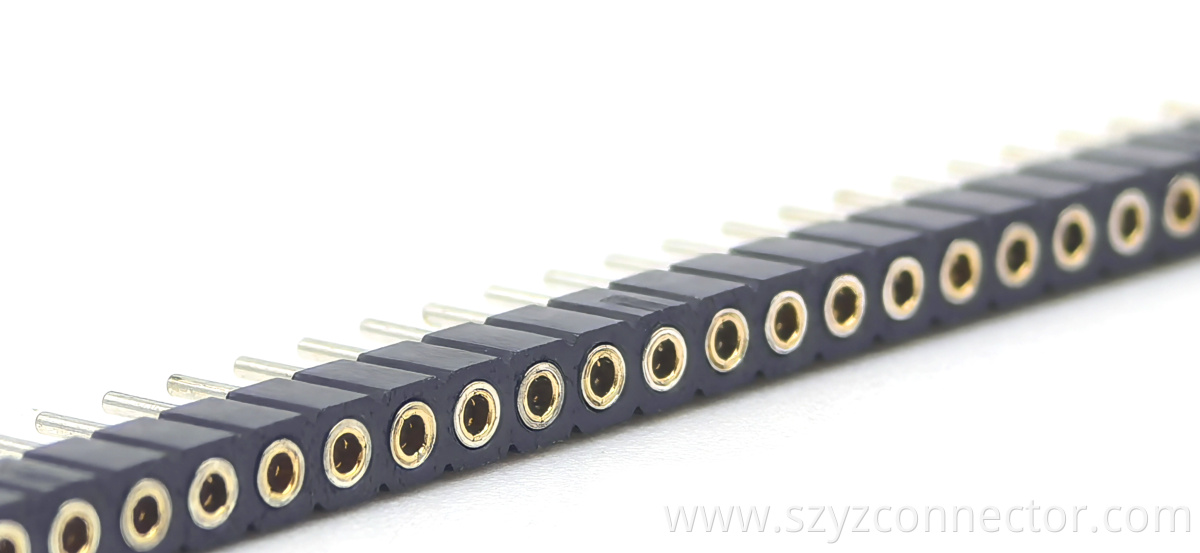

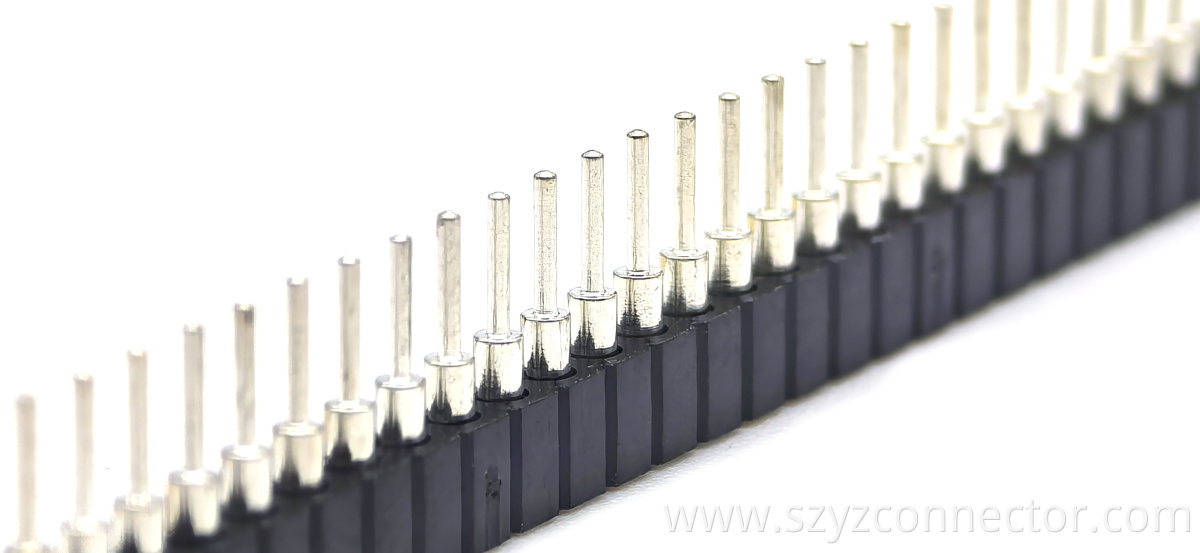

Engineered for reliable PCB interconnections,the YZTECH 2.0mm Machined Female Header delivers exceptional durability and consistent performance in a single-row,straight 40-pin layout.This header connector features a round female contact design,specifically crafted to ensure secure mating with corresponding male pins.With a robust brass contact base and a high-temperature PPS insulating body,it is built to withstand demanding assembly processes.The half-gold and tin-plated contact surface offers an optimal balance of corrosion resistance and cost-effectiveness,making it a versatile choice for precision board-to-board connections.You can find it in the 2.0mm Female Header of the catalog.

Designed for rigorous operating environments,this Connector supports a wide temperature range from -40℃ to +105℃,ensuring stable functionality under thermal stress.The contacts are fabricated from machined brass and finished with a selective gold/tin plating process,which provides superior conductivity and protects against oxidation over extended use.Its PPS housing exhibits excellent dimensional stability and insulation properties,capable of enduring a maximum soldering temperature of 260°C for up to 10 seconds without deformation.Rated at 2A per contact and 500V,this component delivers consistent electrical performance suitable for a variety of power and signal transmission requirements.Supplied in convenient bag packaging,each unit maintains contact alignment and plating integrity from factory to assembly line.
