Name: 2.0mm Pitch Pin header Connector
Uploaded: 2025-09-15T07:09:06+08:00
Description: Introducing the YZTECH 2.0mm Dual Row Straight Pin Header Connector, designed for versatile connectivity solutions in

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Model No.: 1101.2S-2DL-2*2*12P-0190-F-04

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

2.0mm Pitch Pin header Connector



Product Description

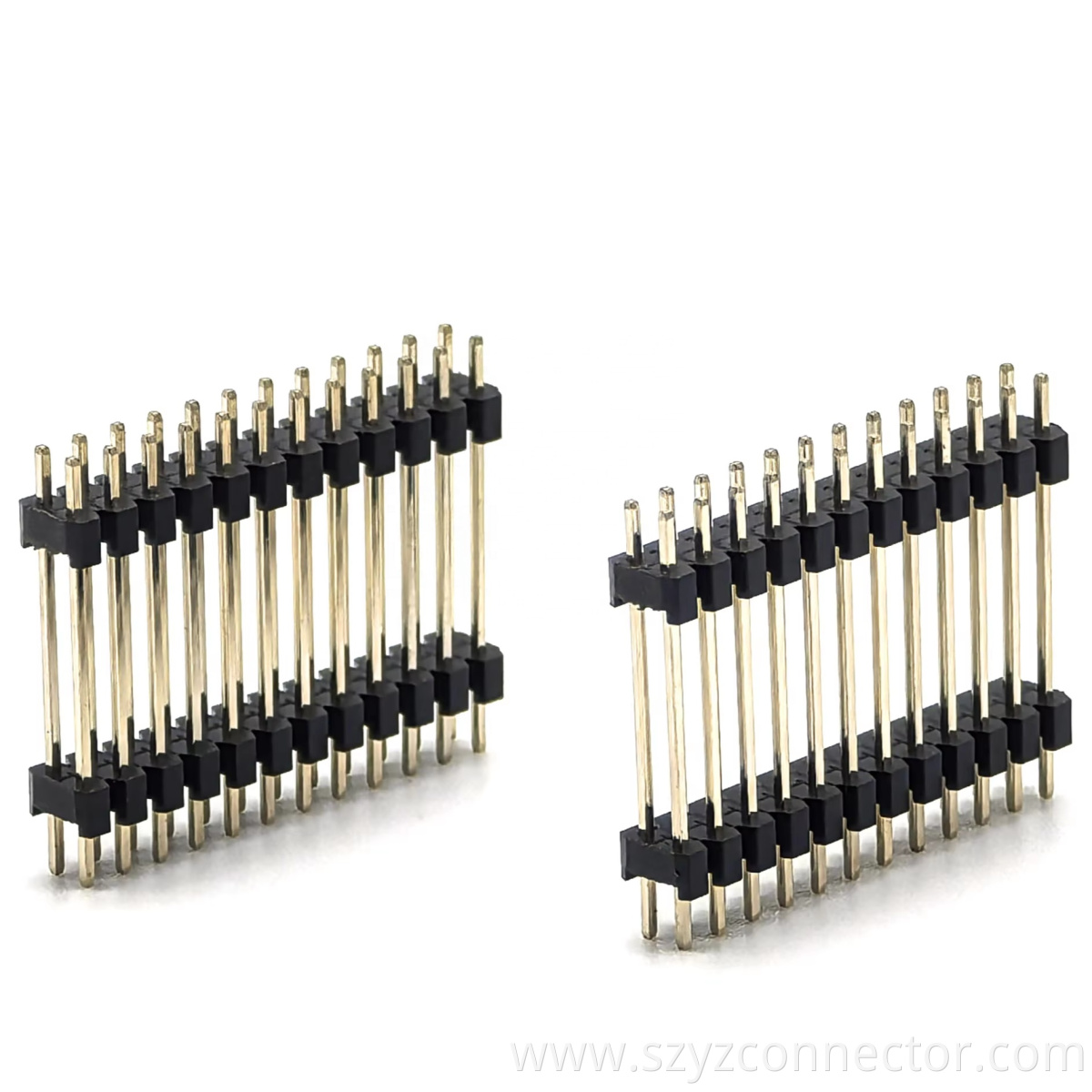

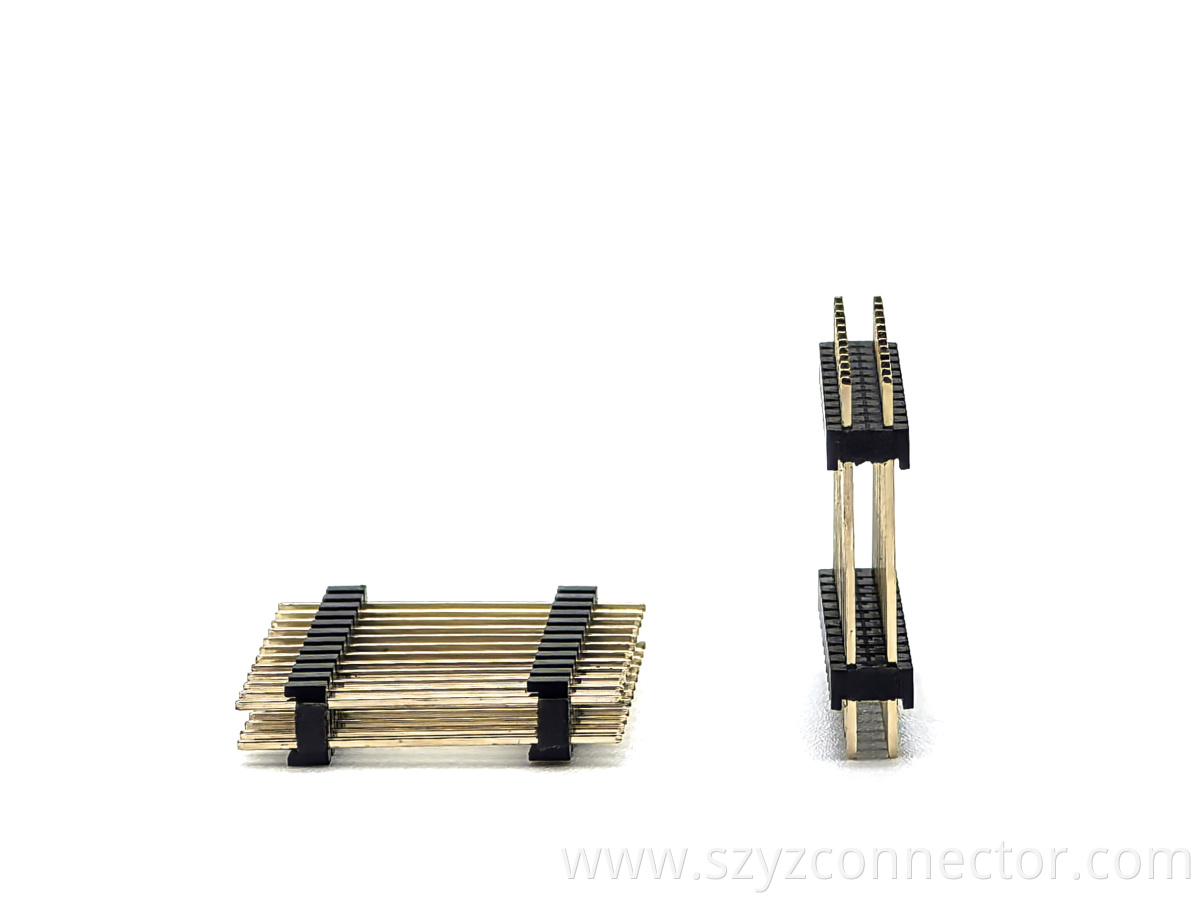

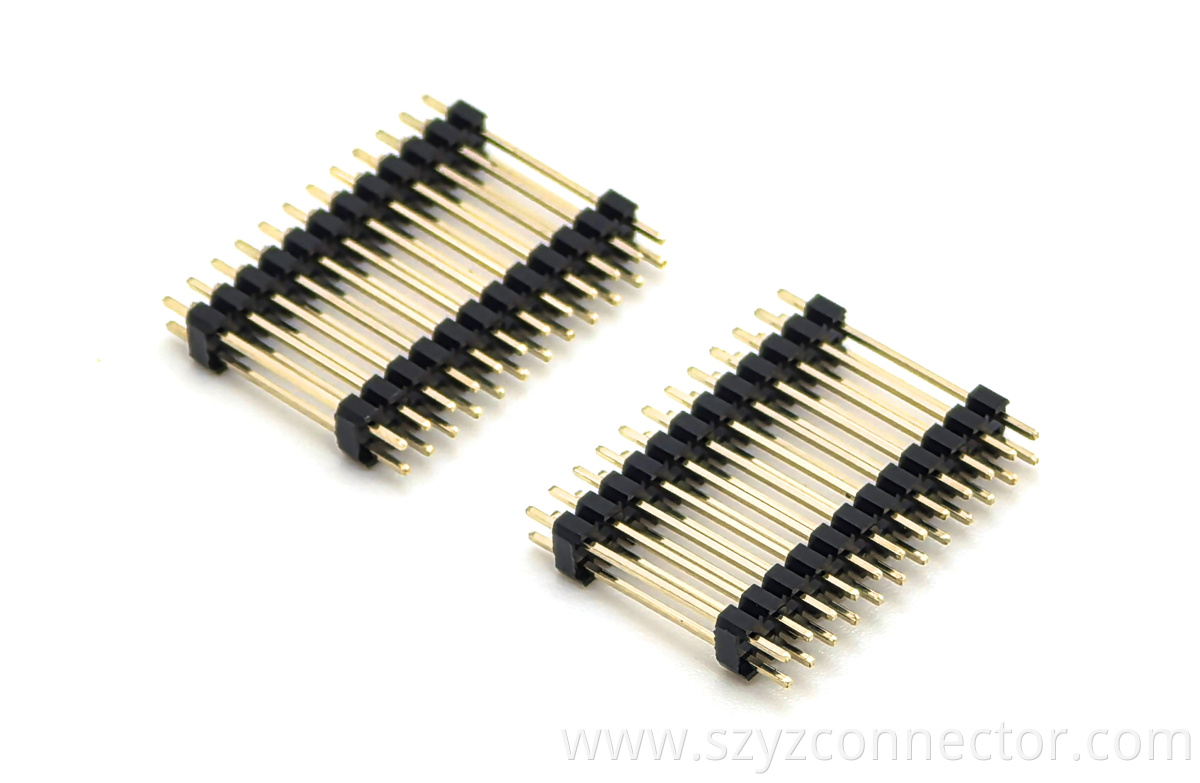

Introducing the YZTECH 2.0mm Dual Row Straight pin header connector, designed for versatile connectivity solutions in various applications. This high-performance header connector features 12 pins per row, making it ideal for both space-constrained environments and robust electrical systems. With its dual-row configuration, this Pin Header facilitates efficient connections for PCB applications while ensuring reliability and durability. The connectors are crafted from premium brass with gold plating, which not only enhances conductivity but also provides excellent resistance against corrosion, ensuring long-lasting performance.

The YZTECH Pin Header Connector is rated for a maximum current of 2A and a voltage of up to 600V,making it suitable for a wide range of electronic devices and systems.Constructed with a rectangular shape and a male gender design, it allows for straightforward plug-and-play installation, simplifying the user experience.The connector's body is made from high-quality PA6T,providing enhanced thermal stability and mechanical strength. Capable of withstanding operating temperatures between -40℃ and +105℃,this connector is engineered for demanding environments, ensuring reliability in various scenarios. Additionally, the maximum welding temperature is set at 260℃ for 10 seconds, facilitating easy assembly during manufacturing.

The YZTECH 2.0mm Pin Header is well-suited for diverse industries,including telecommunications, automotive, consumer electronics, and industrial automation. Its flexible design makes it perfect for connecting PCBs in devices ranging from home appliances to sophisticated machinery.The UL certification further assures compliance with international standards, appealing to manufacturers seeking high-quality components for their products.Embrace the reliability and performance of YZTECH for your electronic assembly,ensuring a long-lasting connection in your devices.
