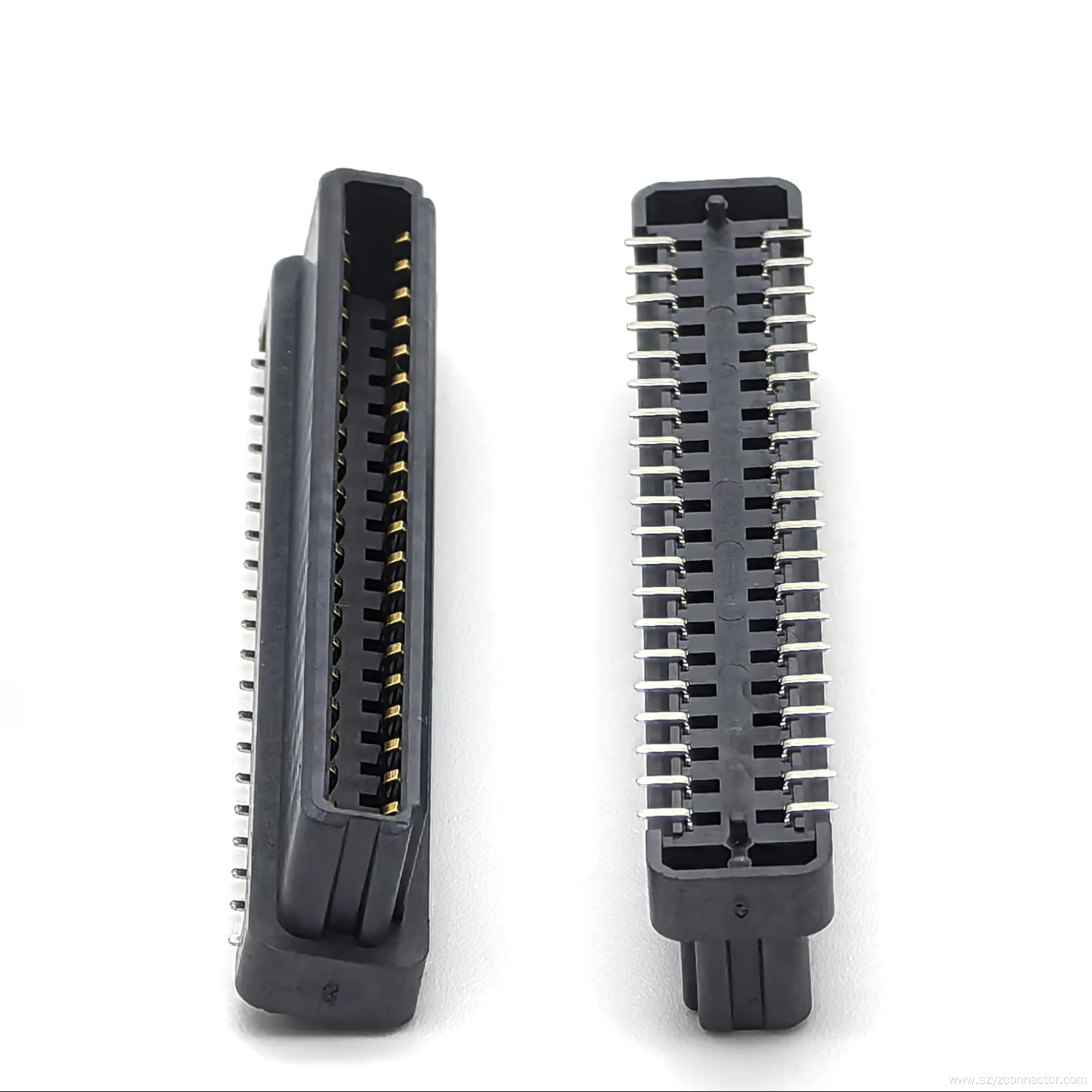

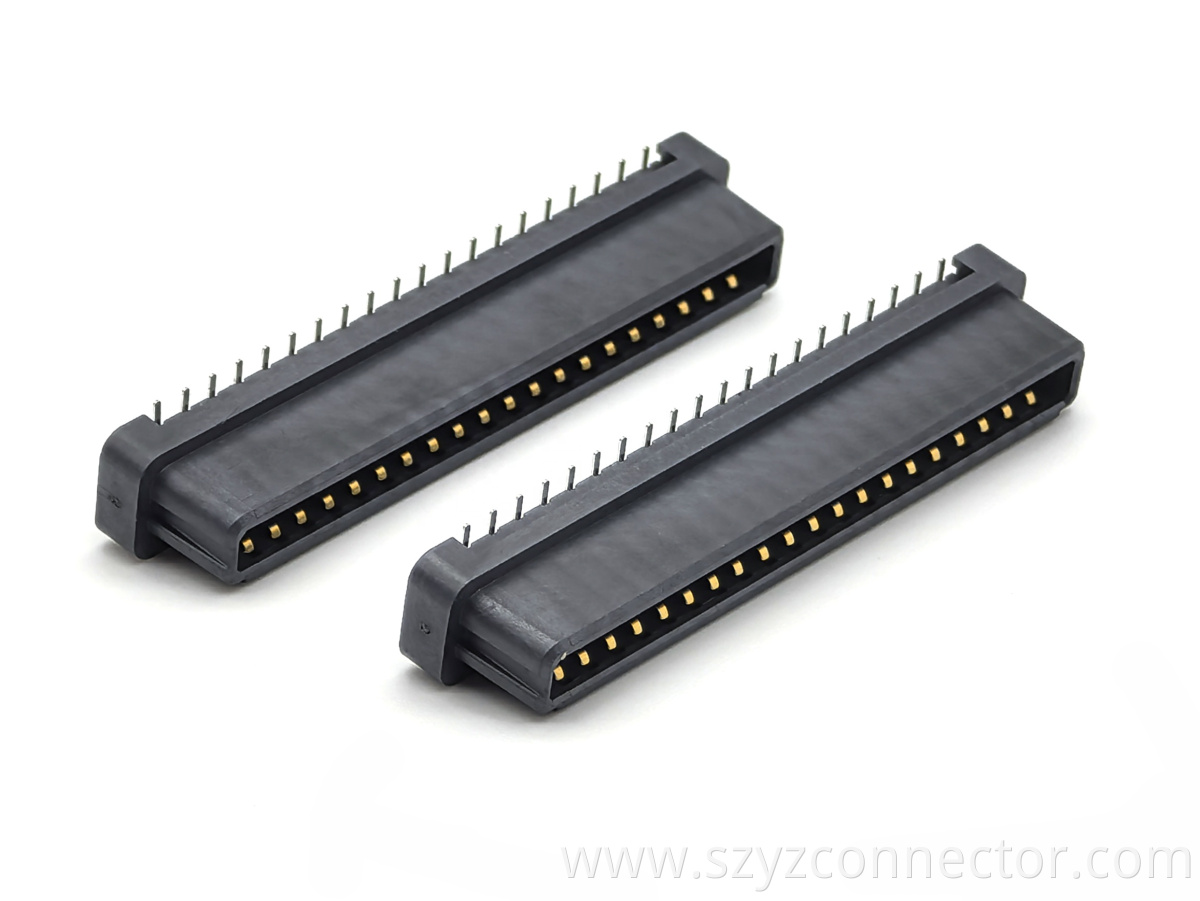

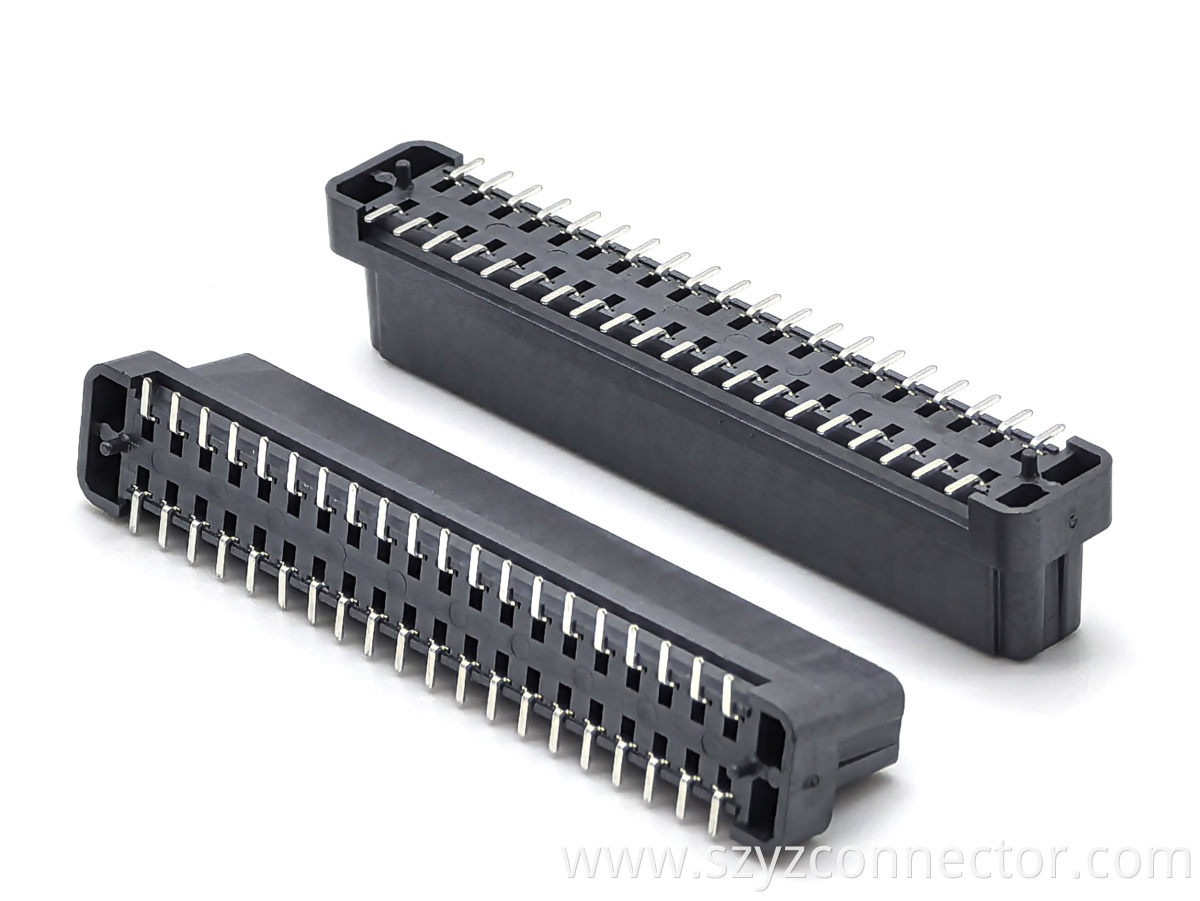

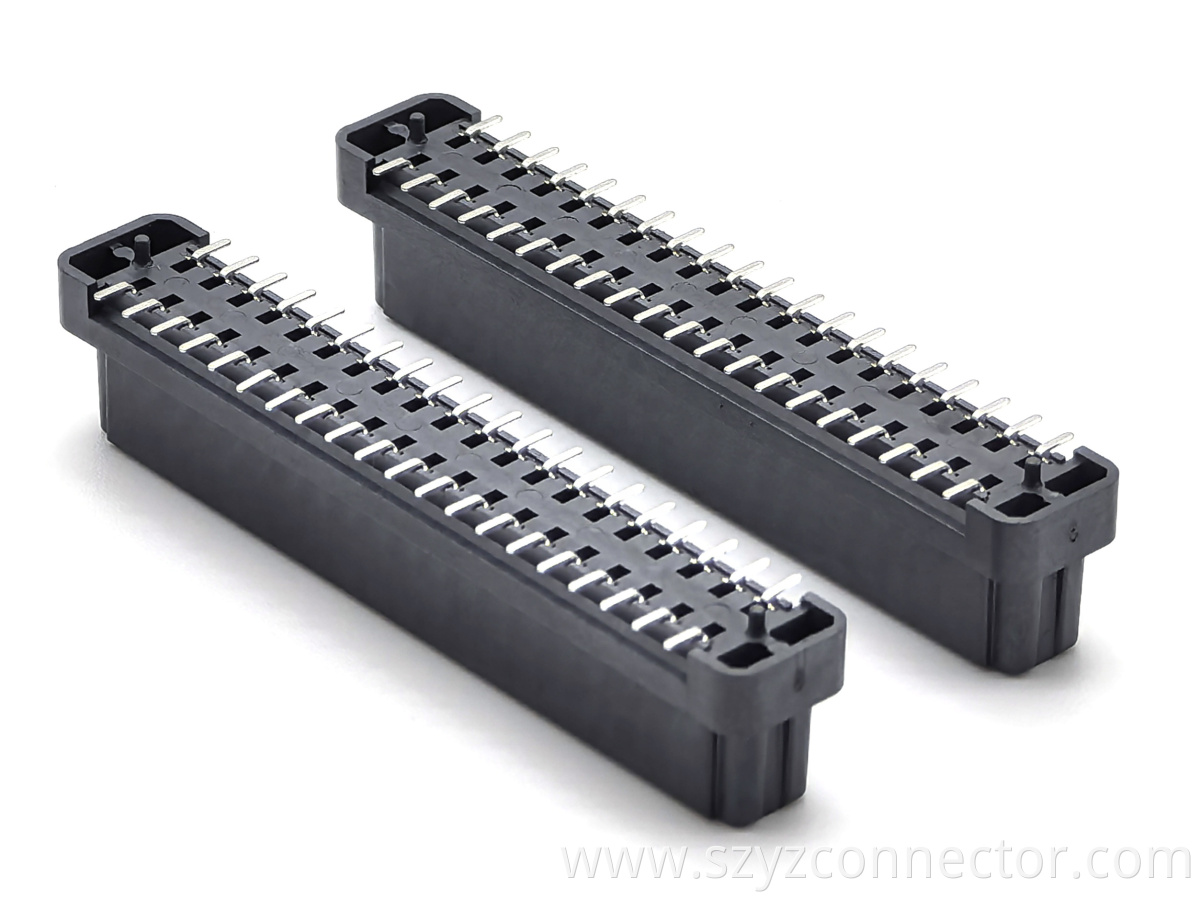

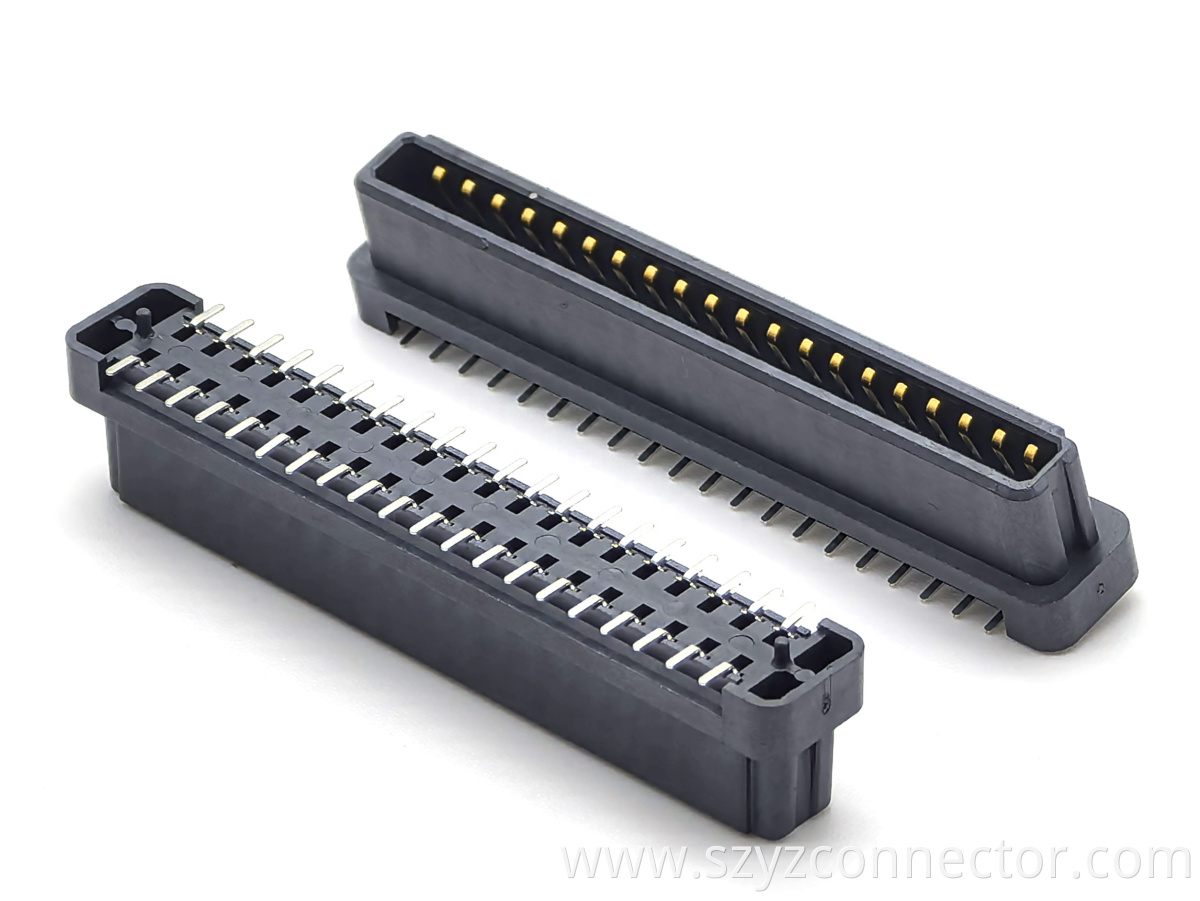

2.54mm Board to Board Female Socket Connector

YZTECH introduces its premium 2.54mm Pitch Board to Board Female Socket, a high-quality connector designed to revolutionize PCB interconnections. With a dual-row configuration housing 20 pins per row, this Female Header offers an impressive total of 40 connection points, enabling complex and high-density circuit designs. Its rectangular shape is optimized for space-efficient mounting on PCBs, making it an ideal choice for applications where maximizing component density is crucial. The vertical mount installation method provides a stable and reliable connection, ensuring that the socket remains firmly in place even in high-vibration environments. As a female connector, it is designed to mate seamlessly with corresponding male Pin Header, creating a secure and low-resistance electrical path.



The header connector is crafted with the utmost attention to detail and using top-notch materials. The colloidal material is LCP, which is known for its exceptional properties. The socket has been rigorously tested and certified by UL. This UL certification guarantees that the product meets strict safety and quality standards, giving customers peace of mind when integrating it into their designs. The 2.54mm pitch is a widely accepted standard in the industry, ensuring compatibility with a vast range of male connectors and simplifying the design and procurement process for engineers.



This board-to-board connector finds extensive applications across various industries. The vertical mount design and high-pin count facilitate efficient wiring and signal transmission in industrial control systems. Packaged in reels, the socket is easy to handle during automated assembly processes, improving production efficiency and reducing costs. YZTECH's 2.54mm Pitch Board to Board Female Socket is the go-to solution for engineers seeking a reliable, high-performance connector for their PCB-based designs.
