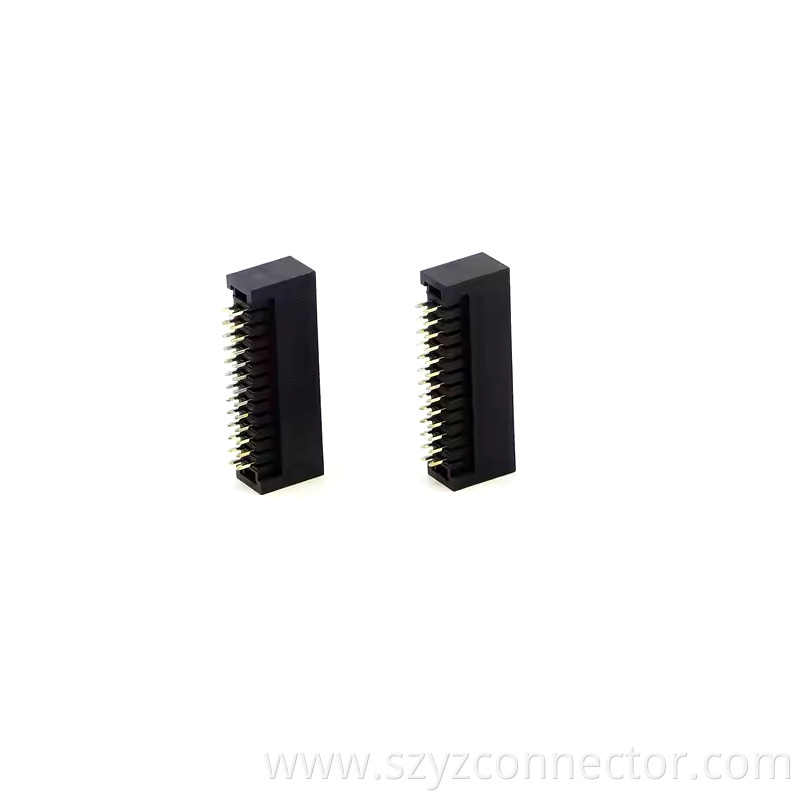

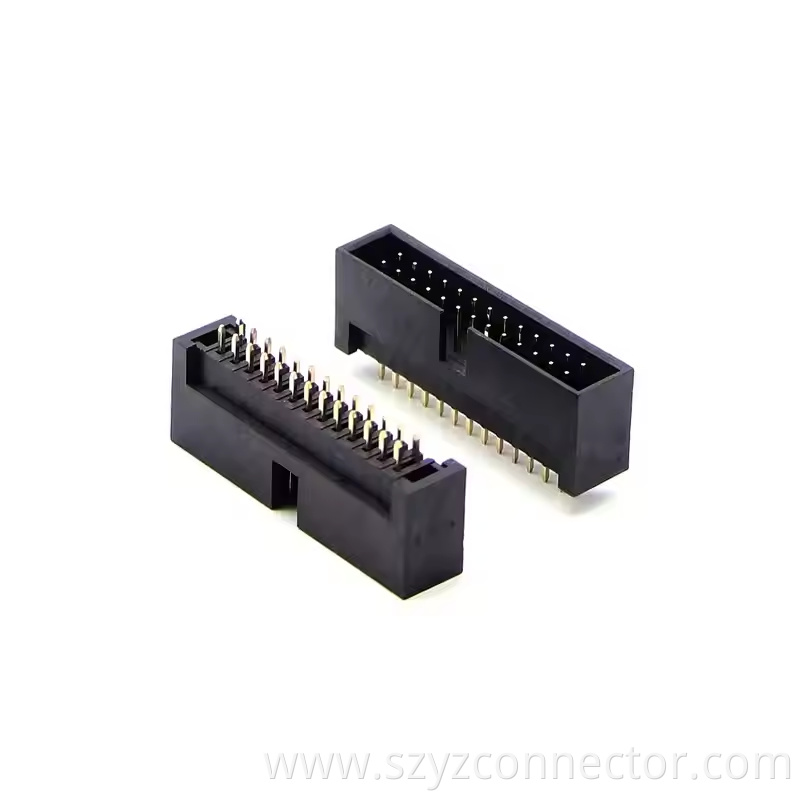

2.54mm Pitch Box Header Straight H13.6

yztech’s 2.54mm Pitch box header Straight H13.6, with a height of 13.6mm, is a professional solution for complex three-dimensional wiring and high-current transmission in high-specification electronic devices. As a flagship model in the box header series, its standard 2.54mm pitch and 13.6mm heightened design precisely meet the multi-layer vertical interconnection needs of PCB boards, standing out in the 2.54mm box header category for its excellent space expansion capability and stable performance.



Featuring phosphor bronze terminals (gold plating thickness ≥50u") and high-strength PBT (UL94V-0) housings, the connector stabilizes 6A/pin high current in -40°C to +125°C environments with contact resistance ≤10mΩ. The 13.6mm three-dimensional structure supports multi-layer cross-wiring with Right Angle Box Header, effectively improving heat dissipation and reducing signal loss while being compatible with high-power expansion needs of idc box header connector. The 16-100 PIN ultra-large pin configuration is suitable for server racks, industrial power modules, etc., forming a high-low combination with the smt box header product line. Certified to IPC-A-610 and RoHS-compliant, anti-static carrier tape packaging supports customized length cutting services, providing integrated solutions with both strength and precision for high-end applications of 2.54mm Box Header Connector.
