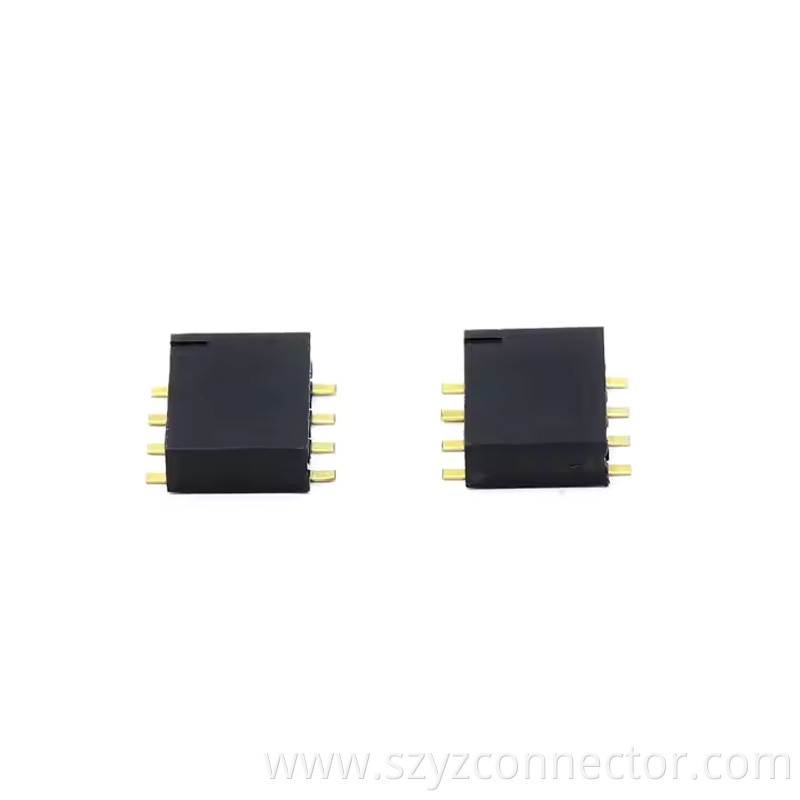

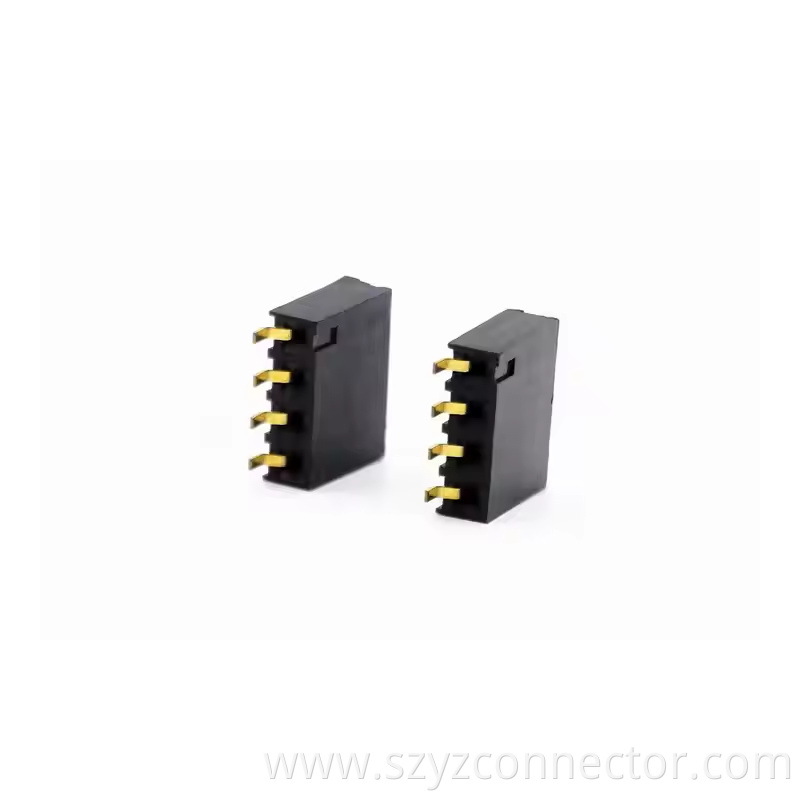

2.54mm Pitch Female Header Single Side Entry

yztech’s 2.54mm Pitch Female Header Single Side Entry is an innovative solution to overcome wiring space limitations and optimize connection layouts in electronic devices. As a featured product in the 2.54 mm pitch female header series, its standard 2.54mm pitch and single-side entry design precisely meet the single-side wiring requirements of PCB boards, attracting attention in the 2.54 mm header category for its unique installation flexibility and stable performance.



This female header features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulation materials, stably carrying 3A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 15mΩ. The single-side entry structure effectively avoids spatial conflicts with other components, ensuring concise and orderly wiring. It can quickly and securely dock with female header and efficiently cooperate with male female Pin Header to achieve stable signal transmission. Additionally, the product supports 2.54 right angle installation, further enhancing adaptability to complex circuit layouts. Customization services are available to adjust pin counts and entry directions according to customer needs. Widely used in smart home devices, portable electronics, etc., certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering reliable solutions for diverse electronic connection scenarios.
