2.54mm Female header Single Row Right Angle

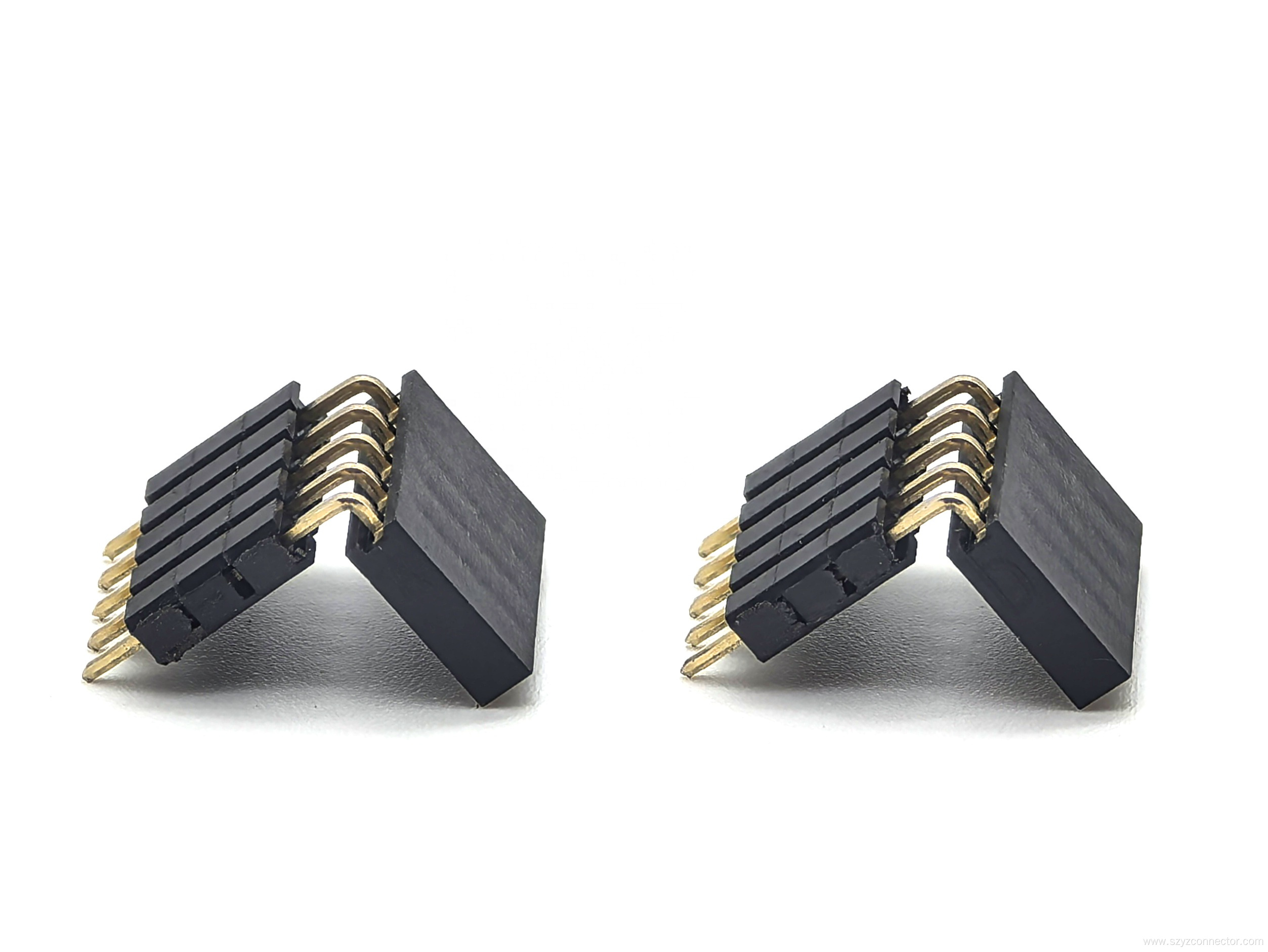

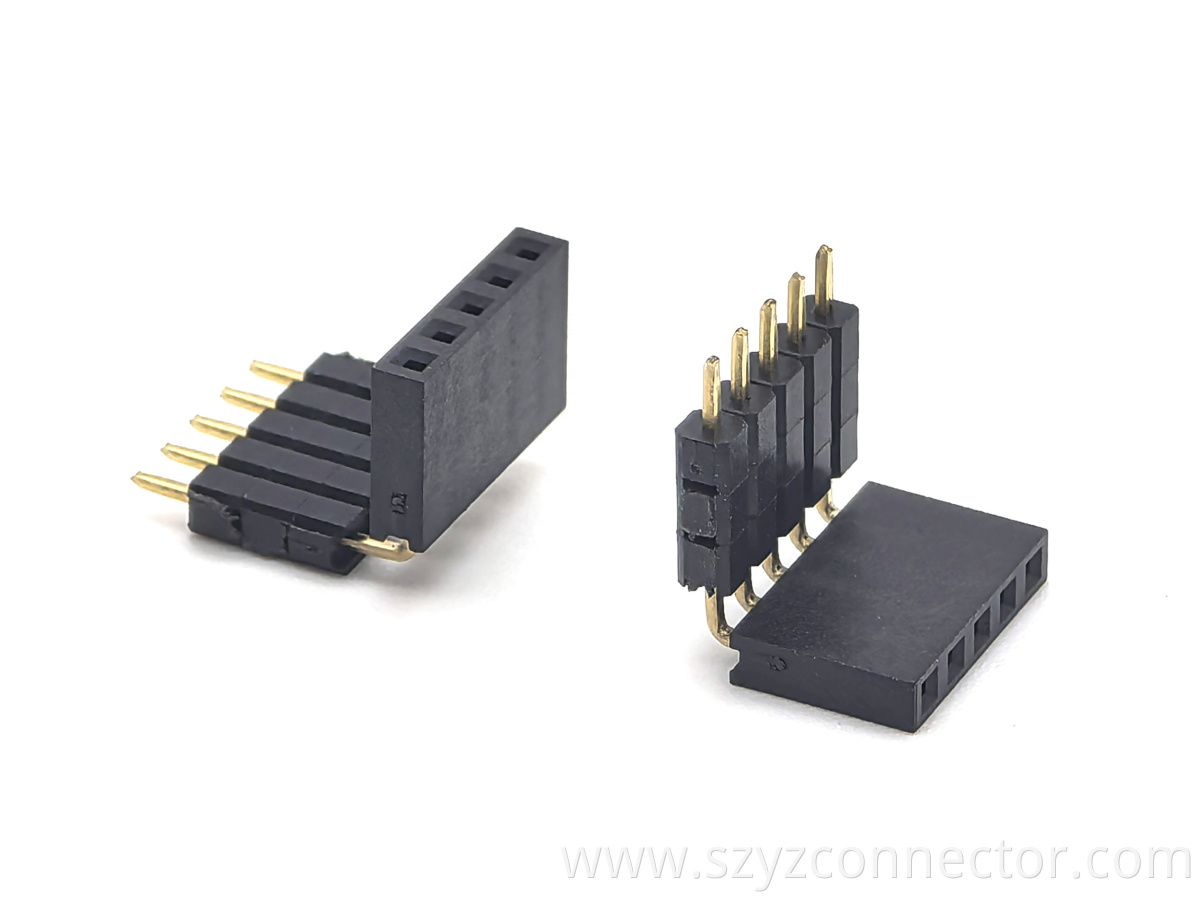

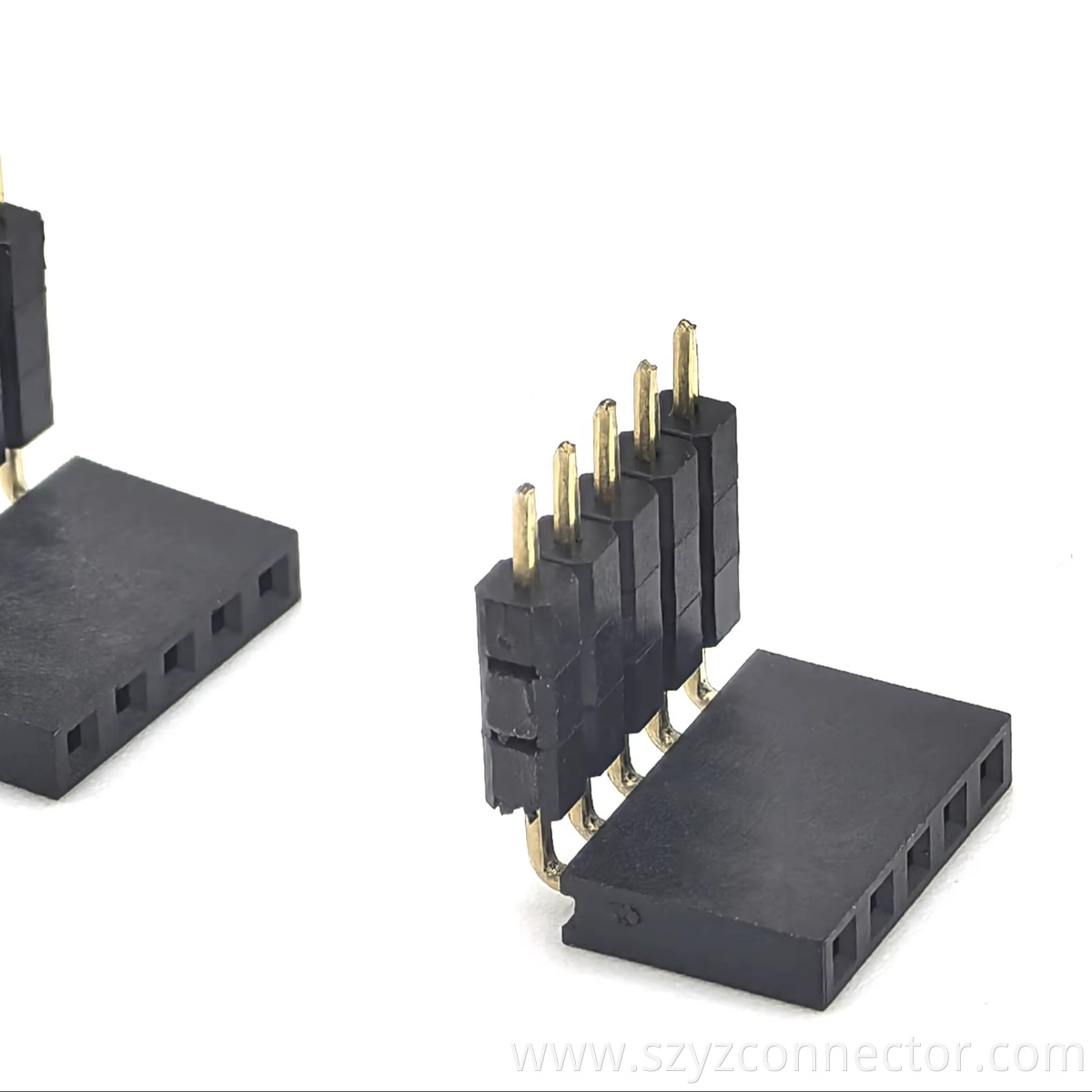

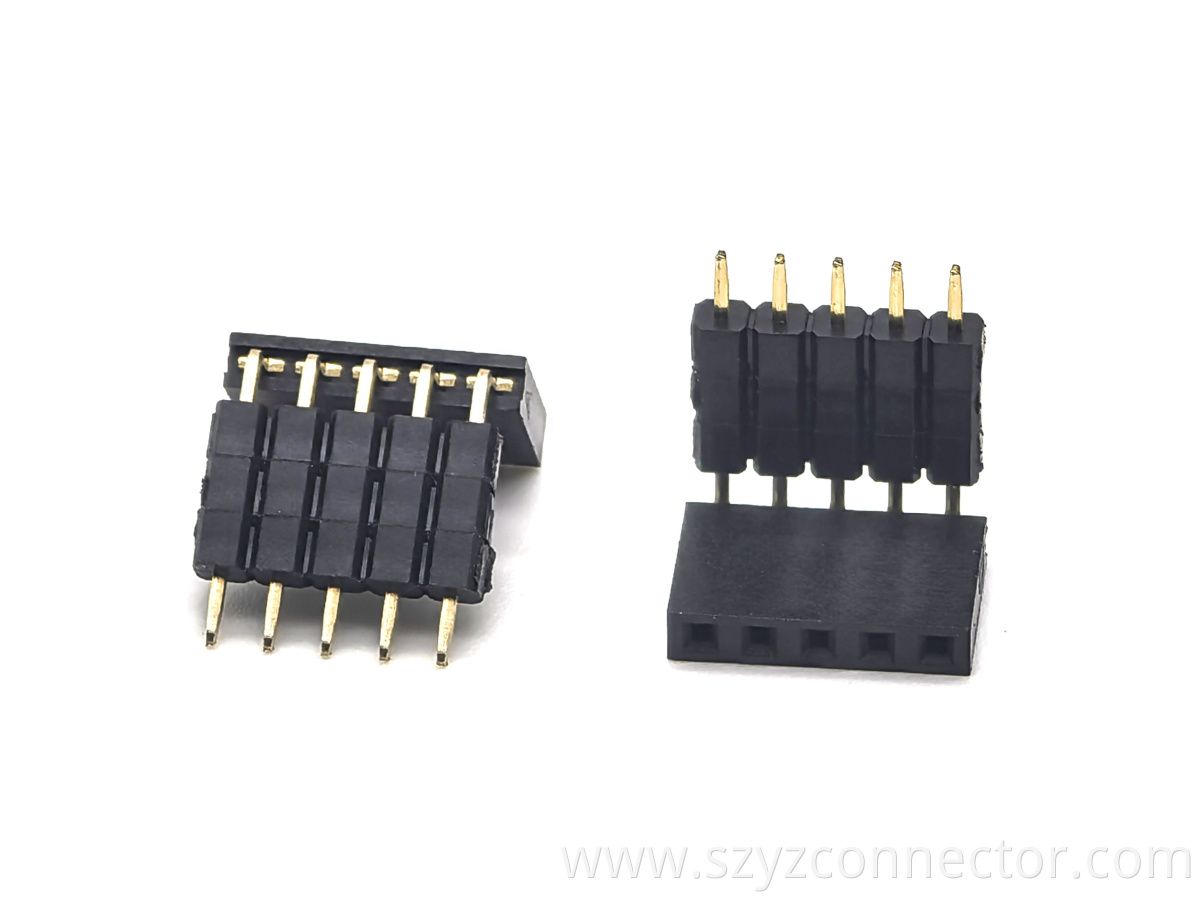

YZTECH's 2.54mm single-row Female Header is engineered for space-optimized PCB design. This right-angle version, pre-bent at 90 degrees and supplied in a 5-position configuration, facilitates a low-profile connection parallel to the board, ideal for tight layouts. Housed in a durable rectangular insulator, the female-plug header connector is delivered in protective tube packaging for seamless automated assembly and handling.

Built for reliability, the female header connector supports up to 3A current and 600V rating. The contacts are crafted from brass and feature a corrosion-resistant gold plating, ensuring stable conductivity and a durable mating interface. Consistent performance is guaranteed across an operating temperature span from -40°C to +105°C, making it suited for industrial, automotive, and communication applications.

Compliant with RoHS standards, this 2.54mm Female Header connector is rated for wave soldering at peak temperatures of 220°C for 10 seconds. It offers a dependable and efficient interconnection solution for power and signal transmission in sophisticated electronic assemblies, from data acquisition systems to precision control modules.
