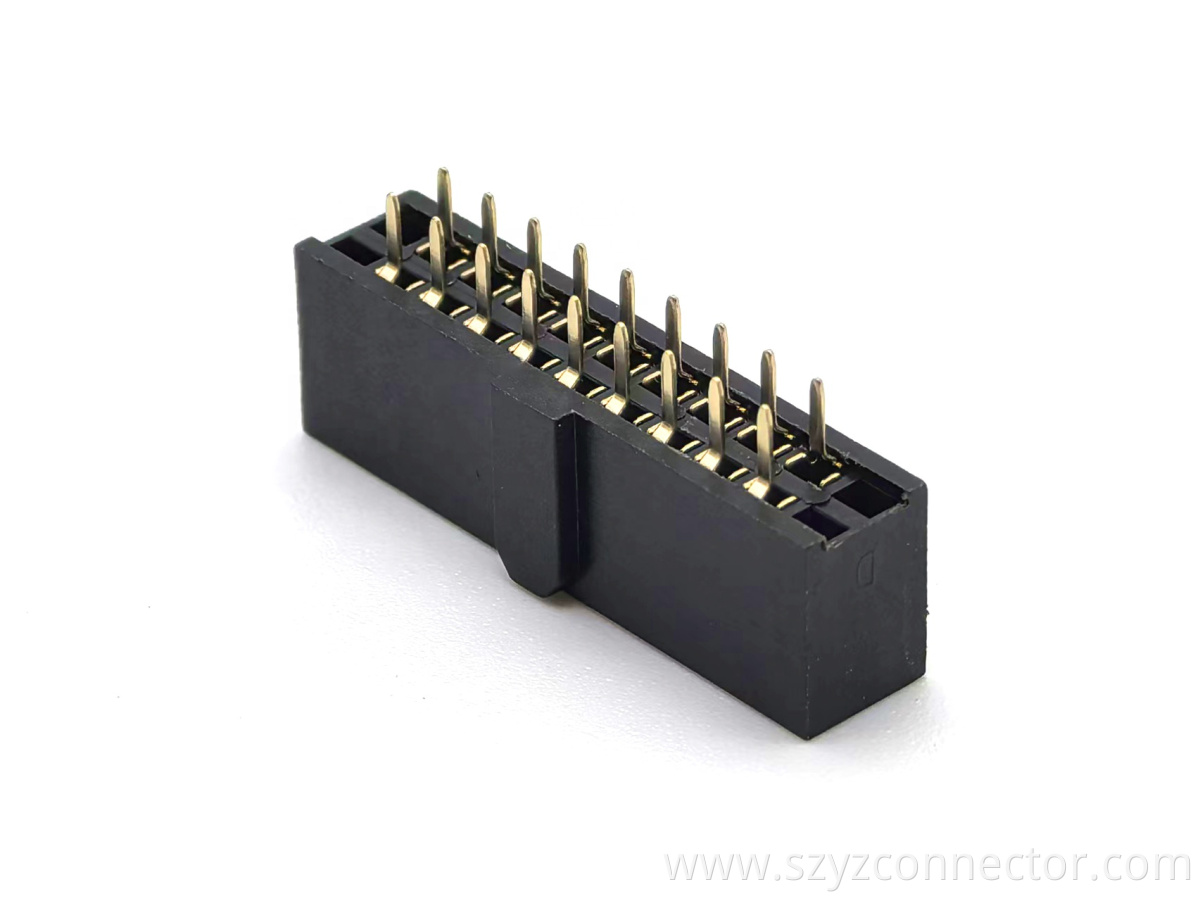

Name: 2.54mm Pitch Female Header Connector Dual Row Straight Pin numbers 1, 2, 21, and 22 are left open H:8.5mm U-TYPE 2*11P
Uploaded: 2025-10-13T07:15:53+08:00
Description: Engineered for specialized circuit configurations,the YZTECH 2.54mm Pitch Dual Row Female Header delivers superior

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

Black 2-core 22P

Contact Now

Product Description

Product Attributes

Model No.: 1102S.2*9P-H:8.5-U-F-04

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

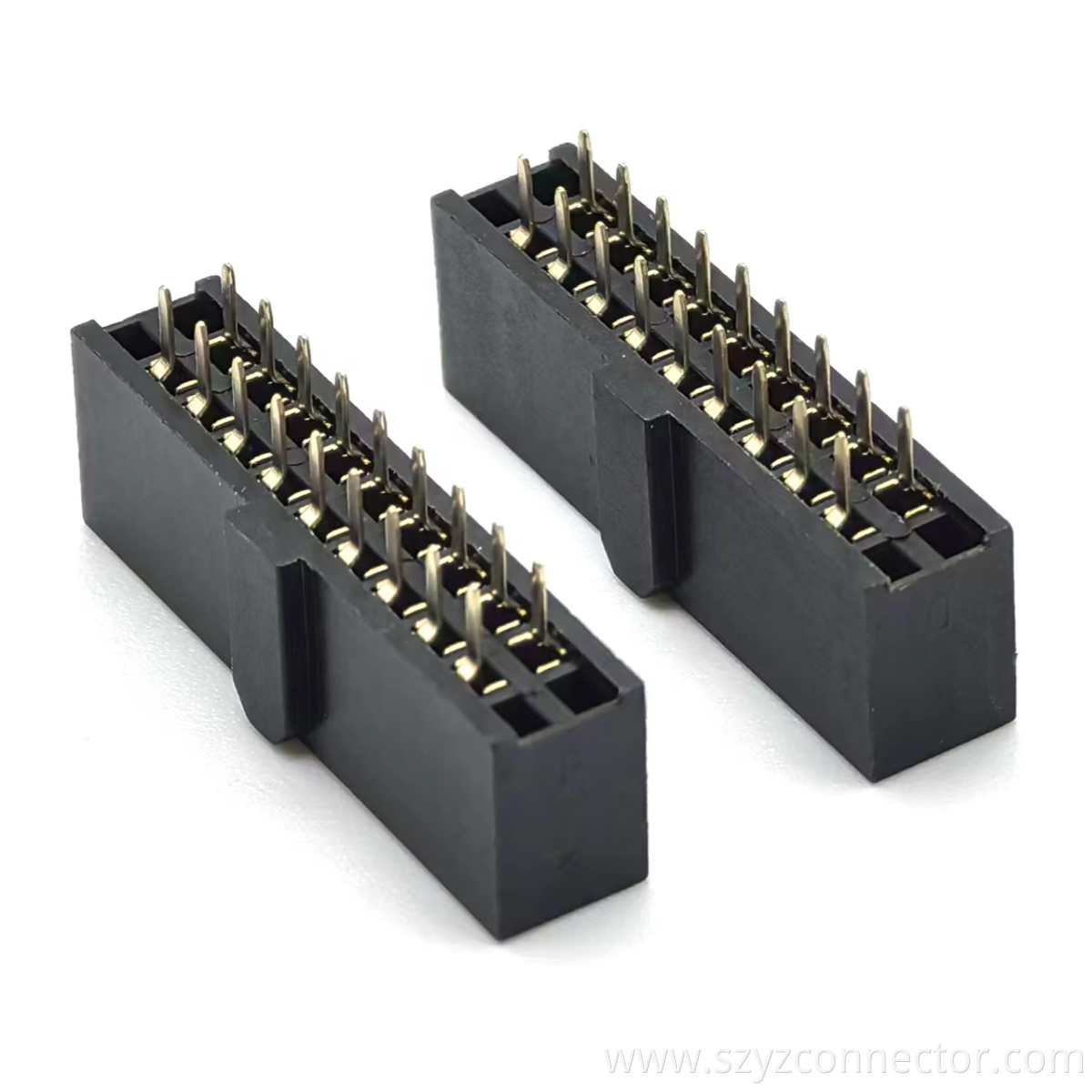

2.54mm Pitch Female Header Connector Dual Row Straight Pin numbers 1, 2, 21, and 22 are left open H:8.5mm U-TYPE 2*11P



Product Description

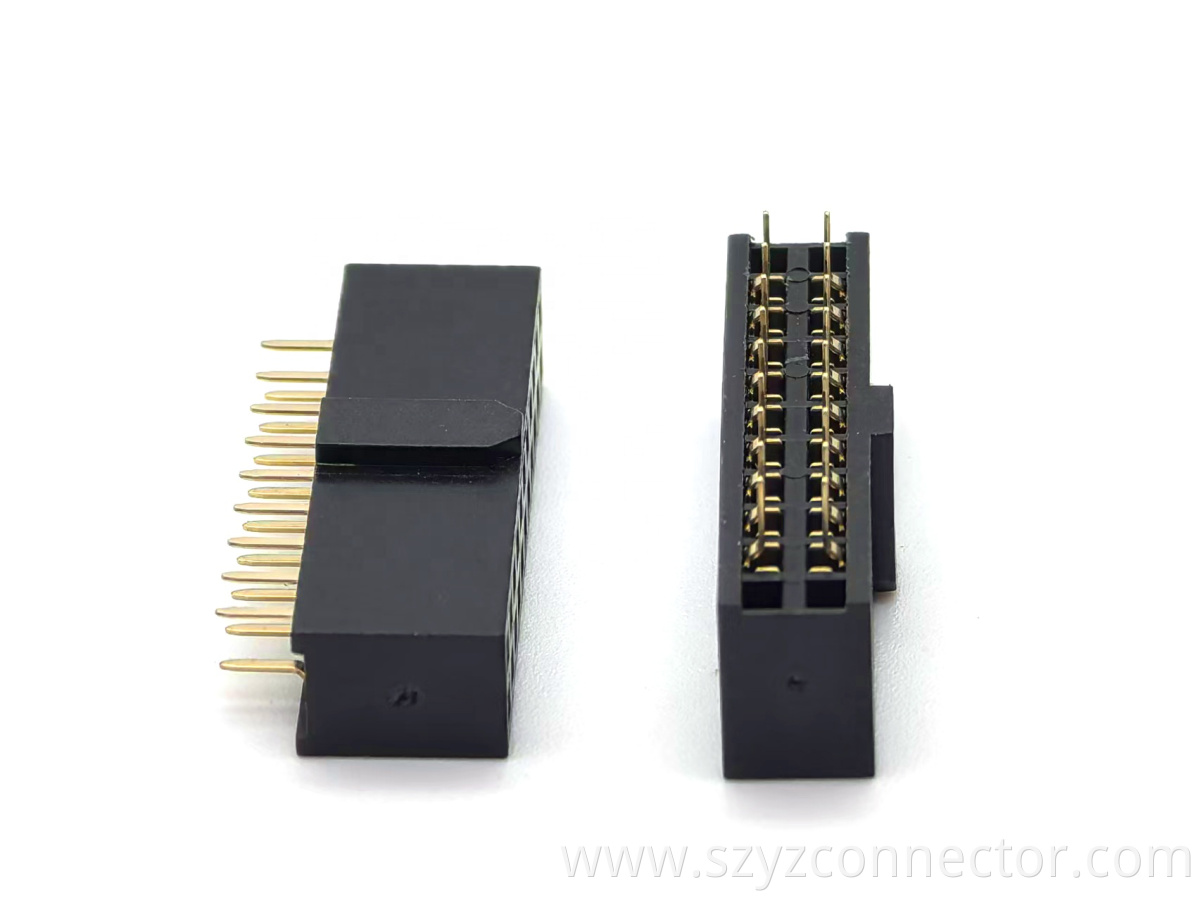

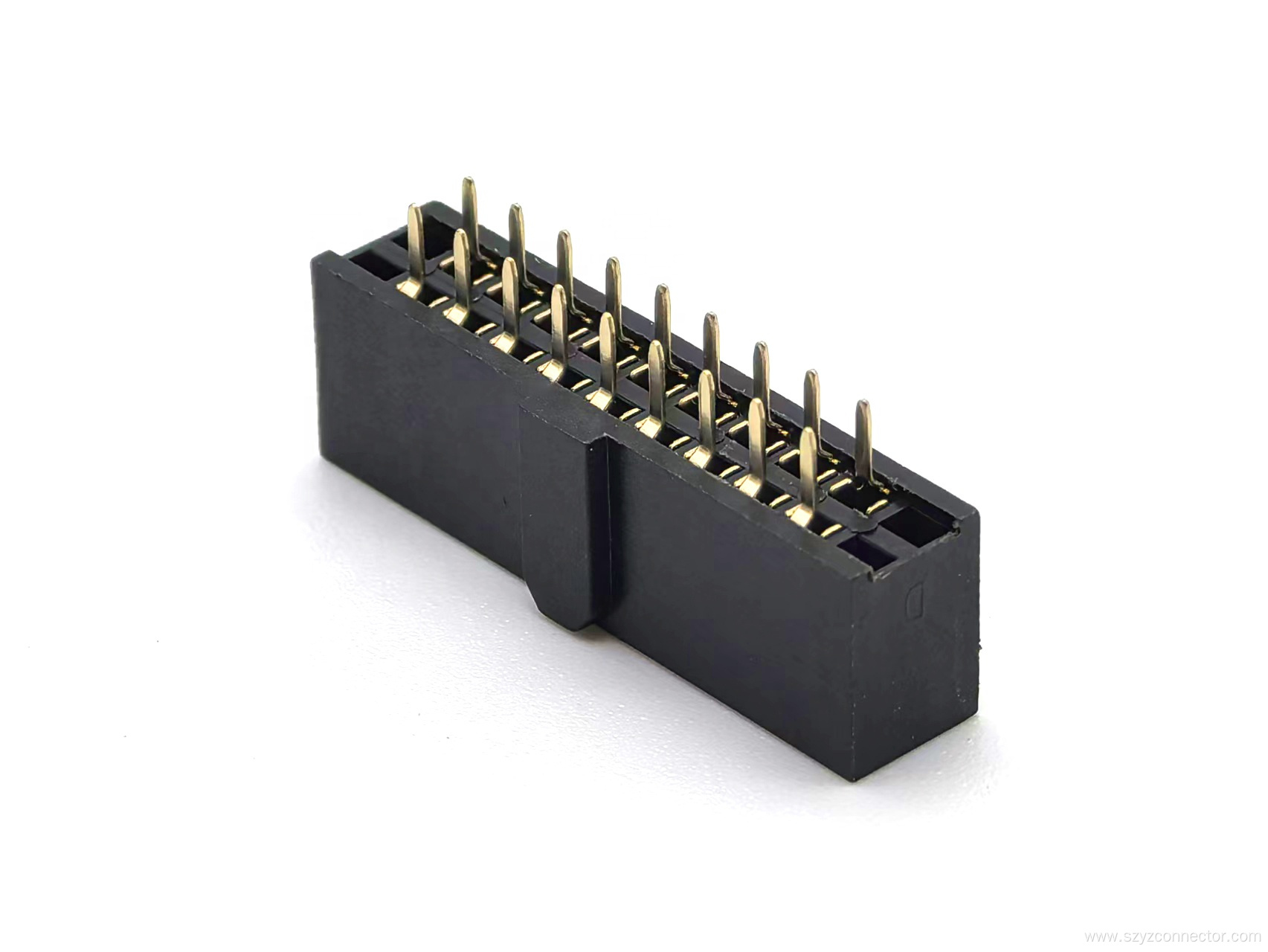

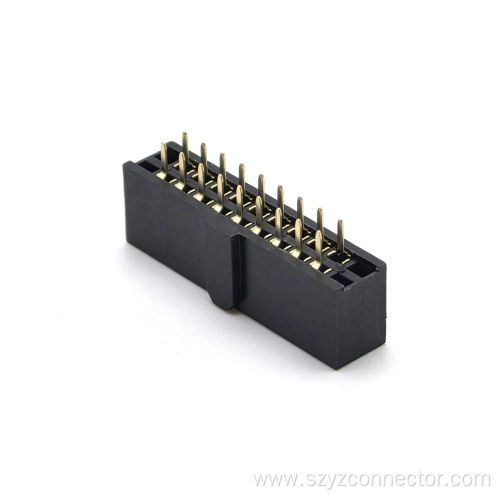

Engineered for specialized circuit configurations,the YZTECH 2.54mm Pitch Dual Row Female Header delivers superior connectivity with a unique design feature: pins 1, 2, 21, and 22 are intentionally omitted.This strategic pin-out configuration serves as an integrated anti-mis-mating mechanism,preventing incorrect insertion and safeguarding your PCB assemblies during maintenance or module swapping.Designed for straight plug installation,this 11-pin-per-row header connector maintains a high power rating of 3A and 600V,ensuring robust performance for both power and signal transmission in complex electronic systems.

Durability is ensured through a premium material selection.The socket contacts are precision-formed from brass and feature a full-body gold plating, providing excellent conductivity, corrosion resistance,and a reliable mating connection with male pins over numerous cycles.The connector housing is molded from advanced PA6T, a high-temperature thermoplastic that offers exceptional thermal stability,mechanical strength, and resistance to solvent absorption.This construction allows the header to withstand an operating temperature range of -40℃ to +105℃ and endure wave soldering processes up to 200℃ for 10 seconds without degradation.

Packaged in protective tubes for secure storage and handling,this 2.54mm Female Header is ideal for manual or semi-automated assembly lines.Its unique missing-pin design is critical for applications requiring foolproof connectivity,such as in modular industrial controllers, telecommunications infrastructure,and sophisticated automotive control units.By integrating this YZTECH connector,you achieve not only a dependable electrical interface but also a built-in safeguard that enhances assembly accuracy and long-term system reliability.
