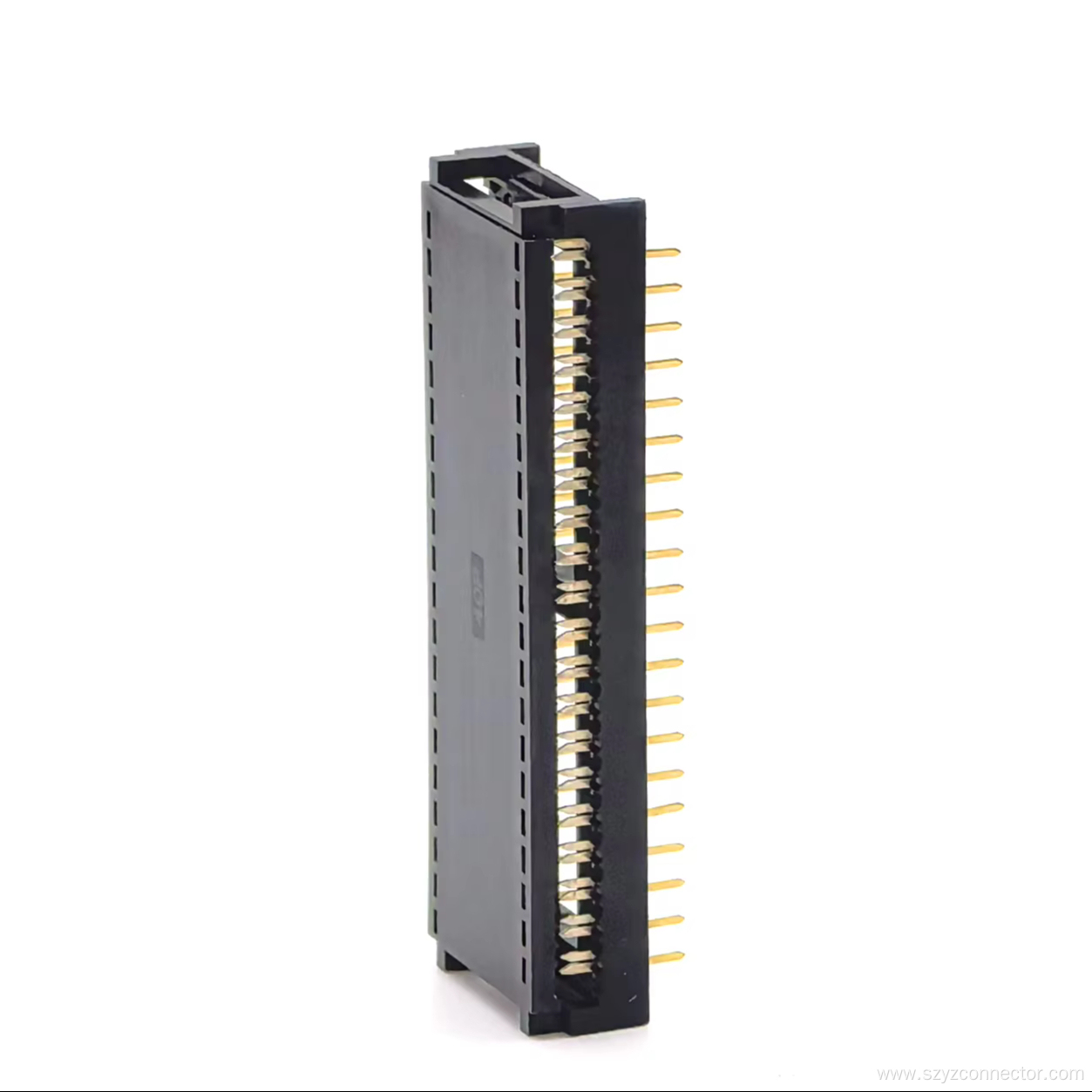

2.54mm IDC Connector 40P

Name: Wide-type 0.6DIP 2.54*15.24FD/40P IDC Connector Two-piece Half-gold
Uploaded: 2025-11-12T03:20:55+08:00
Description: YZTECH introduces its premium 2.54mm pitch wide-type IDC connectors,engineered for high-density printed circuit board

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

Black 2-core 40P

Contact Now

Product Description

Product Attributes

Model No.: 5460-40P

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Bulk

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

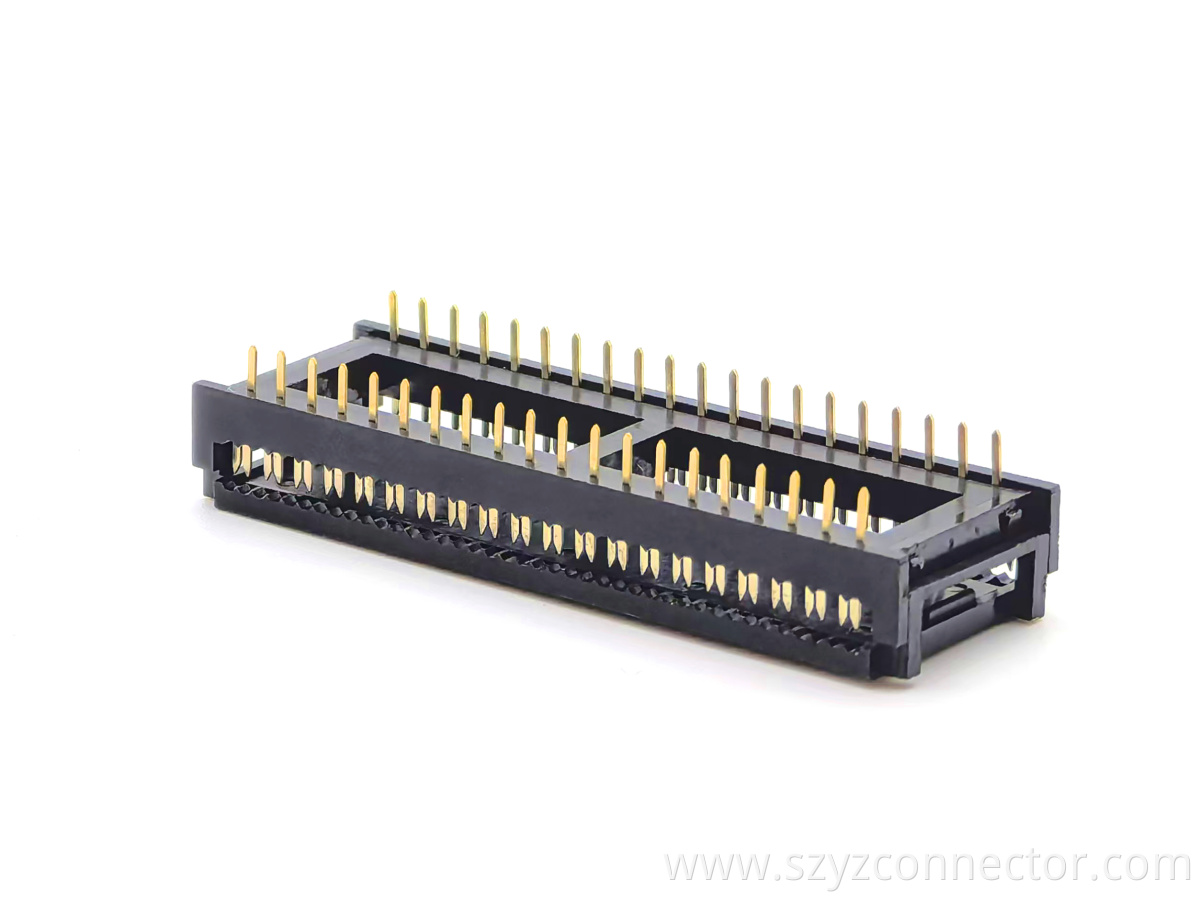

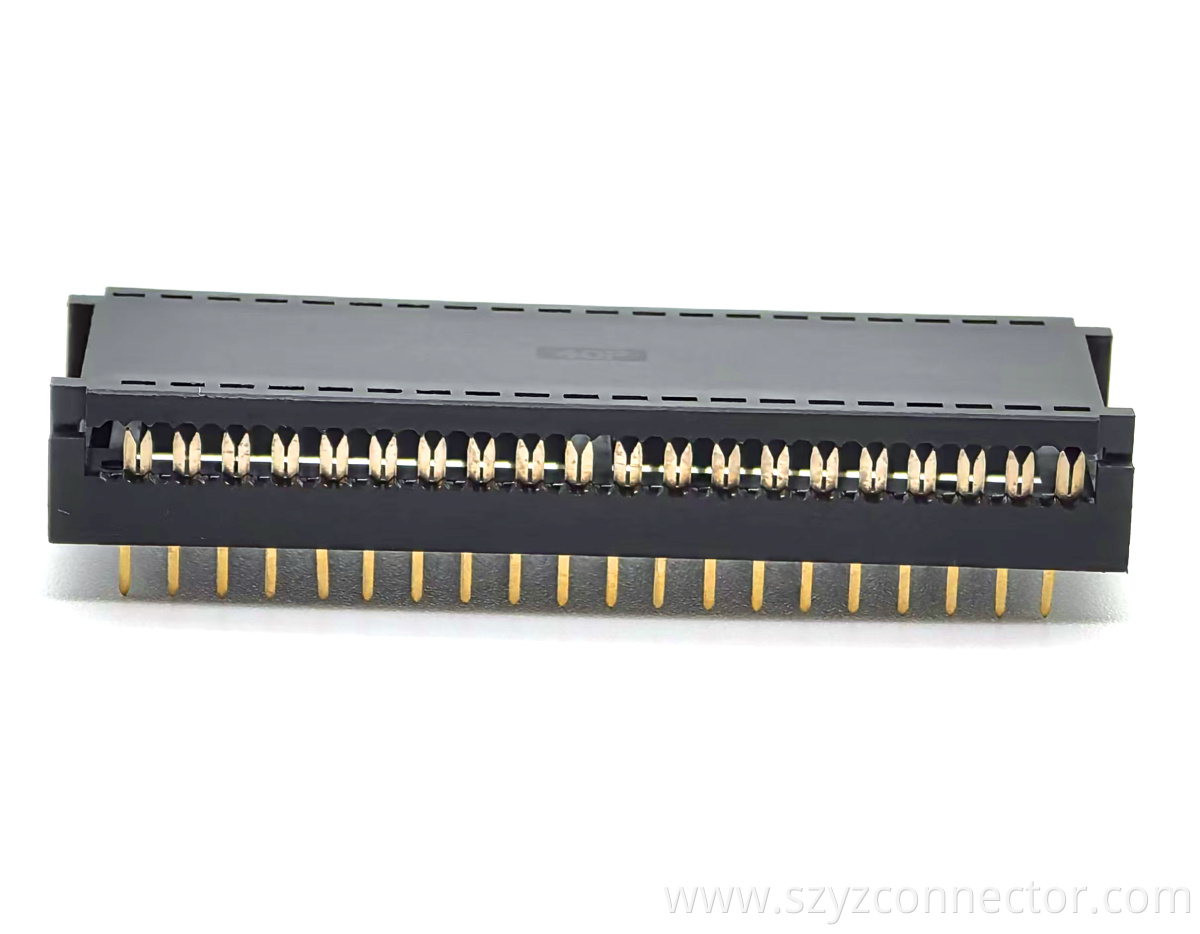

Wide-type 0.6DIP 2.54*15.24FD/40P IDC Connector Two-piece Half-gold



Product Description

YZTECH introduces its premium 2.54mm pitch wide-type IDC Connectors,engineered for high-density printed circuit board integration in global electronics.This dual-row configuration features 20 pins per row,delivering exceptional space efficiency and durability in compact designs.With a robust rectangular male form factor compliant with DIN standards,it excels in industrial applications by ensuring precise alignment and minimal signal loss.Ideal for high-voltage environments,the Connector supports demanding operational needs while maintaining consistent performance across diverse settings.

Constructed with brass contacts for enhanced electrical conductivity,the header connector incorporates a half gold tin plating coating to resist oxidation and prolong lifespan.Its housing utilizes resilient PA6T material,guaranteeing thermal stability and mechanical strength under extreme conditions.Operational parameters include a 2A current rating and 1000V voltage tolerance,with a broad temperature range of-40°C to+105°C for uninterrupted functionality.For assembly,it withstands peak soldering temperatures of 260°C for up to six seconds,enabling quick,reliable PCB mounting without degradation.

Optimized for PCB assemblies in sectors like automation and telecommunications,these 2.54mm IDC Connectors offers effortless installation and long-term reliability.Secure box packaging ensures protection during transit,while UL certification underscores adherence to international safety standards.By combining high-voltage resilience and corrosion resistance,YZTECH's solution minimizes maintenance costs and boosts efficiency in global supply chains,making it a top choice for engineers seeking dependable connectivity.
