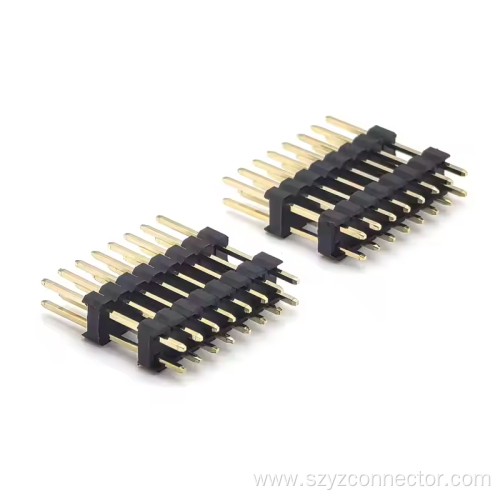

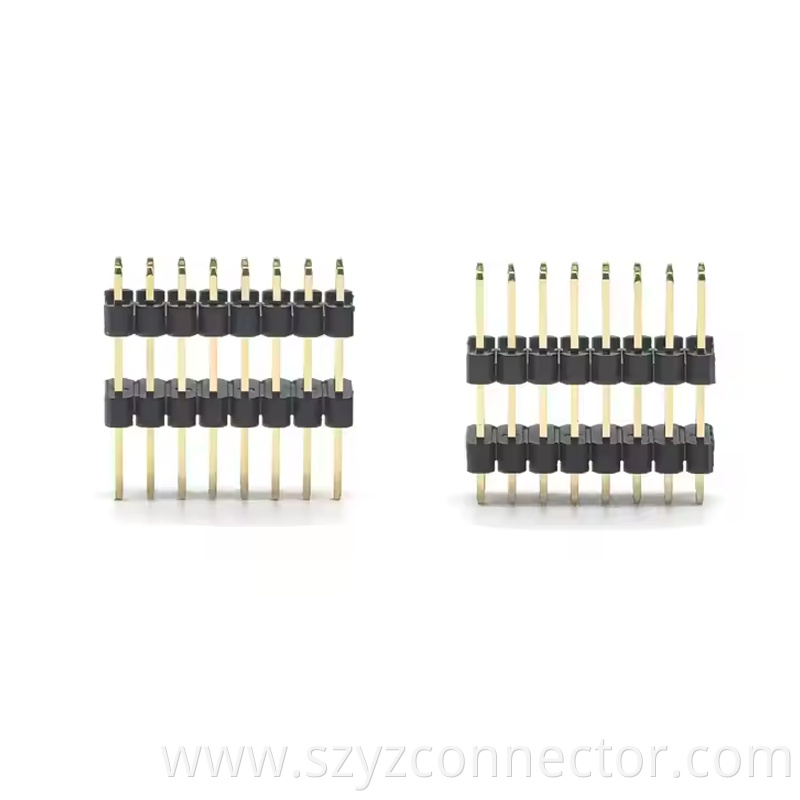

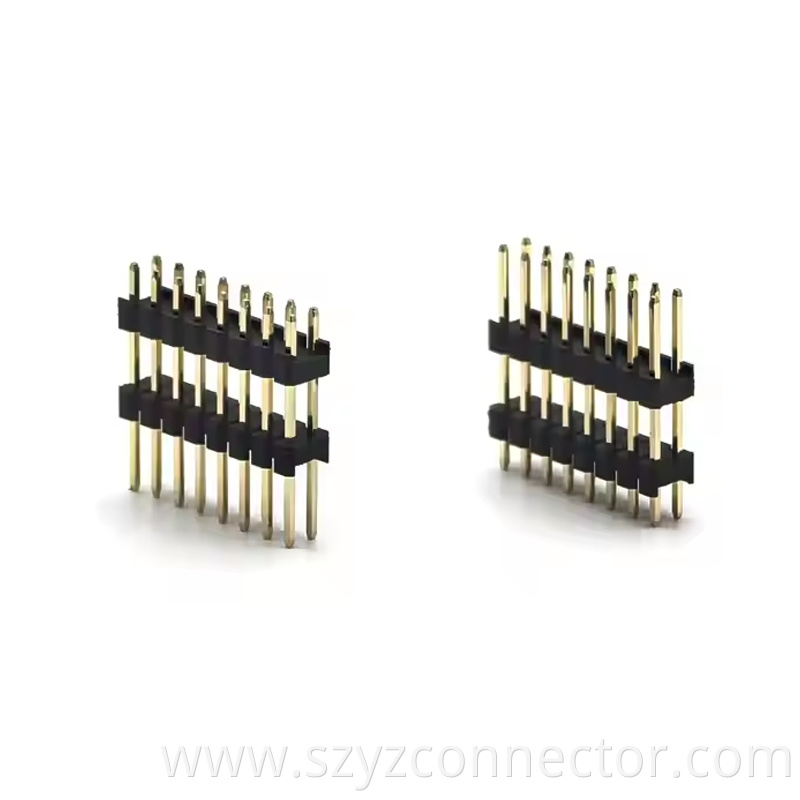

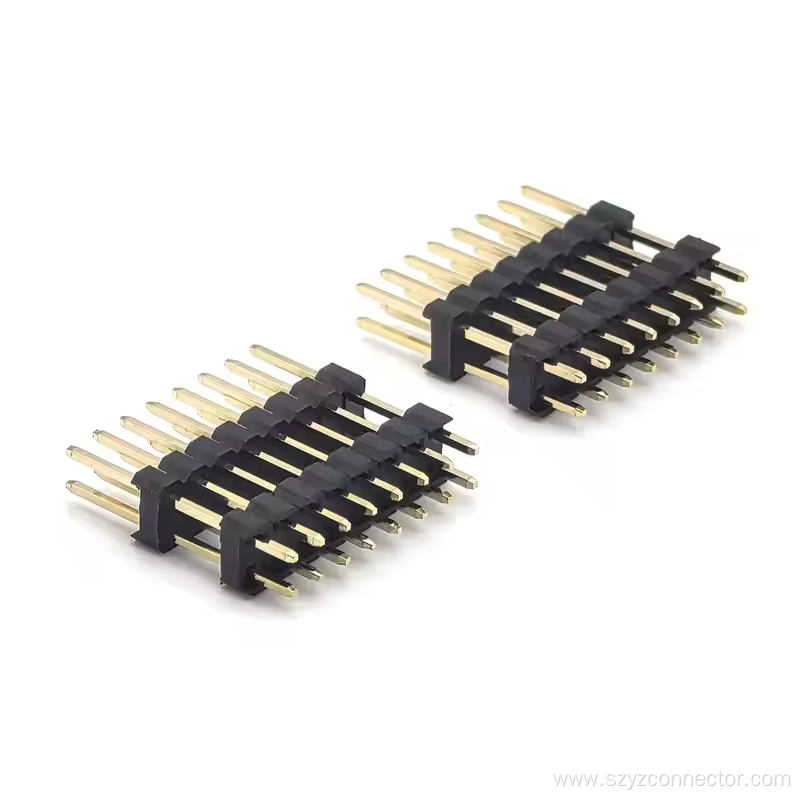

2.54mm Pitch Header Straight H2.5mm 28P

yztech’s meticulously crafted 2.54mm Pitch Header Straight H2.5mm 28P, with a height of only 2.5mm and 28 pins, is an outstanding product tailored to the connection needs of ultra-thin electronic devices. As an innovative product in the Pin Header series, its standard 2.54mm pitch and 2.5mm ultra-thin height design precisely meet the compact space wiring requirements of PCB Pin Header, setting a model for balancing space-saving and high-performance transmission in the 2.54mm pitch header category.



This connector features high-quality C2680 phosphor bronze terminals (gold-plated) and black LCP (UL94V - 0) insulators, operating stably at a rated current of 3A/pin in environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly controls the contact resistance within 20mΩ, ensuring efficient and stable signal transmission. The 28-pin configuration is suitable for scenarios with special requirements for pin numbers and space layout, such as communication modules and consumer electronics motherboards, and is highly compatible with Female Header Pins. Certified by ISO9001, ISO14001 and RoHS-compliant, it comes in standard anti-static carrier tape + carton packaging. Offering flexible ODM and OEM customization services, it provides precisely tailored connection solutions for both conventional applications of 2.54mm Pin Header and the special needs of ultra-thin devices.
