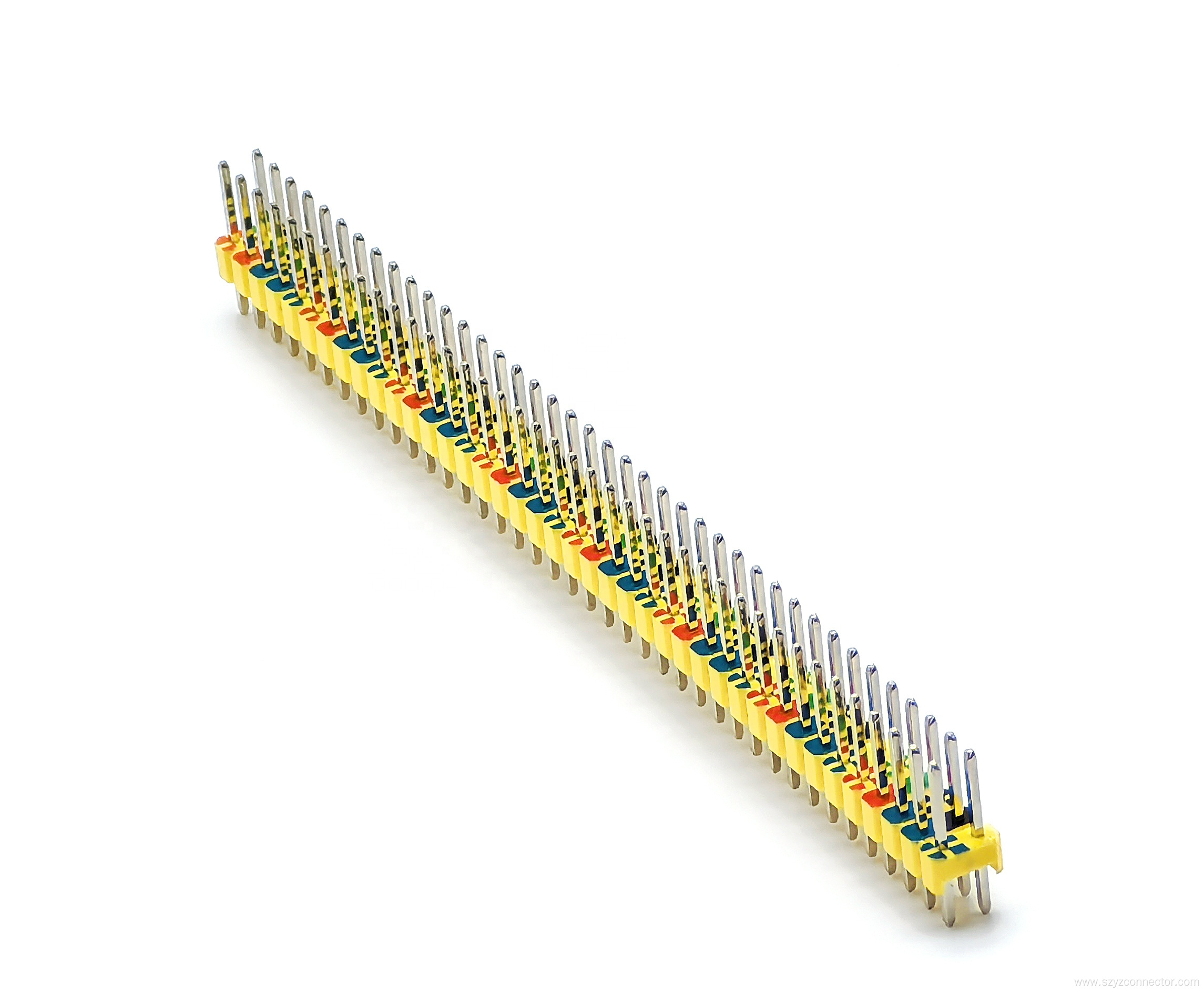

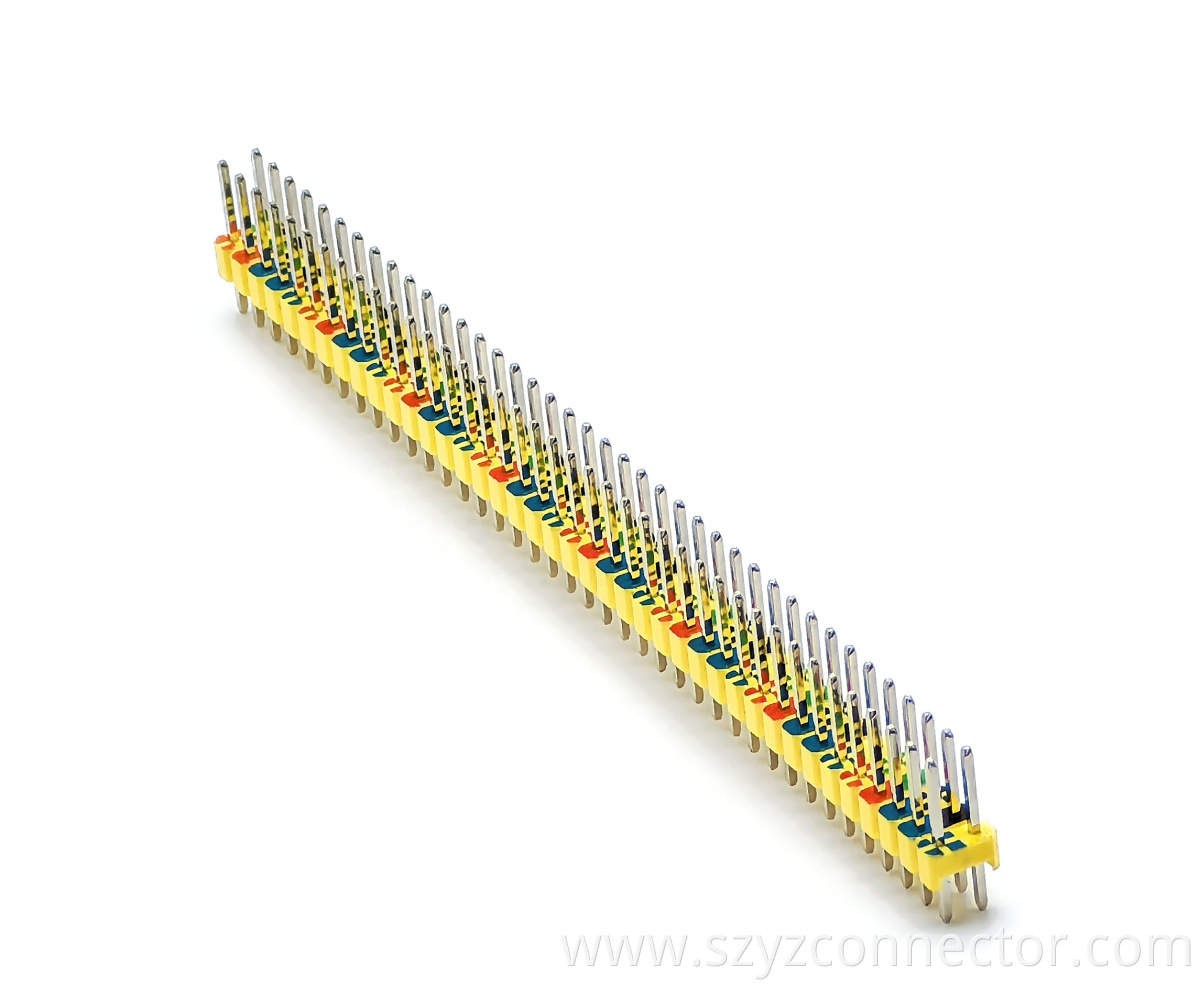

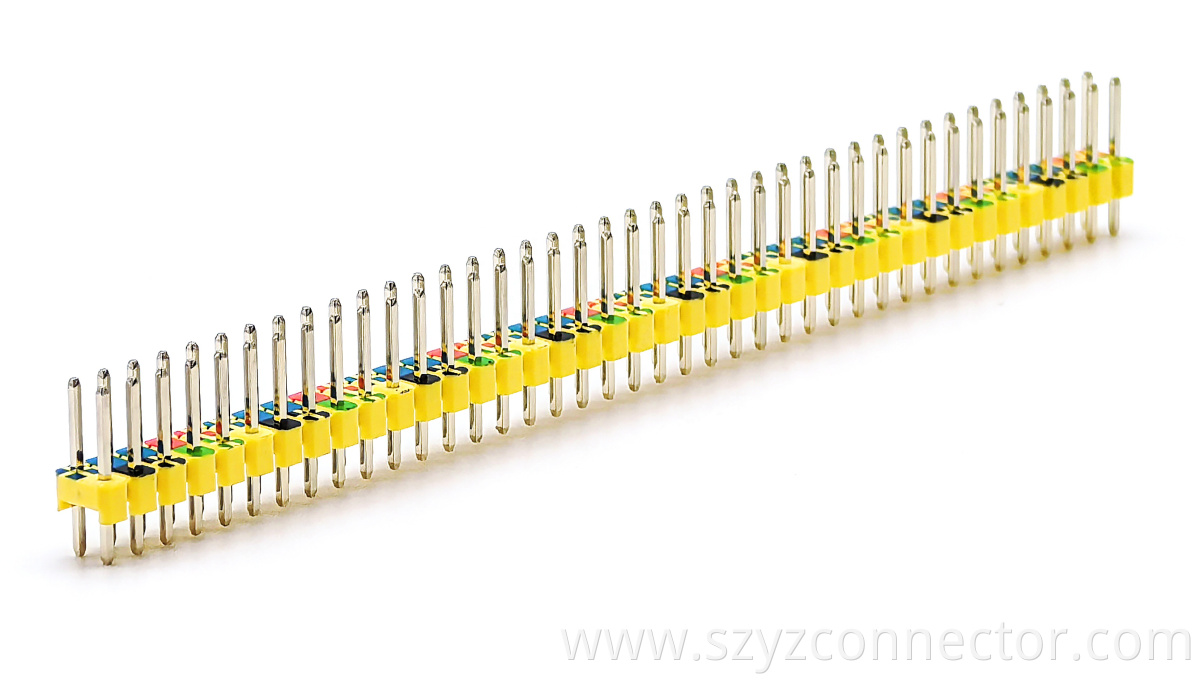

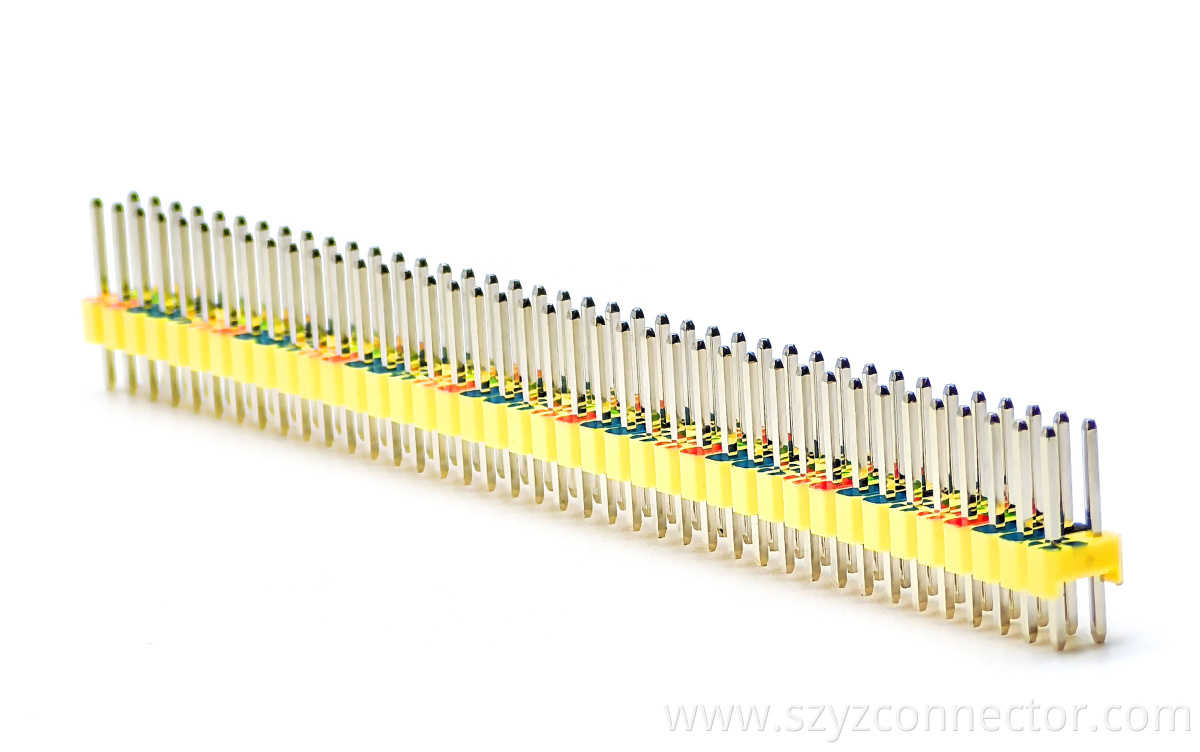

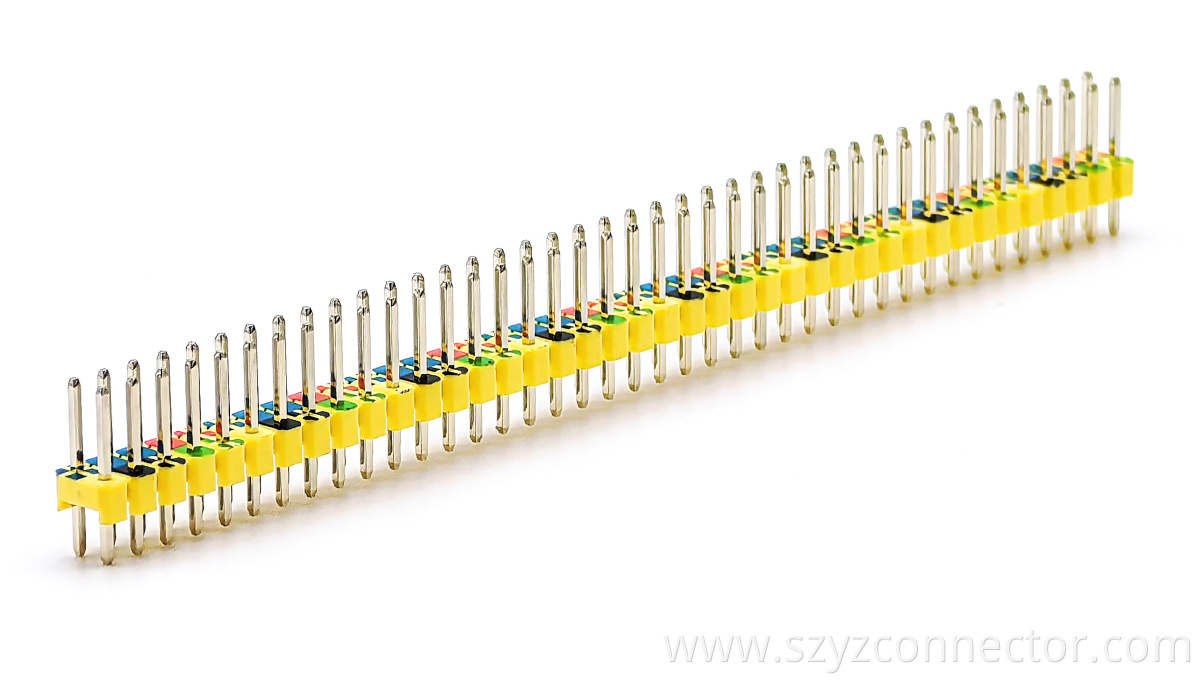

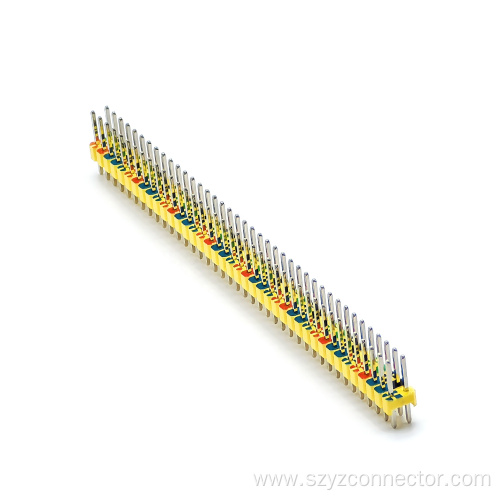

2.54mm Pin Header Dual Row Straight 80P

YZTECH’s 2.54mm Pin Header Dual Row Straight 80P Pin Header redefines precision engineering for PCB applications.Featuring 40 pins per row in a dual-row configuration,this male-gender rectangular header connector delivers 3A/600V rated performance while adhering to DIN standards.The straight-plug design ensures zero-degree insertion force,reducing mechanical stress during automated assembly.Crafted with gold-plated brass contacts and PA6T colloidal housing,it offers exceptional corrosion resistance and thermal stability from -40℃ to +105℃.The box packaging protects against electrostatic discharge and physical damage during global shipping.Engineered for reflow soldering,it withstands 260℃/10S maximum welding temperature without compromising signal integrity.This connector’s 80-pin total capacity supports complex circuit designs in industrial automation,automotive electronics, and consumer devices.



The connector’s PA6T colloidal material sets a new benchmark in high-temperature polymer performance.This advanced engineering plastic maintains dimensional stability across extreme thermal cycles,outperforming standard nylon materials in flame retardancy and chemical resistance.Gold-plated brass contacts ensure <50mΩ contact resistance,minimizing signal attenuation in high-speed digital circuits.The dual-row 80-pin architecture provides 2.54mm standardized pitch compatibility,enabling seamless integration with universal PCB footprints.Operating temperature resilience enables deployment in outdoor telecom equipment, medical devices,and smart home systems.The straight-plug geometry simplifies installation in confined spaces,while the box packaging supports automated pick-and-place systems for efficient manufacturing.
