2.54mm Pin header Straight H10.0mm 6P

Name: 2.54mm Pin header Dual Row Straight H10.0mm 6P
Uploaded: 2025-12-20T02:06:52+08:00
Description: YZTECH's advanced 2.54mm Pitch Pin Header Connector delivers robust performance for modern electronic

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

Black 2-core 6P

Contact Now

Product Description

Product Attributes

Model No.: 1101S.2*3P

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Tray

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

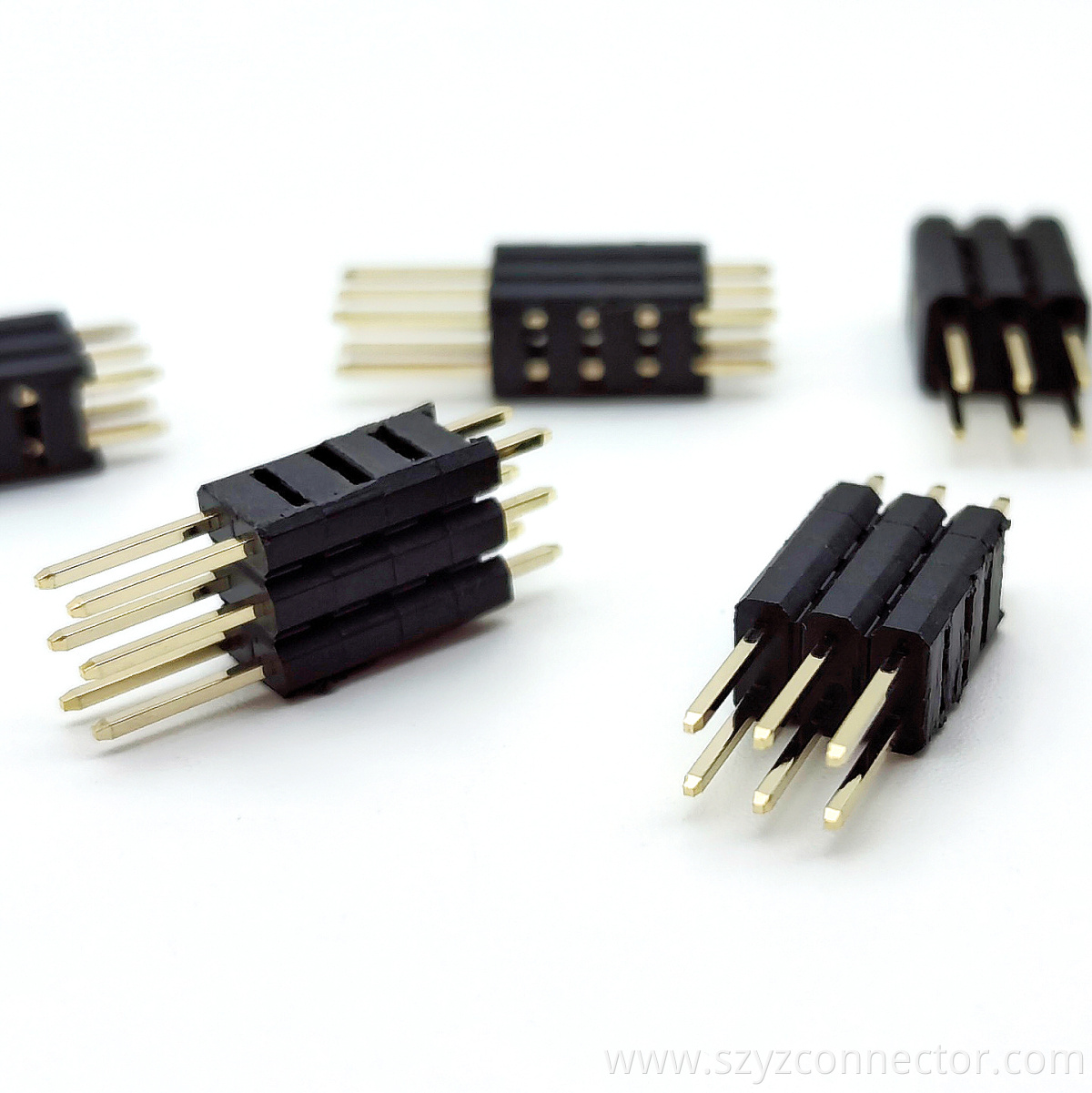

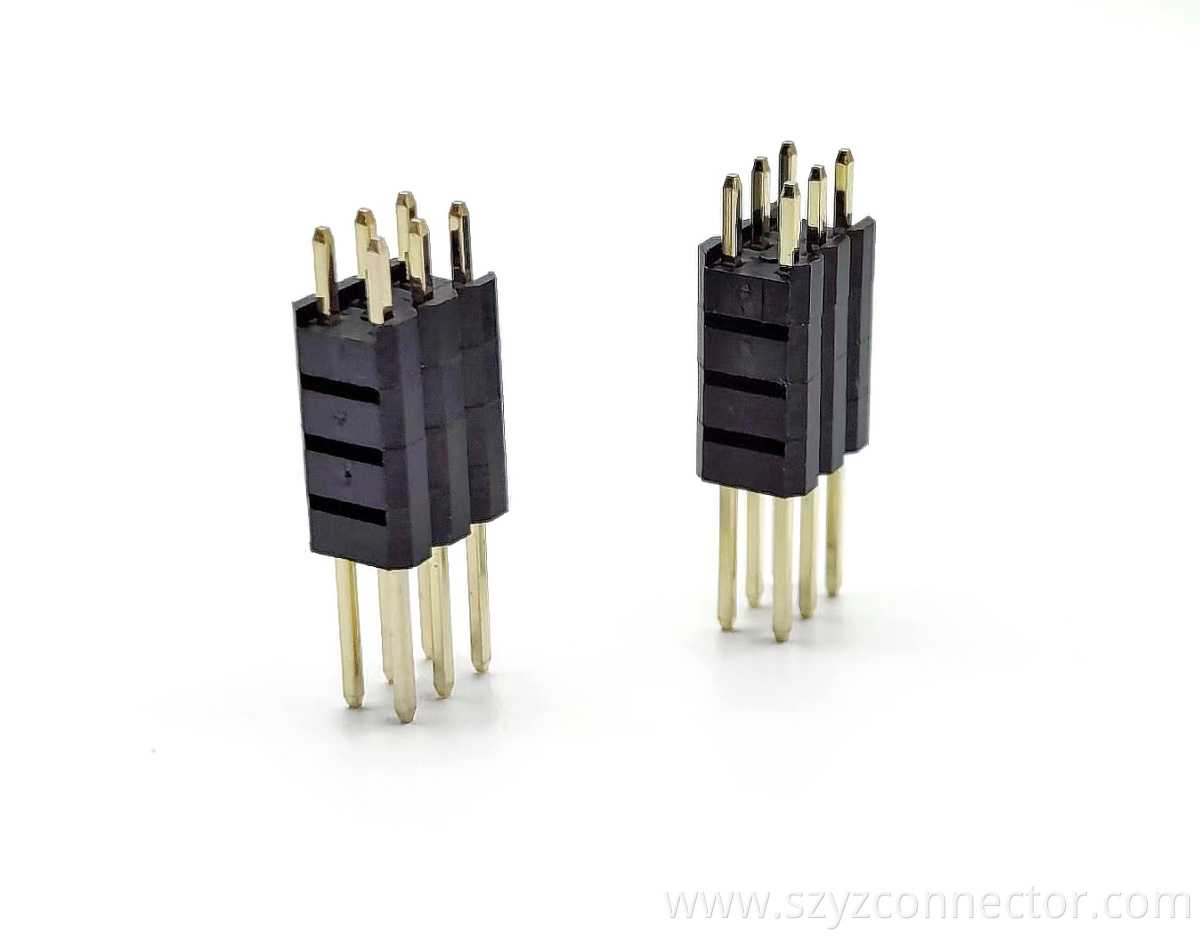

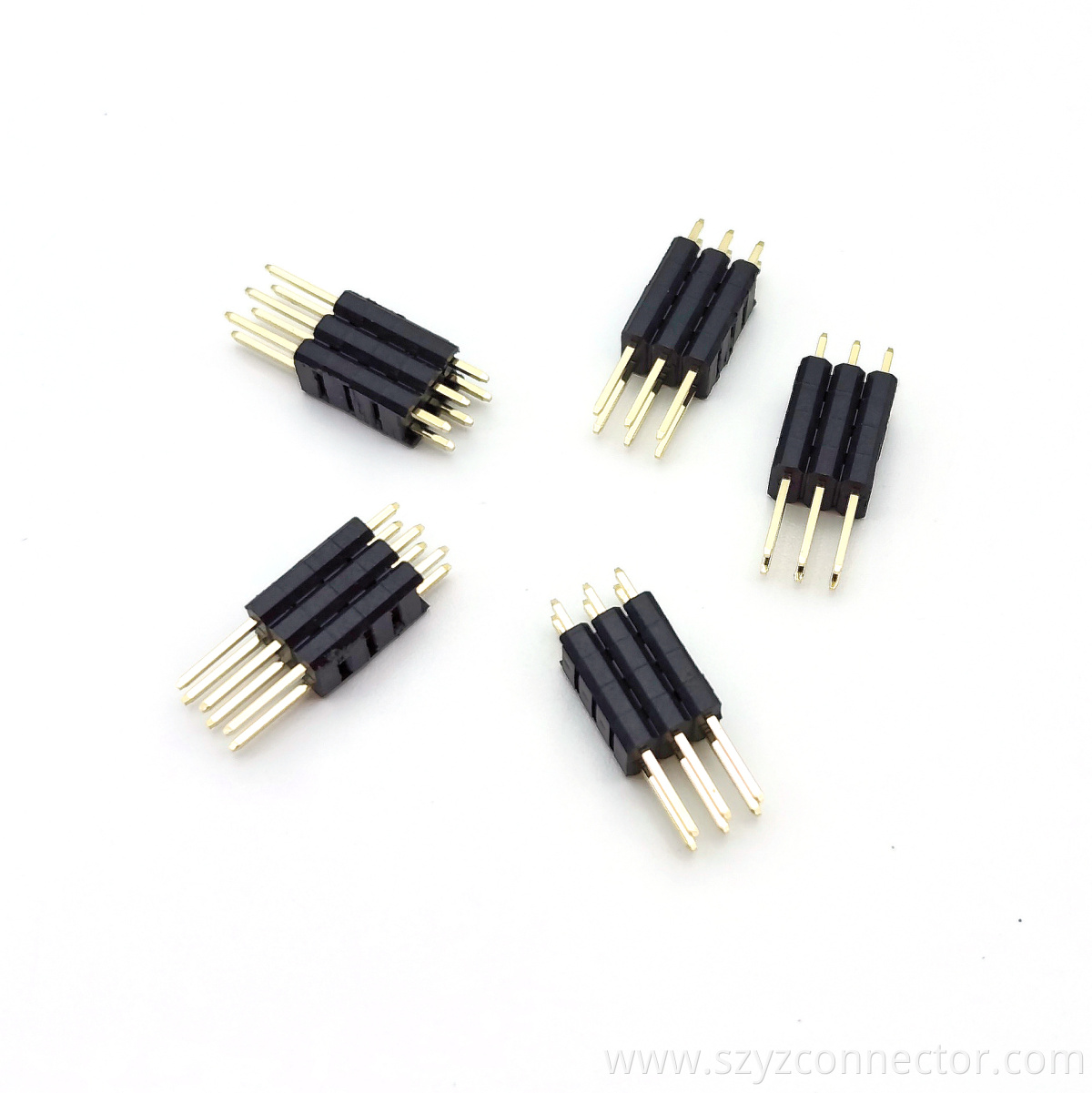

2.54mm Pin header Dual Row Straight H10.0mm 6P



Product Description

YZTECH's advanced 2.54mm Pitch pin header connector delivers robust performance for modern electronic assemblies.Engineered with a straight insertion design,this dual-row male header connector ensures effortless PCB integration,featuring a compact rectangular profile.The gold-plated brass contacts minimize electrical resistance and enhance durability,while the PA6T housing provides superior insulation against environmental stressors.Ideal for high-density applications,it supports reliable signal transmission in demanding conditions,backed by YZTECH's commitment to precision manufacturing and global standards compliance.

This 6-pin electronic connector boasts a 2.54mm pitch for optimal space efficiency,with pin dimensions of SQ0.64mm and a low-profile height of 10.0mm.Rated for 3A current and 600V voltage,it excels in high-power scenarios.The brass contacts with gold plating ensure low-contact resistance and corrosion resistance,while the PA6T colloidal material offers excellent thermal stability.Operating reliably across a wide temperature range of-40°C to 105°C,it withstands harsh environments.For assembly,the maximum welding temperature is 220°C for 10 seconds,ensuring secure PCB mounting without degradation.Adhering to DIN standards,it guarantees consistent quality and interoperability.
Widely used in PCB-based systems such as industrial controls,automotive electronics,and consumer devices,this 2.54mm Pin Header facilitates stable connections in compact layouts.Packaged in protective trays,it ensures damage-free shipping and handling,reducing installation downtime.YZTECH's rigorous testing validates its longevity and performance,making it a cost-effective solution for global supply chains.
