2.54mm Pitch Ejector Header Connector

There are 4 products

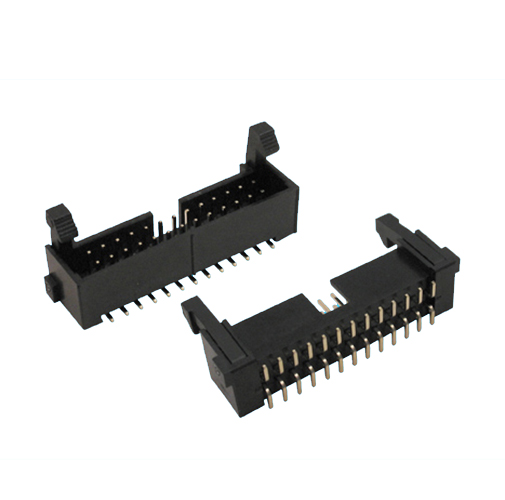

  • 2.54mm IDC Type Ejector header Connector 2Pieces

    2.54mm IDC Type Ejector header Connector 2Pieces

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1113F-26P

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    The YZTECH 2.54mm IDC Ejector Header is a high-density,dual-row solution engineered for robust and reliable ribbon cable interconnection.This male header connector set,comprising two individual 13-position units,is designed for Insulation...

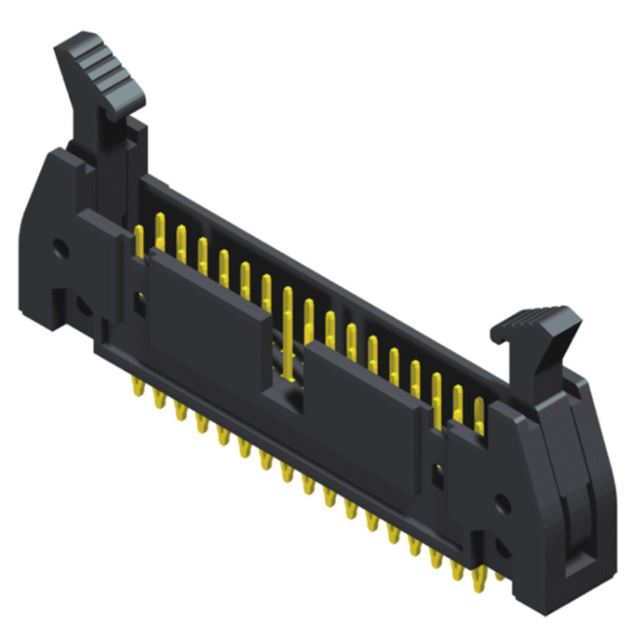

  • 2.54mm Pitch Ejector header Connector

    2.54mm Pitch Ejector header Connector

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1113S.2*17P

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH’s innovative 2.54mm pitch ejector header connector redefines precision engineering with its unique one-pin-missing straight plug design, optimized for dual-row 17-pin configurations in demanding PCB environments.This DIN-compliant male header...

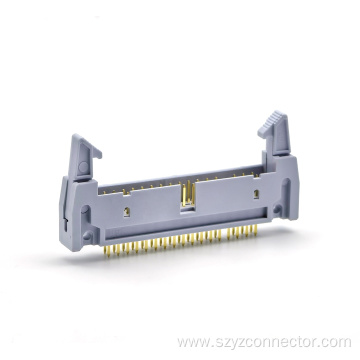

  • 2.54mm Pitch Ejector header Connector Straight

    2.54mm Pitch Ejector header Connector Straight

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1113S.3DL-20P-0335-F-00

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH's 2.54mm Pitch Ejector Header Connector Add Female Header in a straight plug design delivers robust performance and versatility for modern electronic applications. Engineered with a dual-row, high-density layout (10 pins per row), this male...

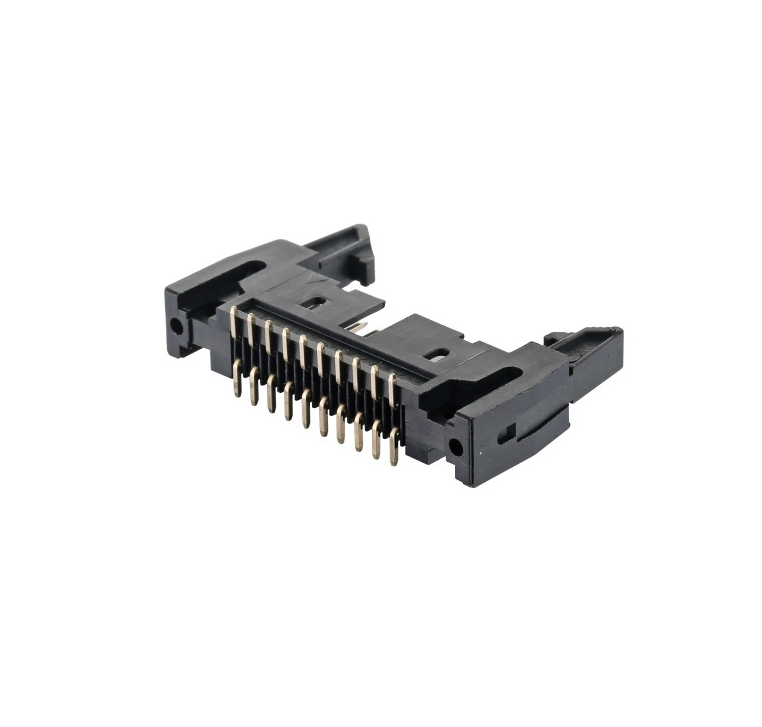

  • 2.54mm Pitch Ejector header Connector Right Angle

    2.54mm Pitch Ejector header Connector Right Angle

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1113R.20P-0210-F3-02

    Transportation:Land,Ocean,Air,Express,Others

    Place of Origin:China

    YZTECH's 2.54mm pitch dual-row male ejector header connector features a right-angle design with an ejector mechanism for secure PCBA connections. Its 10-pins-per-row layout offers a compact, high-density solution. Compliant with DIN standards, the...

2.54mm Pitch Ejector Header Connector
The 2.54mm Pitch Ejector Header Connector is a classic yet highly reliable electronic connection solution. With its industry - standard 2.54mm pitch, it offers excellent compatibility and ease of use, making it a popular choice for a wide range of electronic devices. The built - in ejector mechanism simplifies the installation and removal of mating connectors, reducing the risk of damage during assembly and maintenance. Constructed with high - quality copper pins for superior conductivity and durable plastic housing for enhanced mechanical strength, this connector ensures stable electrical performance and long - term reliability.
Product Philosophy
Please listen to us
Our product philosophy for 2.54mm Pitch Ejector Header Connectors is "Reliable Connection, Empowering Creativity". This concept emphasizes our commitment to providing connection solutions that not only ensure the stable operation of electronic devices but also inspire users to explore and create. We believe that a reliable connection is the foundation for technological innovation, and by continuously improving product quality, optimizing design, and enhancing user experience, we aim to be the trusted partner for customers in different industries, enabling them to turn their ideas into reality and drive the development of the electronics field.
Original concept

Product Features

FAQ
How to deal with signal interference issues when the connector is used in high - frequency circuits?
Use a metal shielding cover to shield the connector and ensure it is well - grounded. Optimize PCB wiring to shorten the signal transmission path and reduce signal reflection and crosstalk. Also, select cables with impedance matching to be used with the connector.
Can the connector be customized with specific locking functions?
Yes, customization is available. We can add locking devices such as mechanical latches and clips to the connector according to customer needs to prevent accidental disconnection. Customers need to provide detailed usage scenarios and functional requirements, and our R & D team will evaluate and provide customized solutions.
How to ensure the connector's performance in a high - electromagnetic interference environment?
In addition to using shielding measures, select connector models with electromagnetic compatibility (EMC) design. Layout the circuit reasonably to isolate sensitive circuits from interference sources. Also, ensure the equipment is well - grounded to reduce the impact of electromagnetic interference.
What should I do if the connector shows signs of overheating during operation?
Stop using immediately and check for poor contact, overload, and other issues with the connector. Ensure good ventilation around and install heat sinks to assist in heat dissipation. If the problem persists, contact the supplier for inspection and handling
