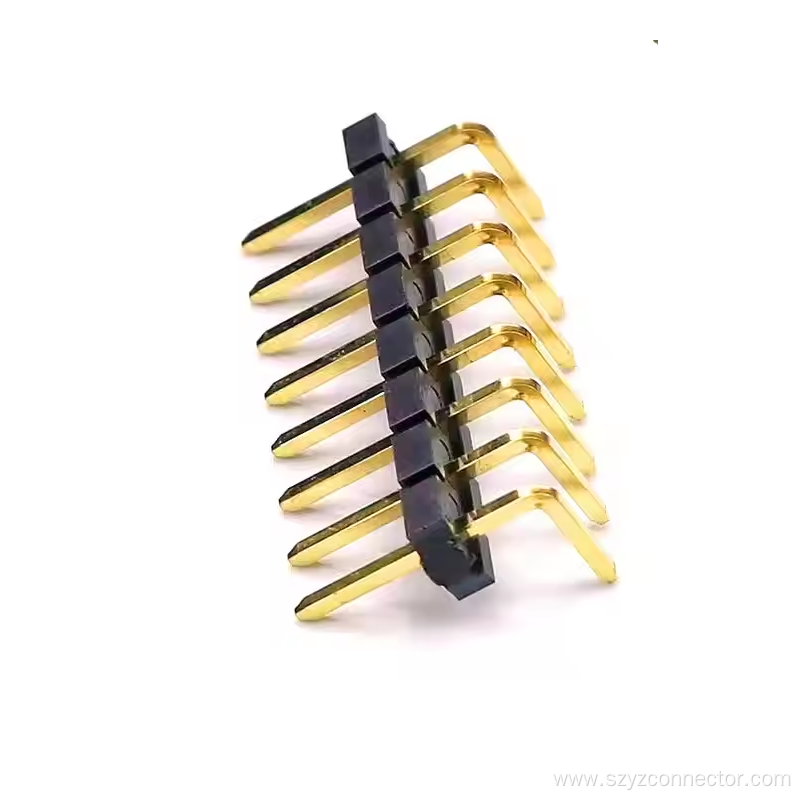

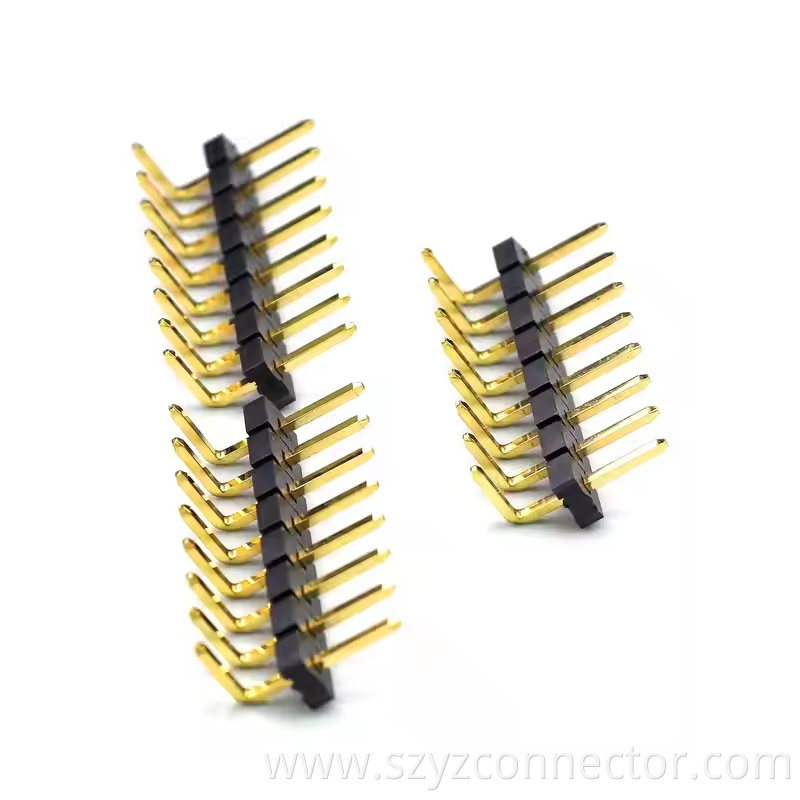

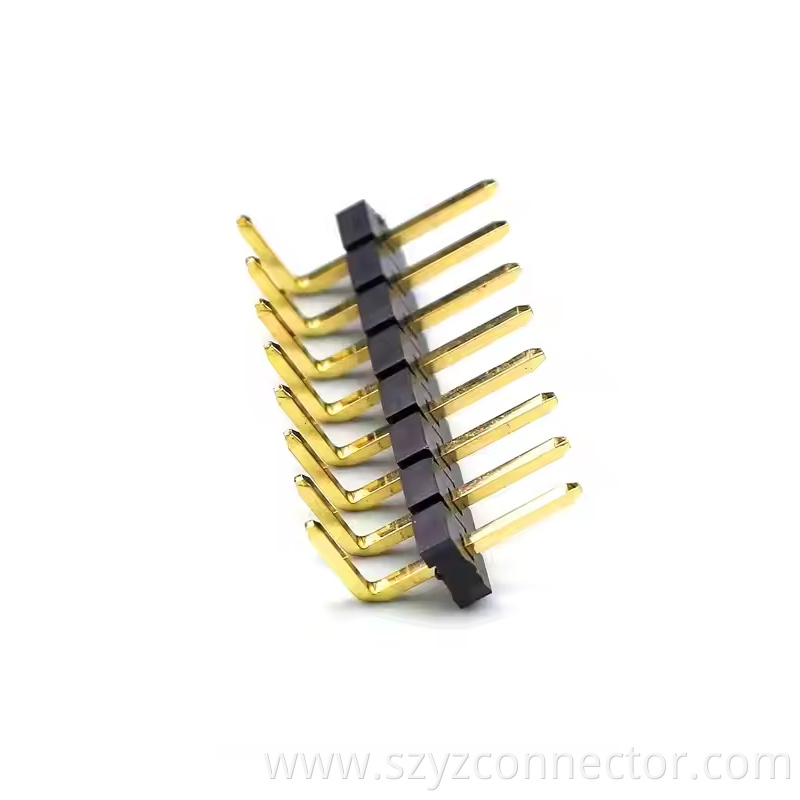

3.96mm Pitch Header Single Row Right Angle

yztech’s newly developed 3.96mm Pitch Header Single Row Right Angle is a key solution for space constraints and complex wiring in electronic devices. As a featured product in the Pin Header series, its standard 3.96mm pitch and single-row right-angle design perfectly fit the compact layout scenarios of PCB Pin Header, optimizing space while enhancing wiring flexibility. It sets a model for balancing space optimization and efficient transmission in the 3.96mm pitch header category.



This connector features high-quality C2680 phosphor bronze terminals (gold-plated) paired with black LCP (UL94V - 0) insulators, stably transmitting signals at a rated current of 3A/pin in harsh environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly controls the contact resistance within 20mΩ, ensuring low-loss and zero-delay signal transmission. The flexible 2-40 PIN configuration is widely used in consumer electronics, industrial control, communication devices, etc., and is highly compatible with Female Header Pins. Certified by ISO9001, ISO14001 and RoHS-compliant, it comes in standard anti-static carrier tape + carton packaging. Offering flexible ODM and OEM customization services, it provides suitable 3.96pin header connector solutions for both conventional applications of 3.96mm Pin Header and complex requirements in special scenarios.
