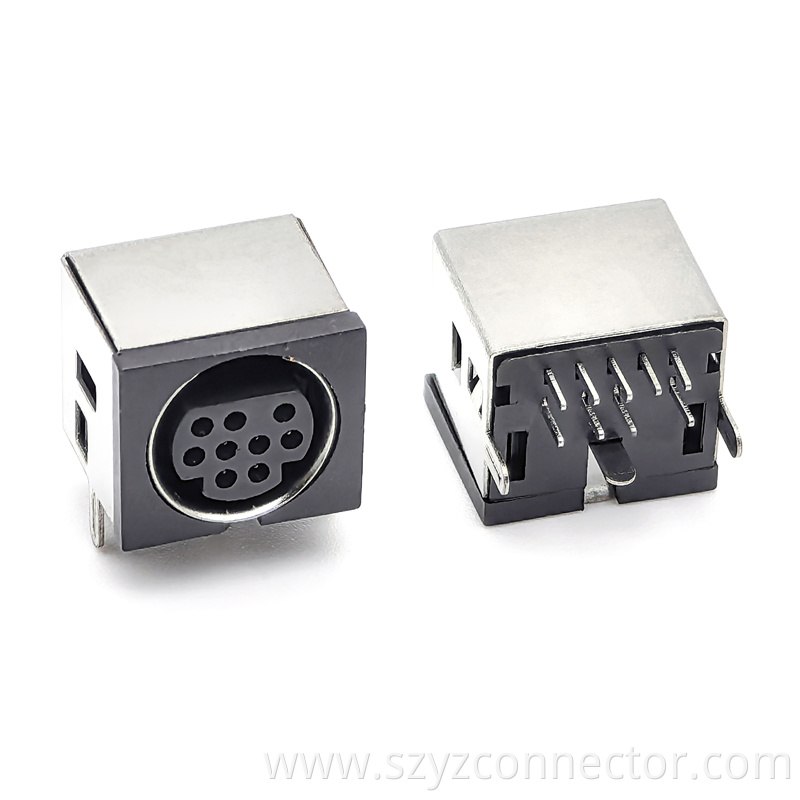

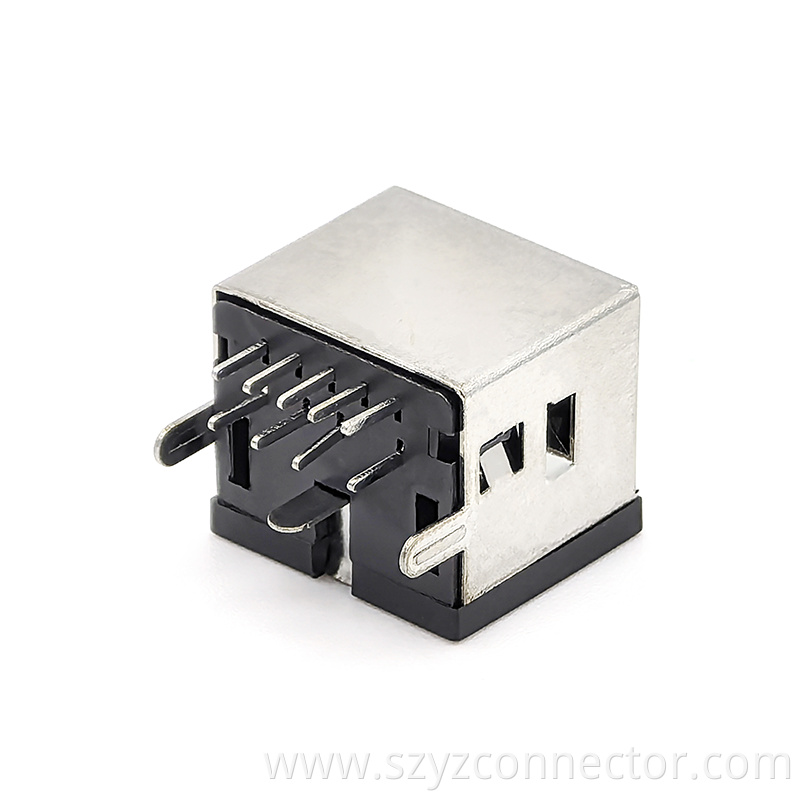

MINI DIN female socket 90 degree DIP

The MINI DIN female socket 90 degree DIP launched by yztech is an excellent choice for precise connections in small electronic devices. As a compact DIN Female Connector, its mini size design saves a lot of installation space, making it very suitable for scenarios sensitive to volume such as audio equipment and communication terminals. The 90-degree DIP (through-hole) structure allows it to be vertically mounted on the PCB, similar to the layout concept of Right Angle Female Connector, which can flexibly adapt to the three-dimensional wiring needs inside the device.​



This socket is compatible with various MINI DIN standard connectors, and can achieve precise docking with Type C DIN 41612 Connector, Type D DIN 41612 Connector, etc., ensuring the stability of signal transmission. Different from the straight insertion method of Straight Female Connector, the 90-degree design makes wiring more convenient in small spaces while maintaining the stability of the connection. The internal terminals are made of high-conductivity copper alloy material, with a contact resistance as low as 6mΩ and a plug-in life of more than 800 times, which can maintain reliable performance even in frequently used consumer electronics scenarios. Whether building signal transmission links for small devices or realizing interface connections for portable devices, this MINI DIN female socket 90 degree DIP has become an ideal choice for miniaturized connections with its small size, flexible installation method and stable performance.
