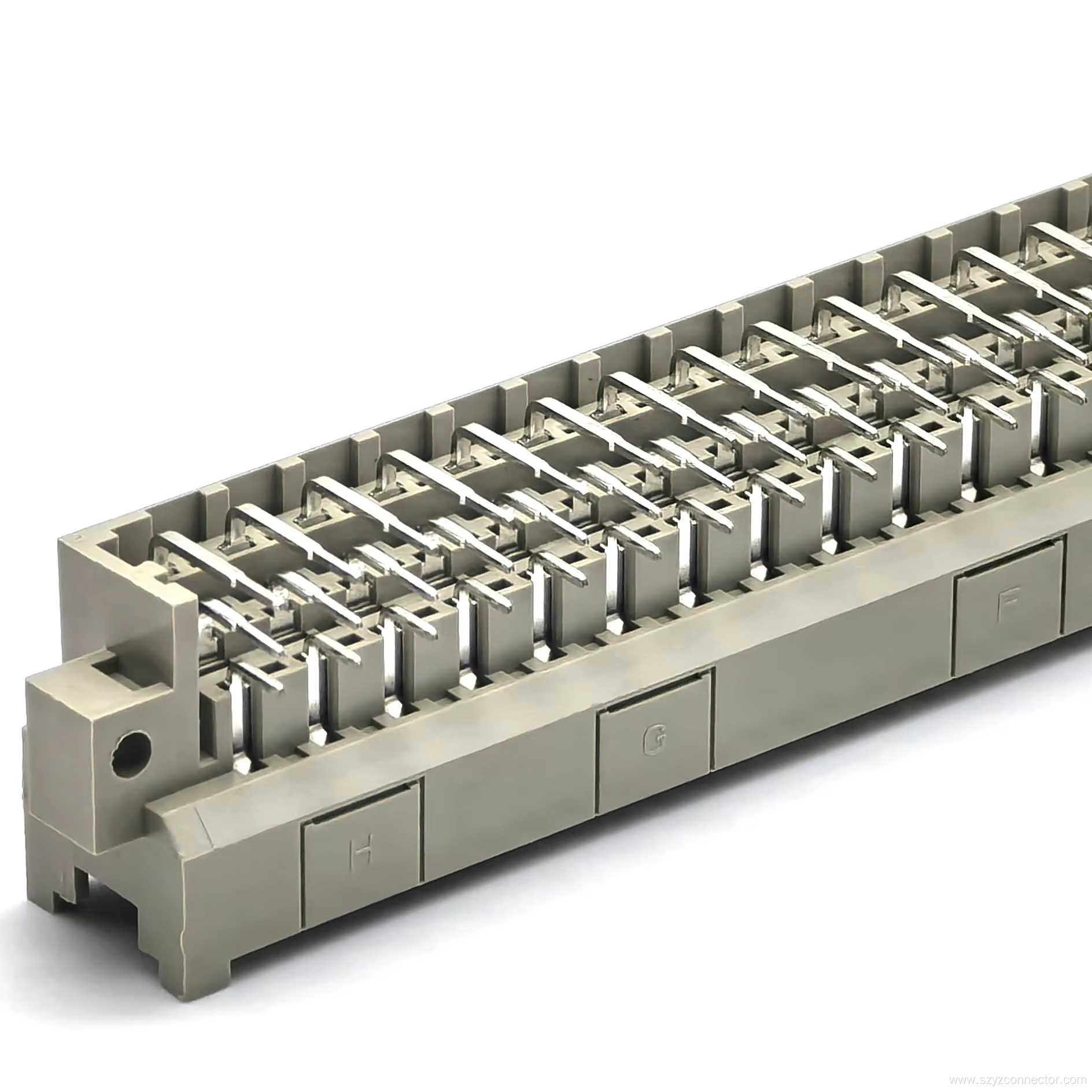

Din 41612 Connector Male 48P

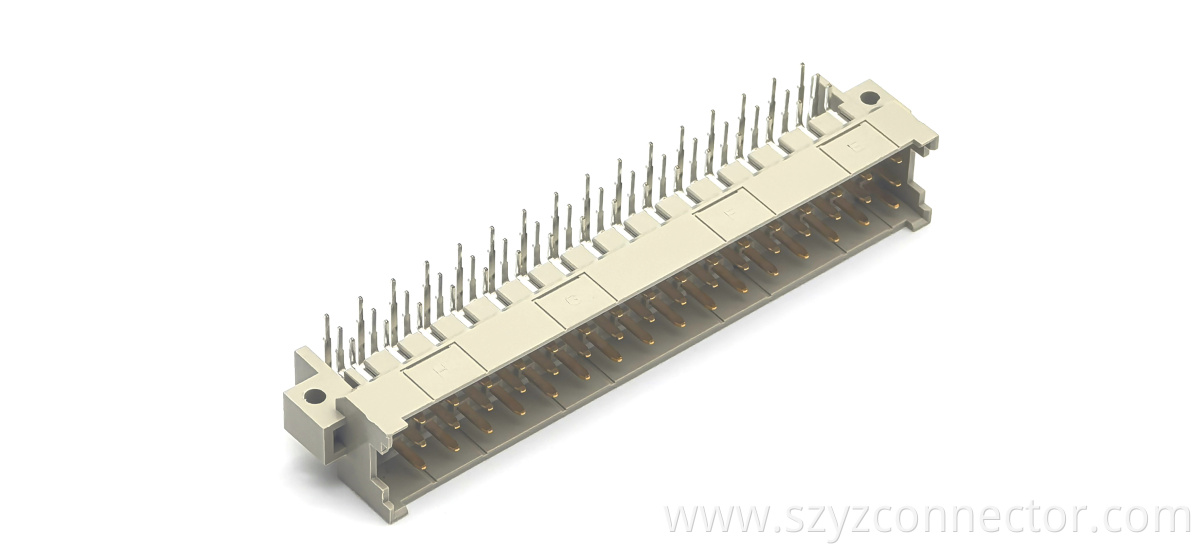

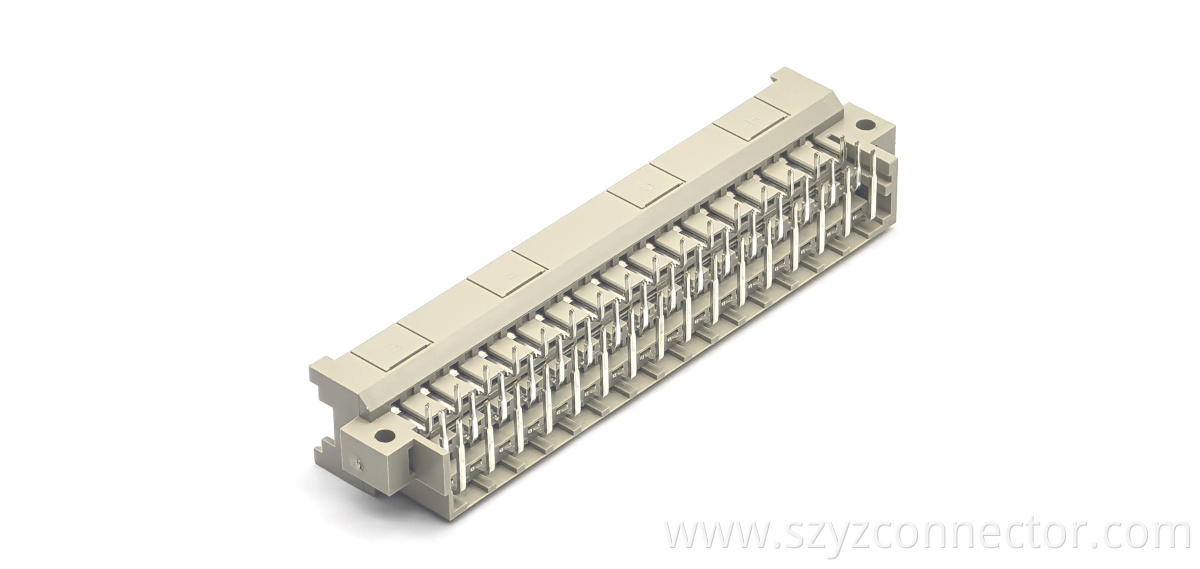

YZTECH presents a premium 48-position din 41612 Connector engineered for rigorous PCB-based applications.This three-row right-angle male header connector conforms fully to DIN 41612 specification,delivering consistent board-to-board and backplane connectivity in industrial environments.The rectangular housing is fabricated from high-performance nylon,offering excellent dimensional stability across the entire operating range from -55 ℃to+125 ℃.Rated at 1500 V and carrying 5.6 A per contact,this connector handles substantial power requirements while occupying minimal PCB real estate.Each unit is supplied in secure box packaging,with a maximum wave-soldering temperature of  245 ℃±5 ℃ to facilitate straightforward automated assembly.It could be found in the DIN 41612 Male Connector of the catalog.

Precision-machined copper alloy contacts undergo a dedicated gold-plating process,which substantially lowers contact resistance and inhibits oxidation even under elevated temperatures or humid conditions.The noble metal finish promotes repeated plug/unplug cycles without signal degradation—an essential attribute for test equipment,programmable logic controllers,and telecommunication backplanes.The angled termination geometry frees valuable board space while maintaining consistent impedance across all three rows,ensuring high signal integrity throughout the assembly's service life.
