Ejector Header

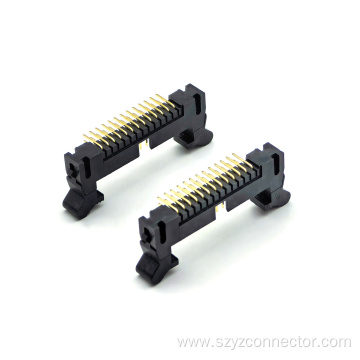

2.0mm Pitch Ejector Header Connector
-
Model No: 1113.2S-50P-0105-F-02 Get Latest Price
-
-
-
-
-
-
-
2.54mm Pitch Ejector Header Connector
-
Model No: 1113S.3DL-20P-0335-F-00 Get Latest Price
-
Model No: 1113R.20P-0210-F3-02 Get Latest Price
Ejector Header
The Ejector Header is an innovative electronic connection component designed to simplify the installation, replacement, and maintenance of electronic modules. It features a built - in ejector mechanism that enables effortless insertion and removal of mating connectors, reducing the risk of damage to both the header and connected components. Crafted with high - quality copper alloy pins for excellent conductivity and durable engineering plastic for the housing, it ensures stable electrical performance and mechanical reliability.
Product Philosophy
Please listen to us
Our product philosophy for Ejector Headers is "Effortless Connection, Hassle - free Maintenance". This concept emphasizes our commitment to developing products that simplify the complex process of electronic connections, reducing the technical barriers and time costs for users. By focusing on user - friendly design and reliable performance, we aim to provide connection solutions that not only meet the current needs of the electronics industry but also anticipate future trends, enabling customers to achieve more efficient and convenient electronic product development and operation.
Original concept
Application Scenarios
- 01Data Center ServerUsed in server blade systems, enabling quick replacement of server modules, reducing downtime, and improving maintenance efficiency.
- 02industrial automation equipmentIncorporated in programmable logic controllers (PLCs) and industrial control panels, ensuring stable connections in harsh industrial environments and simplifying component replacement.
- 03Medical Electrical EquipmentUsed in medical imaging devices and patient monitoring equipment, reducing the risk of damage during maintenance and ensuring the accuracy of electrical connections.
- 04Consumer electronic devicesIncorporated in high - end laptops and gaming consoles, allowing for easy upgrade of internal modules and enhancing user experience.
Technical Advantages
Innovative pop-up structure
Our unique ejector mechanism design has obtained multiple patents, providing a more stable and labor - saving operation compared to traditional headers.
Precision manufacturing process
Utilize advanced precision stamping and injection molding technologies to ensure high - dimensional accuracy and consistent product quality.
Simulation optimization
Employ computer - aided engineering (CAE) simulation to optimize the ejector mechanism's performance, ensuring reliable operation under various loads.
FAQ
How to adjust the ejection force of the Ejector Header?
The ejection force of the Ejector Header is calibrated according to standard specifications before leaving the factory. If fine - tuning is required, the internal spring compression can be adjusted using a special tool. Turning the adjustment screw clockwise increases the ejection force, while turning it counterclockwise decreases the force. After adjustment, perform multiple insertion and extraction tests to ensure the ejection force is appropriate and stable.
What should I do if the Ejector Header fails to eject the connector?
First, check whether the locking device has been released. If the locking is normal, check whether there are foreign objects blocking the ejector mechanism. Try again after cleaning the foreign objects. If the problem persists, it may be that the internal spring is damaged, and you need to contact the supplier for replacement and repair.
How to ensure the alignment accuracy when installing the Ejector Header on the PCB?
Use the positioning fixture that matches the Ejector Header to fix it in the corresponding mounting hole on the PCB board. During installation, a magnifying glass or visual inspection device can be used to check the alignment of the pins and pads, ensuring that the pins are accurately inserted into the pad holes before soldering.
How to prevent the Ejector Header from loosening during transportation?
During packaging, use anti - static foam or sponge to fix the Ejector Header in the packaging box to ensure it does not shake. For Ejector Headers in large - scale equipment, use cable ties or fixing brackets for further reinforcement after installation.
