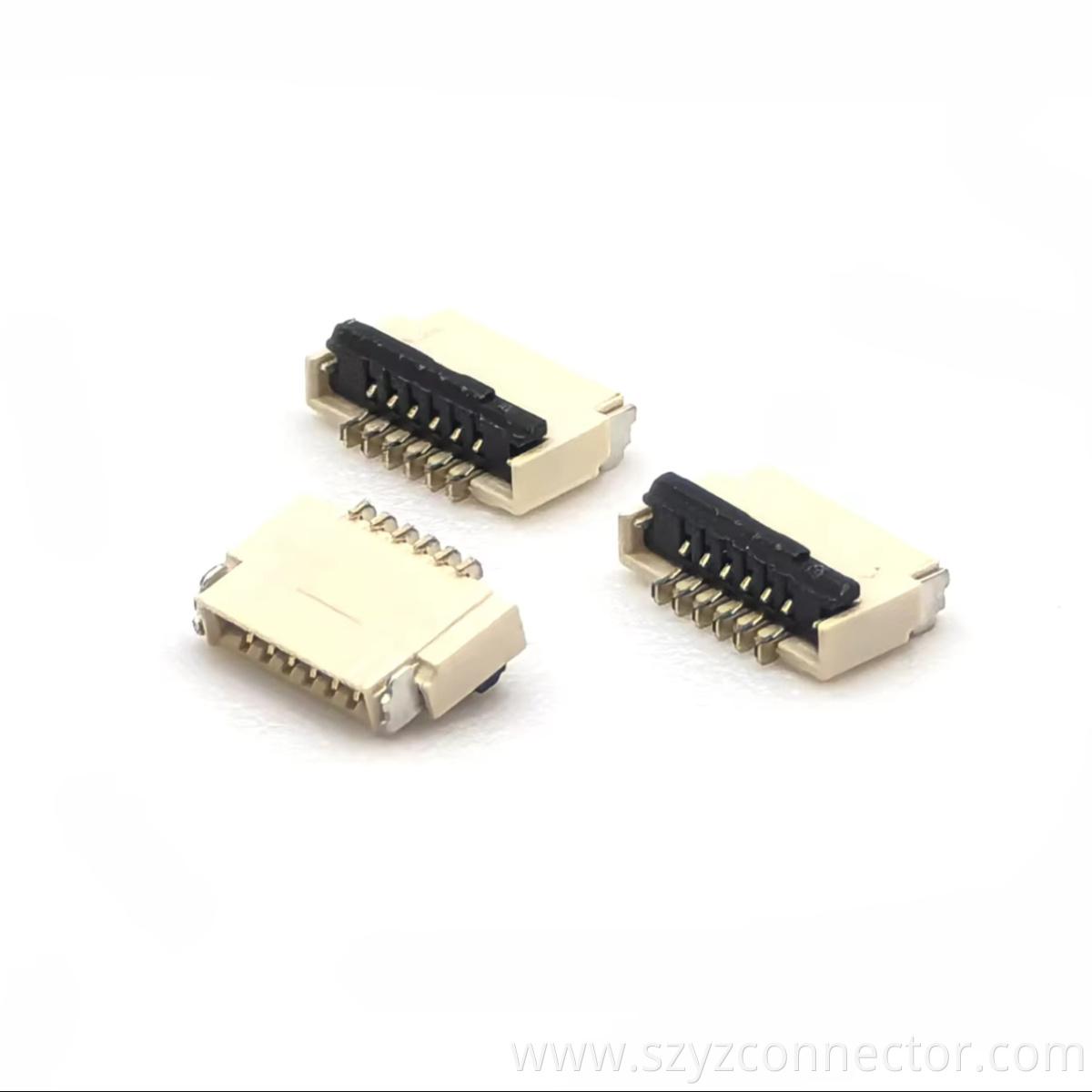

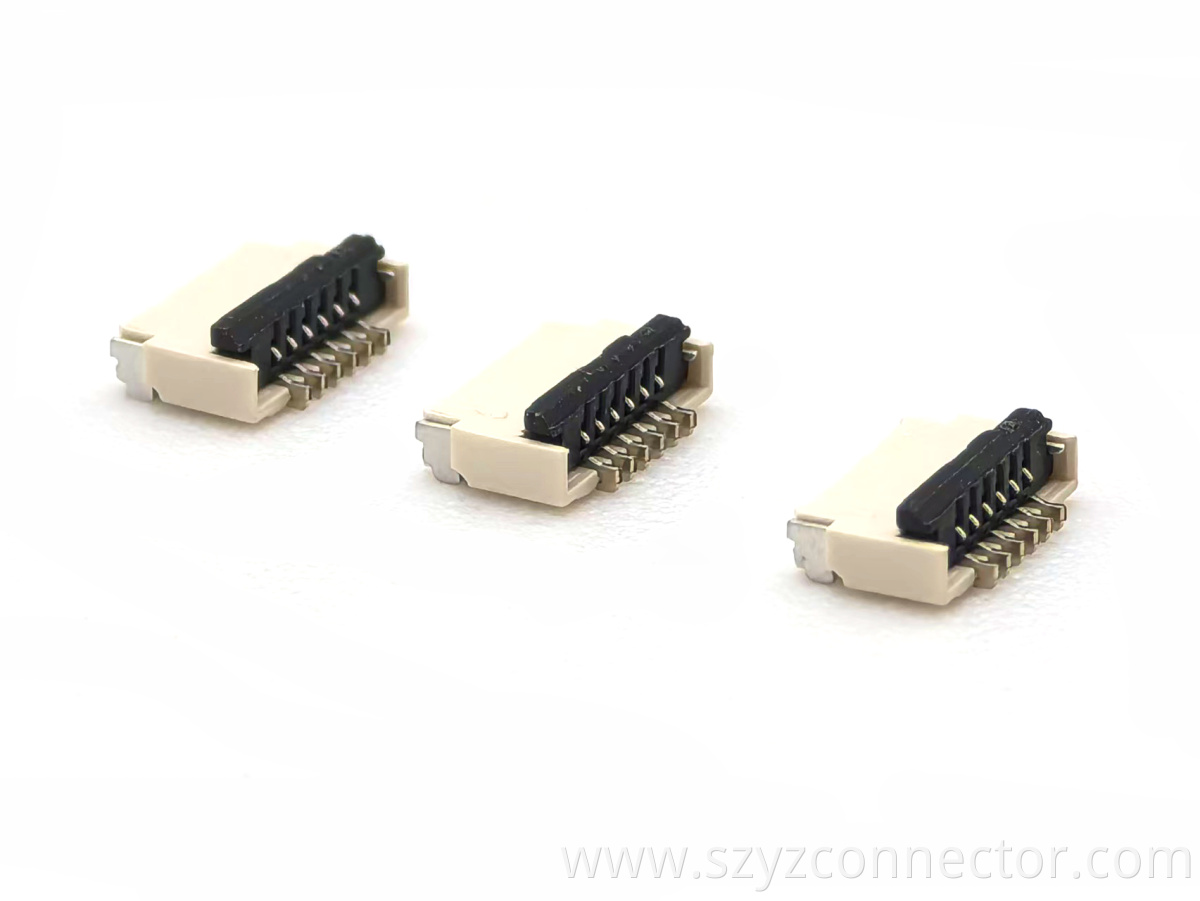

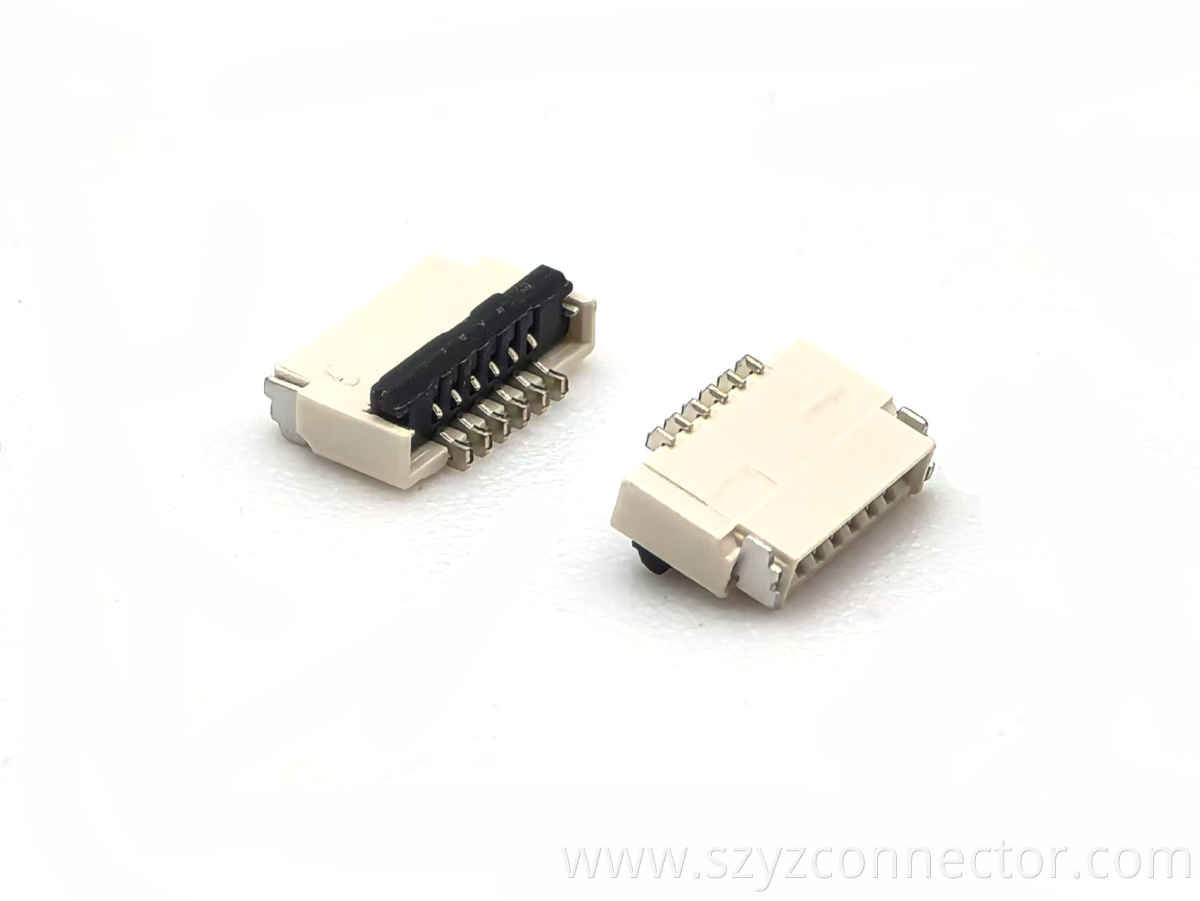

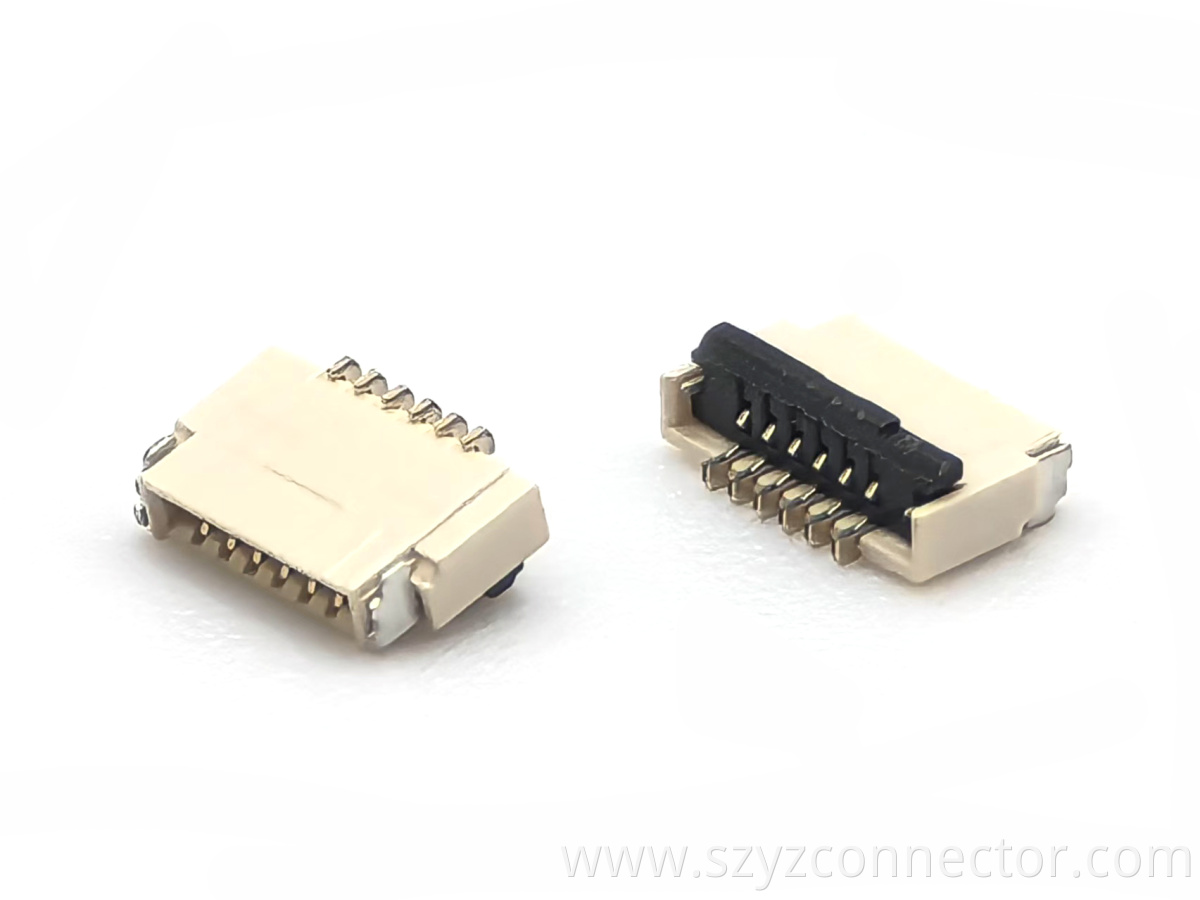

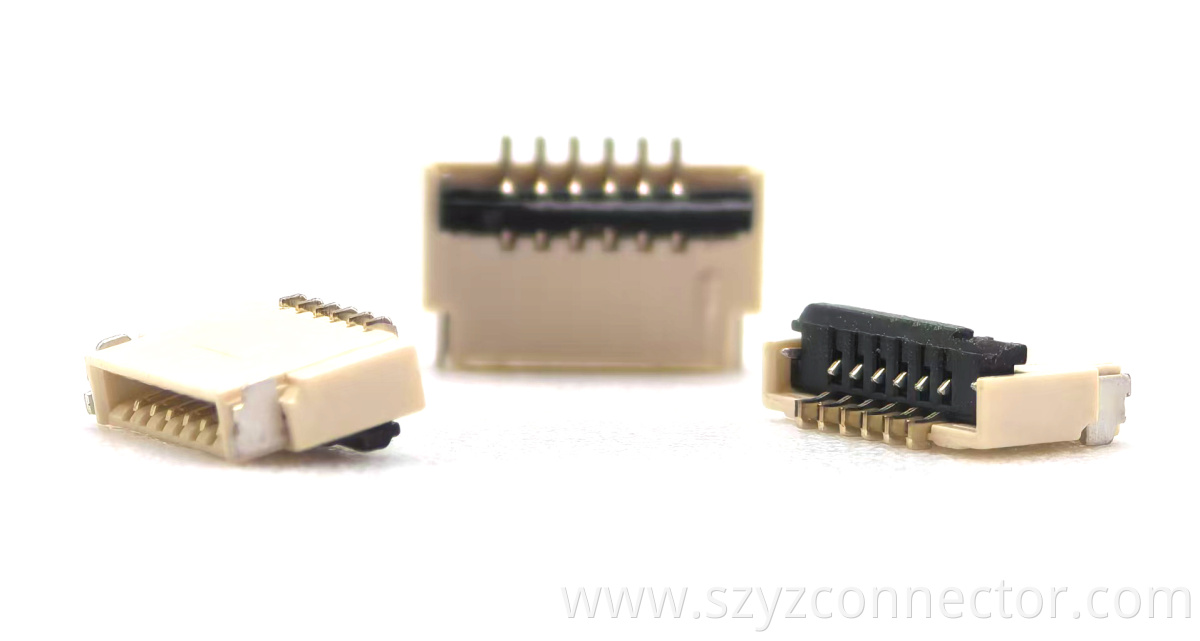

0.5mm FPC Connector SMT Upper contact Type

The YZTECH 0.5mm FPC Connector SMT Upper Contact Type stands as a component, precisely engineered to address the intricate interconnection needs in PCB/FPC applications.Featuring a single-row layout with 6 pins per row, this rectangular female header connector offers a compact yet highly efficient solution for signal and power transmission in high-density electronic designs.Its unique front insertion and rear lifting installation method simplifies the process of connecting and disconnecting the FPC, minimizing the risk of damage and ensuring a secure, reliable connection.When it comes to material selection, copper is chosen as the contact material, which is well-known for its exceptional electrical conductivity.The gold-plated contacts further enhance the connector's quality. It also improves solderability, facilitating a strong and stable connection to the PCB during the SMT assembly process.



This header connector is built to withstand a wide range of operating conditions. It can function reliably within a temperature range of -25℃ to + 85℃, making it suitable for various environments. When used in conjunction with appropriate FFC connectors and FFC cables, the entire interconnection system can handle these temperature extremes without signal degradation or connection failures.The reel packaging is a practical and efficient solution for storage, transportation, and automated assembly. Additionally, the connector is UL- certified, which means it has undergone rigorous testing and meets international safety standards.



In the consumer electronics industry, the 0.5mm FPC Connector is widely utilized in smartphones, tablets, and wearable devices.Whether you are a manufacturer looking to optimize your product design or an engineer seeking a reliable interconnection solution, the YZTECH 0.5mm FPC Connector SMT Upper Contact Type, along with its compatible FFC connectors and cables, is the perfect choice for your PCB/FPC applications.
