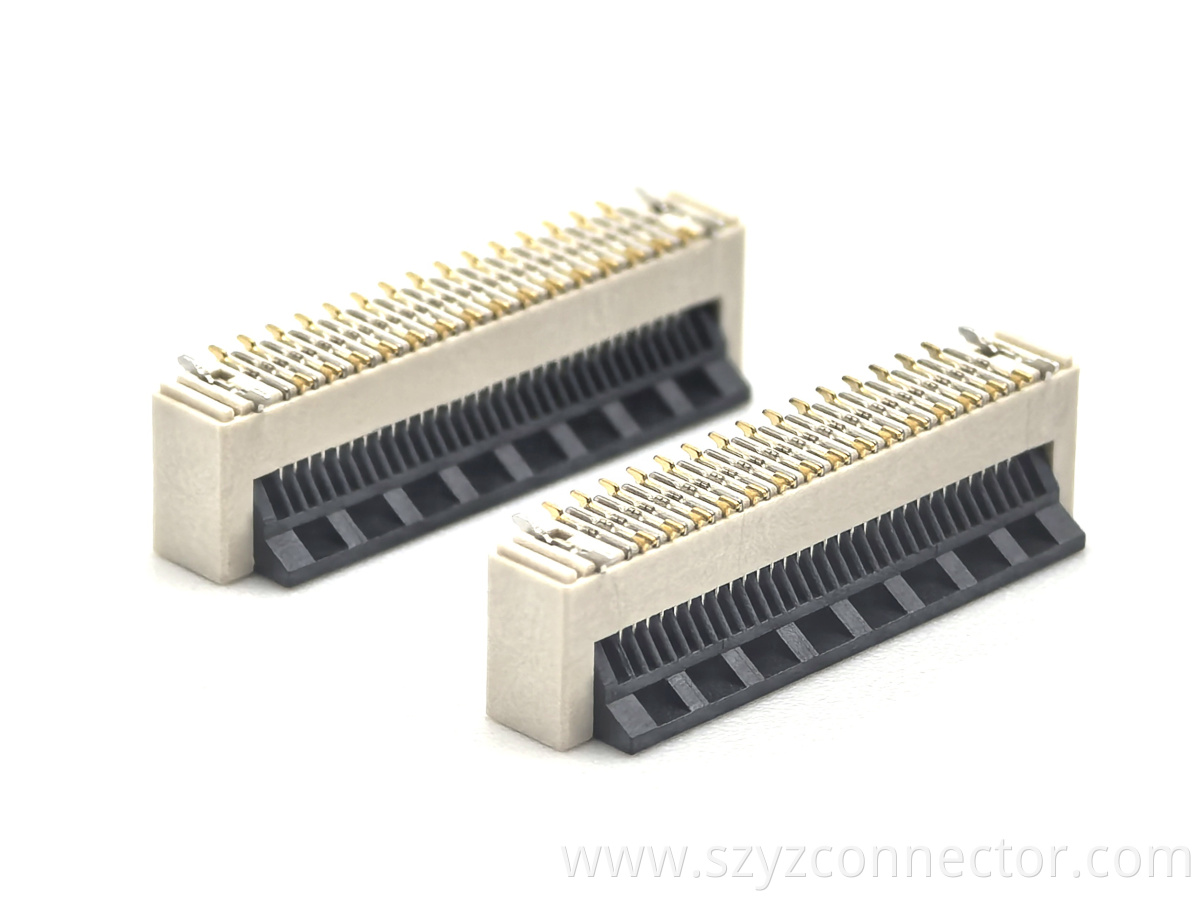

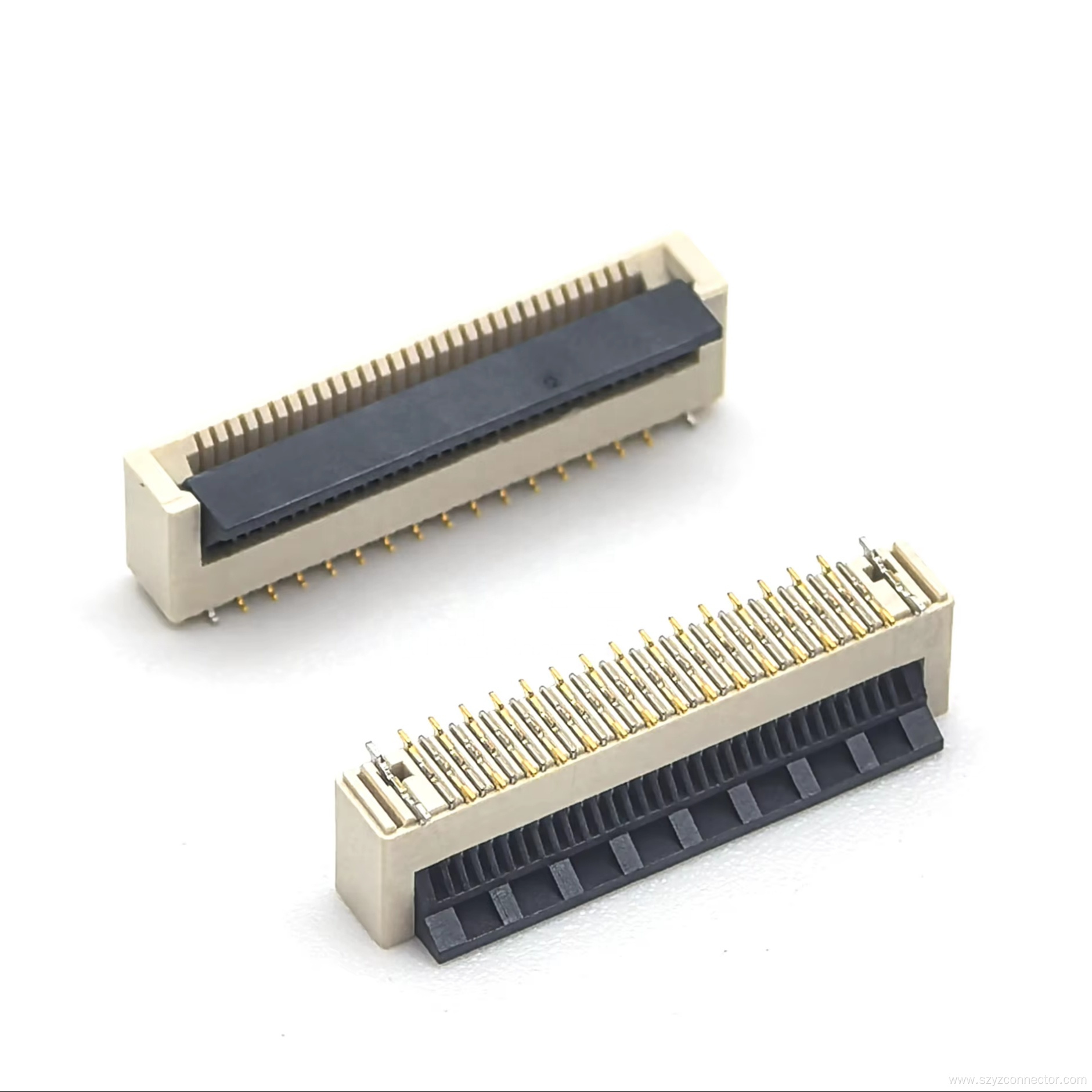

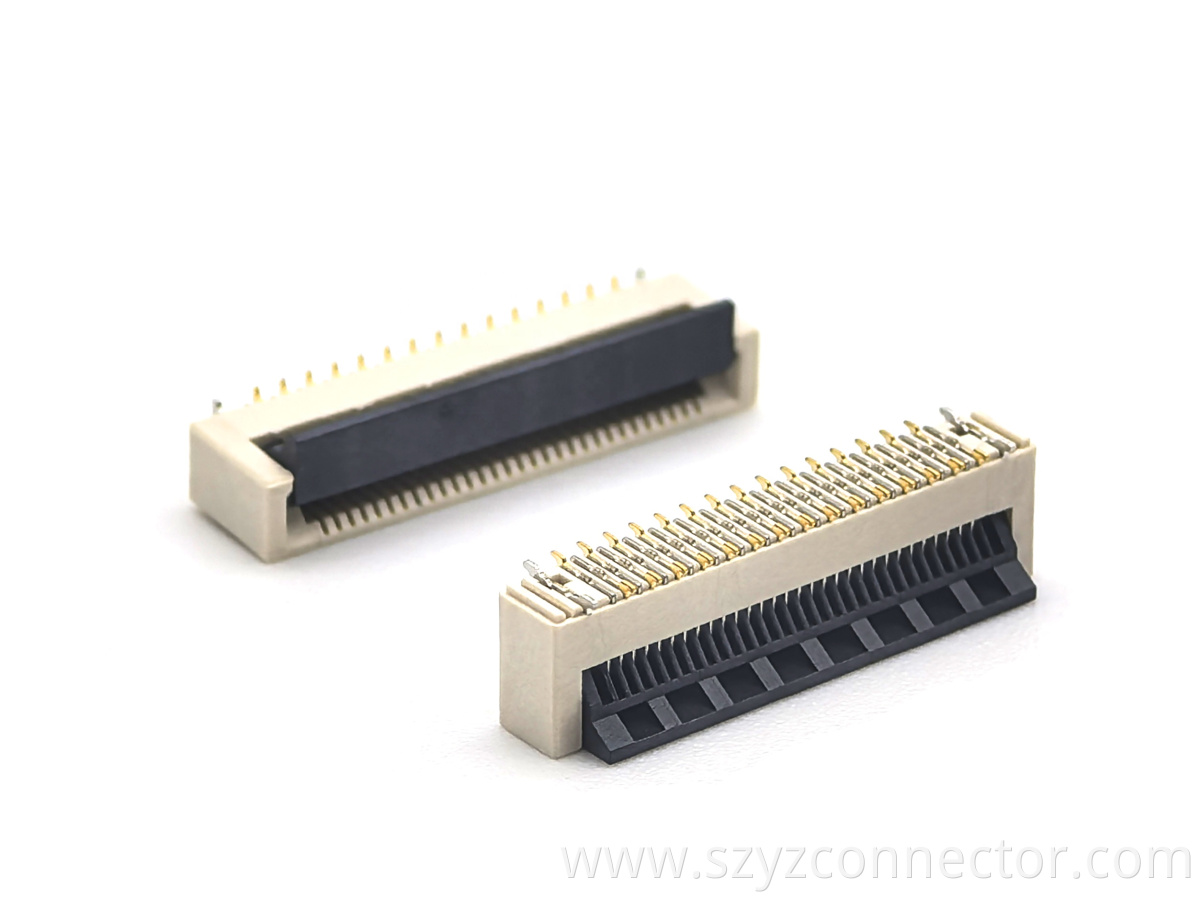

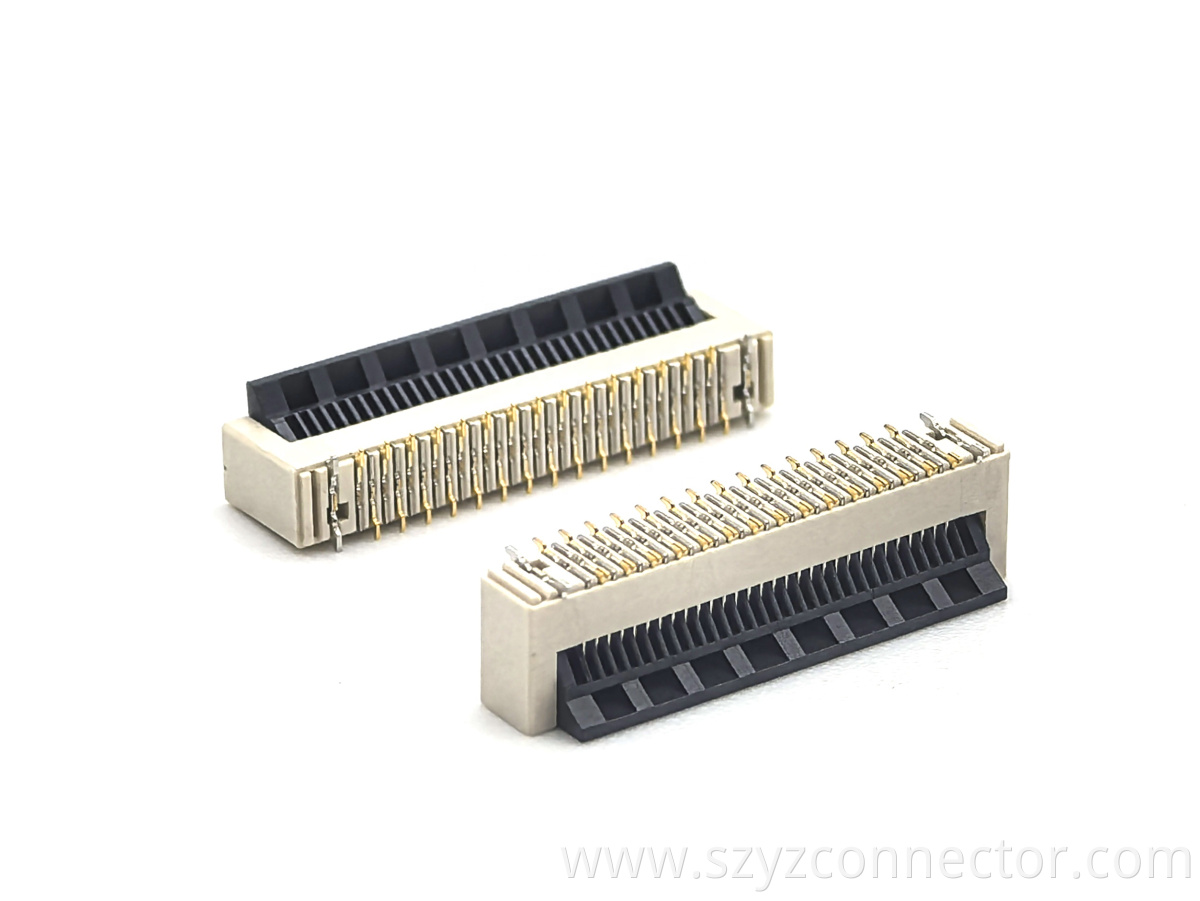

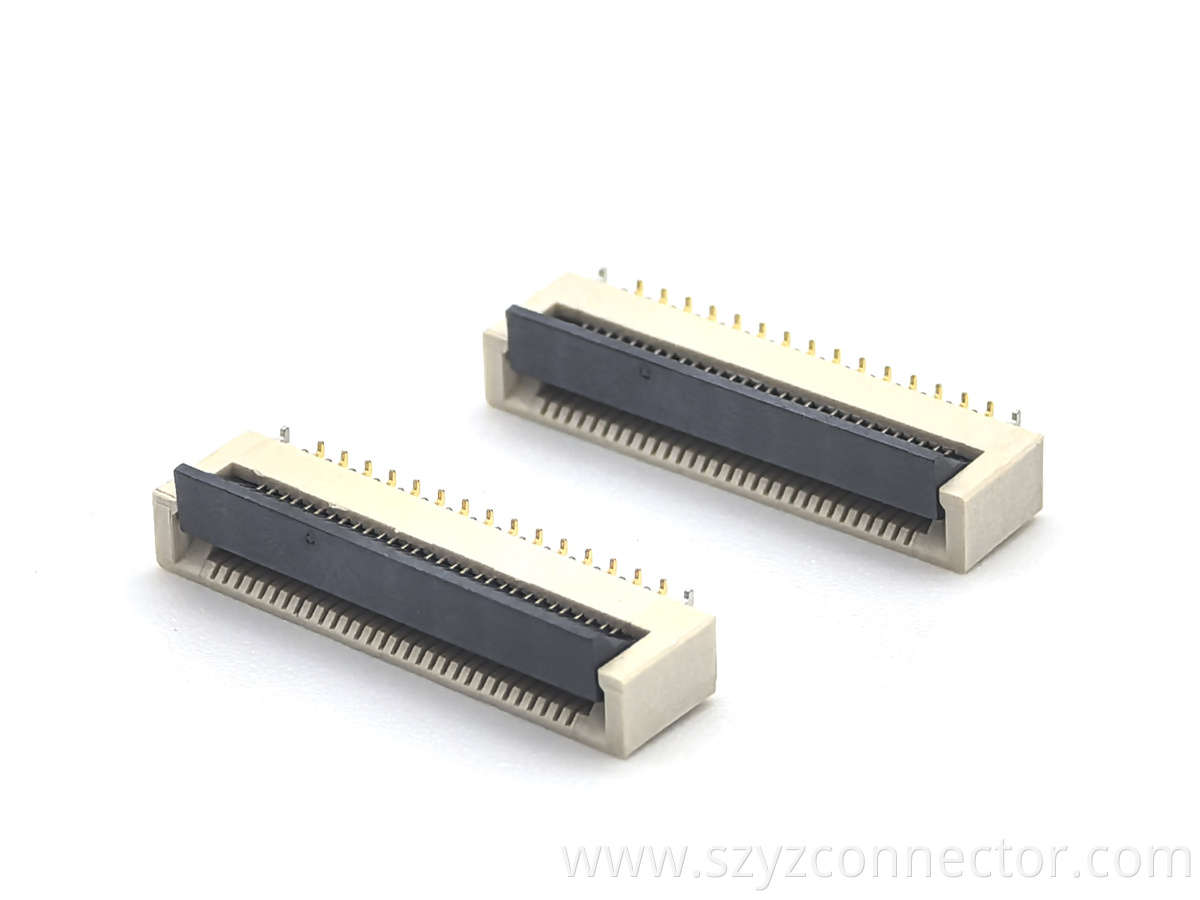

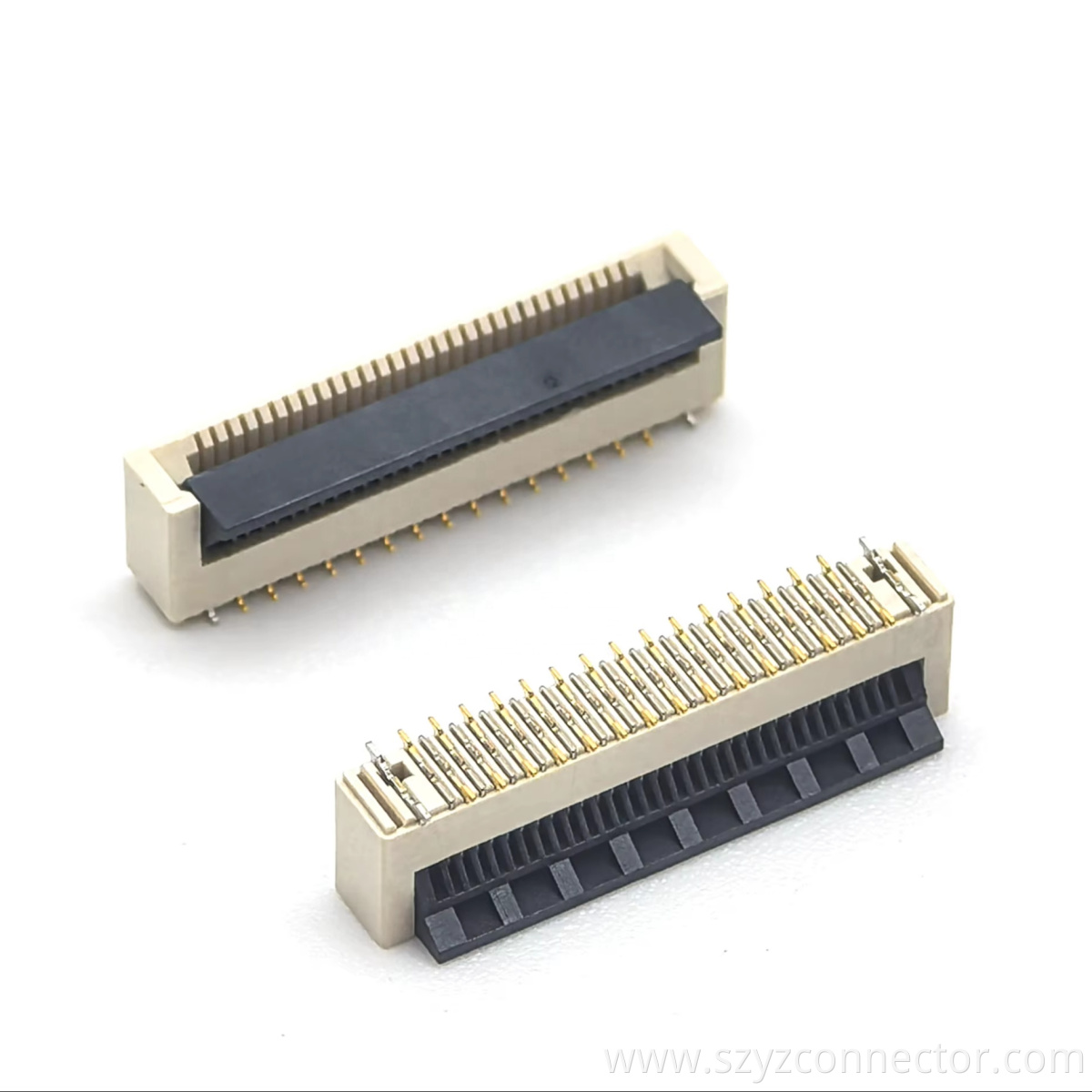

0.5mm Pitch FPC Connector Straight SMT

YZTECH's 0.5mm Pitch FPC Connector is a high-density surface-mount solution engineered for precision connections in advanced electronic assemblies. Designed in a single-row 30-position configuration, this female header connector facilitates secure interconnections between PCBs and flexible printed circuits . Its rectangular form factor, combined with a locking mechanism, ensures stable mating compatibility with standard FFC connectors and cables. Compliant with DIN standards and delivered in reel packaging, the FFC FPC connector supports efficient automated placement and high-volume production.



Constructed with phosphor bronze contacts and tin plating, the connector offers superior conductivity and corrosion resistance. The housing, manufactured from Liquid Crystal Polymer, exhibits high thermal stability, performing reliably within an operating temperature range of -40°C to +85°C. The integrated lock mechanism provides robust mating retention with FFC cables, mitigating disconnection risks under mechanical stress. Its SMT design promotes streamlined PCB assembly and compatibility with reflow soldering processes.



This header connector is suited for a diverse range of applications, including medical instrumentation, automotive electronics, telecommunications equipment, and portable consumer devices where space-efficient FPC/FFC interconnections are essential. It is RoHS compliant and designed to operate seamlessly with industry-standard FFC cables and connectors. YZTECH ensures global interoperability and performance consistency, meeting stringent international requirements for quality and environmental adaptability.
