Micro Match Connector Male IDC Type 8P

Name: Micro Match Connector Male IDC Type Without gap 2*4P
Uploaded: 2025-08-21T05:37:42+08:00
Description: YZTECH Micro Match Connector Male IDC Type 8P is a high-performance interconnection solution engineered for precision

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Air,Express,Others

Contact Now

Product Description

Product Attributes

Model No.: 1124.E204N08P-A-00

Brand: YZTECH

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Micro Match Connector Male IDC Type Without gap 2*4P



Product Description

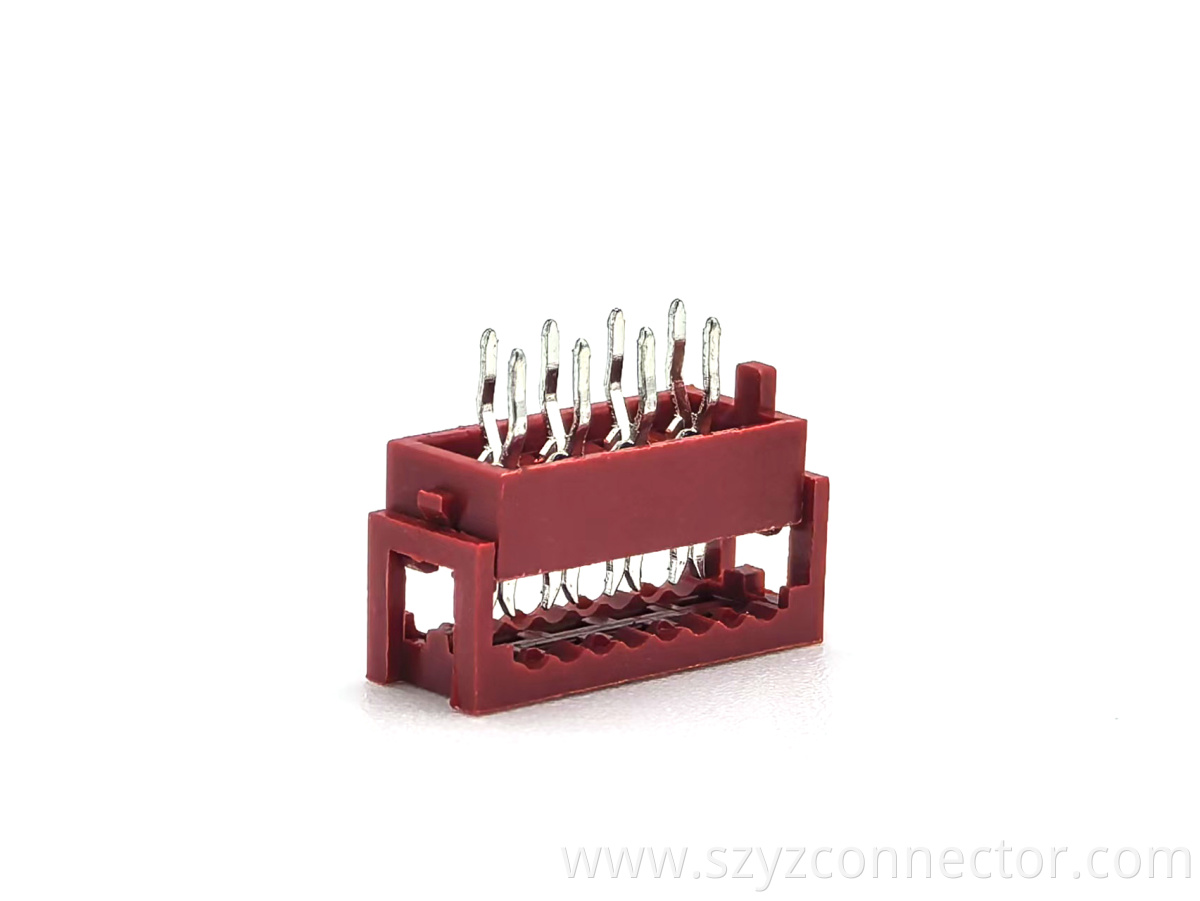

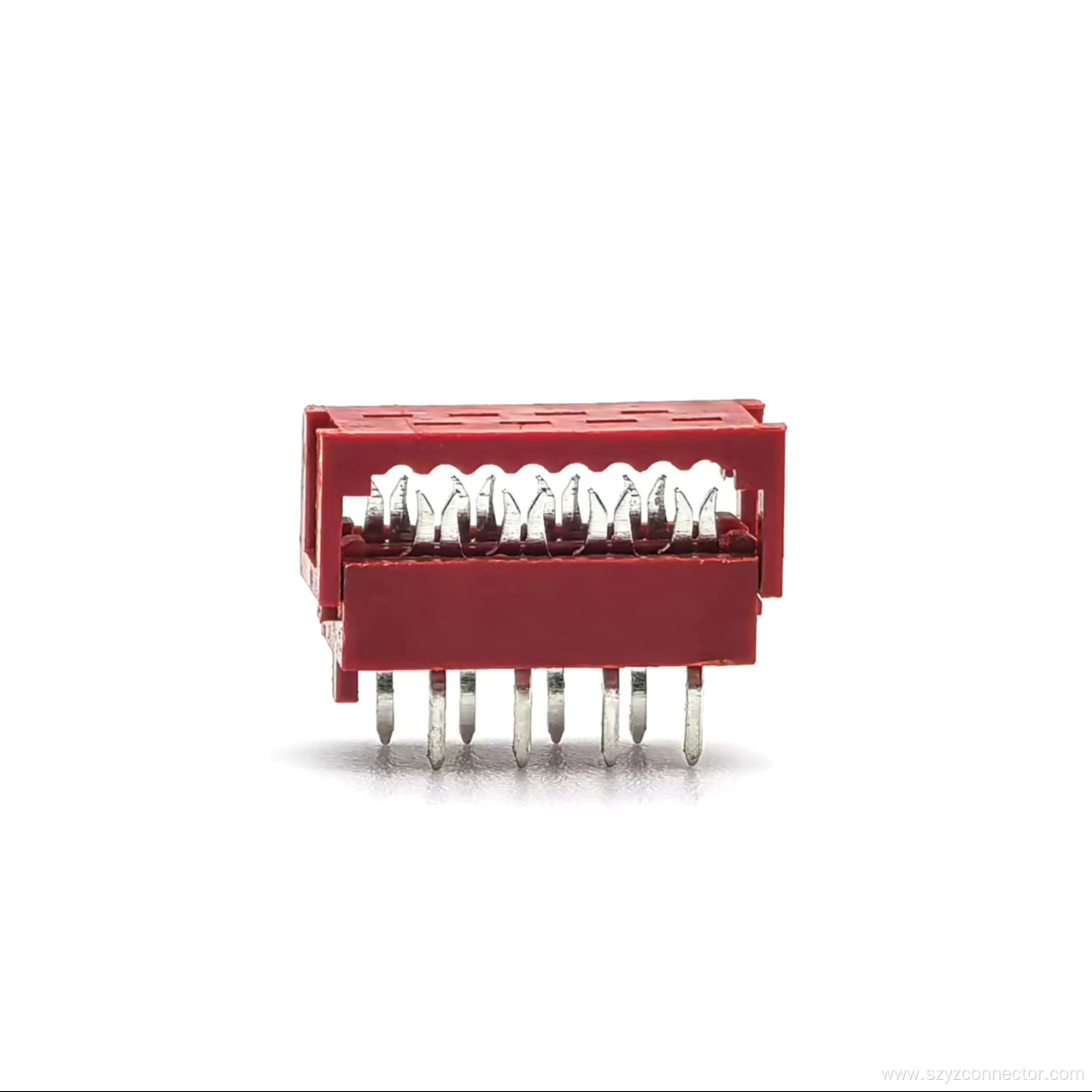

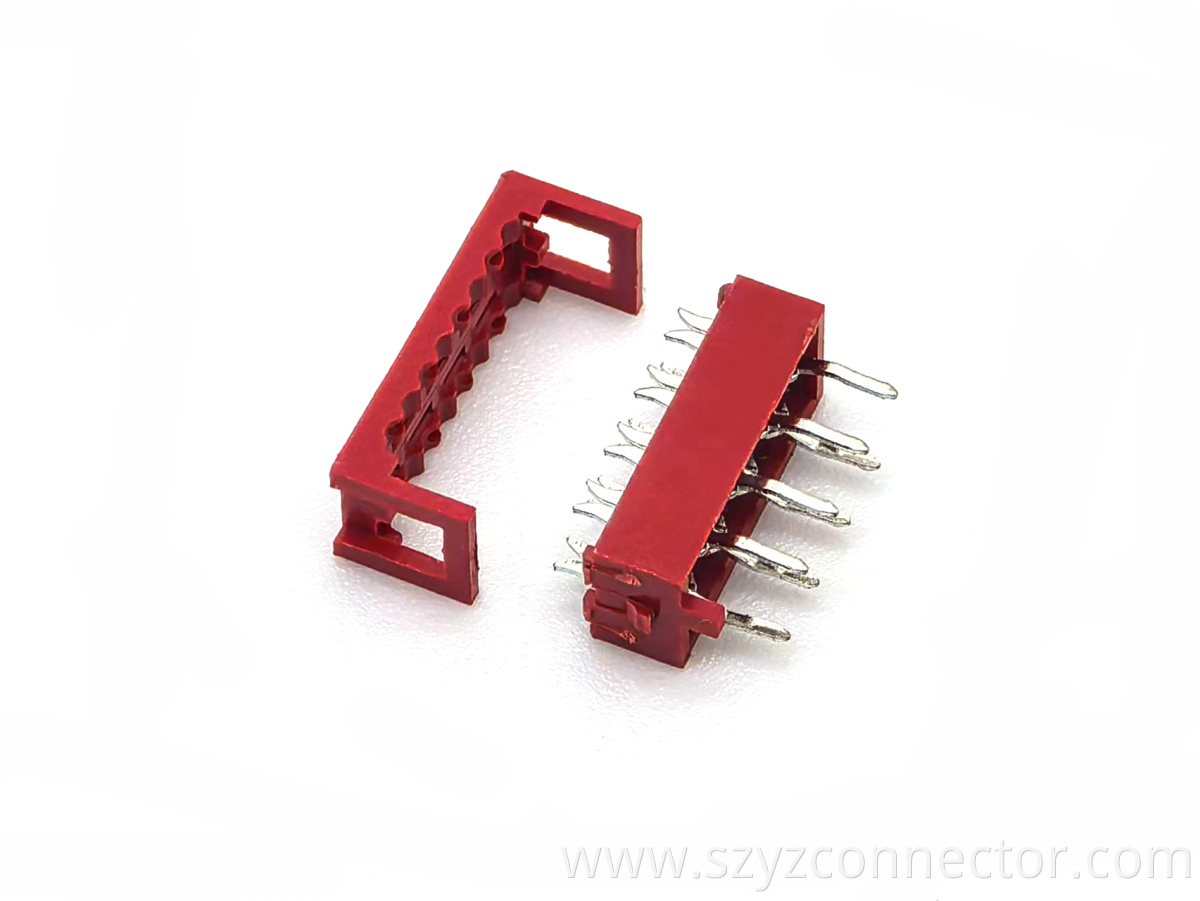

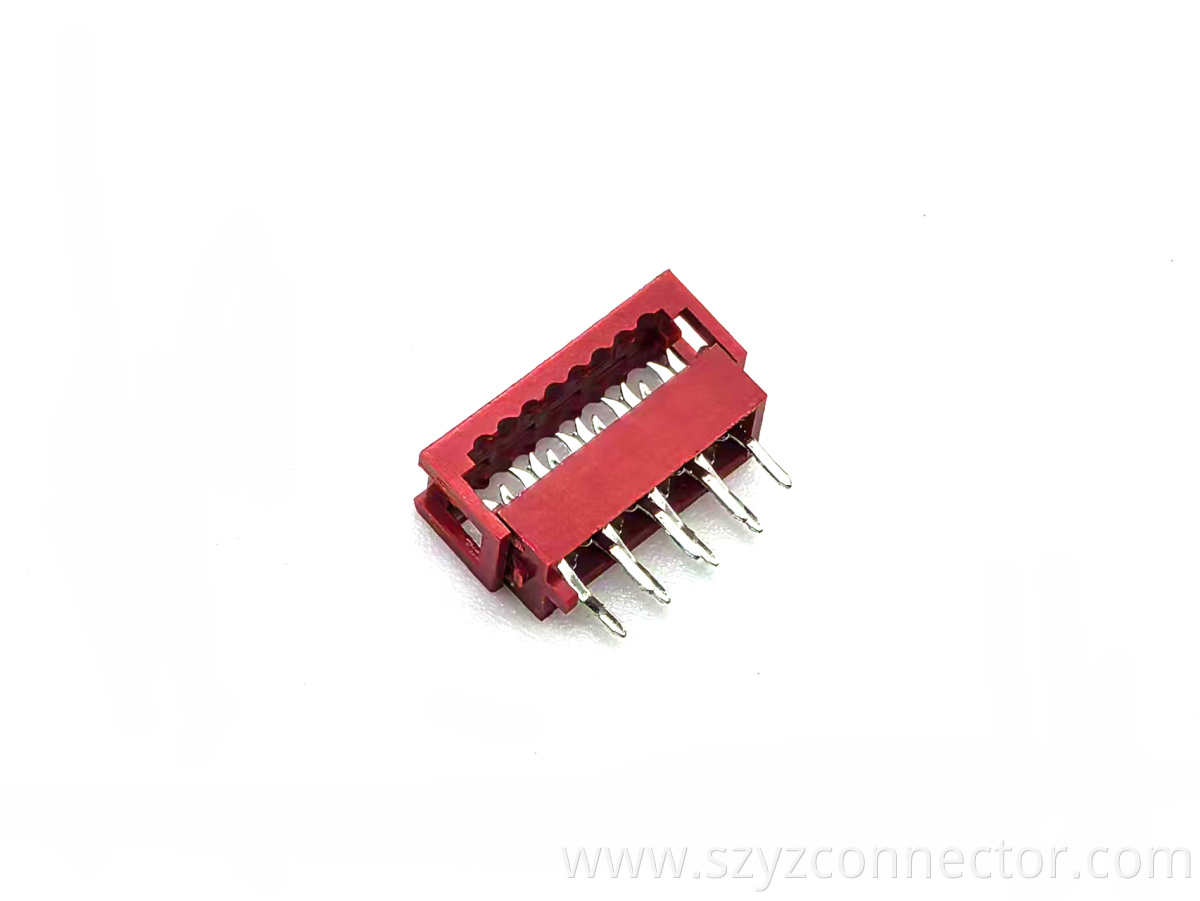

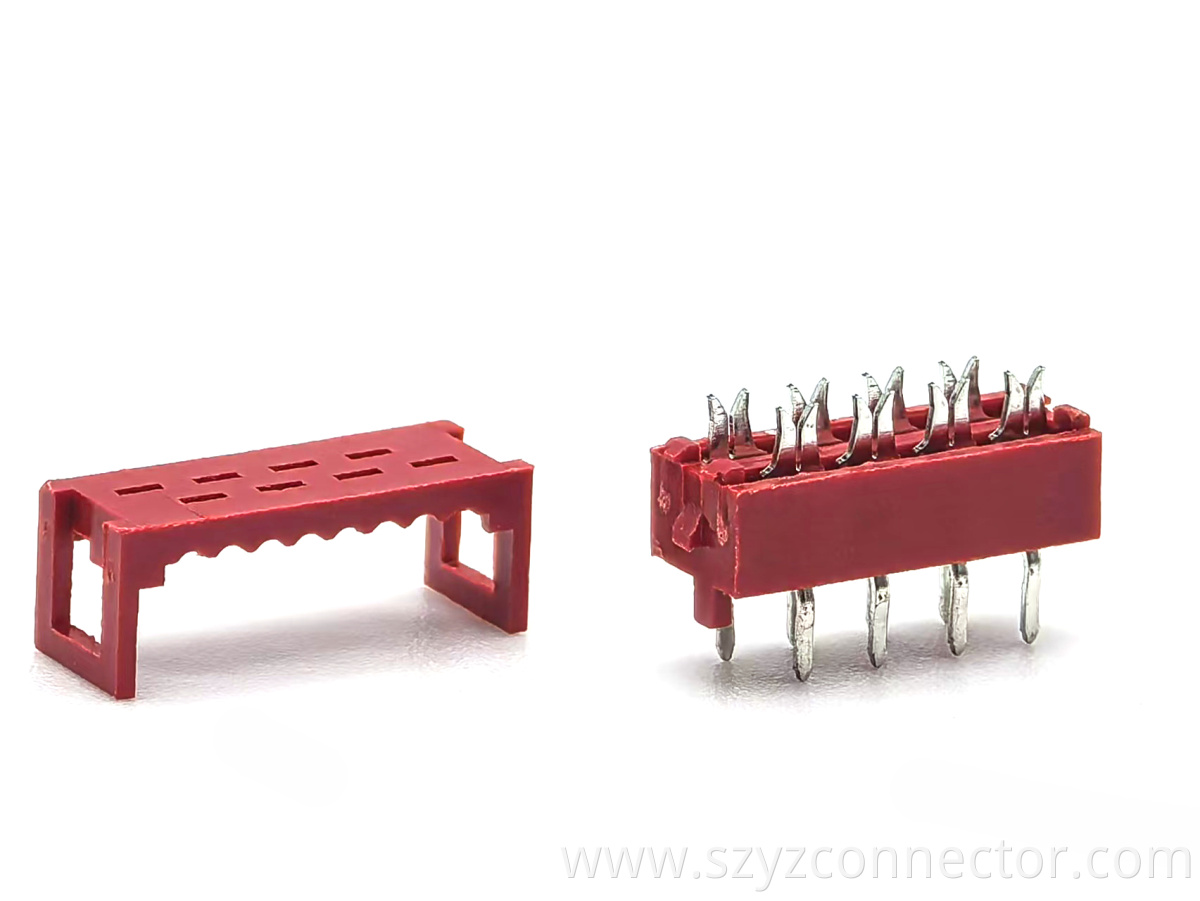

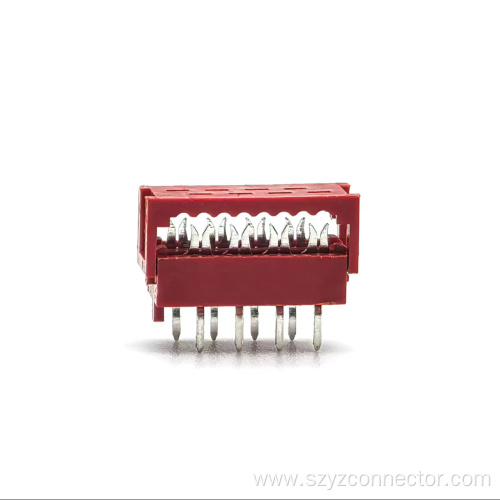

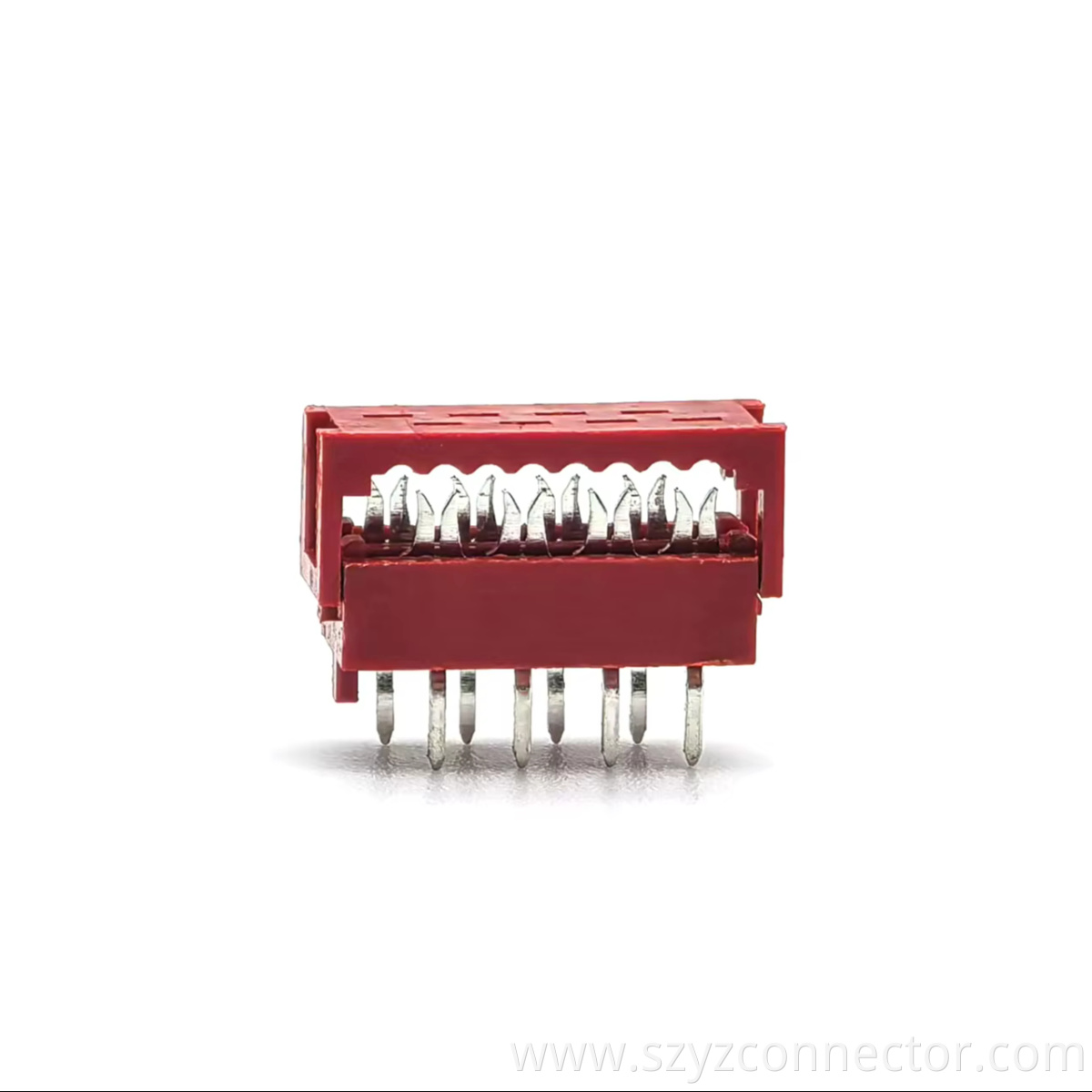

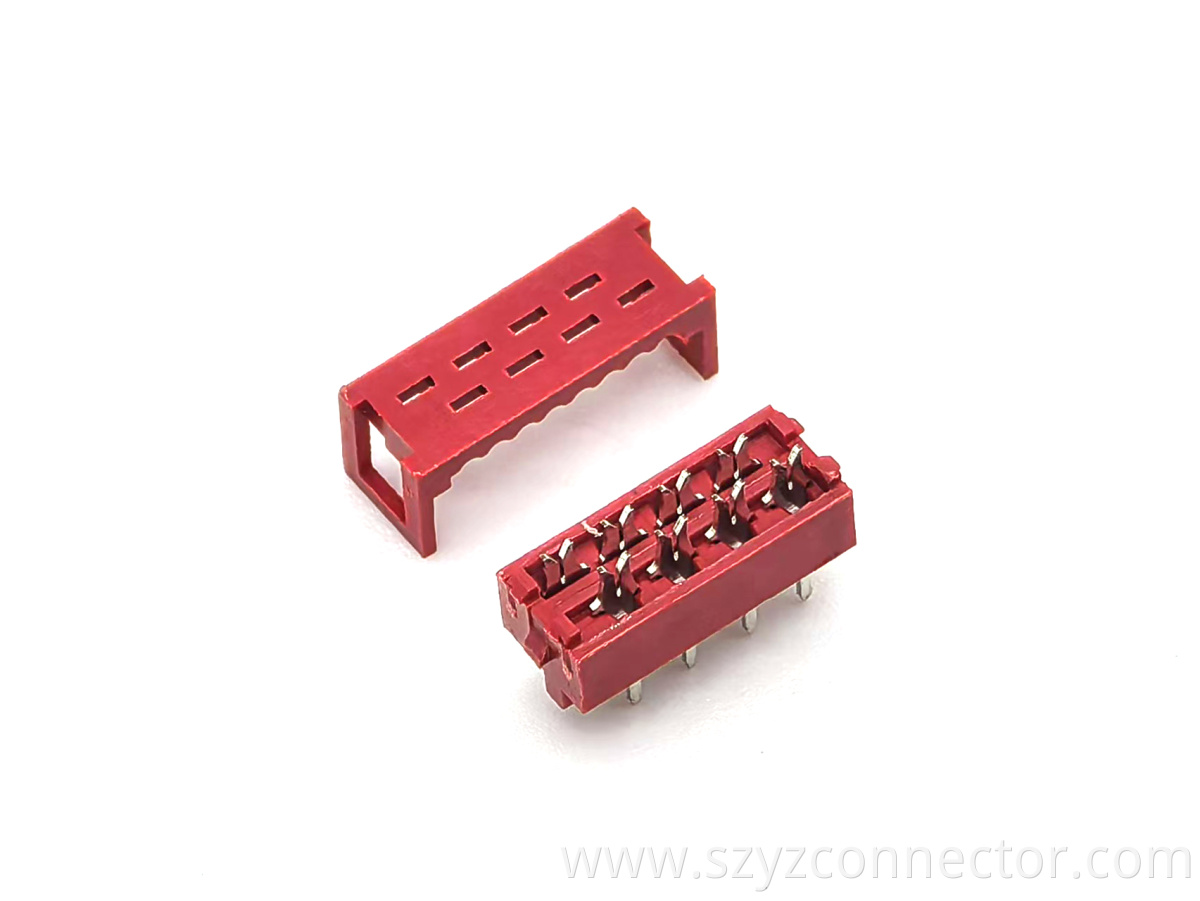

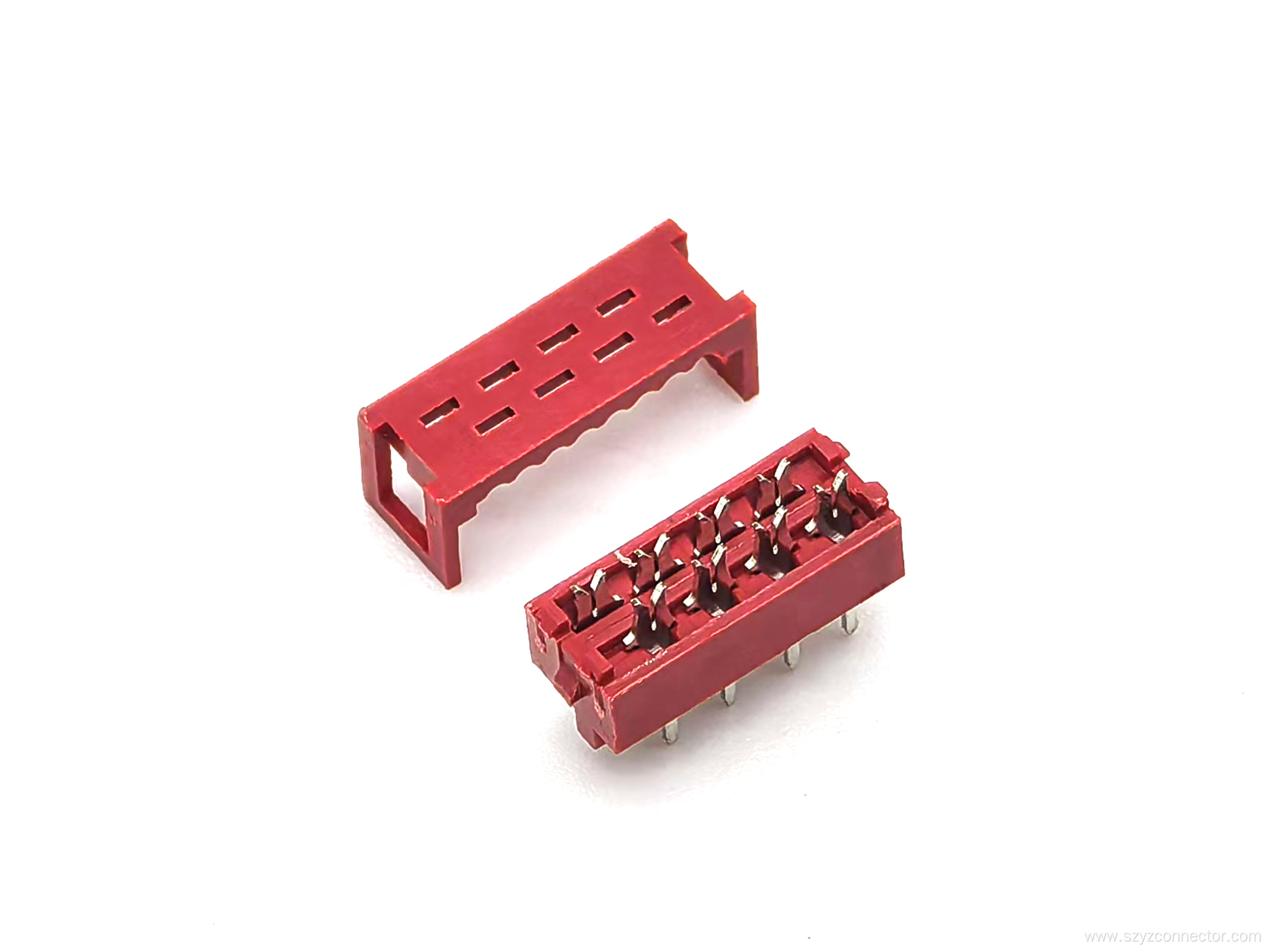

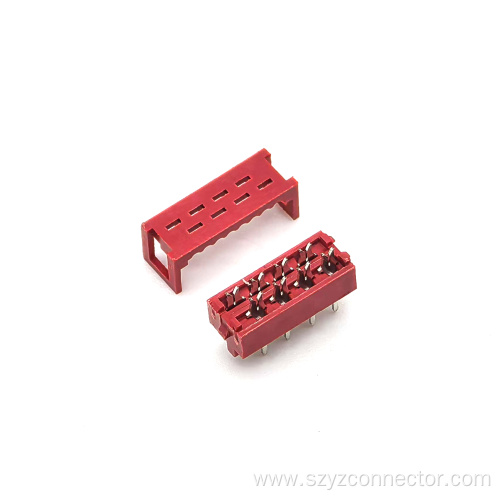

YZTECH Micro Match Connector Male IDC Type 8P is a high-performance interconnection solution engineered for precision and reliability in compact electronic applications. Featuring a dual-row 4P-per-row layout and DIN-standard configuration, this male IDC Connector ensures optimal space efficiency without compromising electrical integrity. Its rectangular design and IDC termination enable streamlined PCB integration, reducing assembly time while maintaining secure contact alignment. Constructed with a robust PBT insulator and bronze contacts plated with tin, the connector offers stable signal transmission and resistance to environmental stress.

Built to endure demanding operating conditions, this IDC Header Connector supports a rated current of 1A and voltage up to 500V, making it suitable for low-power control systems, communication devices, and embedded hardware. The housing material, PBT, provides high thermal stability, ensuring consistent performance across a temperature range of -40℃ to +105℃. The tin-plated contacts enhance conductivity and corrosion resistance, extending the connector’s service life in humid or volatile environments.

Compliant with UL certification and delivered in protective box packaging, this Insulation Displacement Connector meets international safety and quality standards. It is ideal for use in industrial automation, automotive electronics, and consumer equipment where miniaturization and durability are critical. YZTECH’s commitment to precision manufacturing ensures easy mating, stable engagement, and long-term reliability in global applications.
