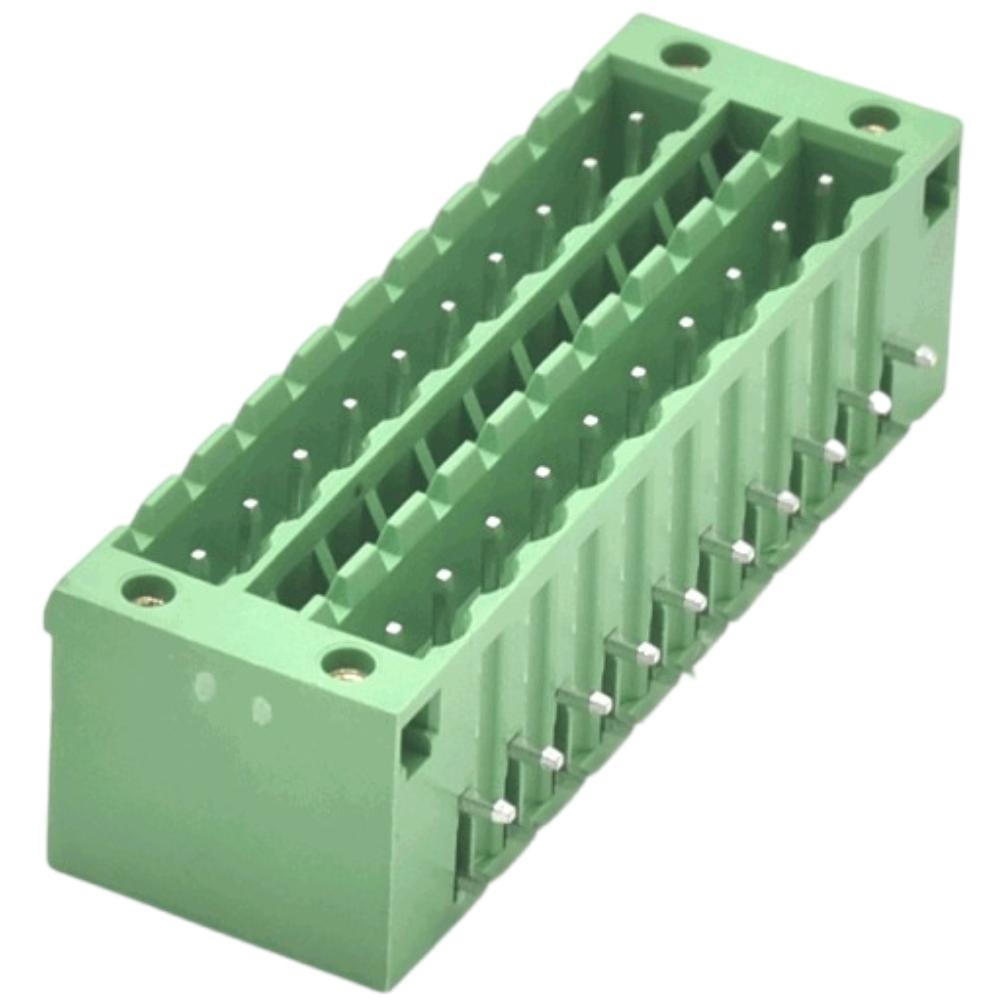

Effortless Integration: A Step-by-Step Guide to Mounting Spring Terminal Blocks on PCB

Tools & Materials Required:

•    Spring terminal block
•    Wire or cable
•    PCB
•    Wire strippers

Step-by-Step Process:

1.Prepare the Wire: Strip the wire insulation to expose enough conductor for insertion, ensuring no stray strands remain.

2.Open the Clamp: Using a small screwdriver or tool, press down on the designated actuator to open the spring clamp and reveal the insertion port.

3.Insert the Wire: Push the bare wire end fully into the open port until it reaches the stop inside the spring terminal block.

4.Release the Clamp: Remove the tool; the spring mechanism will automatically clamp down on the wire, creating a secure electrical and mechanical connection.

5.Repeat for Multiple Wires: For terminal blocks with multiple positions, repeat the process for each wire.

6.Test the Connection: Verify electrical continuity and check for short circuits using a multimeter before powering the circuit.

7.Secure the Assembly: Once verified, ensure the overall assembly is properly mounted and secured.

While PCB spring terminal blocks are designed for convenience, always follow the manufacturer's specific instructions for your electronic Connector model and adhere to all relevant PCB design and safety standards.
