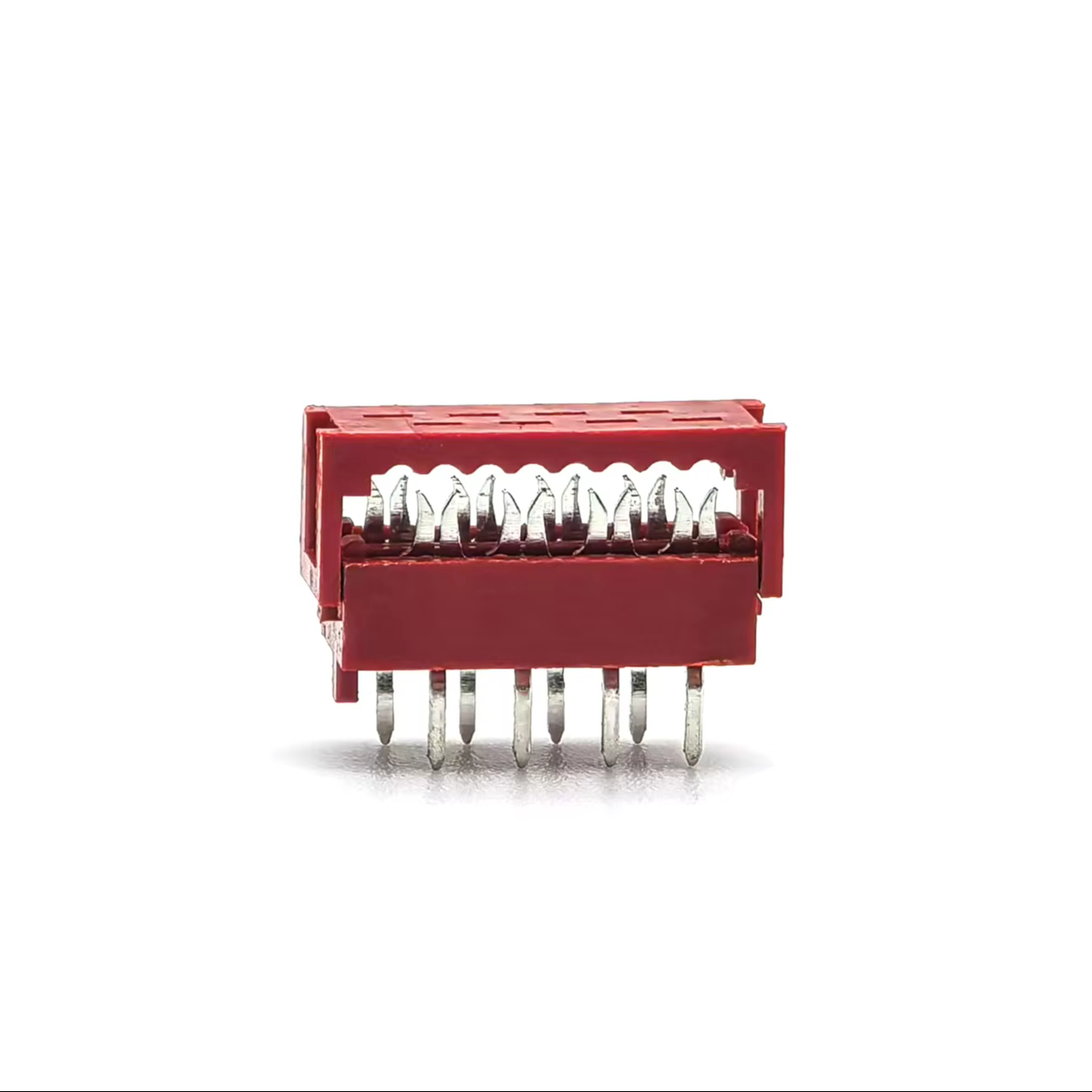

Red Alert Reliability: Why IDC Connectors Became Industrial Automation's Trusted Sentinel

1. Engineering Value of Red Warning Function

The color red is designated as a warning color in the IEC 60204-1 safety standard. Red IDC connectors are intentionally designed according to this specification. Studies in visual ergonomics show red has the strongest penetration in the color spectrum, being recognized by the human brain 0.3 seconds faster than orange in emergencies. This makes the red IDC Connector ideal for identifying critical circuits like 380V AC servo drives or safety emergency stops, where it can reduce misoperation probability by over 50%. The housing, often made from PBT with 30% glass fiber, maintains color stability and provides excellent anti-tracking performance (CTI 600V), ensuring clear identification even in oily, humid environments. Schneider Electric research indicates that color-coded electronic component systems can increase maintenance efficiency by 40%.

2. Topological Management via Color-Coding

Modern smart manufacturing equipment may contain hundreds of connection points. In PROFINET network architectures, red IDC connectors are often designated specifically for safety loops, forming a three-dimensional identification system alongside blue signal lines and green power lines. This approach, typically seen in control cabinets using Siemens S7-1500 PLCs, can reduce wiring errors in safety module (F-CPU) channels by 72% compared to random color systems. In robotic control systems for automotive welding lines, red IDC connectors are mandated for safety light curtain circuits, enabling technicians to quickly locate inspection points during annual overhaul - reducing circuit check time from 2 hours to just 45 minutes. Toyota's lean production research shows color-coding can cut equipment diagnosis time by 58%.

3. Durability Verified Through Extreme Testing

The material formulation of red IDC connectors is specially optimized for superior weatherability. After 500 hours in 85°C/85%RH damp heat testing, the ΔE color difference value remains below 1.5, meeting IEC 60068-2-30 standards. This ensures long-term identification effectiveness even in high-temperature environments like foundries. Vibration test data shows that red IDC connectors with dual-lock structures can withstand 15Grms acceleration under random vibration conditions (10-2000Hz), making them suitable for CNC machines and Other high-vibration applications. Available in standard pitches like the 2.54mm IDC connector and compact 1.27mm IDC connector, these robust electronic connector solutions have helped reduce annual failure rates from 3.2% to 0.7% in demanding applications like Mitsubishi Electric's MA700 machining centers.

In the Industry 4.0 era, red IDC connectors have evolved beyond simple electrical connection functions to become integral components of smart factory safety management systems, redefining the value dimensions of industrial connectivity through color warning systems and environmental resilience.
