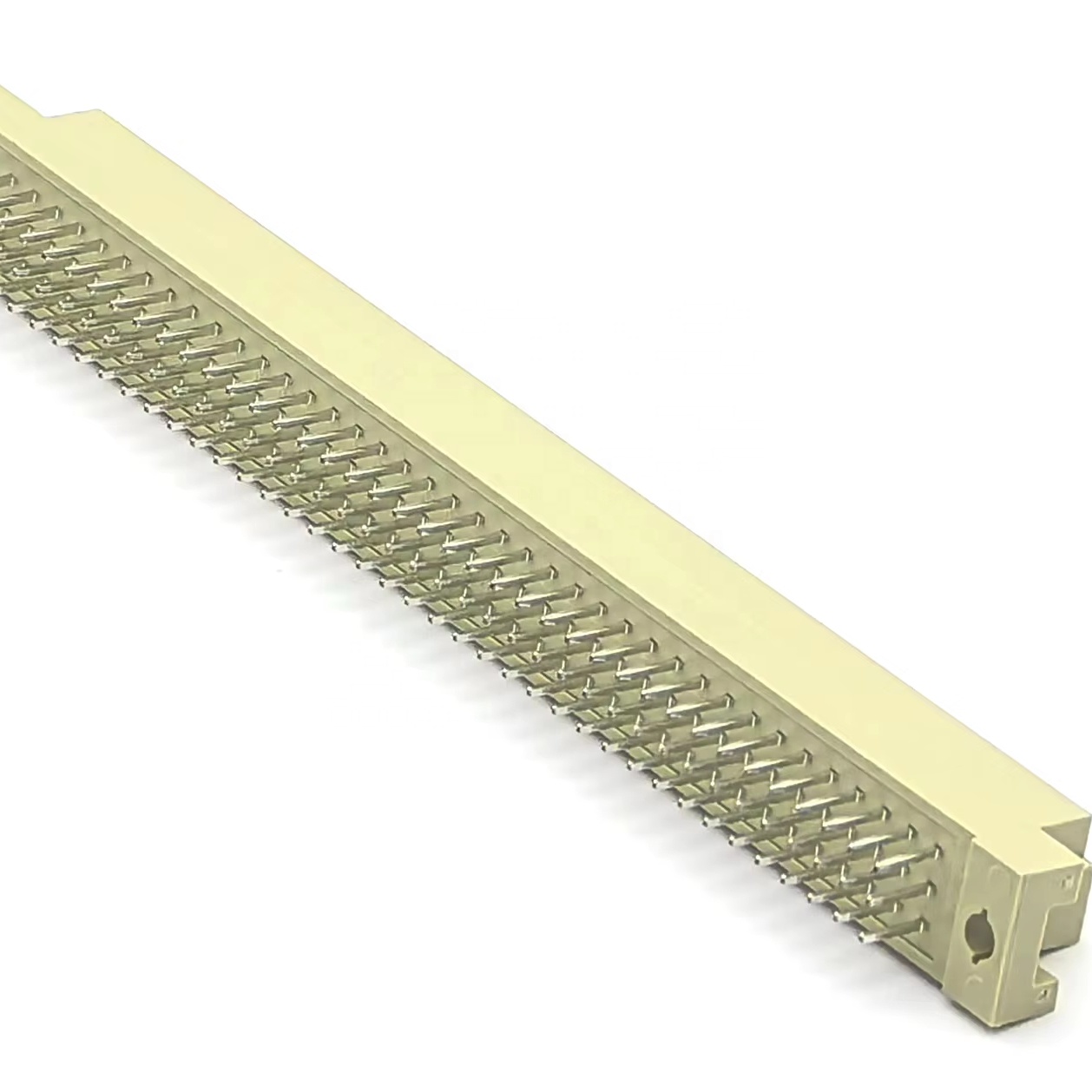

Securing Methods for DIN 41612 Female/Male Connectors

There are two primary methods for mounting DIN 41612 Connectors in electronic systems, each with distinct advantages and trade-offs.

1. Backplane Mounting

This approach involves mounting multiple din 41612 female connectors or DIN 41612 male connectors onto a single PCB, creating a structured backplane that is then secured to the chassis. The key advantage is excellent stability and simplified interconnections, as all routing is handled internally on the PCB. Installation of the pre-assembled unit is also straightforward. However, the main drawback is maintenance. If a single DIN male/female 41612 Connector fails, the entire backplane must be removed. Repair typically requires returning the unit to a specialized PCB manufacturer, making the process time-consuming and costly.

2. Individual Mounting with a Fixed Rail

In this method, individual connectors are installed onto a fixed rail, which is then attached to the chassis. Alternatively, the rail is mounted first, and connectors are installed one-by-one from inside the chassis. While this method allows for the replacement of a single faulty connector without removing the entire backplane, it presents its own challenges. Initial installation is less convenient, as precisely aligning the DIN 41612 connectors laterally on the rail can be difficult. Furthermore, replacing a connector still requires disassembling front panels and accessing the unit's interior, which remains a cumbersome process.

In summary, the choice between a consolidated backplane and individual rail mounting for DIN 41612 connectors depends on the specific application's need for stability versus serviceability. The backplane suits environments with minimal expected connector replacement, while the rail method offers more flexibility for maintenance, albeit with a more complex installation.
