Terminal Blocks: What Are They and Which Types Do You Need to Know?

A terminal block is a modular, insulated device that secures two or more wires together, providing a reliable point for electrical or signal connection. They are fundamental components in a vast range of applications, from electronics and instrumentation to industrial automation systems. Here is a detailed look at the common types:

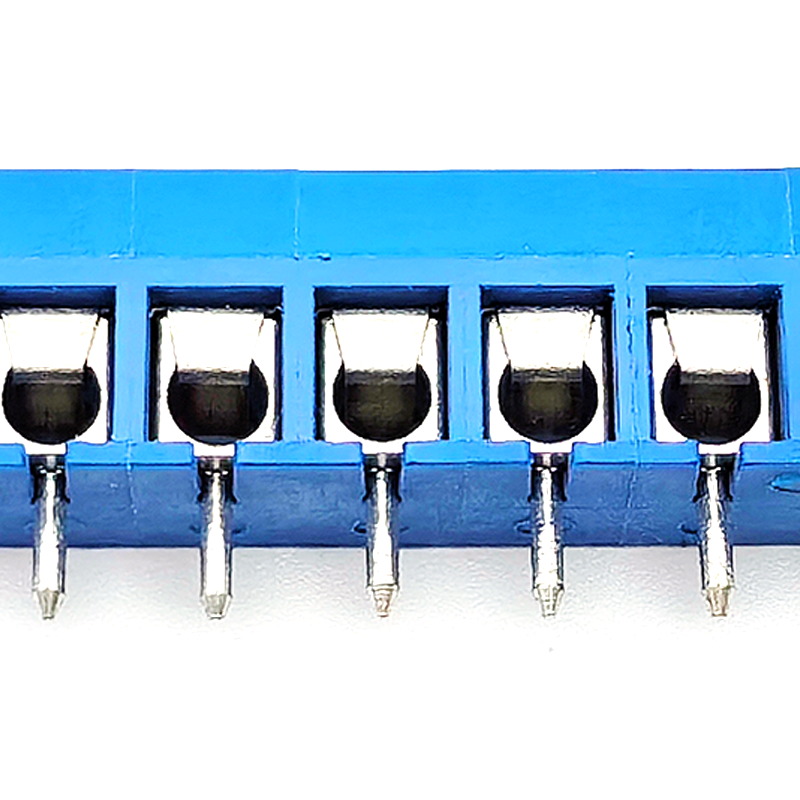

1. Screw Terminal Blocks

The screw terminal block is the most classic type. It uses a screw mechanism to clamp a wire inserted into a terminal. By tightening the screw, the wire is secured against a metal strip, creating a robust connection. This type is renowned for its high current-carrying capacity and strong grip, making it suitable for a wide array of electrical equipment.

2. Spring Terminal Blocks

Also known as a pluggable terminal block, this type utilizes a spring-driven clamp. The wire is simply inserted with a tool, and the spring's force holds it securely in place. Its key advantages are quick, tool-actuated connection and disconnection without loosening screws, making it ideal for applications requiring frequent maintenance or changes. A common subtype is the PCB spring terminal block for direct board mounting.

3. Barrier Terminal Blocks

Often referred to as a barrier terminal block, this style features a strip with multiple connection points separated by insulating barriers. Wires are typically secured under screw terminals on a metal bar mounted to an insulating base. It is extensively used in control panels, switchgear, and power distribution units where multiple wires need organized, secure, and safe termination.

4. Feed Through Terminal Blocks

The feed through terminal block is designed for internal equipment mounting, offering a compact footprint to save space. It allows a wire to pass through the block to create a connection point. Common variations include PCB-mounted types, DIN rail-mounted versions, and plug-in styles, providing versatile solutions for different spatial and mounting requirements within devices.
