Tailored to Perfection: Your Guide to Custom Pin Header Design and Specification

Custom pin header connector solutions address unique project demands when standard Pin Header options fall short. This systematic process begins with a clear definition of requirements.

Key Specification Areas:

Electrical: Current/voltage ratings and signal integrity needs.

Mechanical: Pitch (e.g., 2.54mm, 2.0mm), pin count, height, and mounting style (SMT/DIP).

Material: Pin alloy (brass, phosphor bronze), plating (gold/tin), and insulator (PA6T, LCP).

Reliability: Operating temperature range and required mating cycles.

Development Workflow:

Partner with an experienced electronic connector manufacturer.

Provide a detailed specification document.

Collaborate on 3D design and modeling.

Validate form, fit, and function with prototypes.

Proceed to tooling and mass production with stringent quality control.

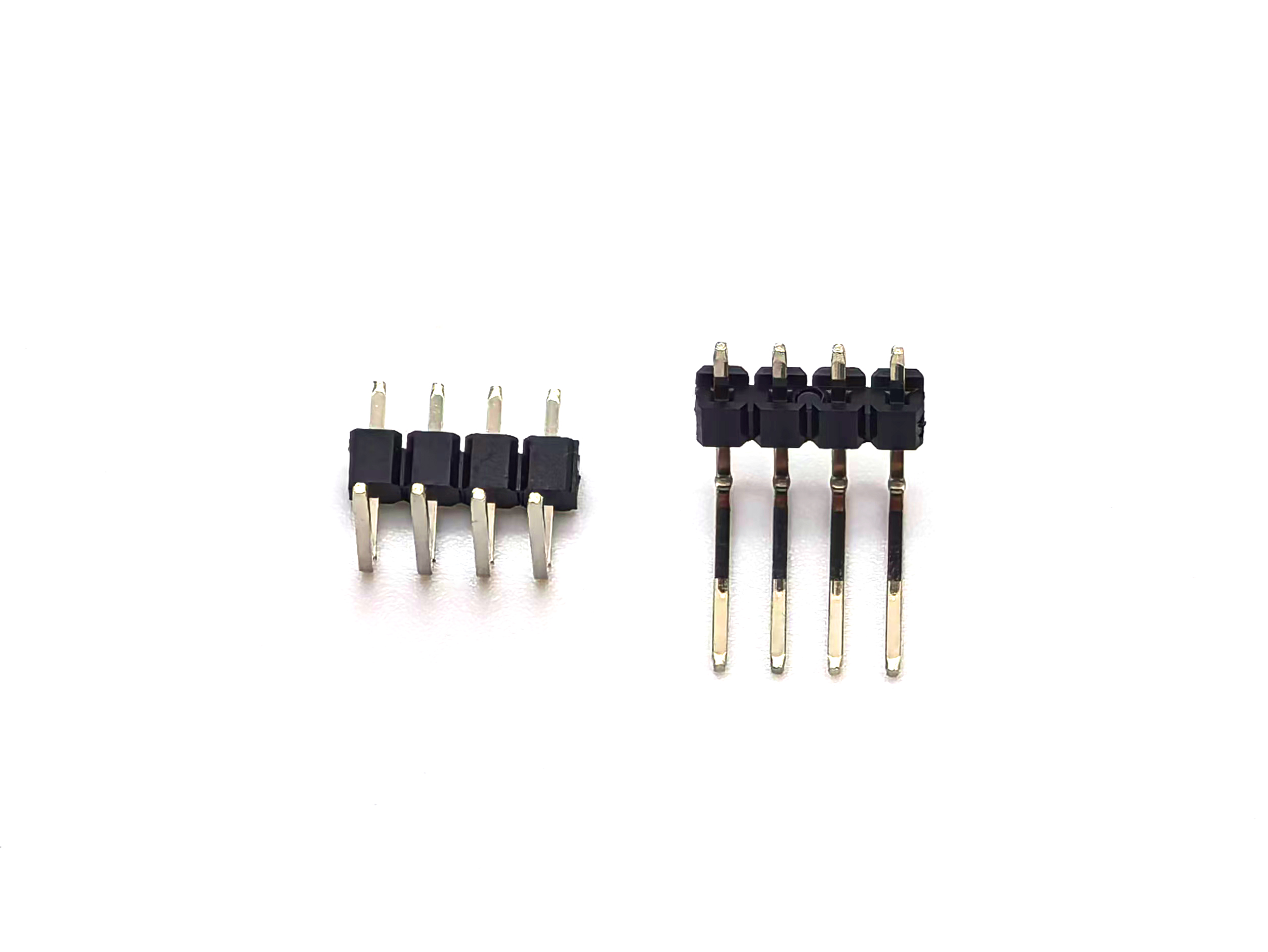

2.54mm Pitch Pin Header Connector Single Row Right Angle SQ0.64mm H2.5mm 1*4P

Advanced customization can include special pin arrangements, integrated components, or color coding. While involving mold costs and longer lead times (typically 4-12 weeks), a tailored pin header connector delivers optimal performance, achieving a perfect balance of specifications for your electronic system, making it a strategic electronic components investment.
