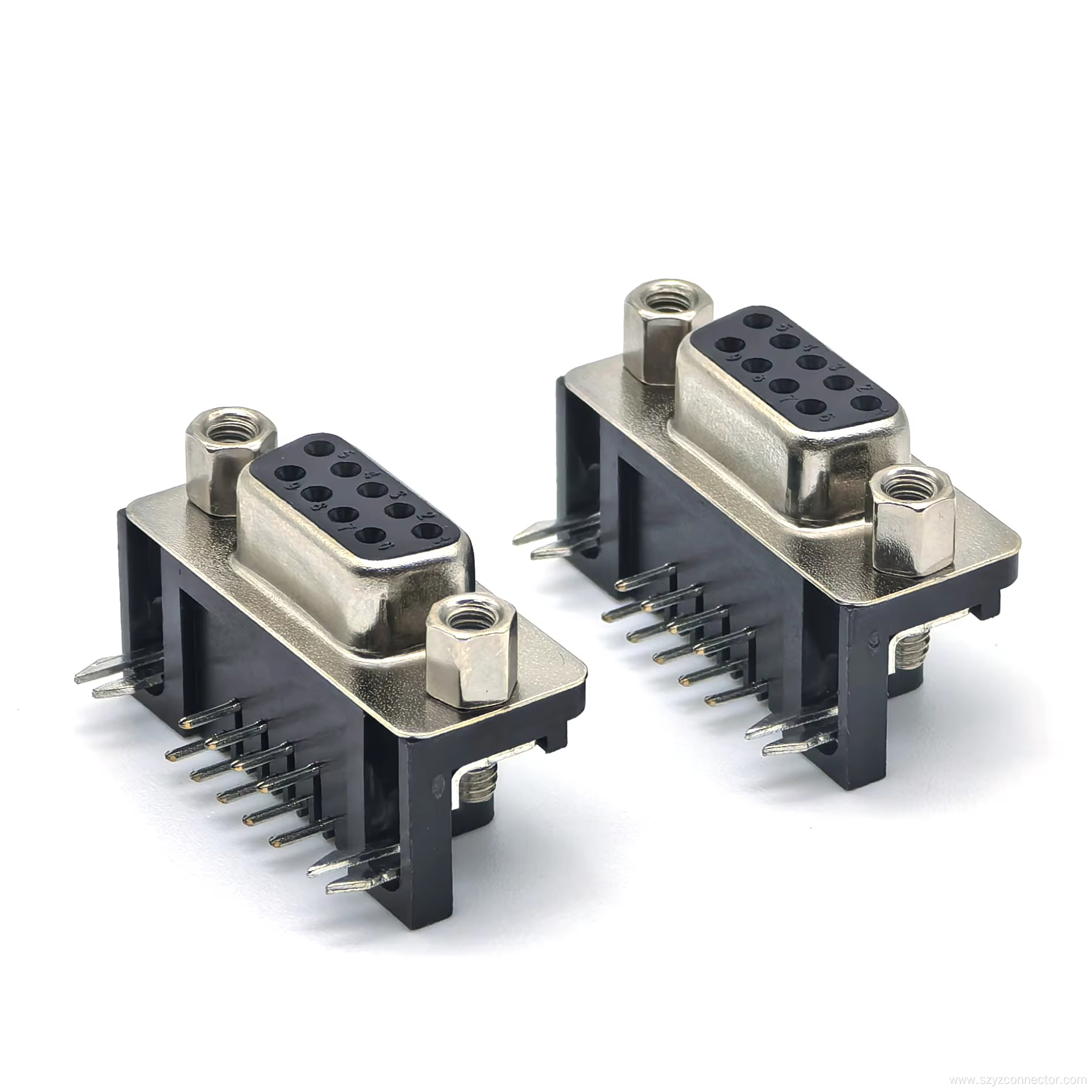

D-SUB 9P Female Bent PCB Connector

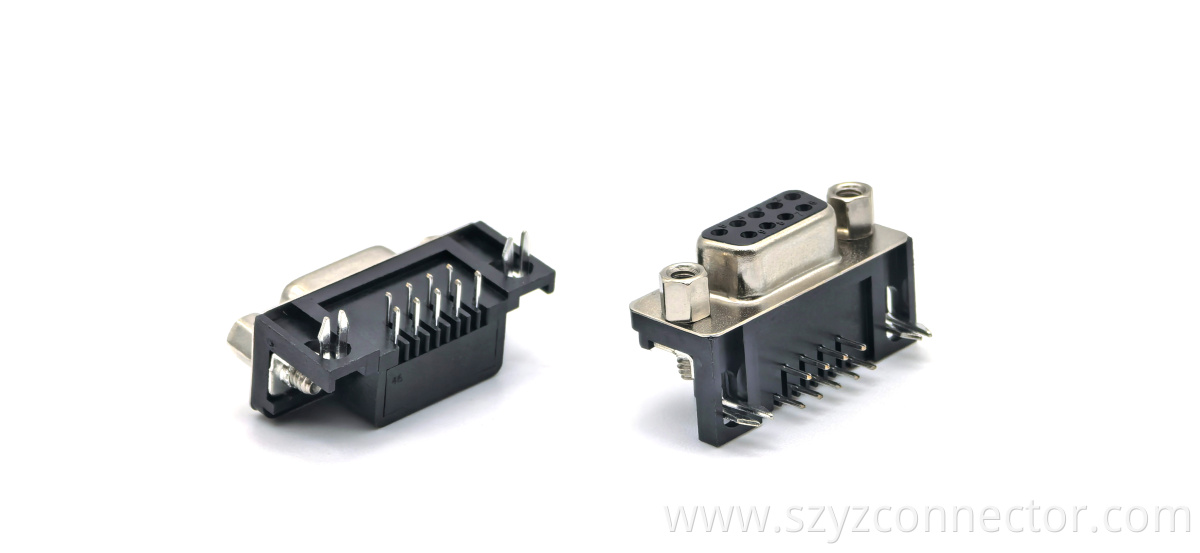

Engineered for reliable board-to-cable connections,the YZTECH 9-position D-Sub female Connector features a space-saving right-angle configuration,specifically designed for direct PCB installation.This dual-row,rectangular-shaped electronic component complies with DIN industry standards,ensuring broad compatibility with standard D-Sub interfaces.Its female gender and 9-pin layout make it an ideal choice for industrial control units,data communication equipment,and test instrumentation where secure,polarized mating is essential.The bending insertion method facilitates low-profile assembly,optimizing vertical space on crowded printed circuit boards while maintaining stable mechanical retention.You could find it in the Sold Type D-Sub Connector of the D-Sub Connector under the catalog.

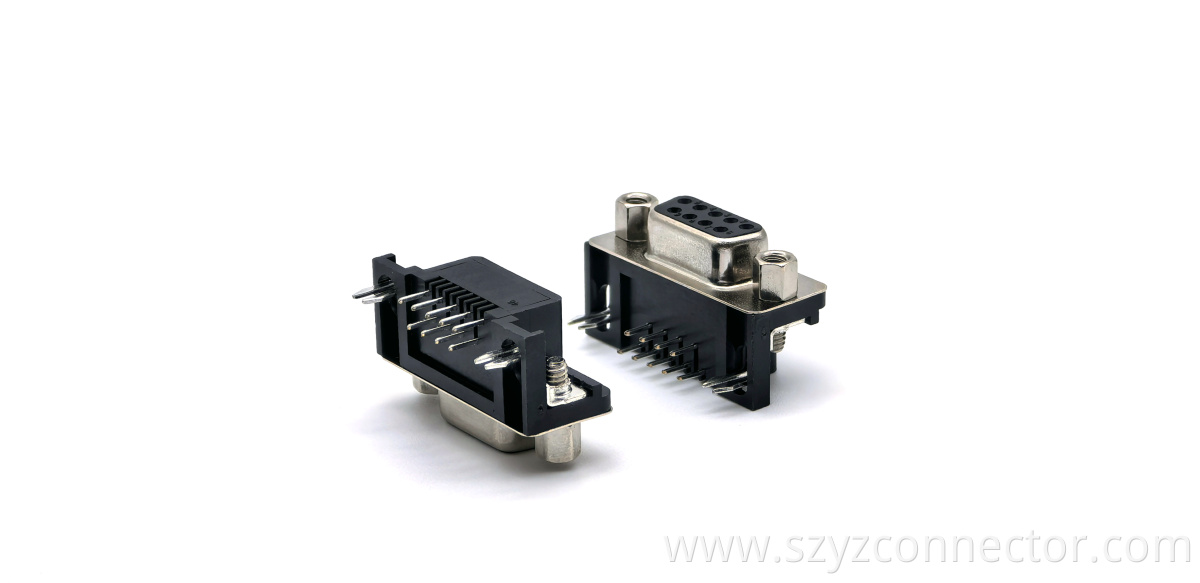

Constructed with a high-strength copper alloy contact base and finished with half-gold plating,this electronic connector delivers excellent conductivity and corrosion resistance for long-term signal integrity.The black insulator housing,made from durable thermoplastic,withstands operating temperatures from -55°C to +105°C and tolerates peak soldering up to 350°C for 5 seconds maximum.Rated at 3A current and 600V voltage,it supports moderate-power and high-voltage signal transmission in demanding environments.Each contact row is precisely aligned to ensure consistent mating force,while the half-gold plating strikes an optimal balance between performance and cost-effectiveness.Ideal for PCB-based applications in automation,telecom,medical devices,and security systems,this YZTECH Solder Type D-Sub Connector comes in tray&box packaging to prevent damage during shipping and handling.
