Name: 2.0mm Pitch Automotive WTB(Wire To Board)90° SMT Socket Connector Male +Plug Strip SMT 2*20P
Uploaded: 2025-09-22T08:59:39+08:00
Description: YZTECH’s 2.0mm Pitch Automotive Wire-to-Board 90° SMT Socket Connector redefines rugged connectivity for demanding

Get Latest Price

Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

Black 40P

Contact Now

Product Description

Product Attributes

Model No.: 2.0mm Automotive 90° SMT Socket Connector+Plug Strip -2x20P

Brand: YZTECH

Species: Contact Connector

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

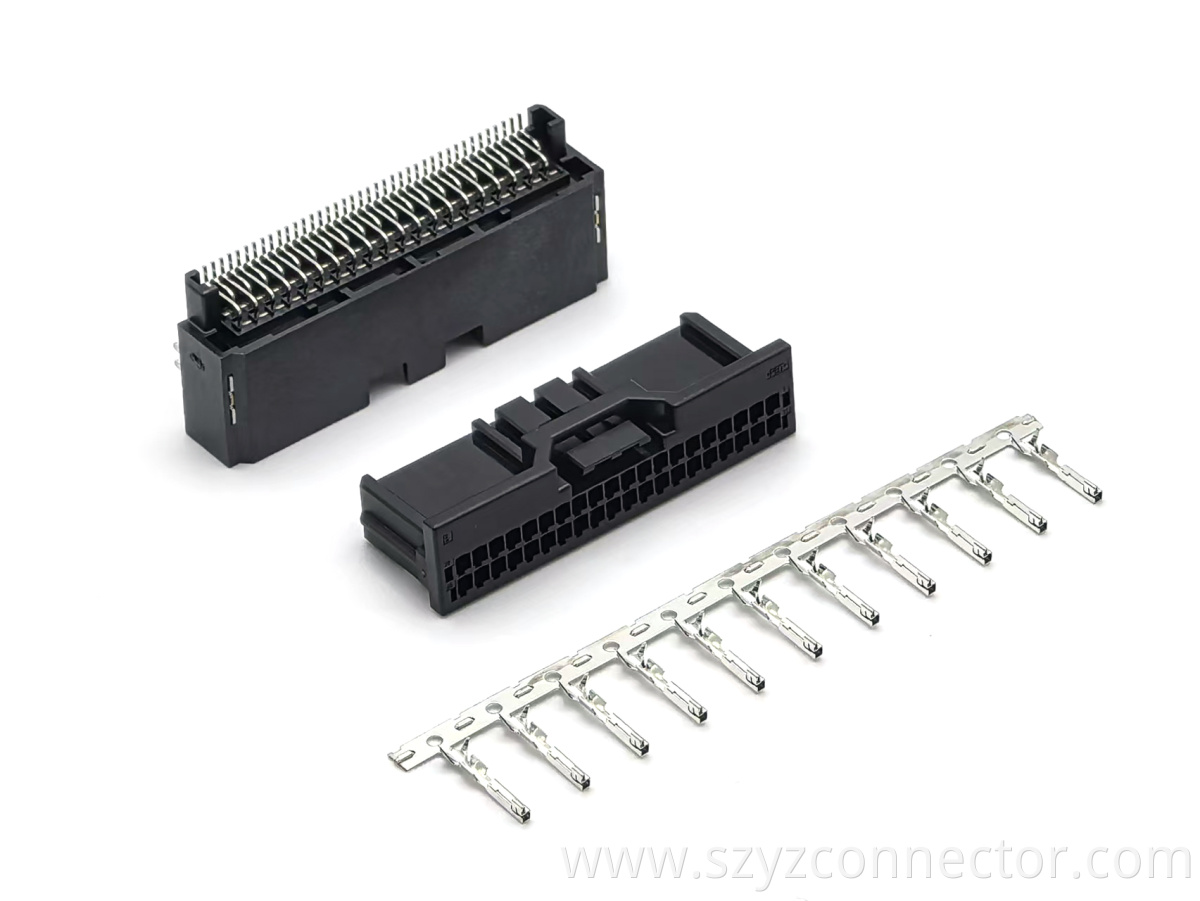

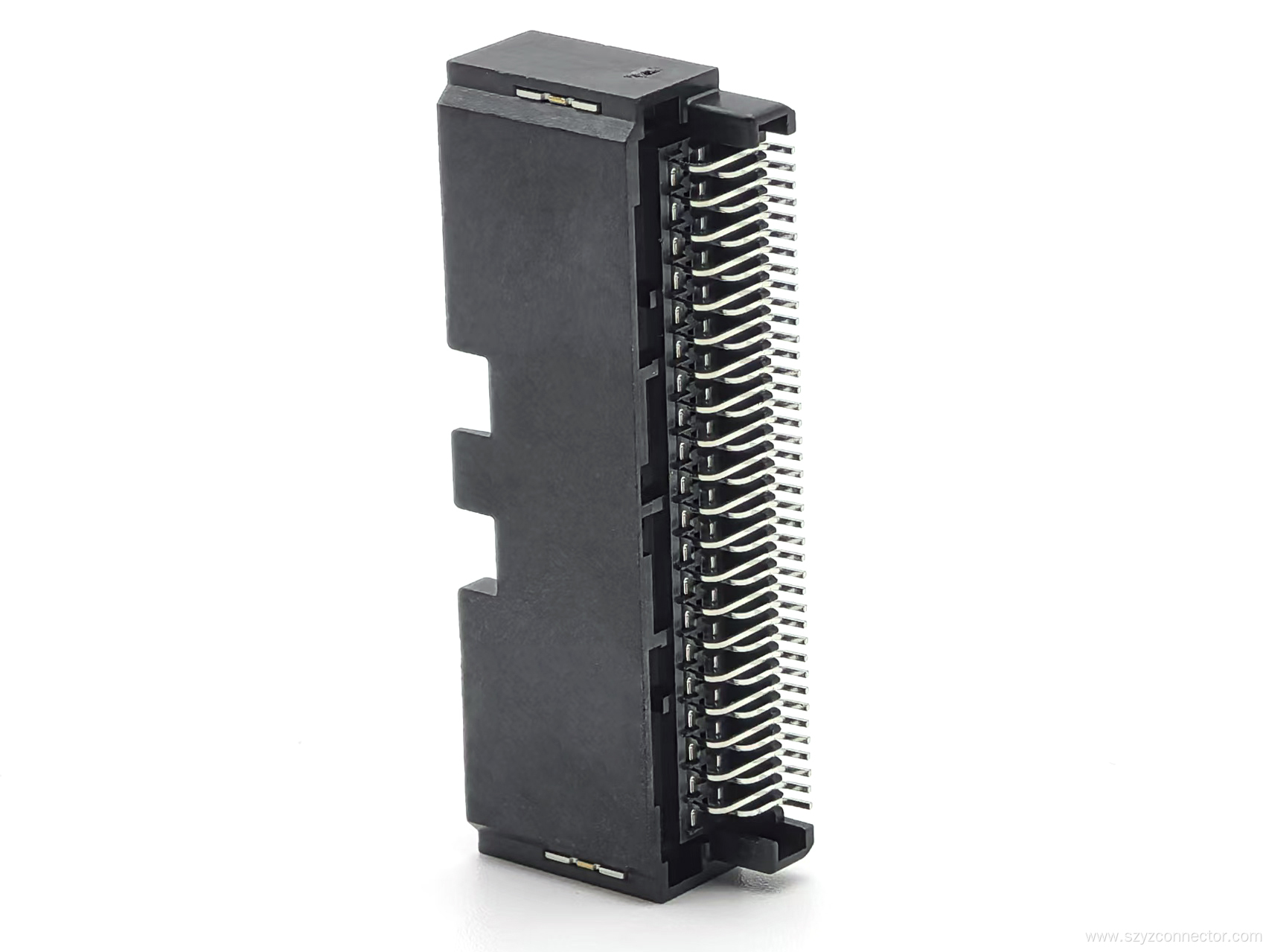

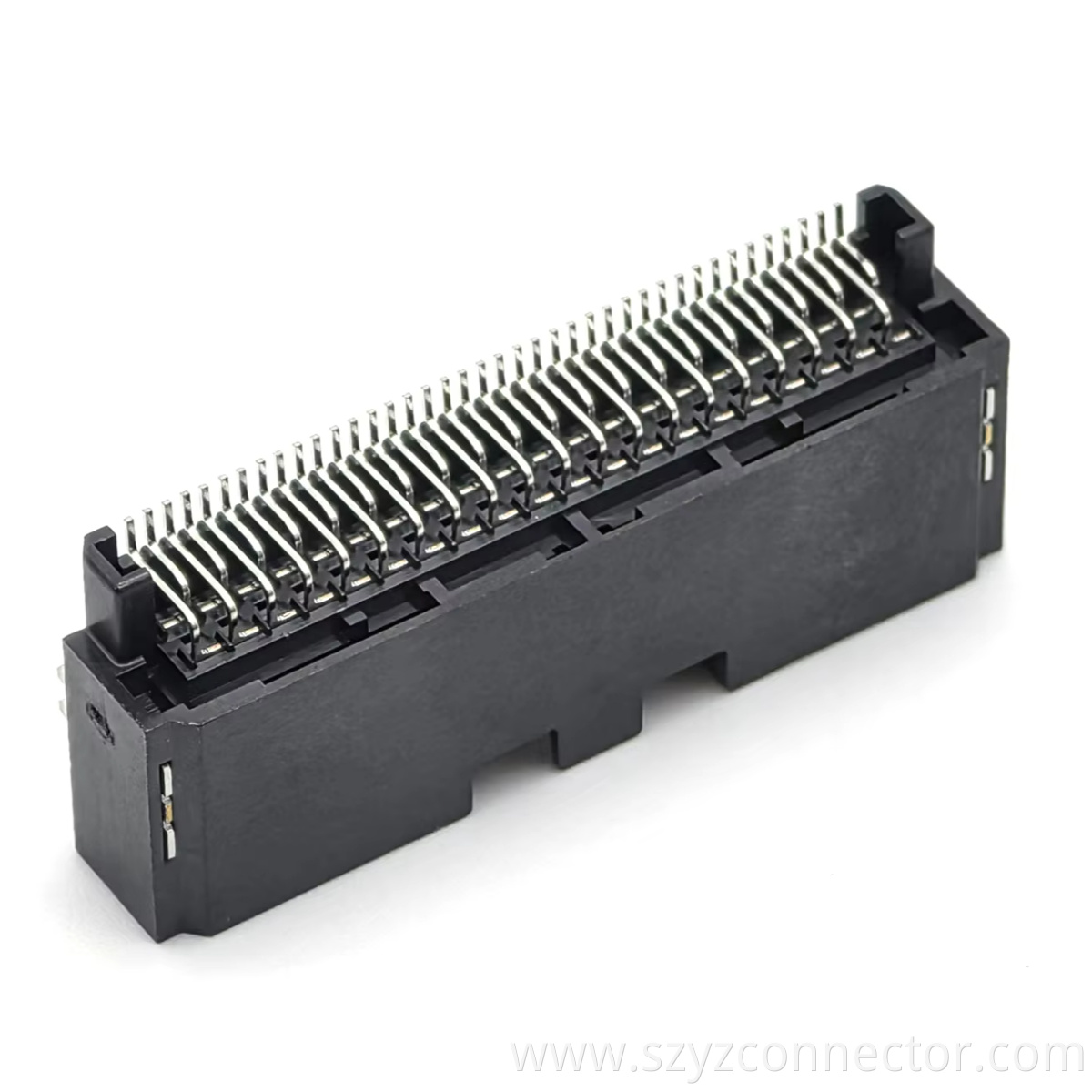

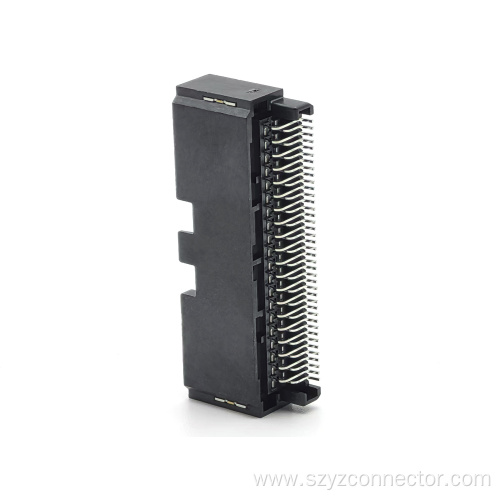

2.0mm Pitch Automotive WTB(Wire To Board)90° SMT Socket Connector Male +Plug Strip SMT 2*20P



Product Description

YZTECH’s 2.0mm Pitch Automotive Wire-to-Board 90° SMT Socket Connector redefines rugged connectivity for demanding applications. Featuring a male-gender configuration with dual-row 40P per row, this header connector supports 3A current at 1000V AC, ideal for high-power automotive systems like battery management units and motor controllers. The 90° SMT design enables automated surface-mount assembly, reducing labor costs while ensuring precise alignment on PCBs.

The Wire-to-Board Header connector’s plug strip configuration delivers 40 contact points for complex signal/power integration in compact spaces.C7025 alloy contacts offer 20% higher tensile strength than standard phosphor bronze, reducing contact fatigue in vibration-prone automotive environments.The 90° SMT socket design features a retention mechanism that maintains 5N insertion force across -40°C to +125°C, preventing accidental disconnection.Nylon housing provides 10kV ESD protection and 1GΩ insulation resistance, crucial for high-voltage automotive systems.Compliance with AEC-Q200 Rev. D standards ensures reliability in under-hood applications,while RoHS certification guarantees environmental compliance.

This YZTECH Vehicle Connector excels in automotive electronics, industrial automation, and renewable energy systems.The 90° SMT design enables vertical PCB mounting, saving 30% board space compared to traditional connectors.In electric vehicles, it supports fast-charging architectures with 1000V DC bus compatibility. The reel packaging supports JIT manufacturing workflows, reducing inventory costs by 40% versus box packaging.
