XHB2.5mm WAFER HAC Straight

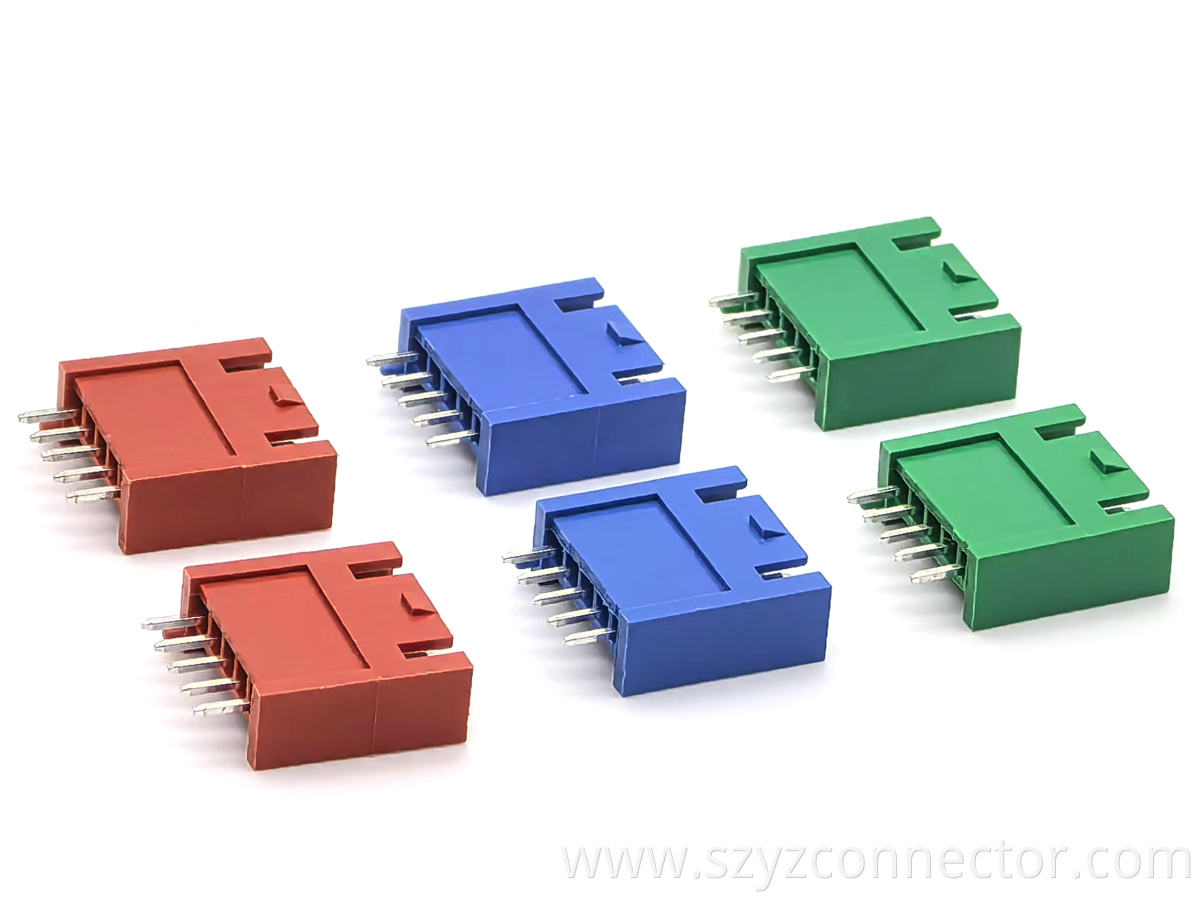

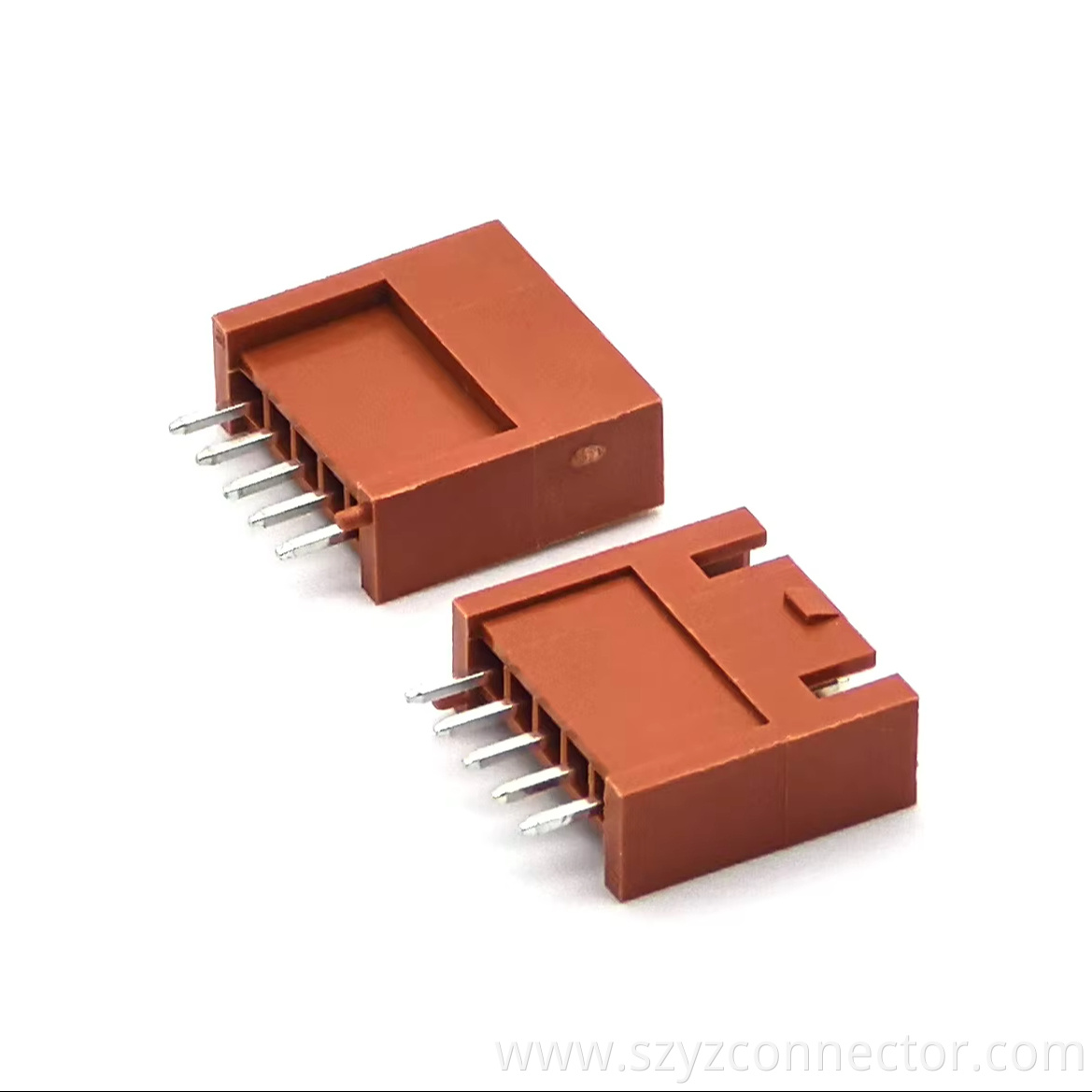

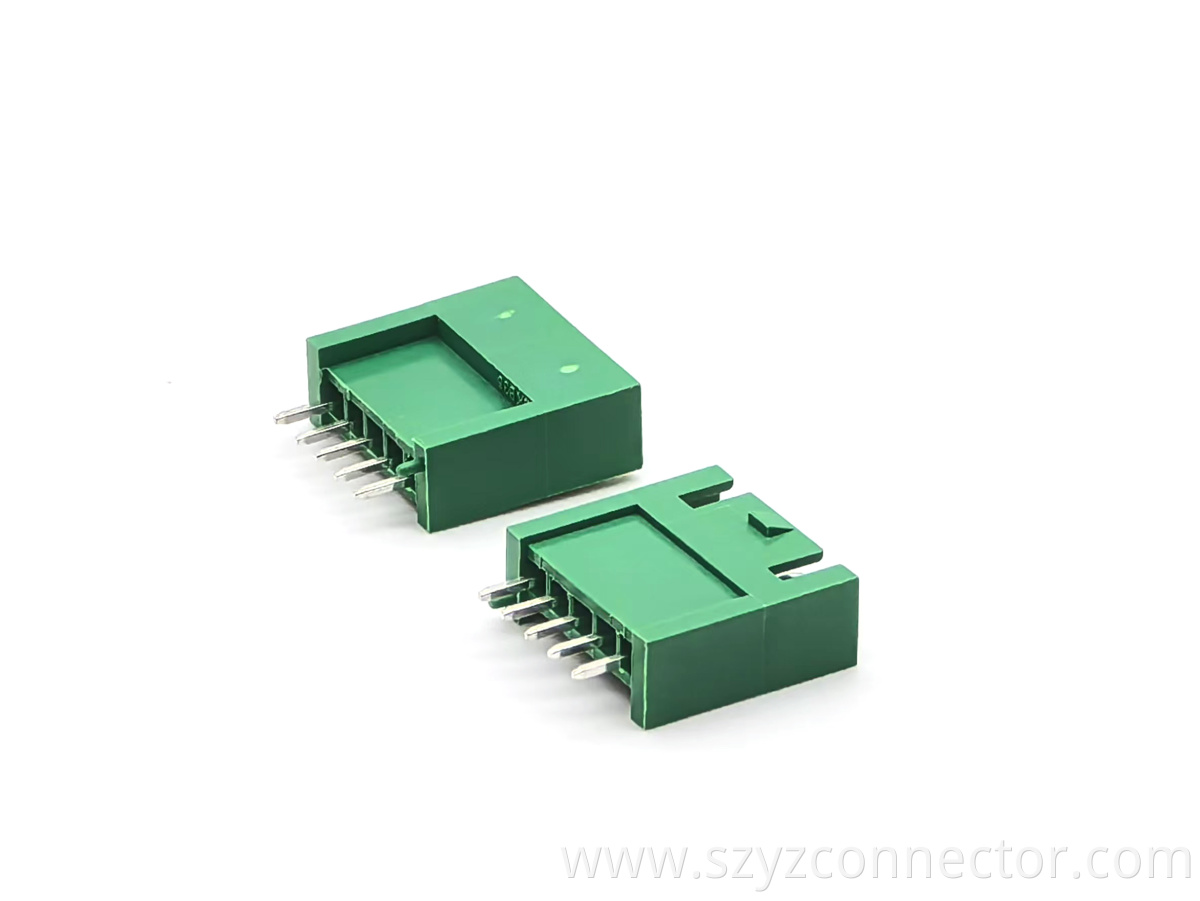

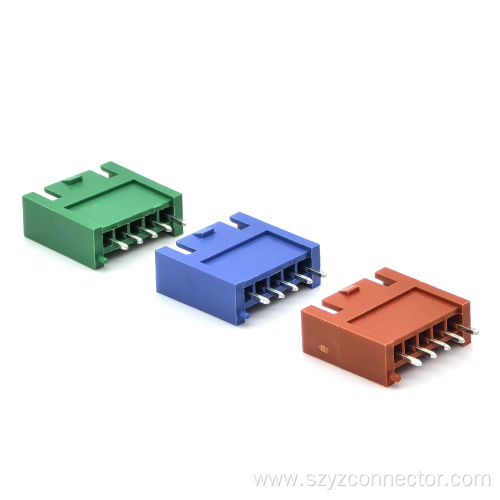

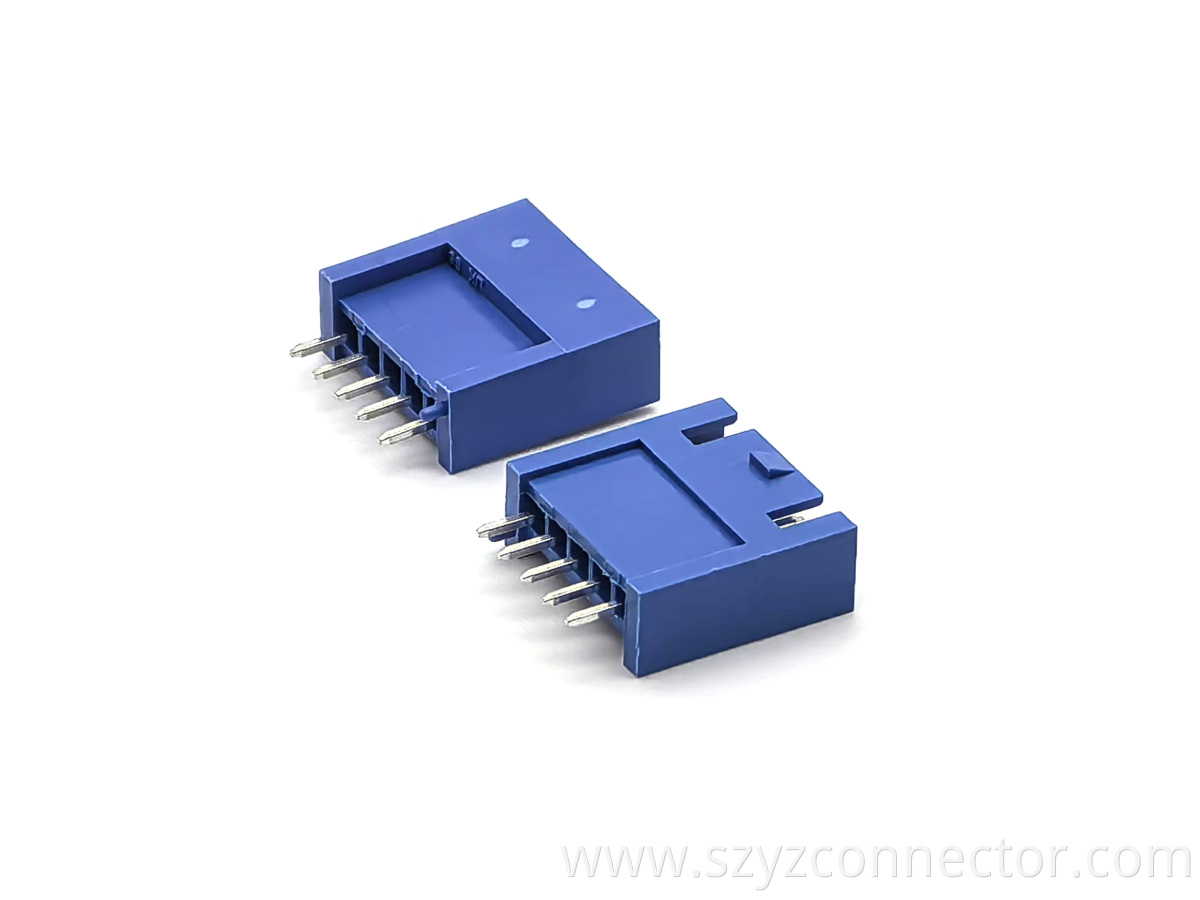

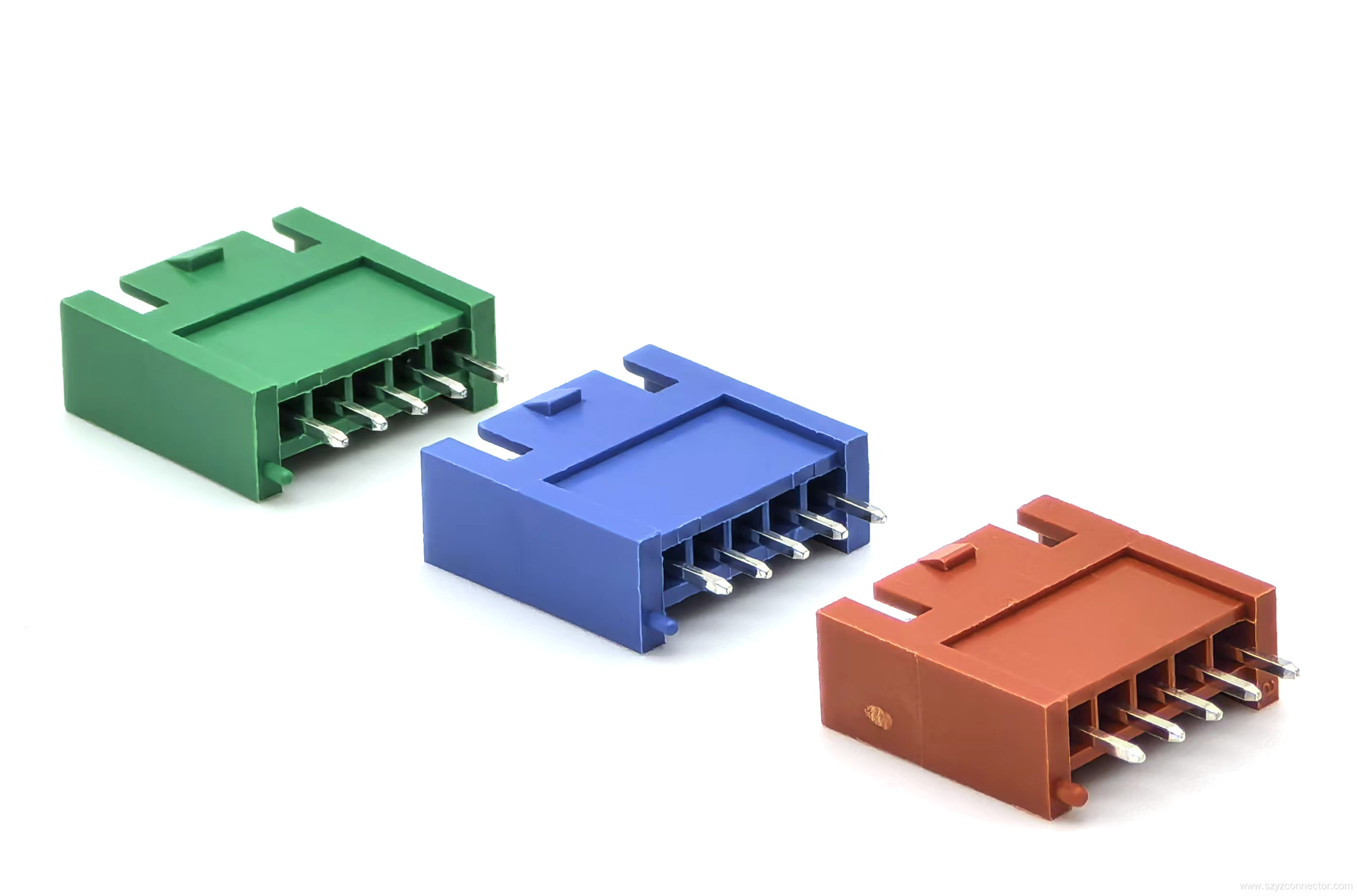

The YZTECH XHB2.5mm Wafer HAC Straight pin header connector series delivers high-density interconnection for next-generation PCB designs,belonging to Wafer Housing Terminal series. Featuring vibrant green/blue/red polyamide housings and tin-plated brass contacts, the 5-pin male header connector combine visual traceability with industrial-grade reliability. Engineered for vertical integration in space-critical applications, their 2.5mm pitch maintains signal integrity while enabling rapid assembly. With an operational bandwidth of -25°C to +85°C and rated for 3A/250V loads, these rectangular DIN-compliant components excel in demanding environments.



Military-grade PA66 thermoplastic housing provides superior chemical/impact resistance – 43% greater than standard nylon polymers. Precision-machined brass contacts with micro-groove tin plating ensure <5mΩ contact resistance after 10,000 mating cycles. The corrosion-proof barrier withstands 96-hour salt spray tests while resisting thermal deformation during reflow soldering (peak 260°C). RoHS3-compliant construction eliminates hazardous substances, with anti-wicking terminals preventing flux migration in wave soldering processes. Tape-and-reel packaging ensures component integrity for automated SMT production lines.



The wafer Pin Header serves as critical interfaces in biomedical diagnostics、green energy systems、building automation、Next-Gen Transportation.Their combination of moisture resistance (96% RH), vibration tolerance (5-500Hz), and flammability rating (UL94V-0) makes them indispensable for smart city infrastructure, telecom hardware, and commercial appliance manufacturing requiring maintenance-free connectivity.
