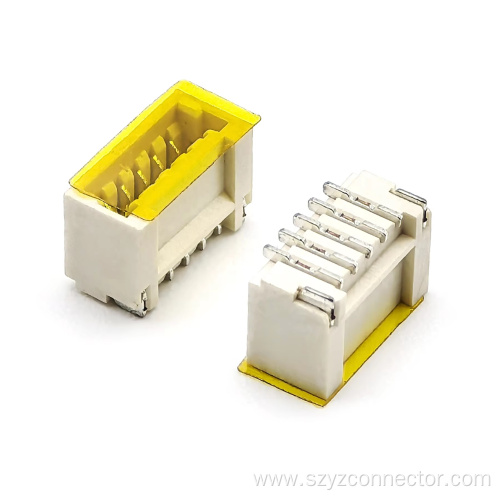

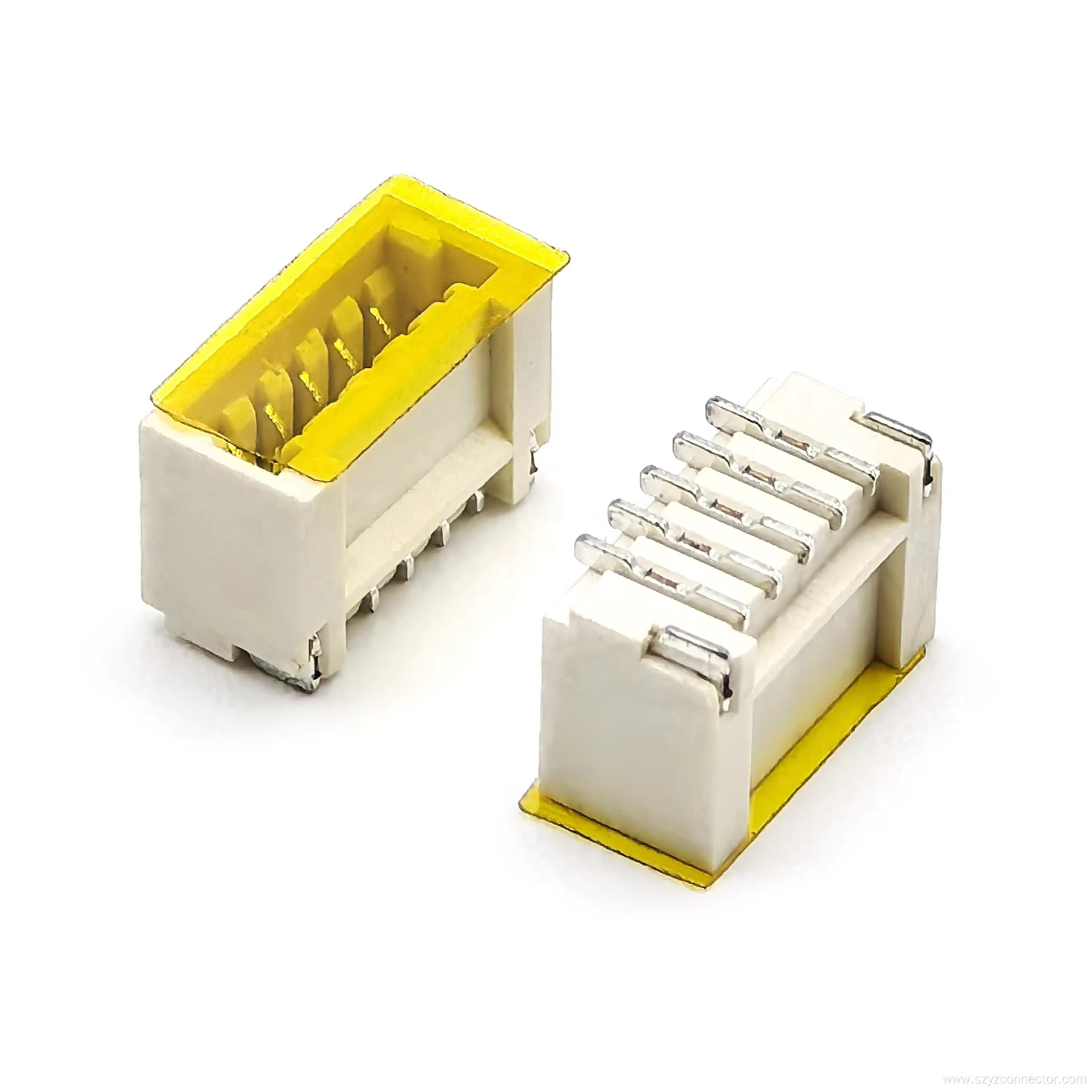

1.0mm Wafer Vertical SMT Pin header 5P

Name: 1.0mm Pitch Wafer Vertical SMT Pin header Connector 5P
Uploaded: 2025-10-24T07:11:13+08:00
Description: In an era where every millimeter matters,YZTECH's 1.0mm pitch wafer vertical SMT pin header emerges as a game-changing

Get Latest Price

Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express,Others

Option:

White 1-core 5P

Contact Now

Product Description

Product Attributes

Model No.: B10006-05AB

Brand: YZTECH

Species: Headers And Pcb Receptacles

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

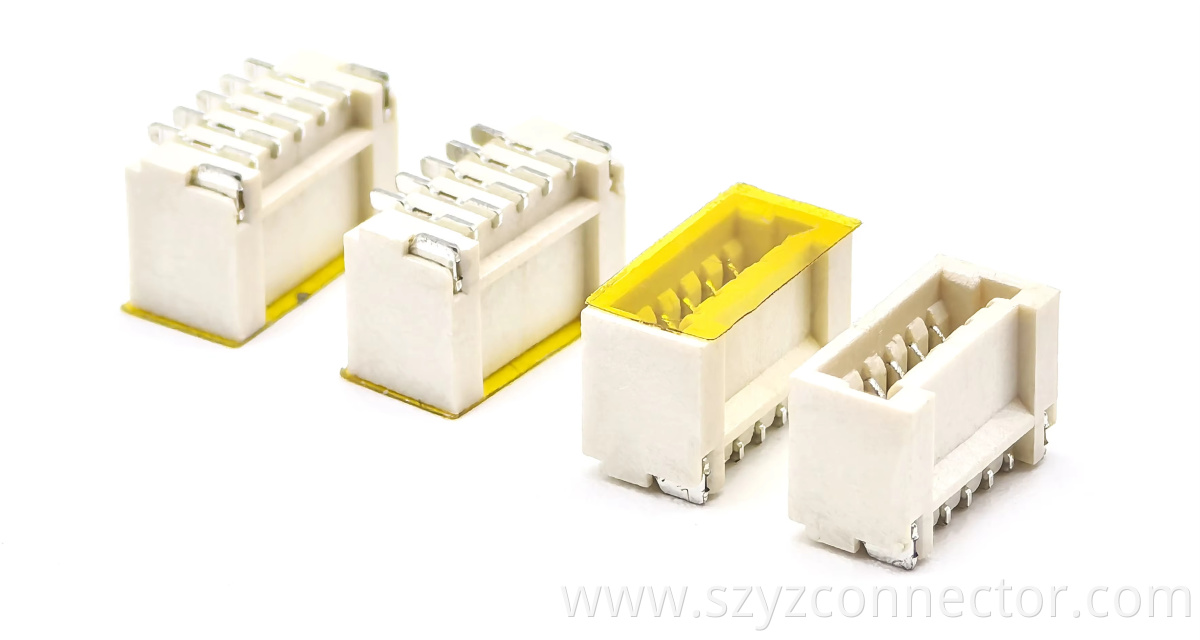

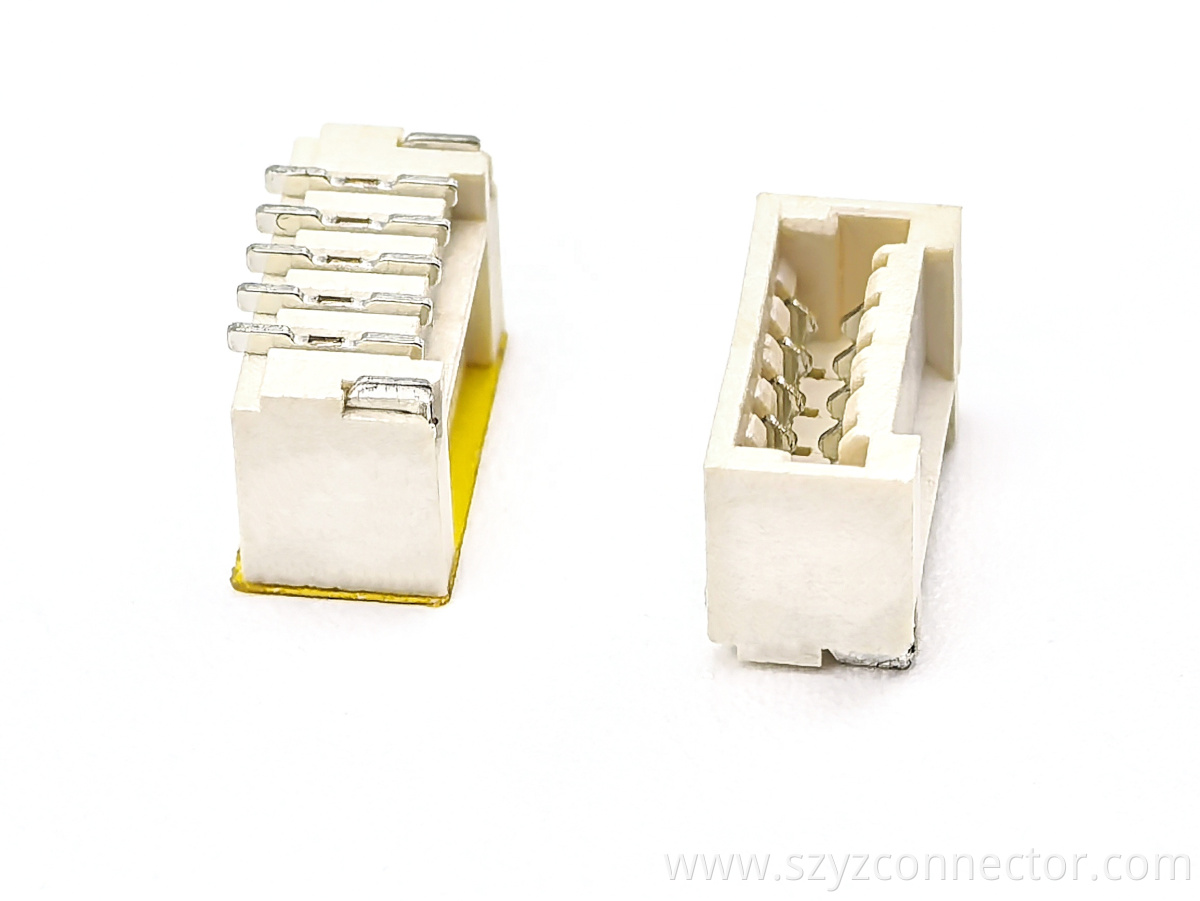

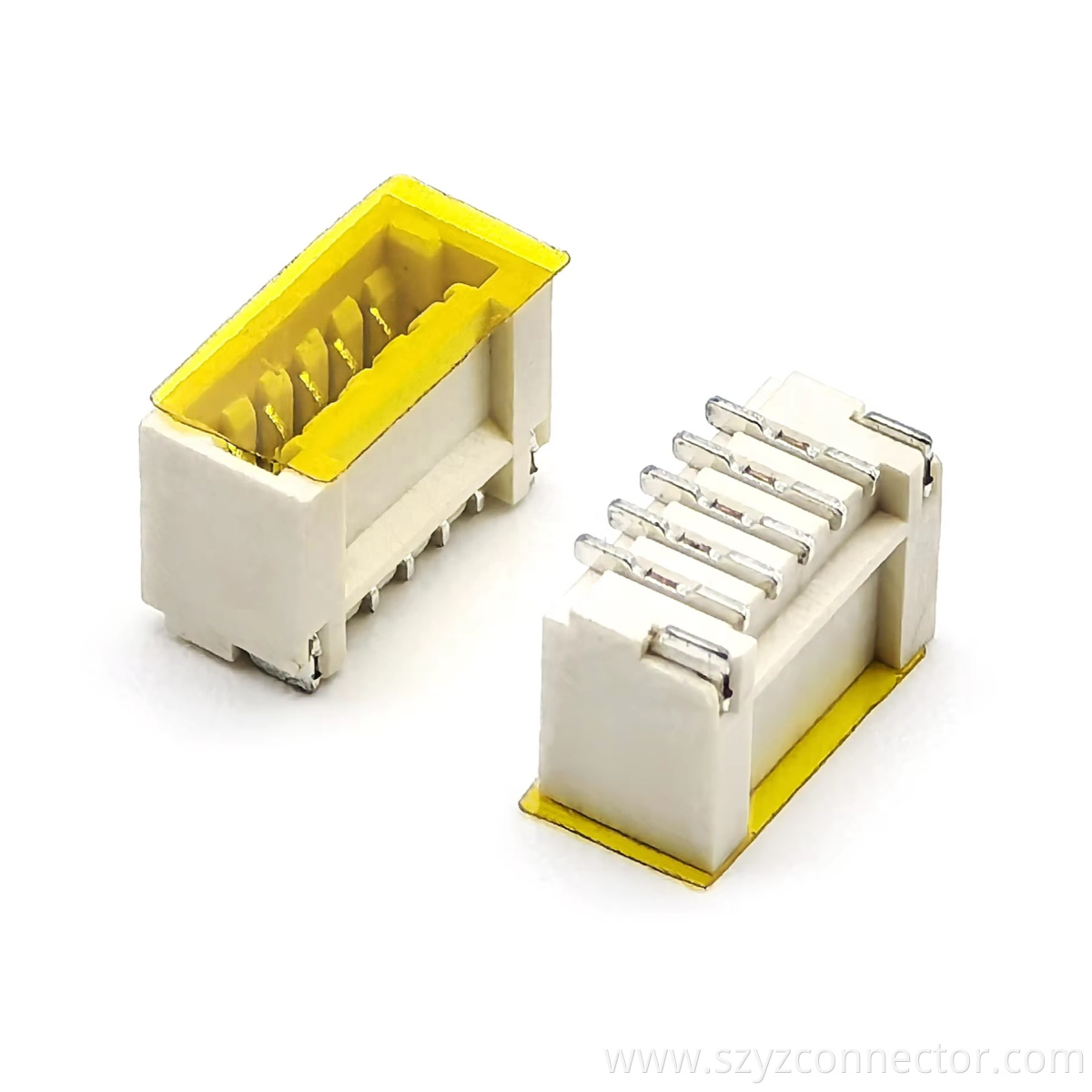

1.0mm Pitch Wafer Vertical SMT Pin header Connector 5P



Product Description

In an era where every millimeter matters,YZTECH's 1.0mm pitch wafer vertical SMT Pin Header emerges as a game-changing solution for sophisticated PCB designs.This innovative 5-position header connector redefines space efficiency with its vertical mounting architecture,delivering exceptional performance where conventional connectors simply won't fit.The marriage of precision-engineered phosphor bronze contacts with advanced tin plating creates a reliable interface capable of handling 1A current loads at 125V,while the cutting-edge LCP insulation material ensures unwavering stability even in the most demanding thermal environments.

What truly distinguishes this Wafer Housing Terminal is its exceptional manufacturing compatibility and enduring performance.The LCP housing isn't just another plastic component-it's a meticulously formulated material that laughs in the face of soldering temperatures and mechanical stress.Combined with the resilient tin-plated phosphor bronze contacts,this Connector maintains flawless operation across a broad -25℃ to 85℃ spectrum.The reel packaging isn't merely convenient;it's a strategic advantage that transforms high-volume production into a seamless, error-resistant process,dramatically reducing assembly time while maximizing throughput efficiency.

From cutting-edge medical devices to next-generation communication systems,this wafer vertical header is empowering innovation across the technological landscape.Its miniature footprint is revolutionizing how engineers approach space-constrained applications in automotive electronics, industrial controls,and portable consumer devices. The connector's robust construction and proven performance make it the go-to choice for designers who refuse to compromise between miniaturization and reliability.
