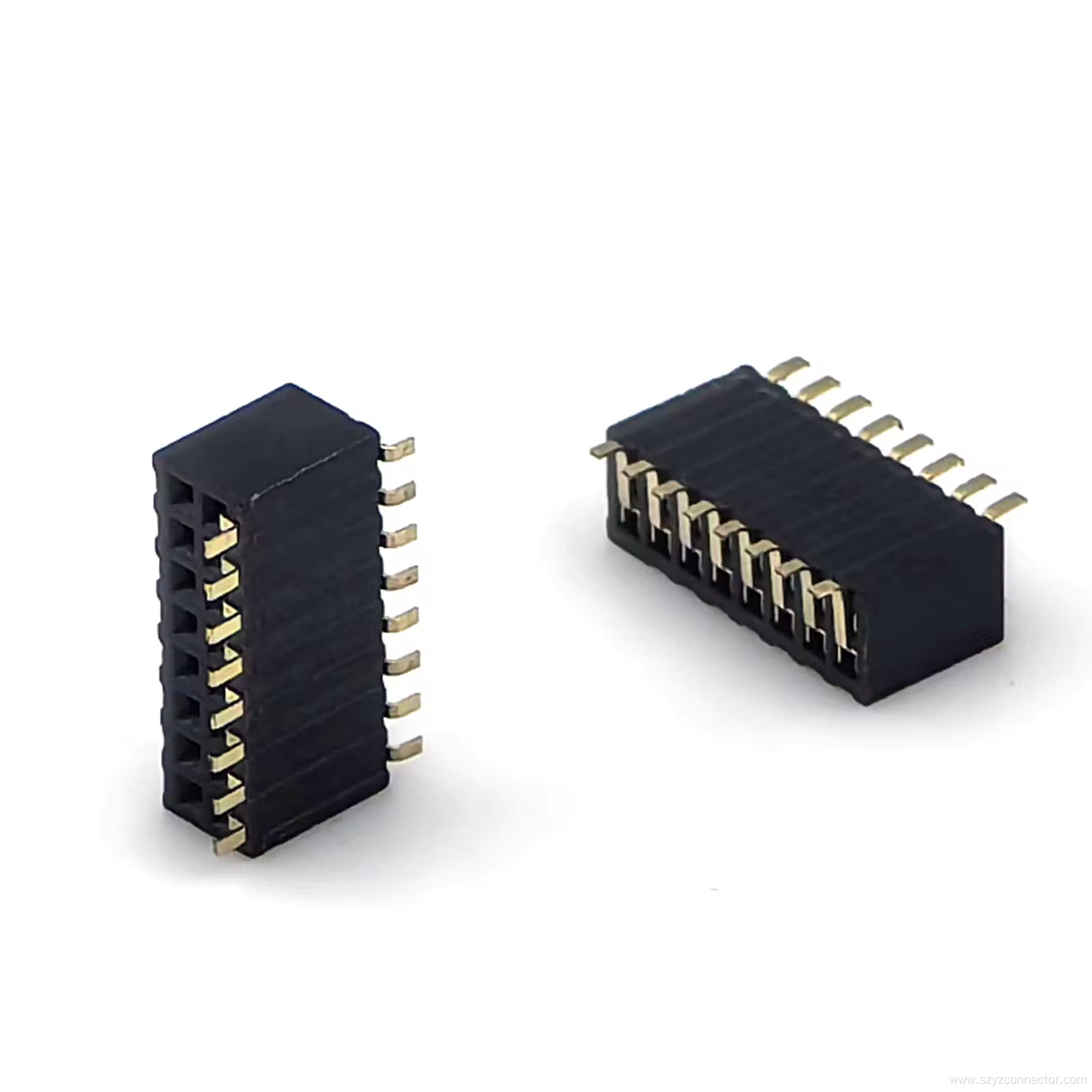

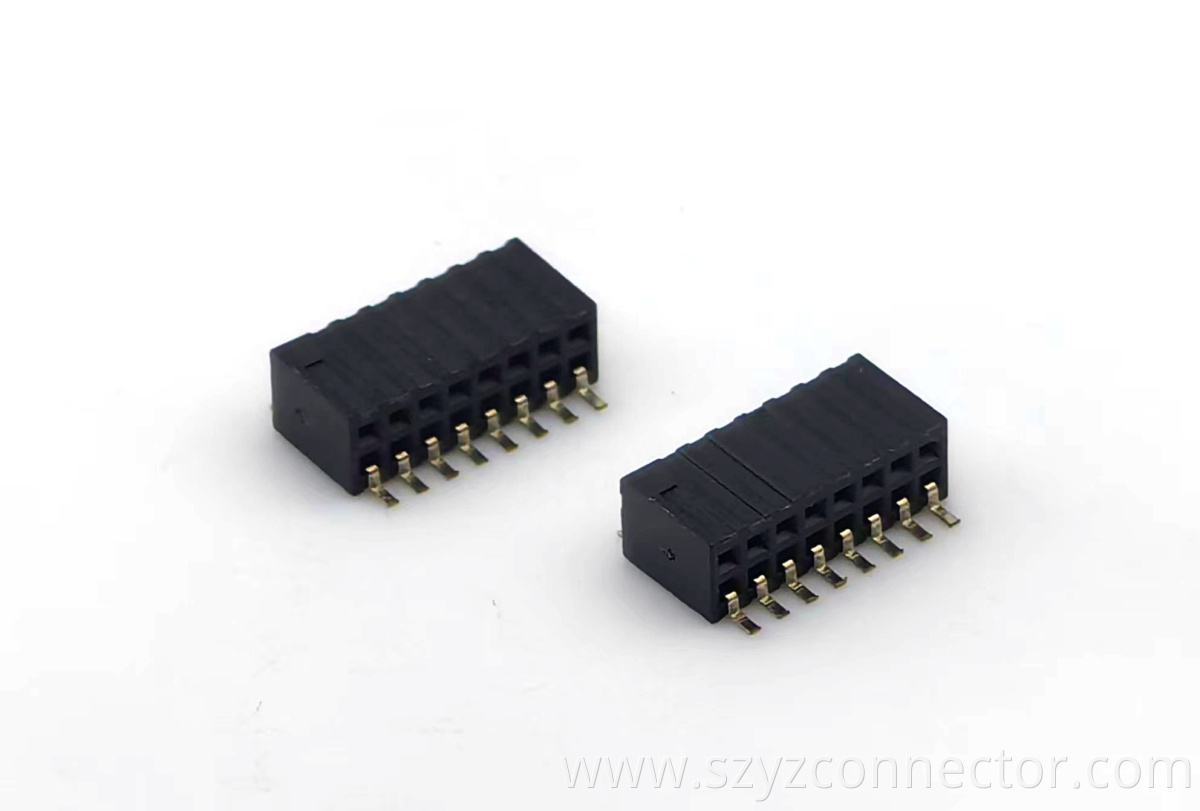

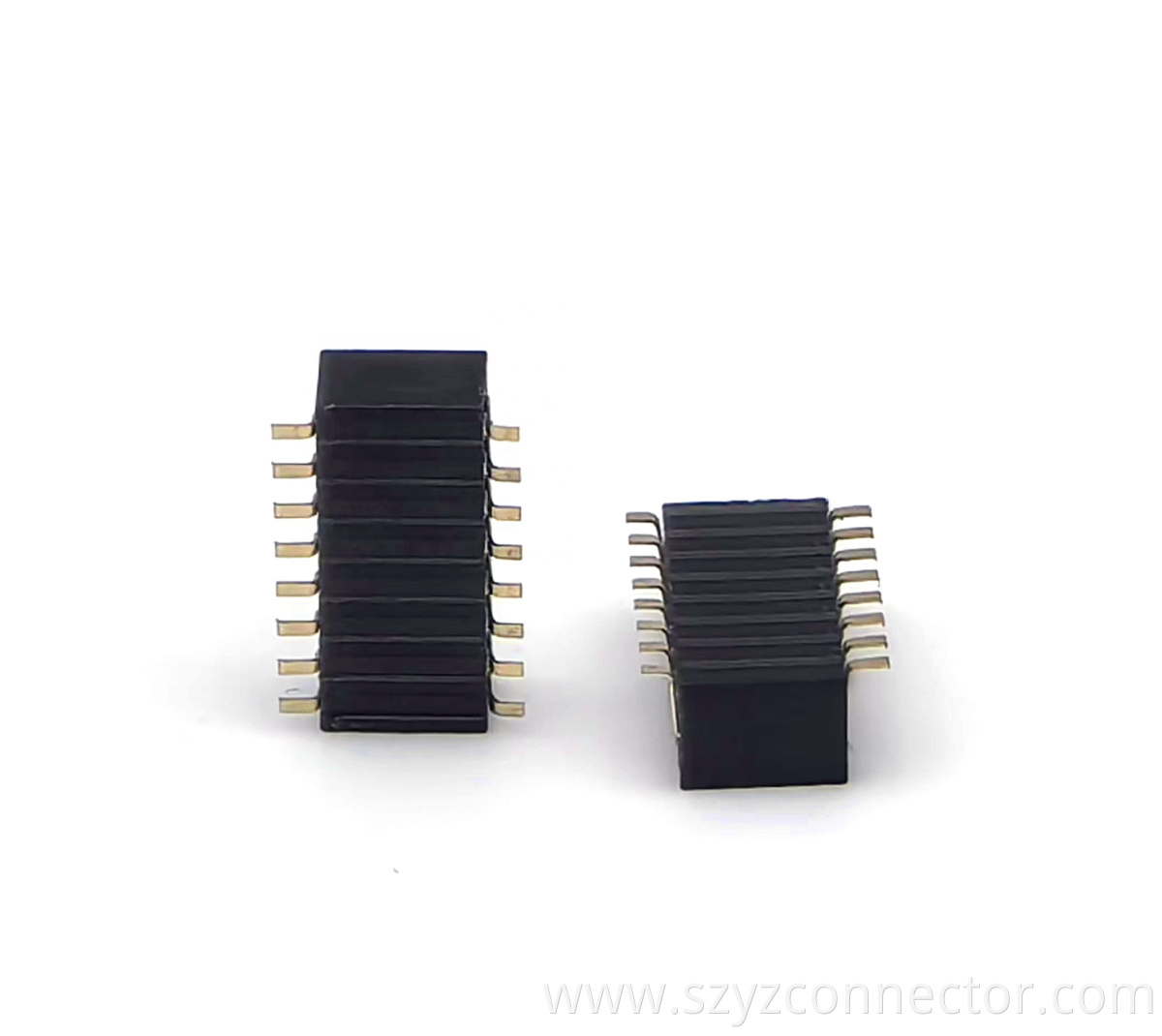

1.27mm Female Header Dual Row Side Entry

YZTECH’s 1.27mm pitch dual-row Female Header offers a compact horizontal-mount solution for space-sensitive PCB designs. With 8 pins per row arranged in a rectangular layout, this DIN-standard header connector enables reliable side-entry interconnection, ideal for applications where vertical clearance is limited. Constructed with a high-temperature PA6T housing and gold-plated brass contacts, the header maintains stable performance across an operating temperature range of -40°C to +105°C. Delivering a rated current of 1A and voltage up to 1000V, it supports both signal transmission and low-power power needs. Supplied in tube packaging, the connector is optimized for automated SMT assembly, with a maximum soldering resistance of 220°C for 10 seconds.



Designed to meet rigorous industrial requirements, this horizontal-mount female header ensures low contact resistance and high insulation performance, critical for maintaining signal accuracy in high-density electronic layouts. The gold-plated contacts provide oxidation resistance, supporting repeated mating cycles without degradation.The PA6T material delivers strong mechanical stability, flame retardancy, and resistance to thermal cycling.



Ideal for use in telecommunications equipment, industrial control systems, embedded computing, and portable medical devices, this side-entry header meets the growing demand for miniaturized yet robust interconnects. Its low-profile horizontal footprint makes it suitable for networking hardware, IoT gateways, and automotive control modules where space optimization is essential. Compatible with pick-and-place automation and reflow soldering processes, YZTECH’s 1.27mm Female Header streamlines high-volume manufacturing while ensuring long-term reliability.By combining precision engineering with broad compatibility,it serves as a dependable solution for global developers designing next-generation electronic products.
