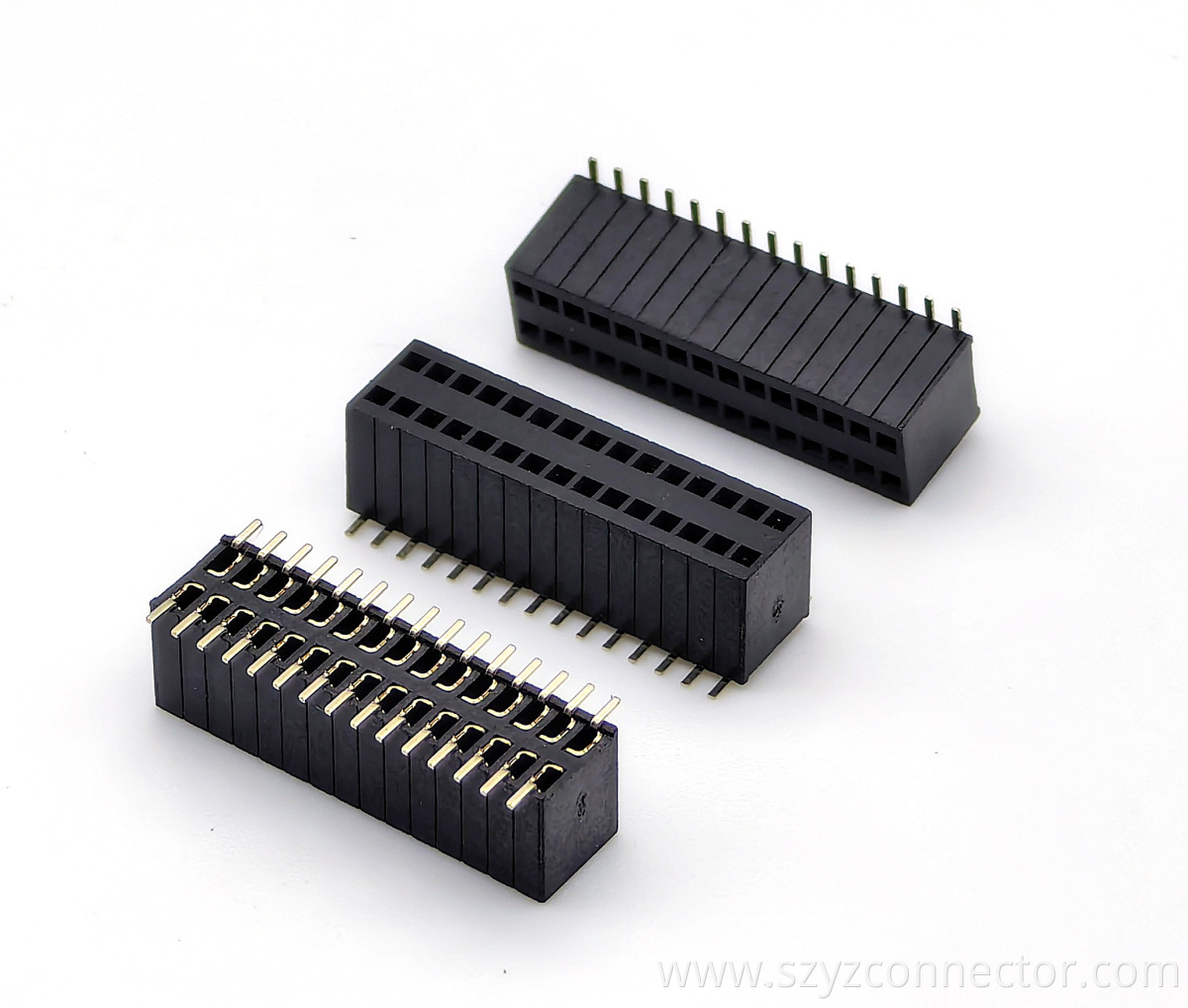

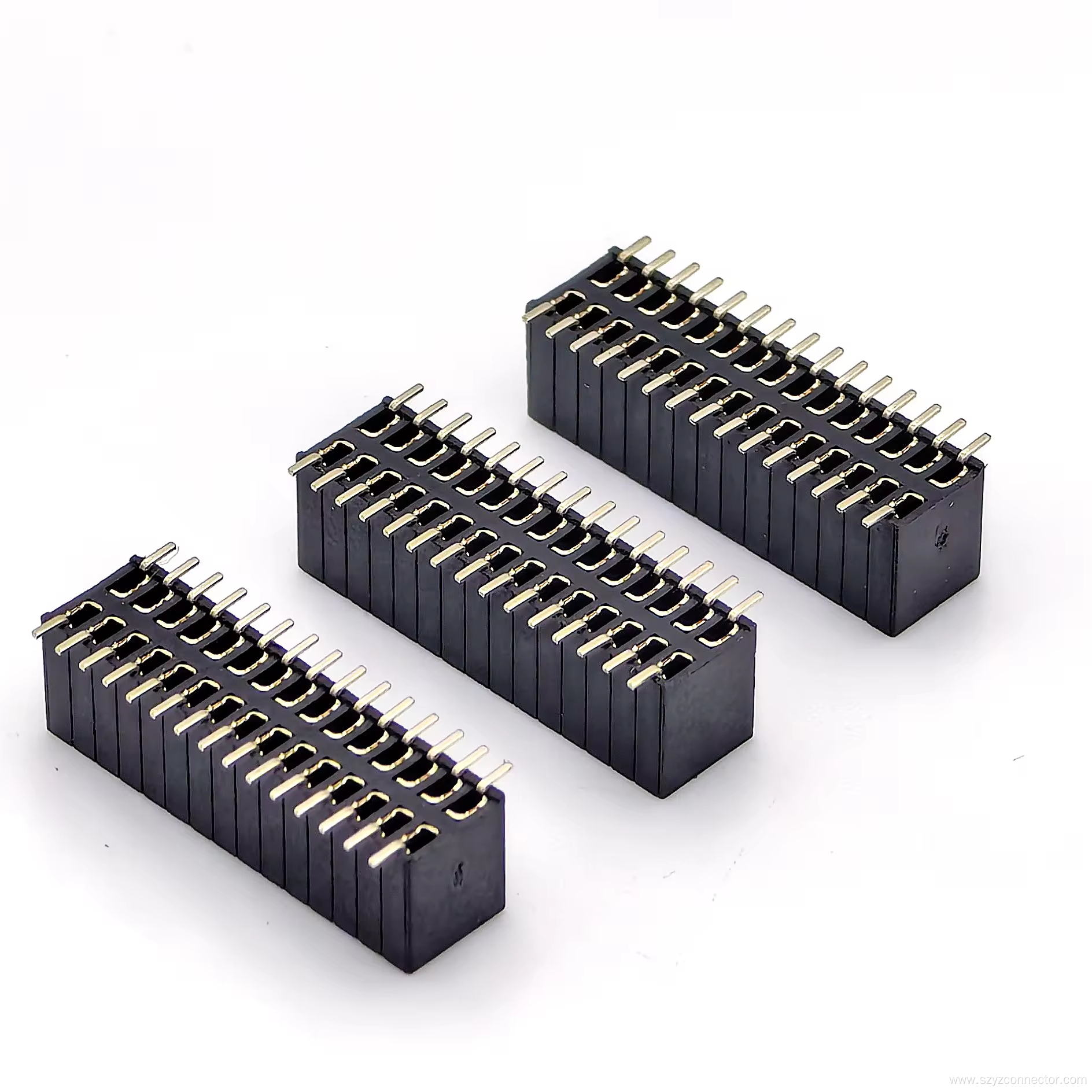

1.27mm Female Header SMT U-type

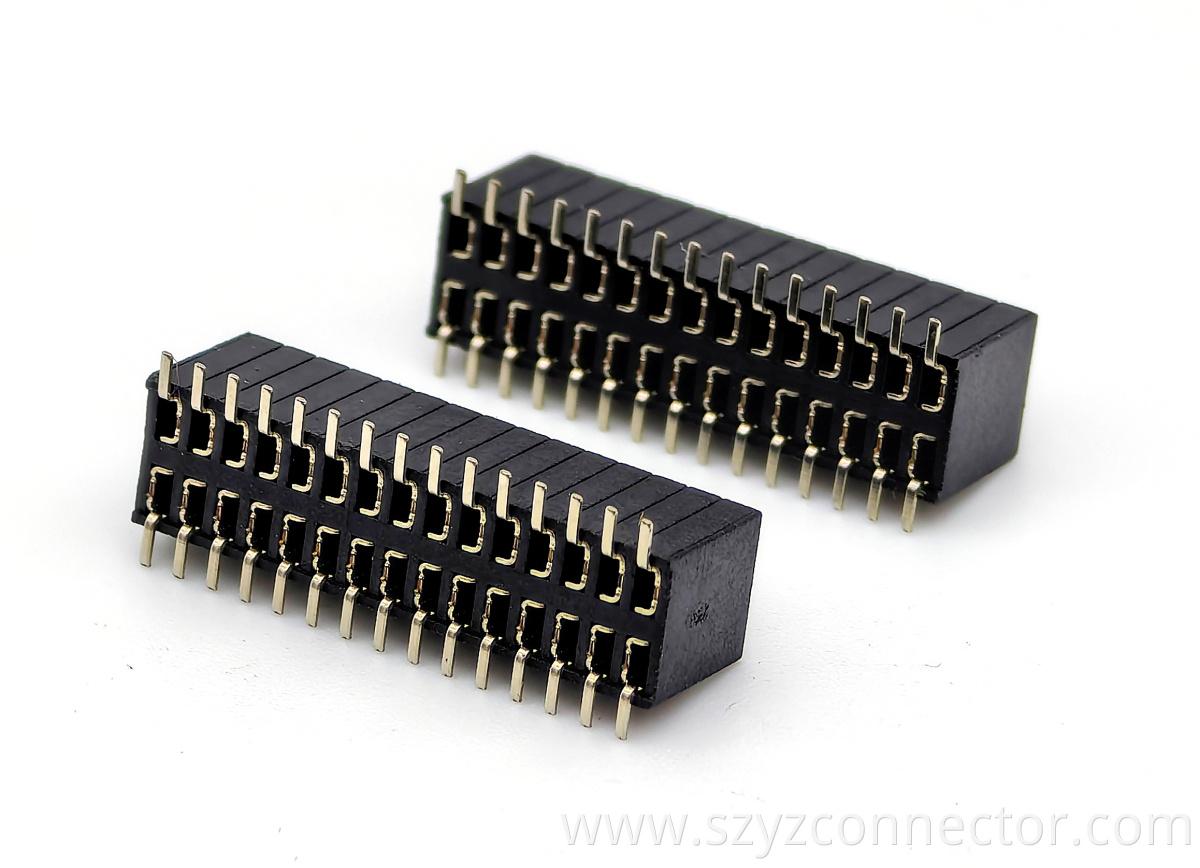

YZTECH proudly offers its innovative 1.27mm pitch Female Header, featuring a dual-row, 30-pin U-type configuration engineered for vertical surface-mount technology applications.This DIN-standard Connector excels in PCB integration,delivering a compact rectangular profile that optimizes space in high-density electronic assemblies.Designed with reliability at its core,it ensures effortless vertical mounting for seamless circuit board connections,making it ideal for industrial automation,consumer electronics,and telecommunications equipment.The female gender design guarantees secure mating,while its robust construction supports consistent performance in demanding environments, enhancing overall system efficiency.

This header connector boasts a 1A current rating and 300V voltage capacity,ensuring safe and stable power transmission.Contacts are crafted from premium brass with half-gold tin plating,providing superior electrical conductivity, oxidation resistance,and long-term durability.The insulating colloidal material utilizes PA6T for exceptional thermal stability and mechanical strength,capable of withstanding temperatures from -40°C to 105°C.For assembly,it endures maximum welding temperatures of 220°C for 10 seconds without degradation,ensuring reliable soldering processes.With 15 pins per row in a dual-row setup,the U-type structure facilitates precise alignment and reduced insertion force, minimizing installation errors.

Packaged in convenient tubes for easy handling and inventory management,this 1.27mm Female Header streamlines PCB manufacturing workflows.It is tailored for global trade, meeting rigorous industry standards for vertical SMT installations in automotive,medical devices,and IoT applications.Key benefits include enhanced space savings,corrosion resistance for extended lifespan,and compliance with DIN specifications for interoperability.
