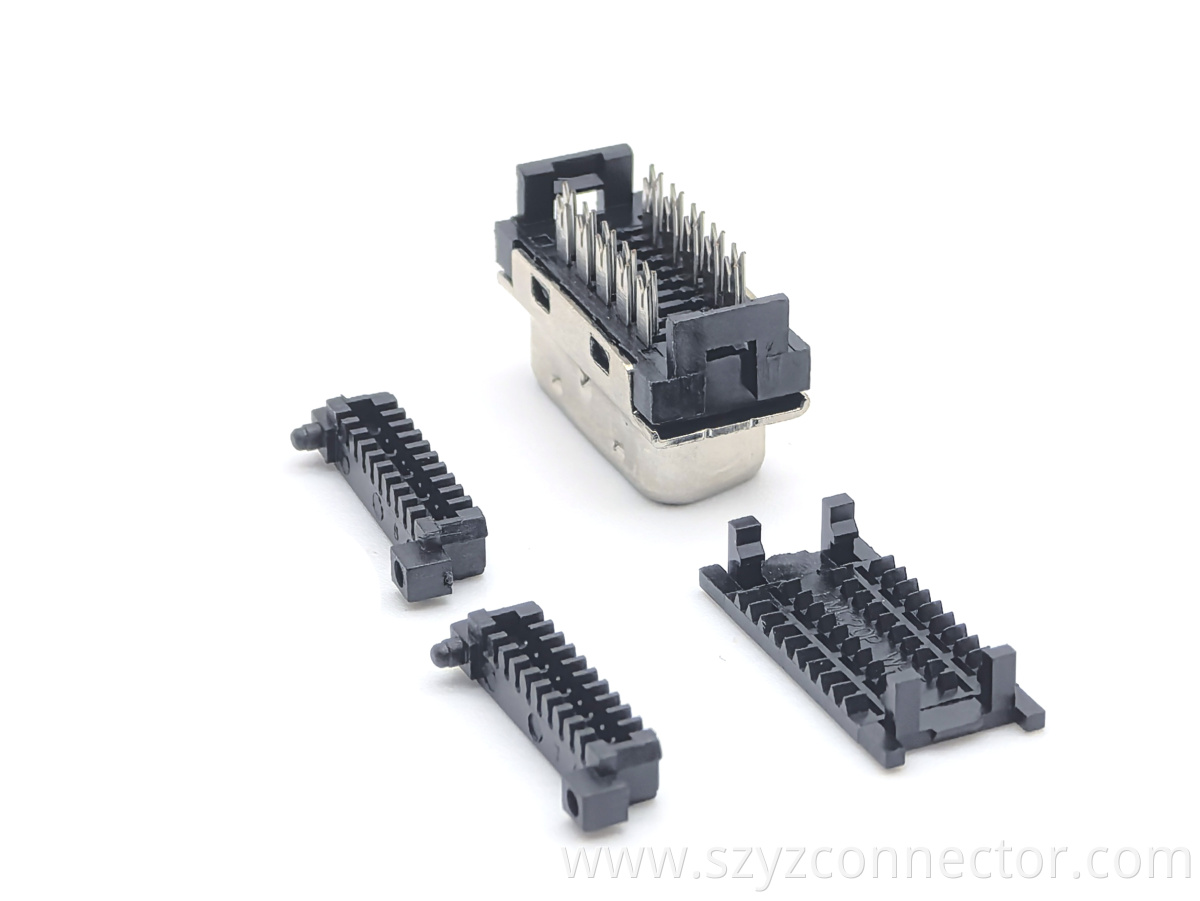

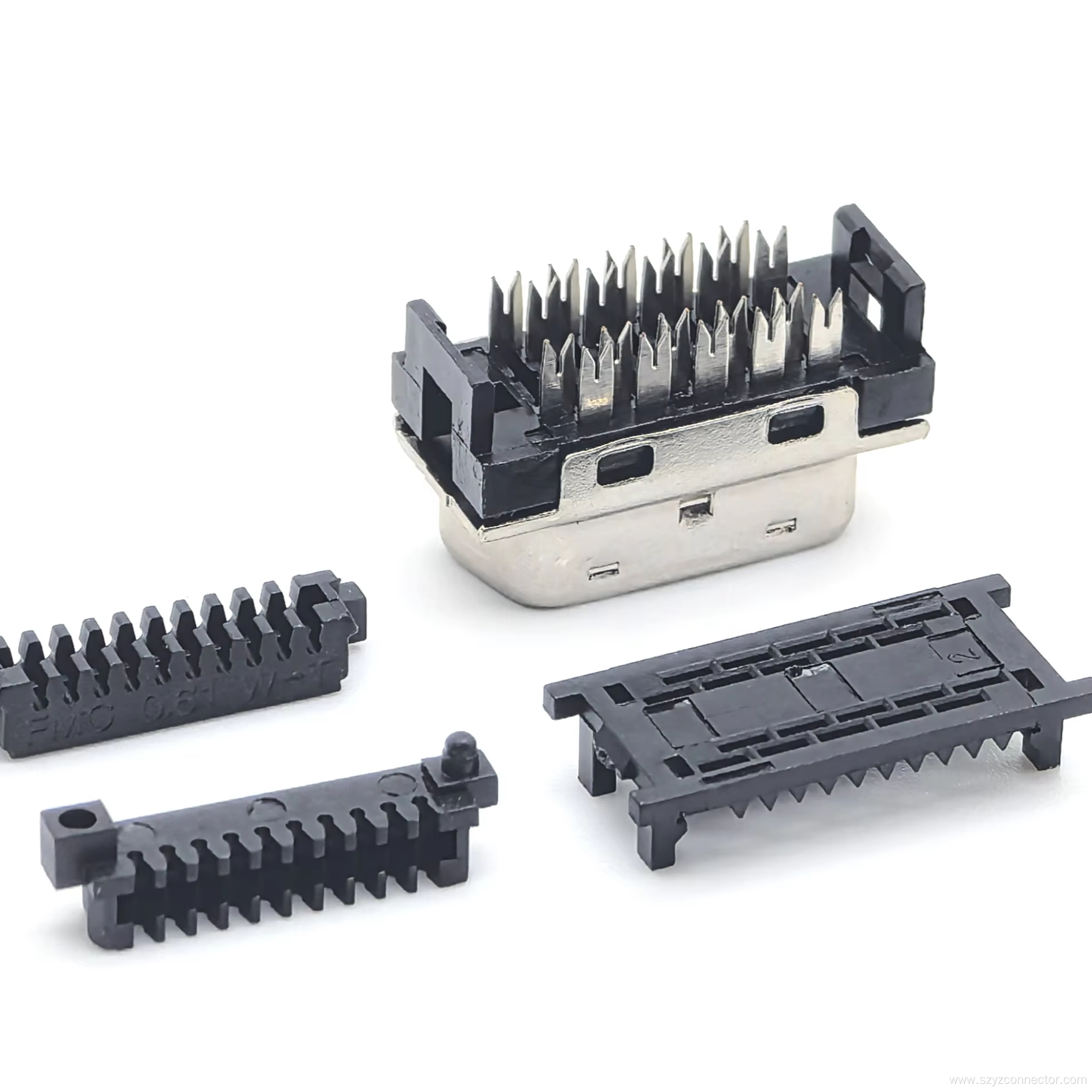

Name: 1.27mm Pitch SCSI IDC-type Female Four Assembly Parts Connector 2*10P
Uploaded: 2025-09-22T08:11:53+08:00
Description: YZTECH's 10P dual-row DIN female header IDC connector redefines reliability in PCB applications with its

Get Latest Price

Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean,Air,Express,Others

Option:

Black 2-core 20P

Contact Now

Product Description

Product Attributes

Model No.: FMC20M/M Main Body + Beading 0.62mm 5U"

Brand: YZTECH

Place Of Origin: China

Application: Pcb

Contacts: 20p

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

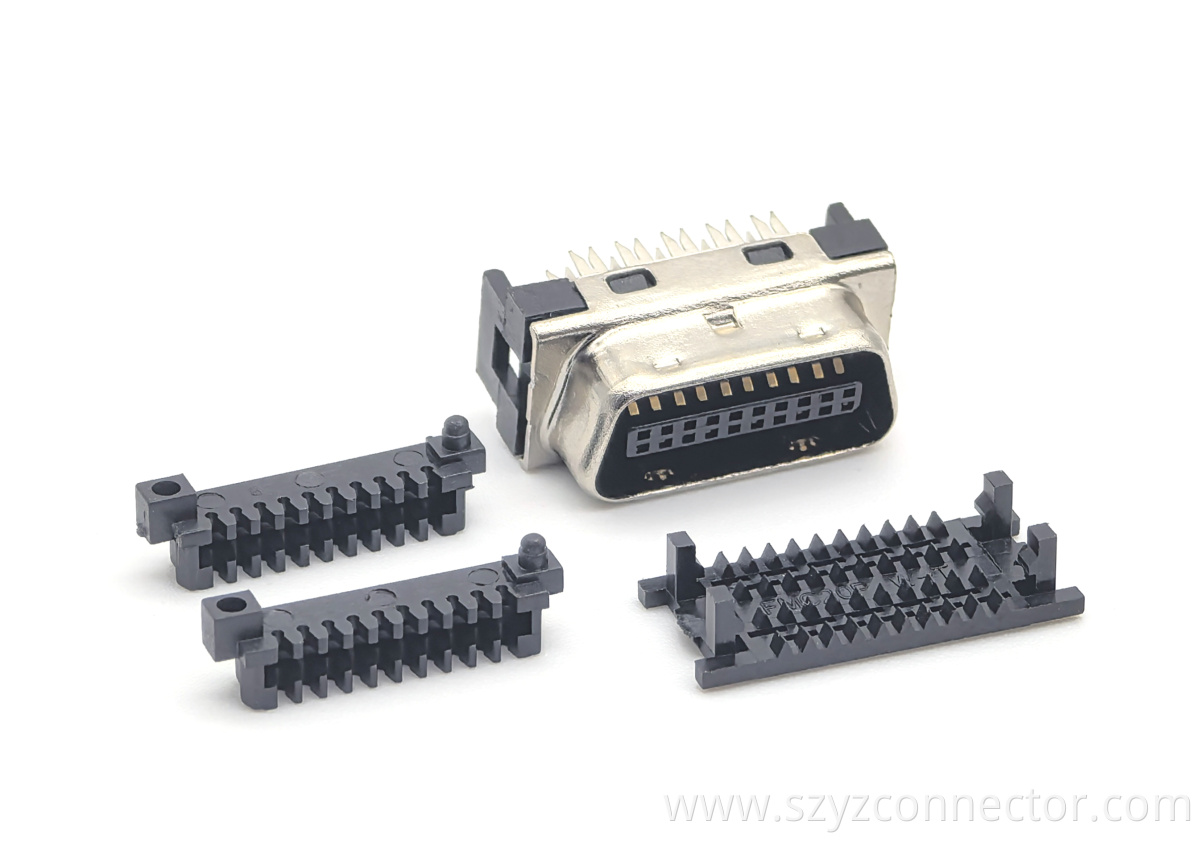

1.27mm Pitch SCSI IDC-type Female Four Assembly Parts Connector 2*10P



Product Description

YZTECH's 10P dual-row DIN Female Header IDC Connector redefines reliability in PCB applications with its precision-engineered 1.27mm pitch design.Crafted from superior phosphor bronze contacts and nylon colloidal material,this rectangular header connector ensures optimal signal integrity under demanding conditions.The nickel-plated steel contact coating enhances corrosion resistance while maintaining a 0.5A rated current and 500V AC voltage tolerance.Engineered for industrial environments,its operating temperature resilience spans -55°C to +85°C,ensuring consistent performance across extreme climates.This connector’s female gender design guarantees secure mating with male header counterparts, reducing connection failures in high-vibration applications.

The YZTECH connector distinguishes itself through meticulous material selection and structural design.Phosphor bronze contacts provide exceptional elasticity and conductivity, minimizing contact resistance below 10mΩ as per IEC 60512 standards.The nylon housing offers superior insulation and UL94 V0 flammability rating,ensuring safety in flame-prone environments.Beyond PCB applications,this YZTECH 1.27mm IDC connector excels in automotive electronics,industrial automation, and consumer devices.Its 500 mating cycles durability and ±0.7mm pitch tolerance accommodate manufacturing tolerances, reducing assembly errors.The nickel-plated steel coating withstands soldering processes without degrading, ensuring long-term mechanical stability.Each connector undergoes 100% electrical testing and visual inspection to meet ISO 9001 quality standards.The box packaging optimizes inventory management and shipping protection,while the ROHS certification guarantees compliance with EU environmental directives.
