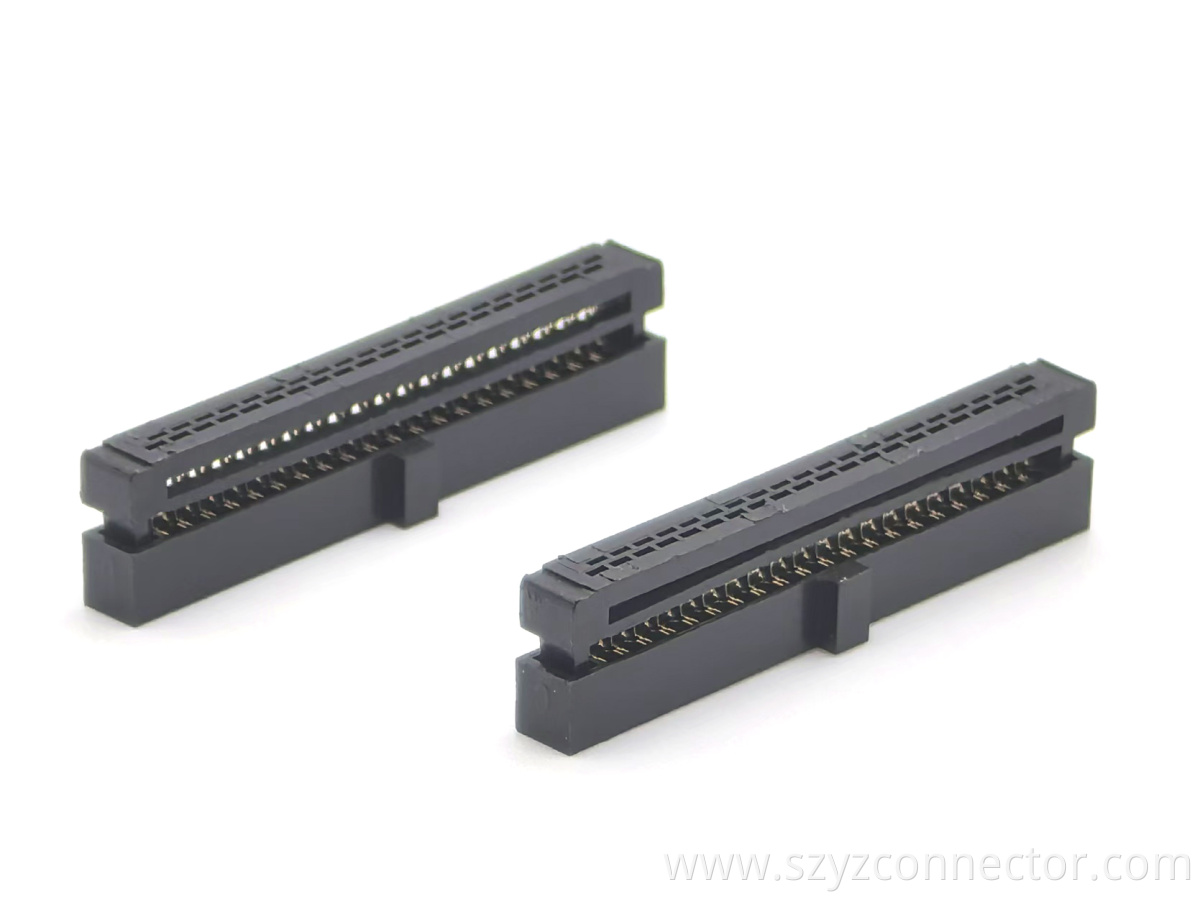

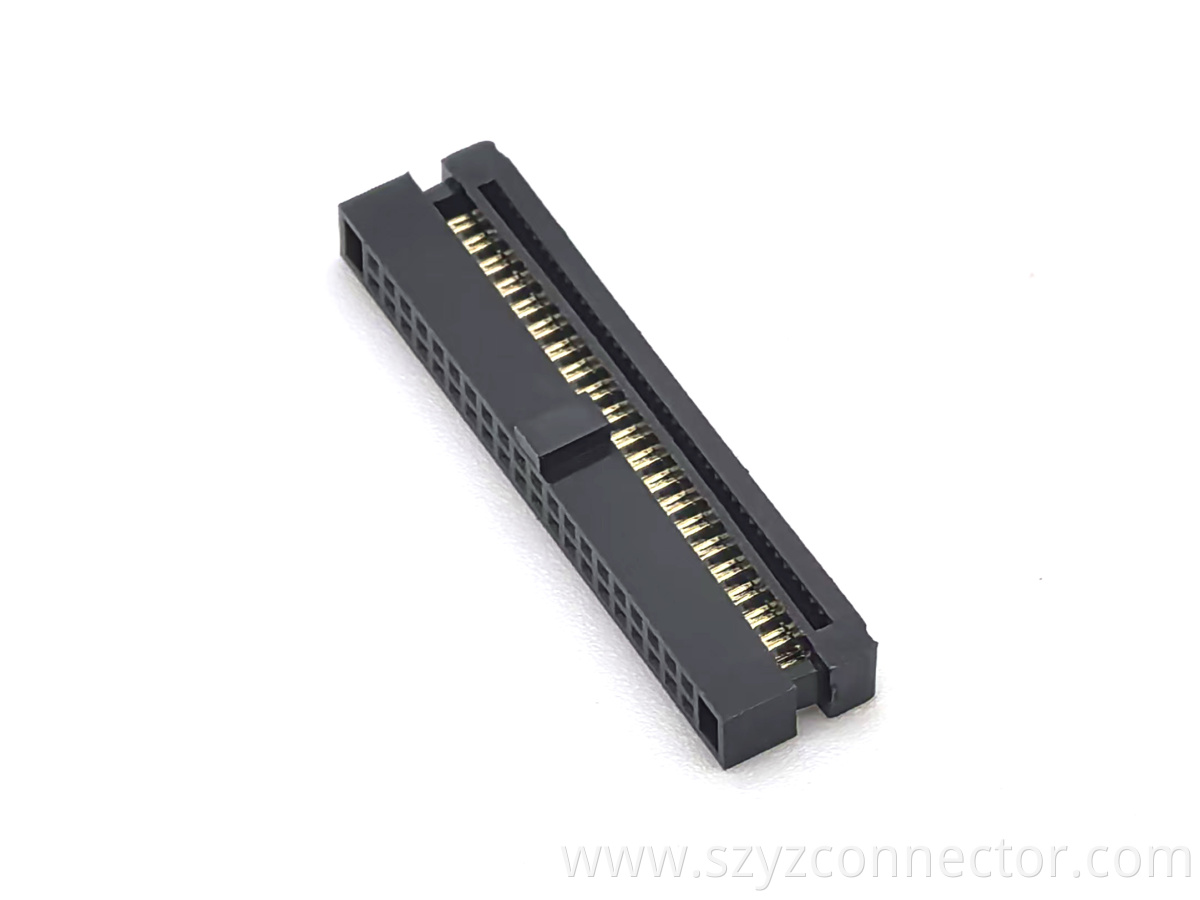

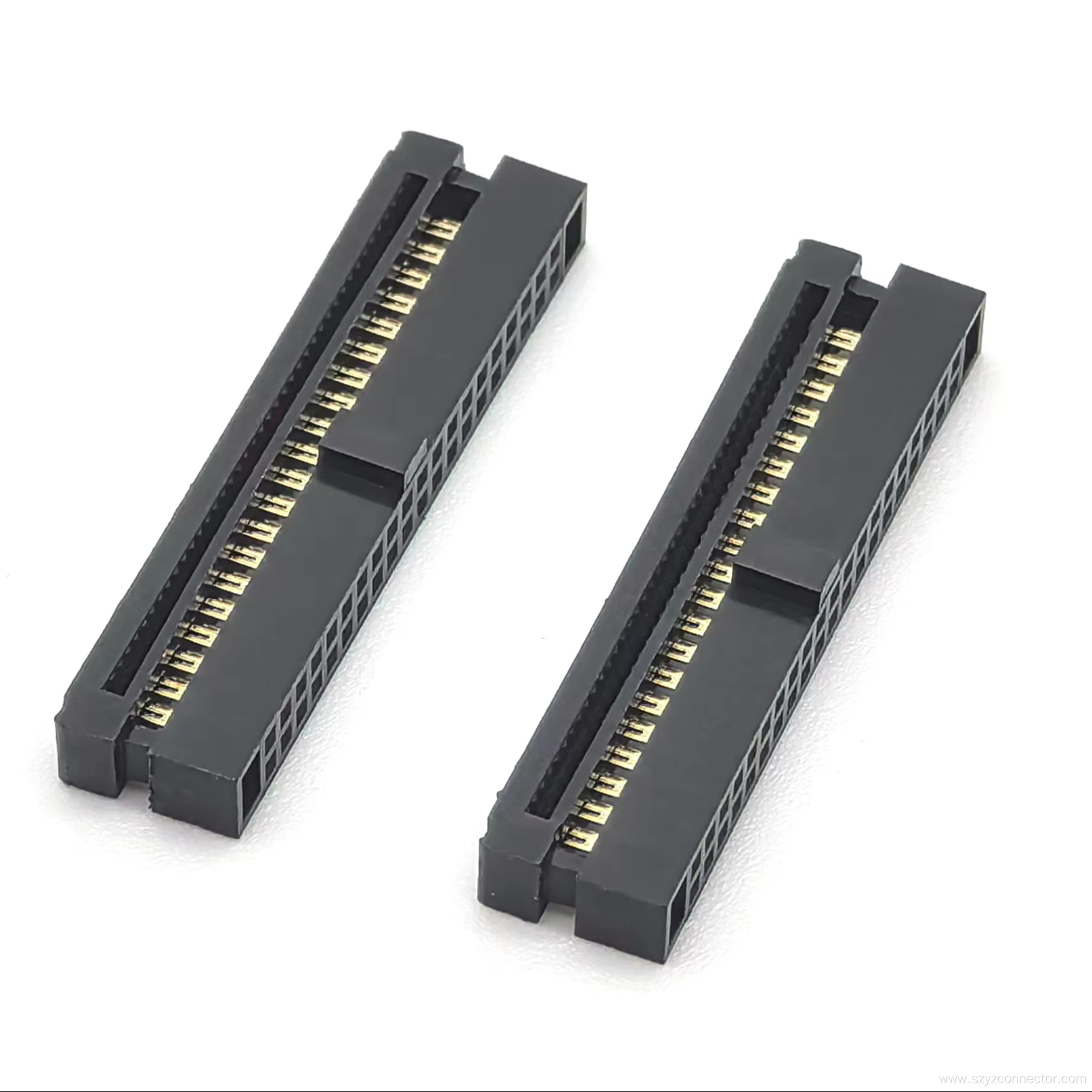

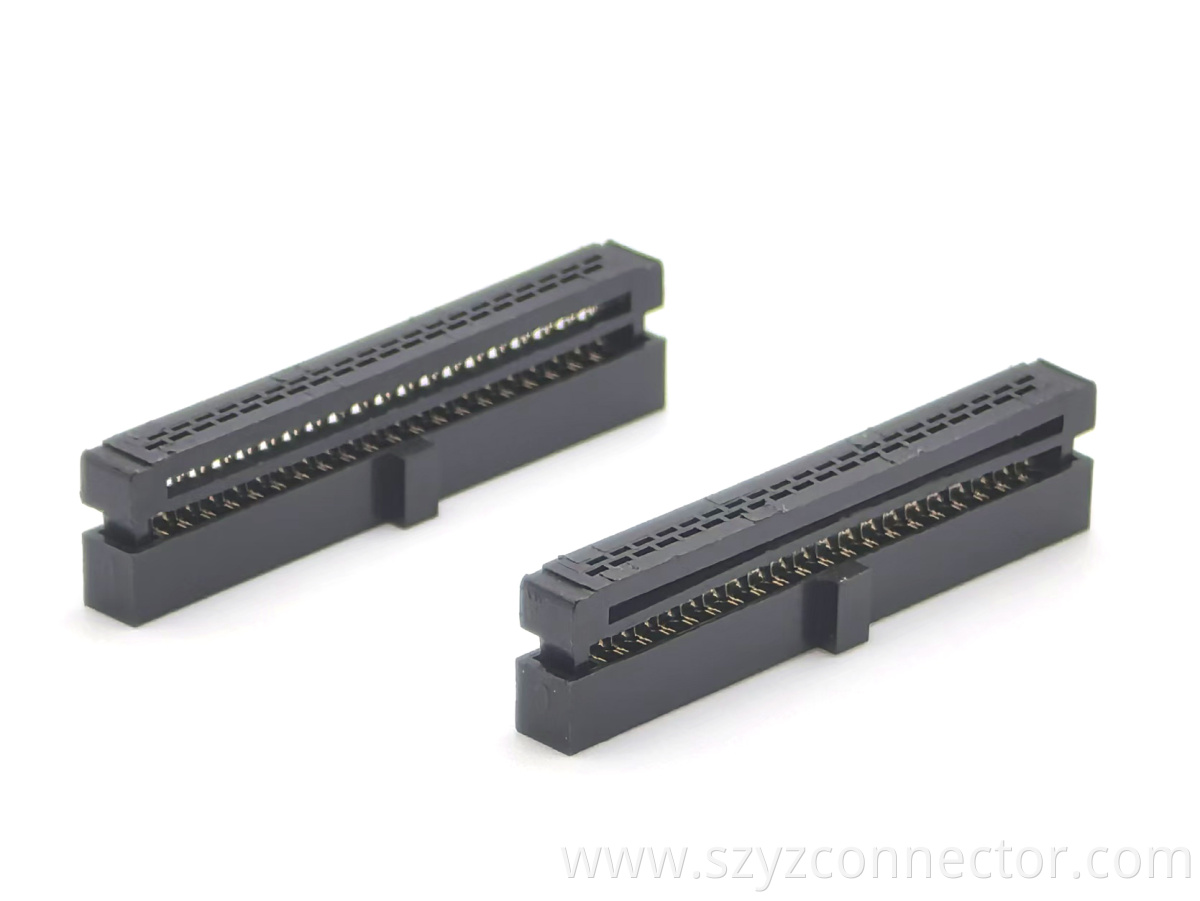

1.27*1.27mm Pitch IDC Socket Connector

YZTECH introduces high-performance 1.27mm IDC Connectors,engineered for efficient and reliable ribbon cable termination.This dual-row female IDC Header Connector features a compact 20-pin-per-row design,offering a total of 40 positions in a space-saving rectangular profile.The header connector utilizes precision-molded black plastic housing for superior insulation and visual contrast,while the contacts are crafted from phosphor bronze with a durable gold plating.This material combination ensures excellent elastic properties,low insertion force,and a stable electrical connection rated for 1A current and 500V voltage,maintaining performance across an operating temperature range of -40℃ to +105℃.



Designed for streamlined assembly,this connector leverages Insulation-Displacement Contact  technology,which allows for rapid,tool-termination of ribbon cables without the need for pre-stripping.This method significantly reduces wiring time and labor costs while ensuring consistent and reliable connections.The straight plug mounting style provides a robust mechanical bond to the PCB,enhancing the assembly's overall structural integrity against shock and vibration.The product is supplied in a convenient 2-piece set within secure tube packaging,facilitating easy handling and inventory management,and is certified by UL,affirming its compliance with stringent international safety and quality standards.



Ideal for internal wiring within compact electronic systems,this IDC Connector is perfectly suited for data communication equipment,industrial control modules,test and measurement instruments.Its gold-plated phosphor bronze contacts guarantee a low-resistance,oxidation-resistant interface critical for signal integrity,while the UL certification offers peace of mind for global market access.
